Bristan SL20T180A 3/4" Flow Cartridge - Half Turn for BUZ SHXDIVCTFF C/FZ Mixer
Send a photo of your item and we'll help confirm it.
Summary

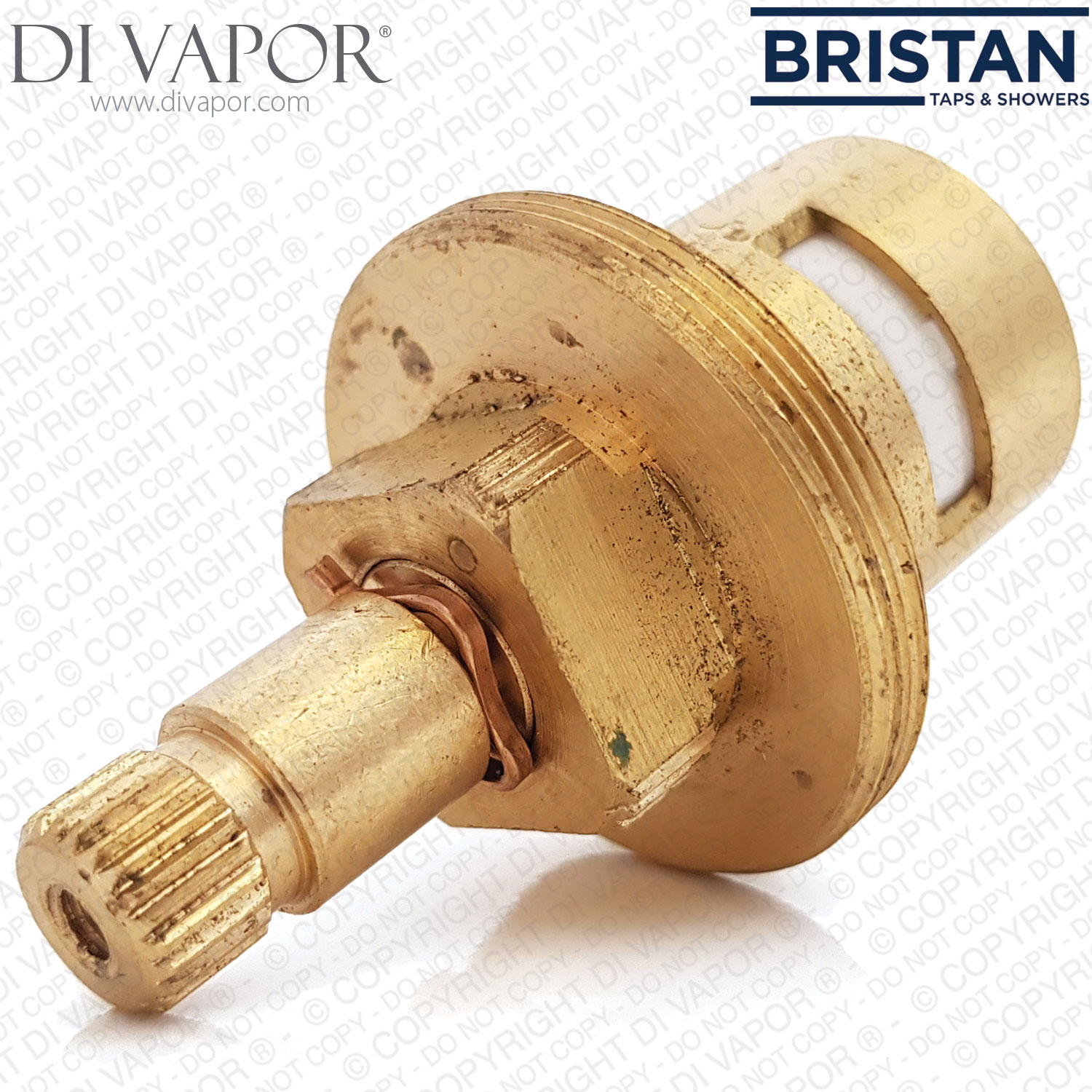

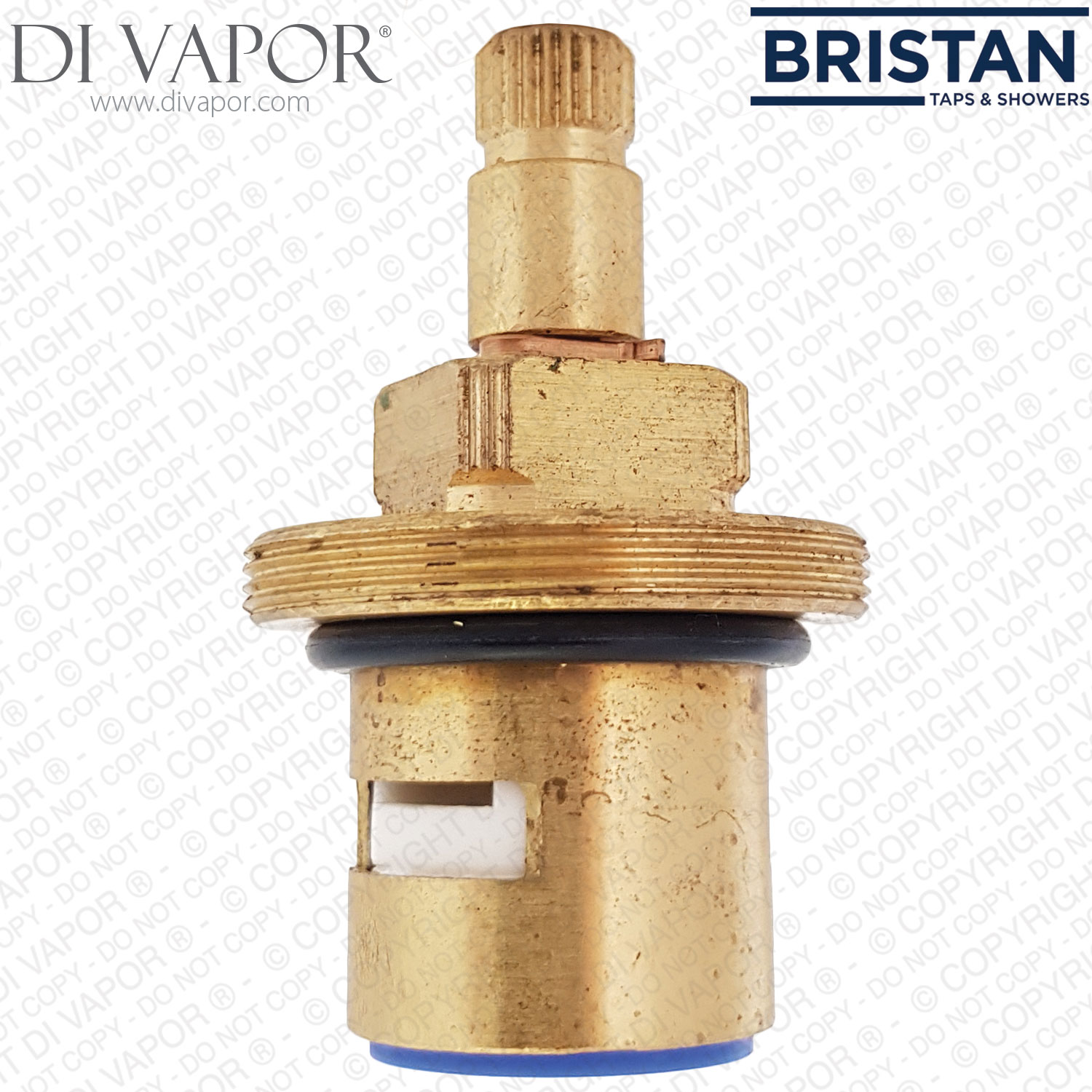

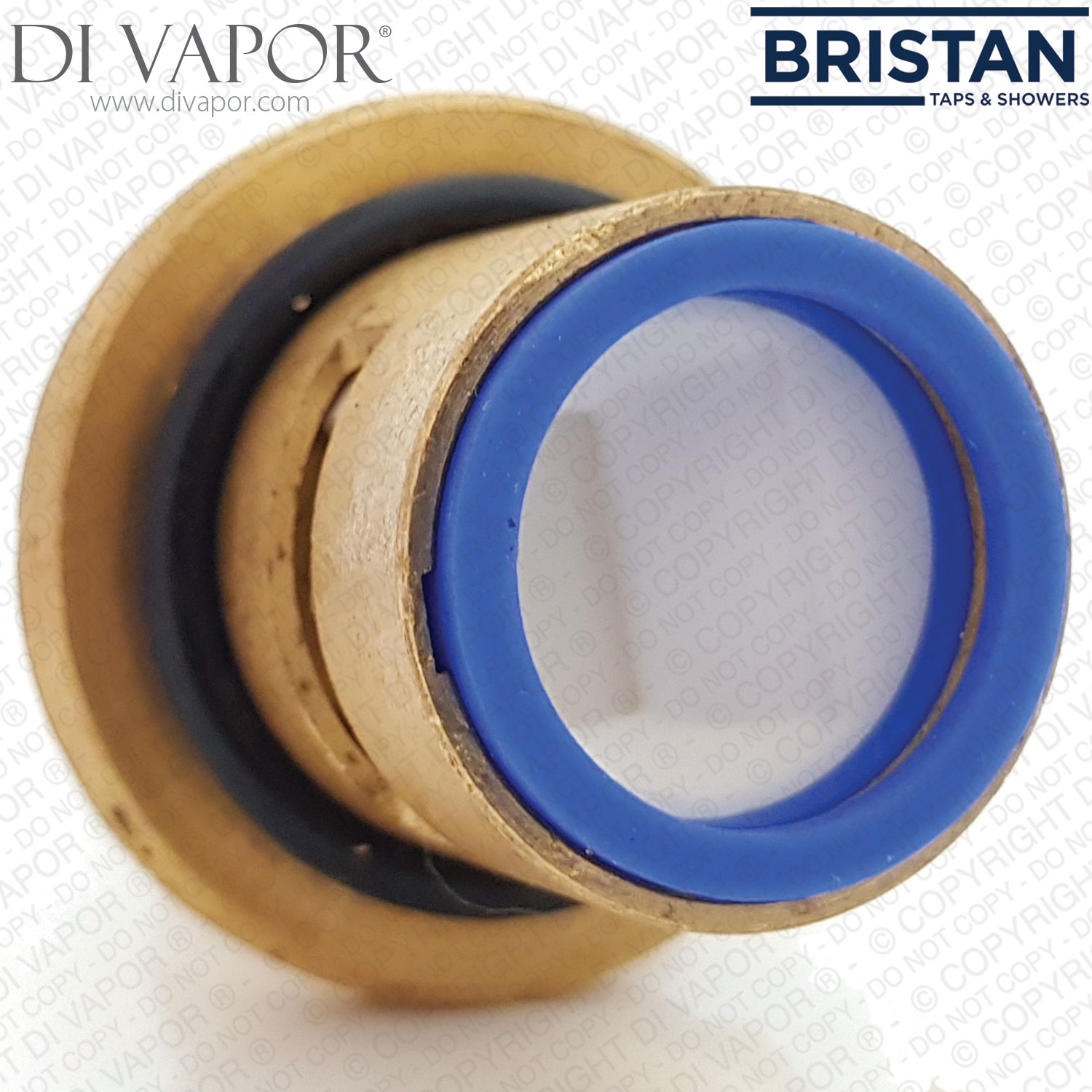

Bristan SL20T180A 3/4 Inch Flow Cartridge - 58mm length, 36mm diameter at threaded flange. Half turn.
This cartridge is used in the Bristan Buzz BUZ SHXDIVCTFF C shower bar.
Bristan SL20T180A is a 3/4 inch half turn flow cartridge for selected Bristan shower mixer valves. It is used to control water flow from the flow handle side of the valve and is listed for the Bristan Buzz BUZ SHXDIVCTFF C shower bar, with Di Vapor system pages also listing it for selected Bristan Frenzy FZ shower bar spare systems.
This is the flow on/off cartridge, not the thermostatic temperature cartridge. Common signs that a flow cartridge may need checking include water continuing to pass from the shower head or handset when the shower is turned off, poor shut-off, a stiff flow handle or a loose flow control action. Always compare the removed cartridge and handle arrangement before ordering, especially on Frenzy valves where production revisions can use different flow valve parts.
Technical Details
| Part Number | SL20T180A |
|---|---|
| Part type | 3/4 inch half turn flow cartridge |
| Length | 58mm |
| Diameter at threaded flange | 36mm |
| Operation | half turn |
| Function | flow on/off control for shower mixer valves |
Confirmed Models and Systems
- Bristan BUZ SHXDIVCTFF C Buzz Exposed Valve with Rigid Riser and Diverter Spare Parts
- Bristan FZ SHXMMCTFF C Frenzy Thermostatic Bar Shower with Multi Function Handset Spare Parts
- Bristan FZ SHXVOCTFF C Frenzy Thermostatic Bar Shower Spare Parts
Ordering Check
Before ordering, confirm that the existing flow cartridge is marked or matches SL20T180A and check the valve model code where available. The 58mm length and 36mm threaded flange measurement should be used as identification checks only and should not be treated as proof of fitment on their own.
Related Spares You May Need
- Bristan TWK-25 Cooltouch Thermostatic Cartridge for Buzz Shower Bars
- TACSIL 3g Premium Cartridge Silicone Grease - WRAS Approved
- Bristan SL-9A-02 Flow Control Handle for SL20T180A Cartridge
- Bristan SL-9A-01 Temperature Control Handle for TWK-25 Cartridge
- Bristan T1M39-18 Temperature Stop Ring for TWK-25 Cartridge
- 150mm Universal Shower Hose - NXT734
- Bristan T1M39-01-3 Temperature Stop Ring for Frenzy Bar Showers
- Bristan SOS-1-06 Handle Cap for Frenzy SHXVOCTFF/SHXSMCTFF Chrome
- Bristan T1M39F-04 Valve Lock Nut for Frenzy SHXVOCTFF/SHXSMCTFF Shower Bars
- Bristan WMNT10 C Wall Mount Fixing Kit Spare Parts
- Bristan 1F00124CP Shroud for WMNT10 Chrome
