Bristan Prism VLV 24809 Cold Flow Control Cartridge Replacement Valve - 1/2 Inch, 20 Spline - BR-PR234
Send a photo of your item and we'll help confirm it.
Summary
Bristan Prism VLV 24809 Cold Flow Control Cartridge Replacement Valve - 1/2 Inch, 20 Spline - Compatible Cartridge - BR-PR234

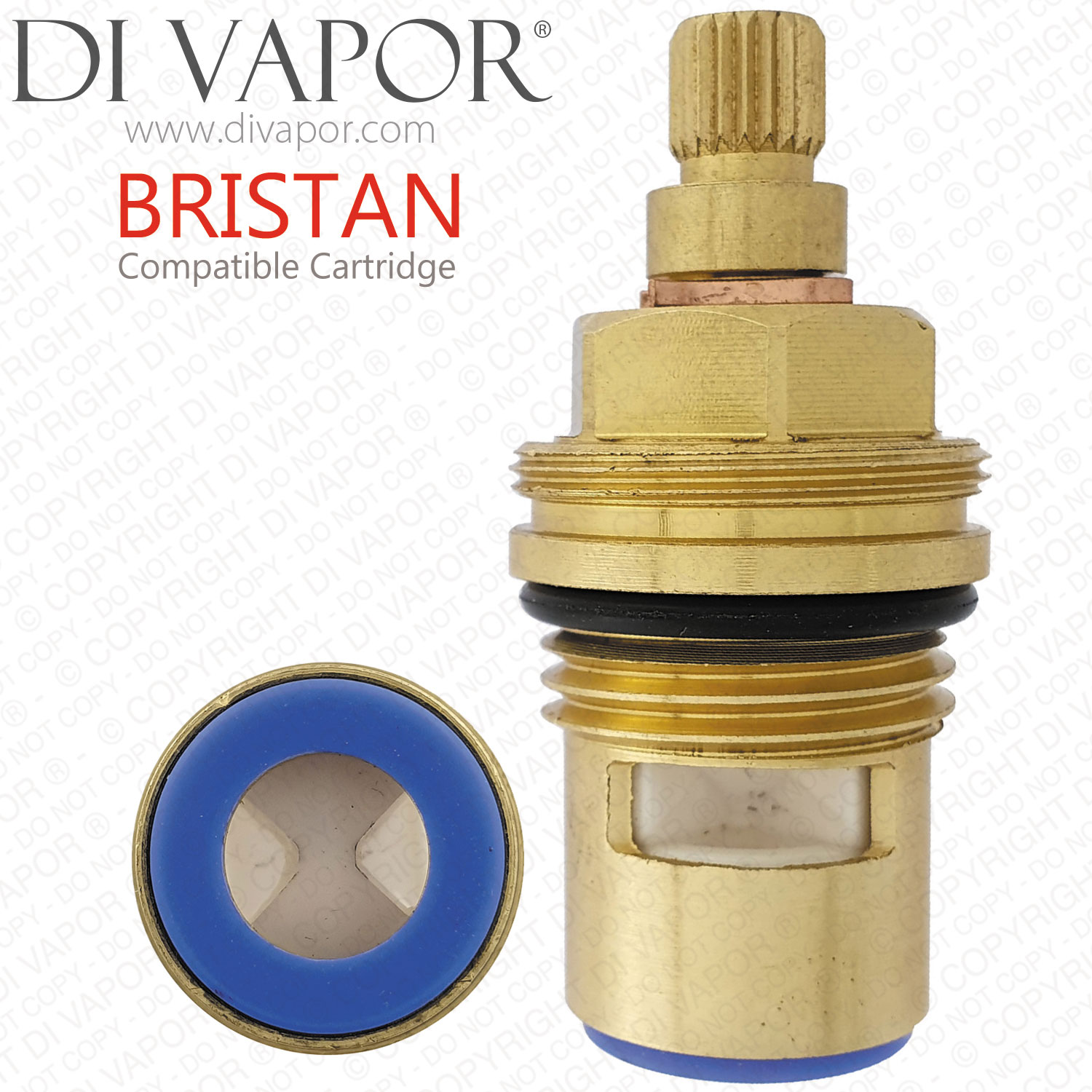

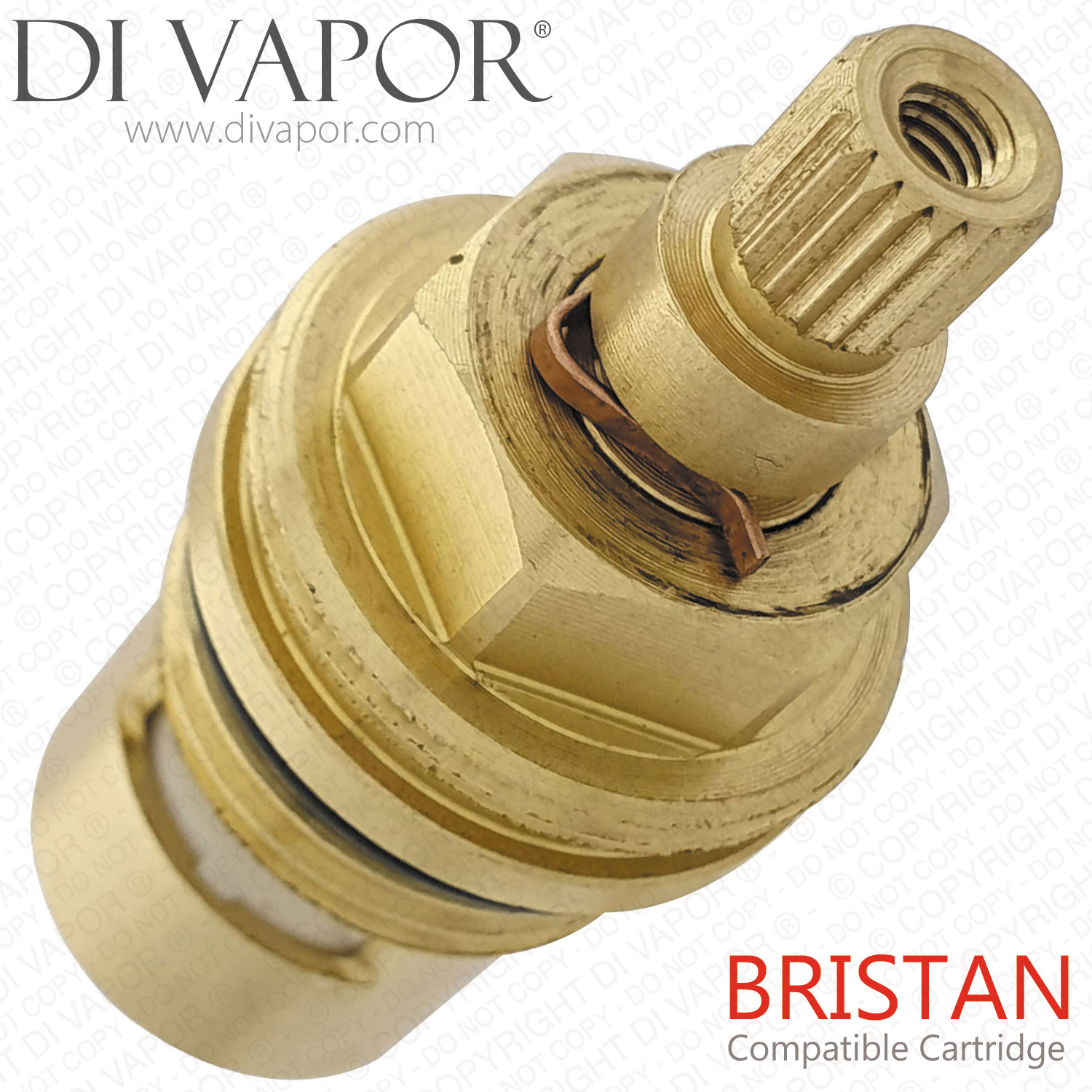

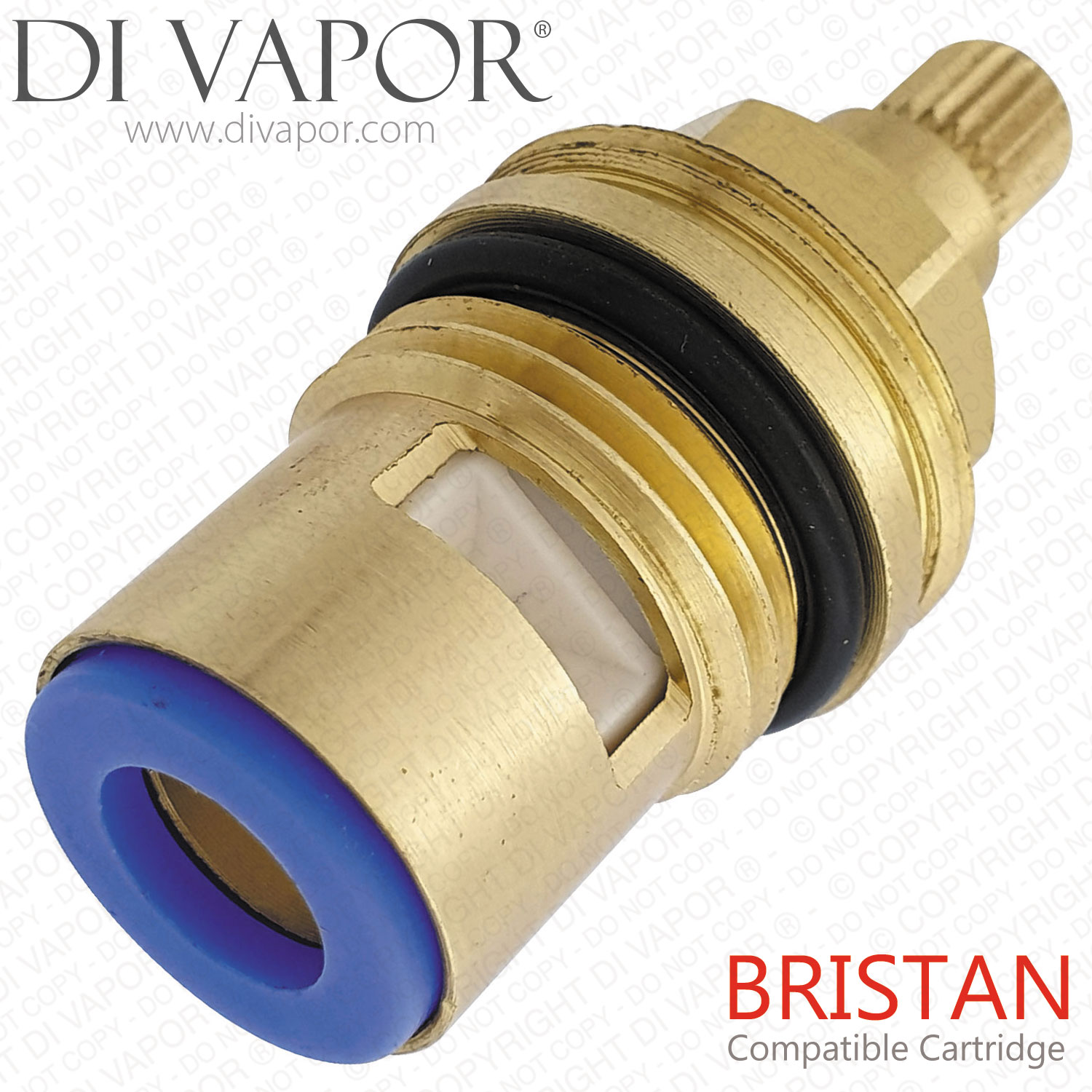

The BR-PR234 is a cold-side flow control cartridge compatible with selected Bristan Prism thermostatic shower bar valves originally fitted with the Bristan VLV 24809 flow valve. It is a screw-in quarter-turn cartridge used to open and shut off the water flow through the shower valve.
The original Bristan reference is VLV 24809. This BR-PR234 cartridge provides the replacement option for the VLV 24809 arrangement. A common symptom of a worn flow cartridge is water continuing to drip from the shower head when the shower is turned off or the flow control no longer shutting the water off correctly.
Technical Details
| Compatible cartridge part number | BR-PR234 |
|---|---|
| Original Bristan reference | VLV 24809 |
| Application | cold-side flow control for selected Bristan Prism shower bars |
| Listed size | 1/2 Inch |
| Installation type | screw-in flow cartridge |
| Total cartridge length | 50mm |
| Widest diameter | 23.8mm |
| Spline diameter | 7.65mm |
| Spline count | 20 |
| Operation | 90-degree quarter turn |
| Opening direction | anti-clockwise |
| Closing direction | clockwise |
Before ordering compare the original cartridge code, overall dimensions, spline count and opening direction with the existing valve. Different generations of Bristan Prism shower valves can use different internal cartridges.
Confirmed Compatible Models
- Bristan Prism Bar Mixer Shower BR DV 372
- Bristan PM SIBARARM C Prism Semi Intagrated Bar Shower Valve BR DV 155
- Bristan Prism Thermostatic Surface Mounted Bar Shower Valve Only BR DV 157
- Bristan Prism Exposed Bar Shower Valve PM BARSHXVOFF C
Prism bar valves were produced with different thermostatic cartridge arrangements. The threaded 00650410 thermostatic cartridge and the push-fit CART 06734B arrangement are different parts and should not be treated as interchangeable.
Not sure this is the correct cartridge? Use the Di Vapor Part Identification Service and we can help identify the part you need.
Related Spares You May Need
- TACSIL 3g Premium Cartridge Silicone Grease - WRAS Approved
- GROHE Premium Plumbers Silicone Grease 2g SYNTHESO LM 220 18007031
- Bristan 00650410 Screw Thermostatic Cartridge for threaded Prism exposed shower valves
- Bristan OR 08015 O Ring 17.17mm x 1.78mm
- 150mm Universal Shower Hose NXT734
- Thermostatic Cartridge for Bristan CART 06734B Cart 18 Push Fit with Spring
- Bristan K93H6 Thermostatic Cartridge Spring
