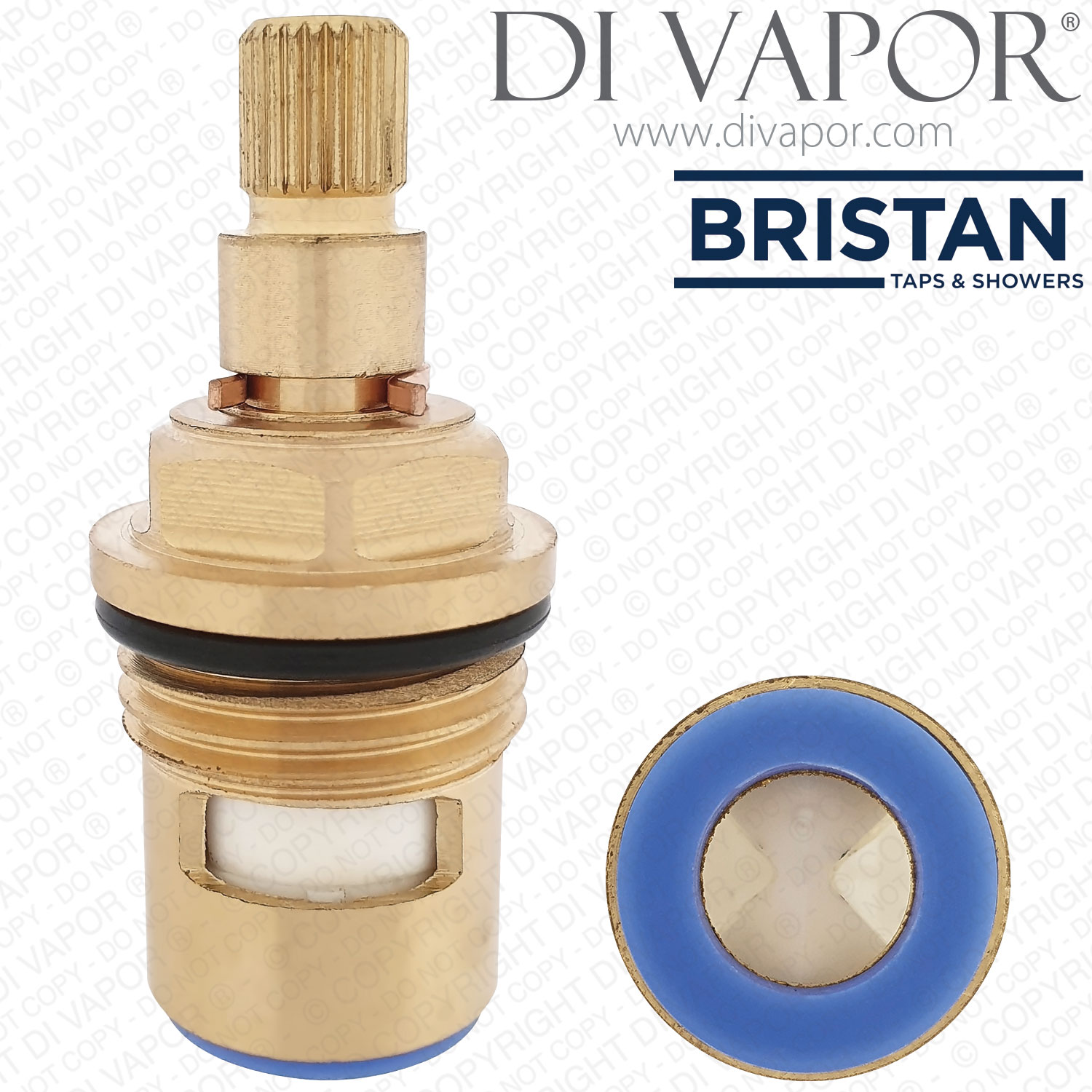

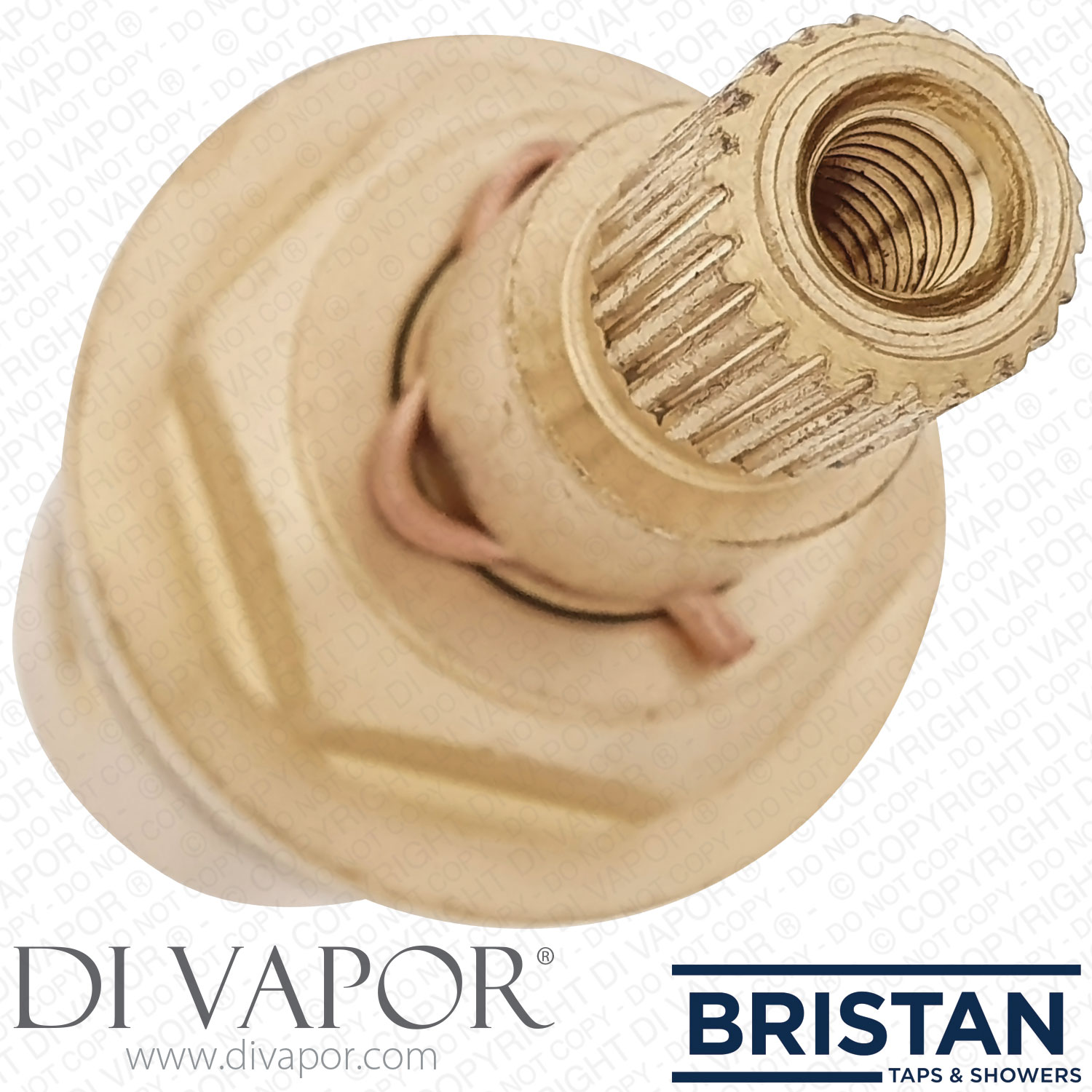

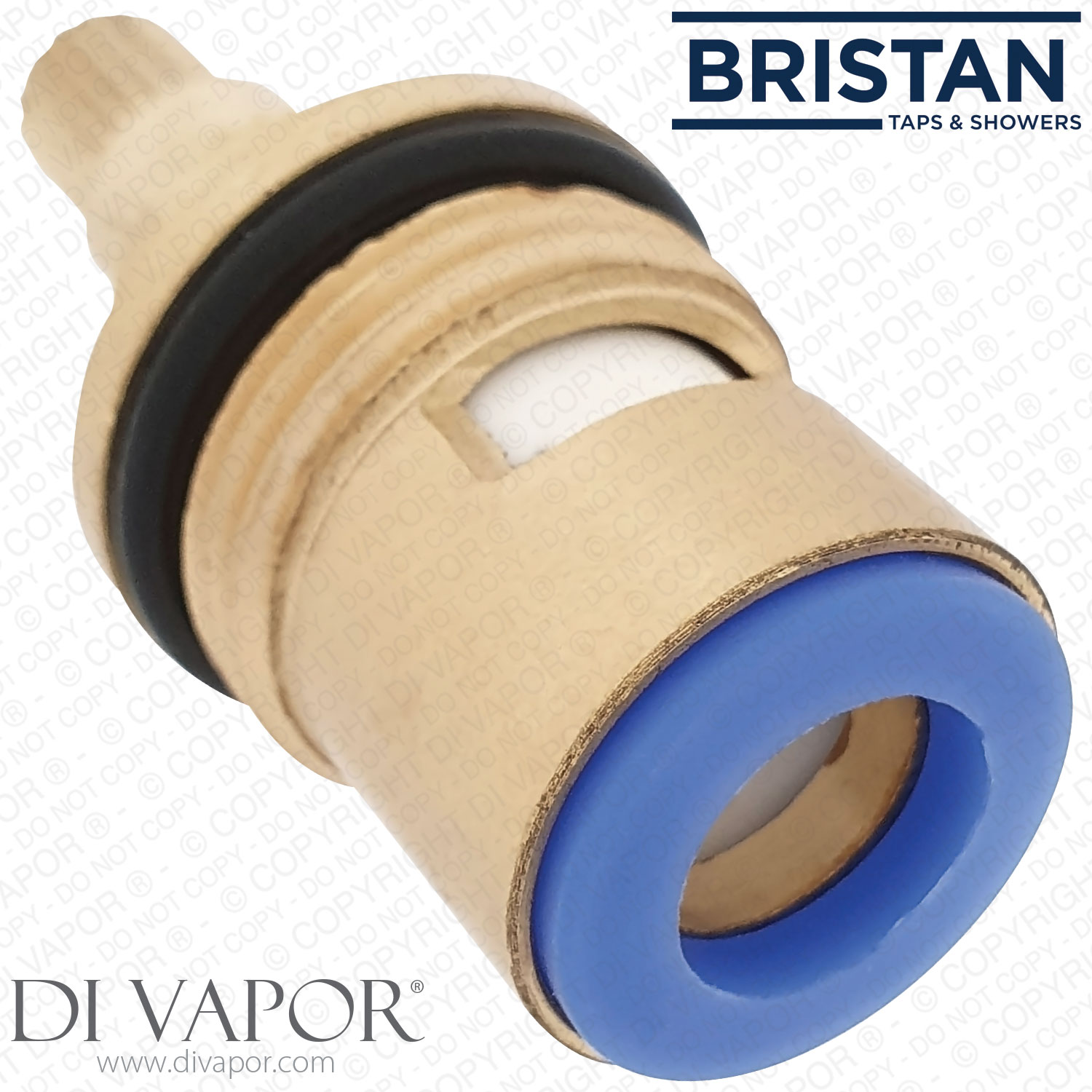

Bristan Capri K12174A Cold CD Valve Cartridge 1/4 Turn 1/2 Inch 8x24
Part number: K12174A
Price: £12.73
Sale: £8.93
You save: £3.80 (30%)
Price includes UK VAT (Region: UK▼)
In stock
Is this the right part?
Send a photo of your item and we'll help confirm it.
Product description
Summary
Bristan Capri K12174A Cold CD Valve Cartridge 1/4 Turn 1/2 Inch 8x24
Cartridge Measurements:
| Total Length (including bottom seal) | 49.5mm (50mm) |
|---|---|
| Spindle Length | Diameter at Widest Point: 22.9mm |
| Top Spline Diameter | 7.8mm |
| Spline Top Section down to shoulder | 9.5mm |
| Top Spline Teeth / Notches | 24 |
| Lower Thread Diameter | 20.6mm |
| Barrel Diameter Below Lower Thread | 18.4mm |
| Bottom Seal Colour | Blue |
| Close Direction | Clockwise Close (Anti-Clockwise Open) |
| Turn | Quarter Turn (1/4 Turn) 90° |
