Bristan 04046OF JS2 SHC3STPP C On/Off Flow Cartridge - Compatible Spare
Part number: 04046OF
Price: £33.31
Price includes UK VAT (Region: UK▼)
In stock
Is this the right part?
Send a photo of your item and we'll help confirm it.
Product description
Summary

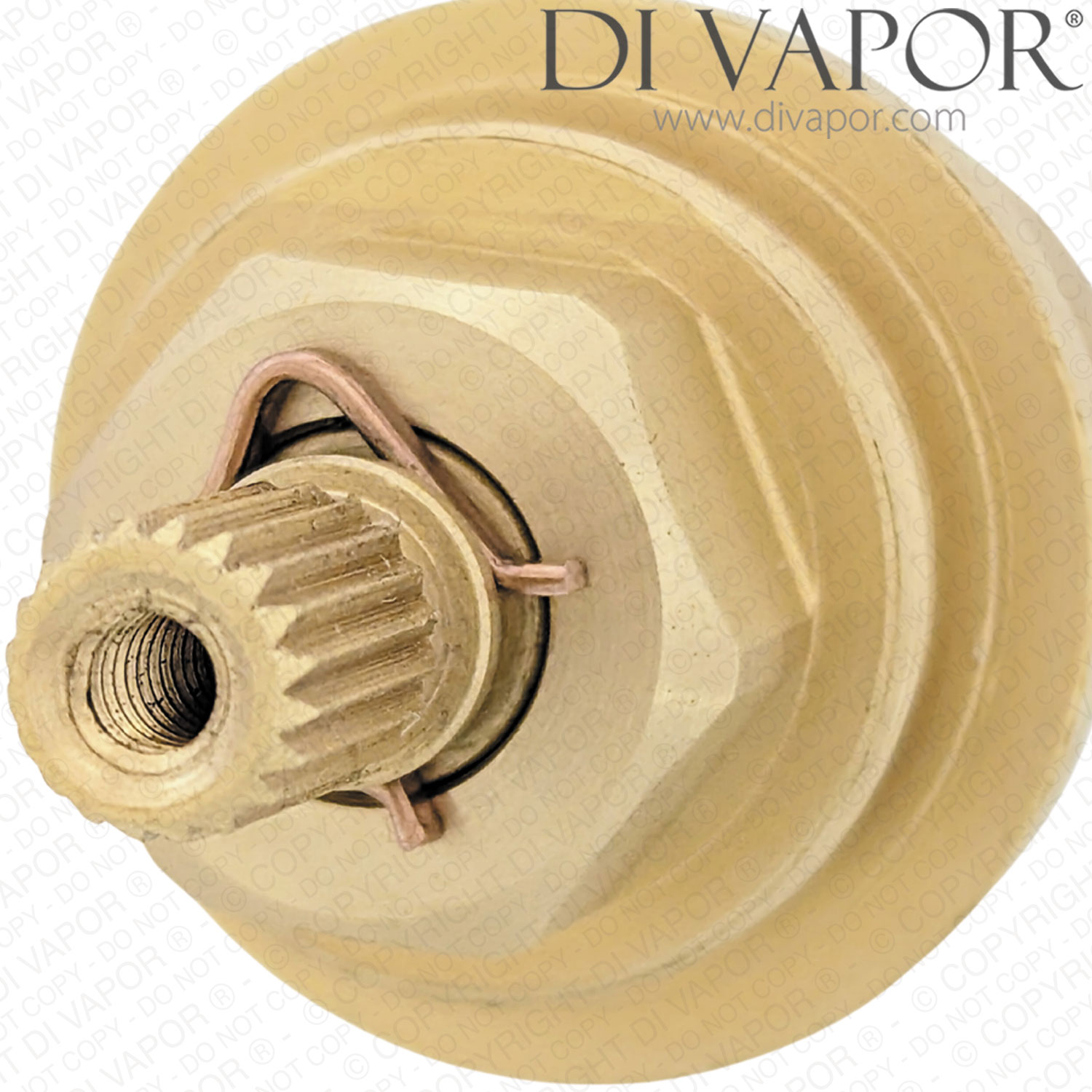

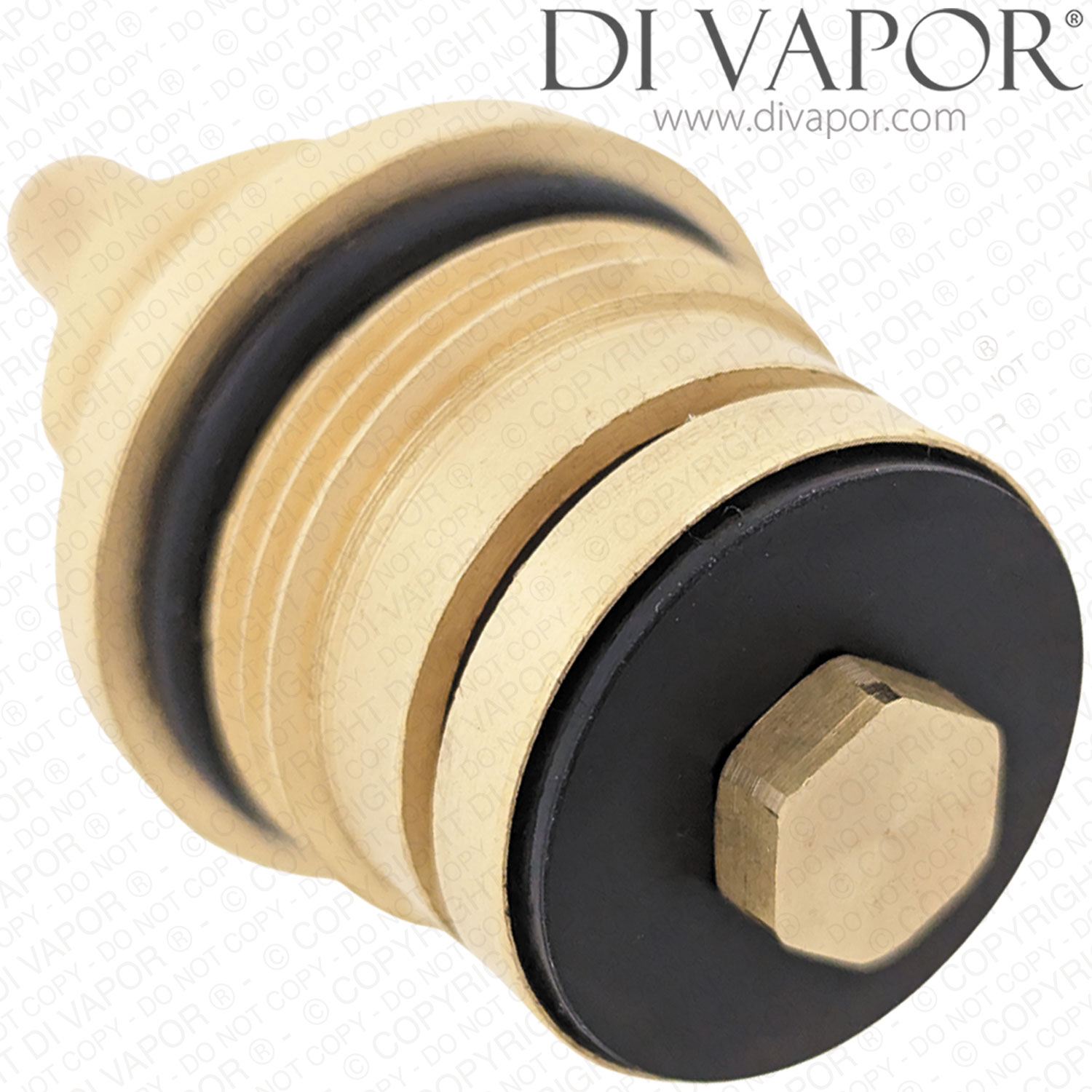

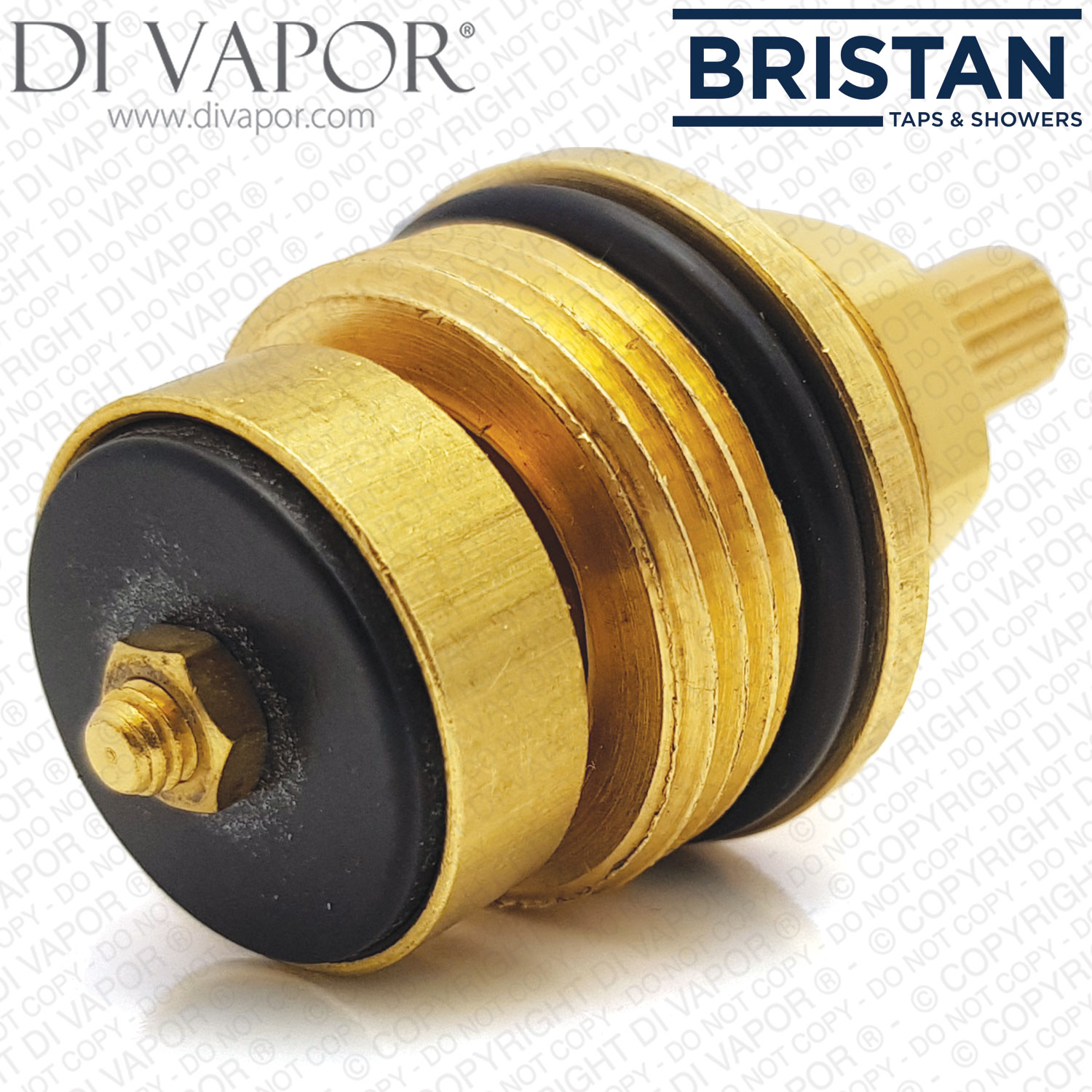

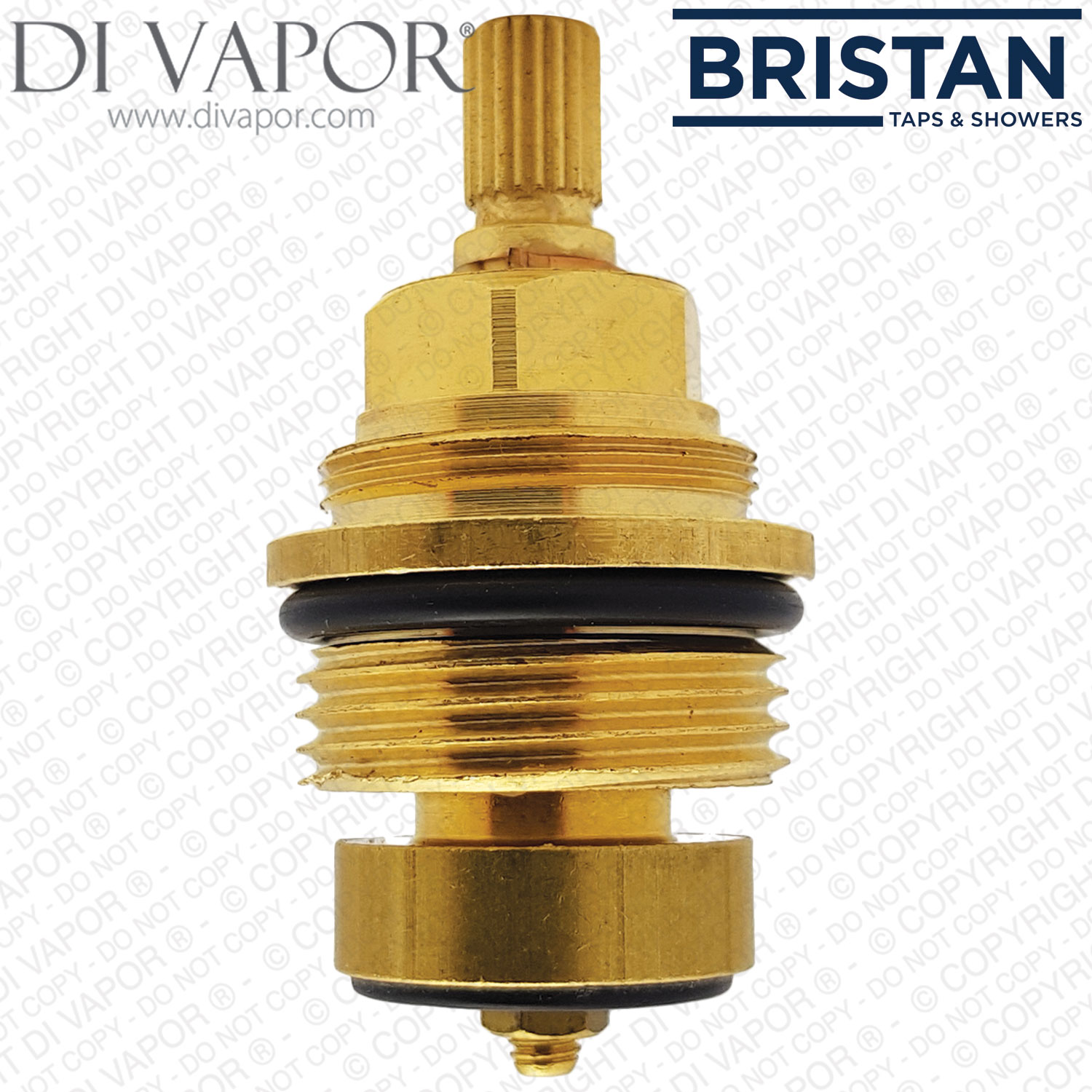

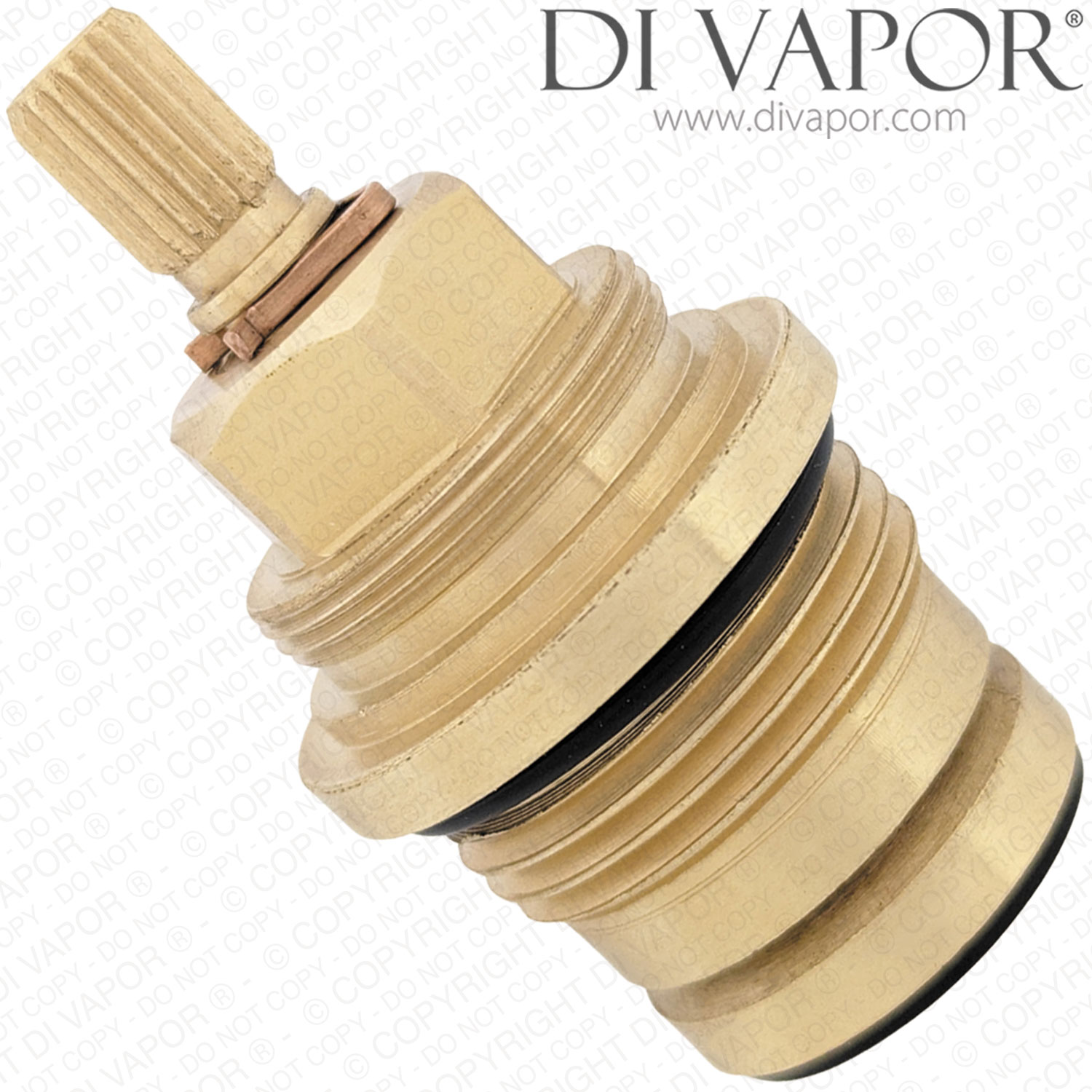

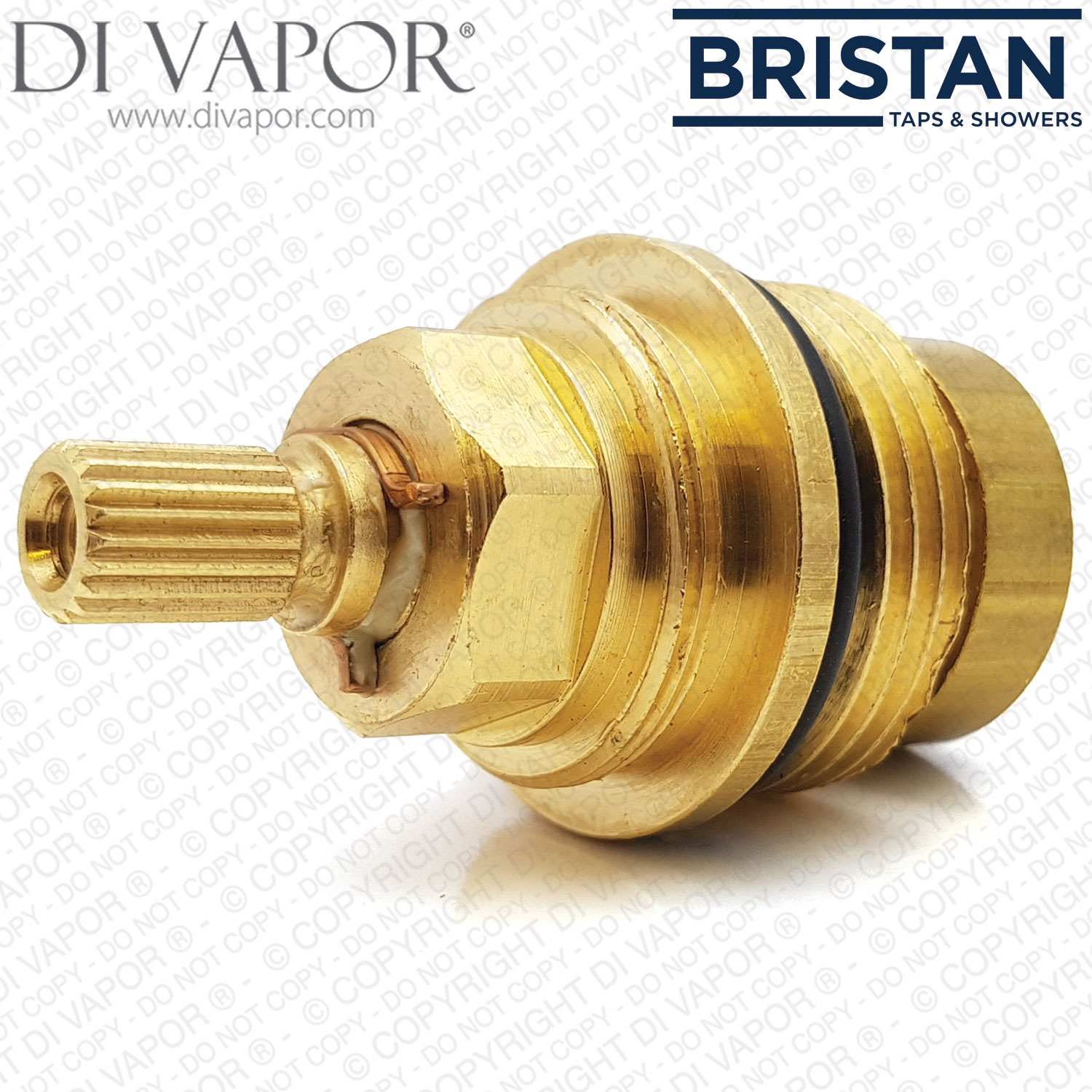

Bristan 04046OF JS2 SHC3STPP C On/Off Flow Cartridge - Compatible Spare. This is a compression type cartridge valve. The 04046OF cartridge is used in the following Bristan shower models
- Bristan Quadrant Dual Control Mixer Shower Valve
- Bristan JS2 Recessed Shower Mixer
- Bristan JS2 Thermostatic Recessed Shower Valve with Diverter
Total Length (including bottom seal, excluding protruding rivet): 51.7mm (fully compressed) to 58.5mm fully extended.
| Diameter at Widest Point | 29mm (widest thread) |
|---|---|
| Top Spline Diameter | 7.6mm |
| Top Spline Teeth / Notches | 20 |
| Barrel Diameter | 22mm |
| Lower Thread | 3/4" BSP (26mm) |
| Upper Thread | 23.6mm |
| Close Direction | Anti-Clockwise Close (Clockwise Open) |
