Aqualisa 910208 On/Off Compression Flow Cartridge for Midas 200/300 Low Pressure Valves Compatible Spare - No Handle Included
Send a photo of your item and we'll help confirm it.
Summary
Aqualisa 910208 On/Off Compression Flow Cartridge for Midas 200/300 Low Pressure Valves Compatible Spare. Please note that the handle is not included.
The Aqualisa 910208 on/off compression flow cartridge AQ-910208 is a compatible spare cartridge for Aqualisa Midas 200 and Midas 300 low pressure shower valves. It controls the water on/off function and flow volume through the valve and is supplied without the handle.
This part is for low pressure Midas valve applications only. Check the valve version and water system before ordering, especially where Midas 200/300 high pressure flow cartridges may look similar but are not the same low pressure part.
Technical Details
| Brand | Aqualisa |
|---|---|
| Di Vapor Part Number | AQ-910208 |
| Aqualisa reference | 910208 |
| Part type | on/off compression flow cartridge |
| Valve application | Midas 200/300 low pressure shower valves |
| Handle included | no |
| Water system context | low pressure gravity stored systems |
| Typical low pressure Midas 200 operating range | 0.1 bar to 1.0 bar maximum static pressure |
| Standard supply orientation | hot on the left and cold on the right when viewed from the front |
- Flow control position on Midas 200 low pressure valves: left hand control when viewed from the front
A failing flow cartridge can cause stiff operation, poor shut-off, reduced flow or water continuing to drip from the shower head after the valve is turned off. Poor flow can also be caused by a twisted hose, blocked shower head, debris in filters or an airlock, so these points should be checked before ordering a cartridge.
Confirmed Compatible Models
- Aqualisa Midas 200 Bar Mixer Shower Spare Parts - AQ DV 148
- Aqualisa Midas 300 low pressure shower valve
Related Spares You May Need
- TACSIL 3g Premium Cartridge Silicone Grease - WRAS Approved

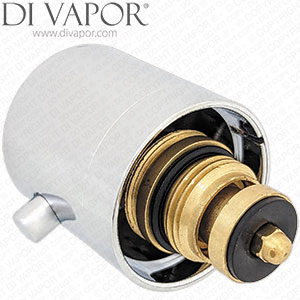

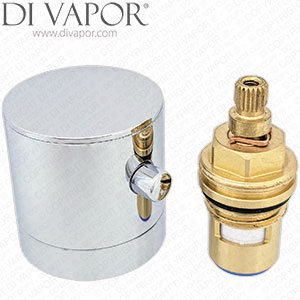

- Aqualisa 910208 Flow Cartridge and Control Knob for Midas 200 and 300 Low Pressure Shower Valves - Version 2
- Aqualisa 518117 Midas 200 Low Pressure Flow Control Knob - Version 2
- Aqualisa Midas 518117 Flow Control Knob - Low Pressure Chrome
- Aqualisa 518119 MIDAS 200 CONTROL KNOB SCREW
- Aqualisa 518120 MIDAS 200 Knob End Cap
- Aqualisa 518107 MIDAS 100/200 FILTERS
- Aqualisa 657201 MIDAS 200/300 LP S/DOWN HEADWORK 022190000-003
- Aqualisa 910214 Midas 200/300 High Pressure Flow Cartridge - No Handle - AQ-910214
- Aqualisa 910214 Flow Cartridge and Control Knob for Midas 200 and 300 High Pressure Shower Valves - Version 2
For uncertain installations, compare the existing cartridge, handle and valve pressure type before ordering. Use the Di Vapor Find a Part service if the valve version or pressure type is unclear.
