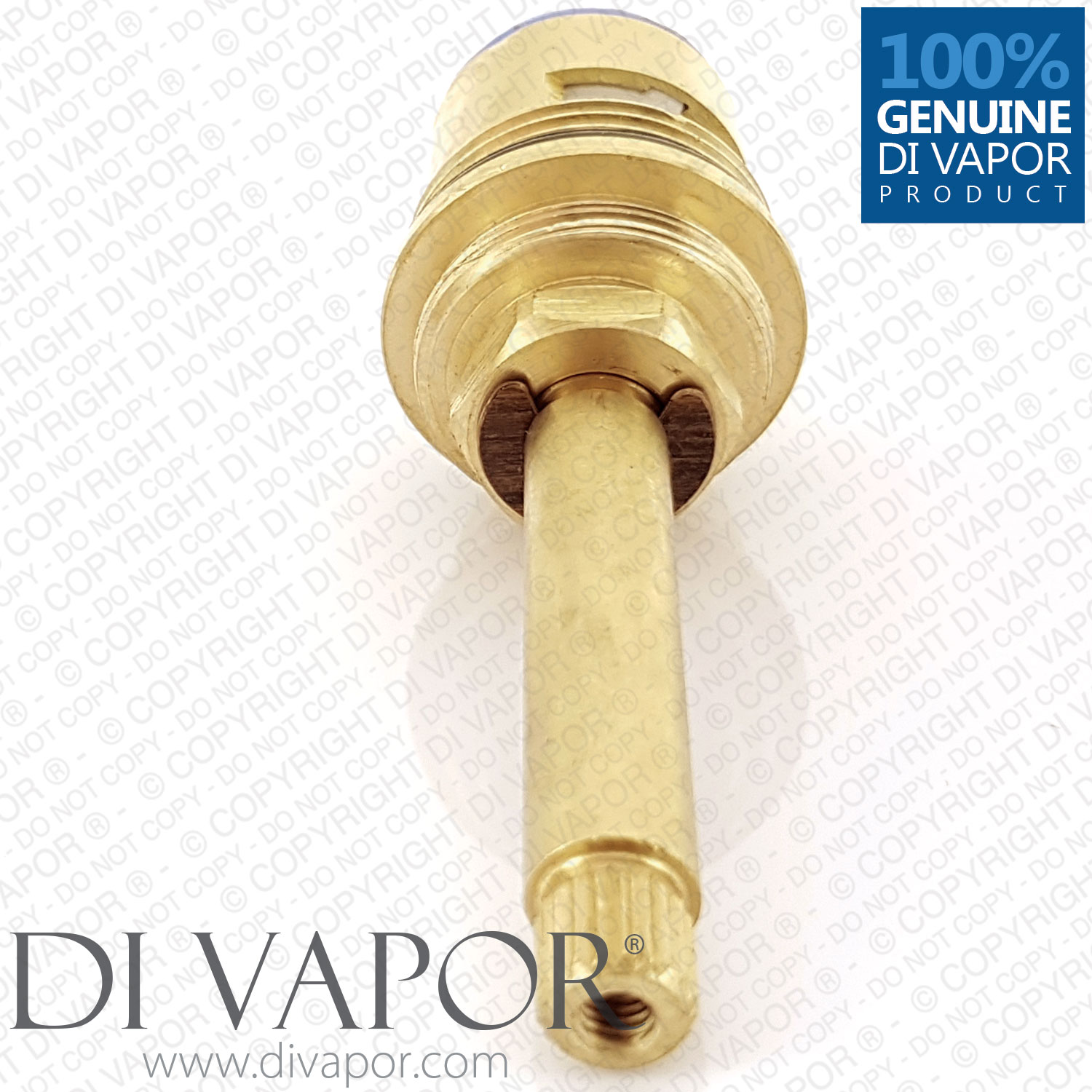

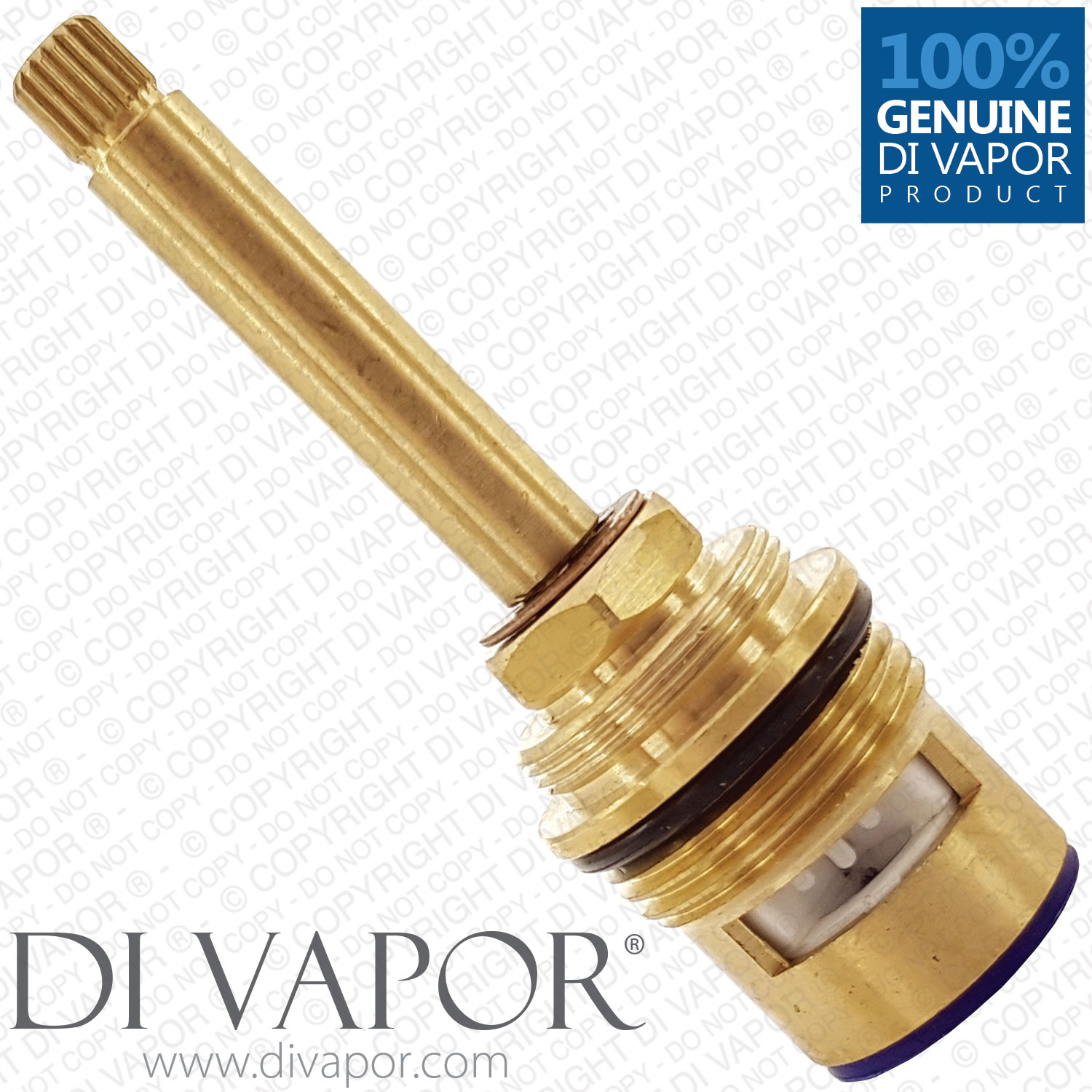

87mm Ceramic Disc Shower & Tap Valve Cartridge Insert - 3/4" BSP, 1/4 Turn Clockwise Close - 20 Spline - Cold Side
Send a photo of your item and we'll help confirm it.
Summary
Ceramic Disc Shower & Tap Valve Cartridge Insert - 3/4" BSP, 1/4 Turn Clockwise Close - 87mm Height, 20 Teeth Spline - Cold Side

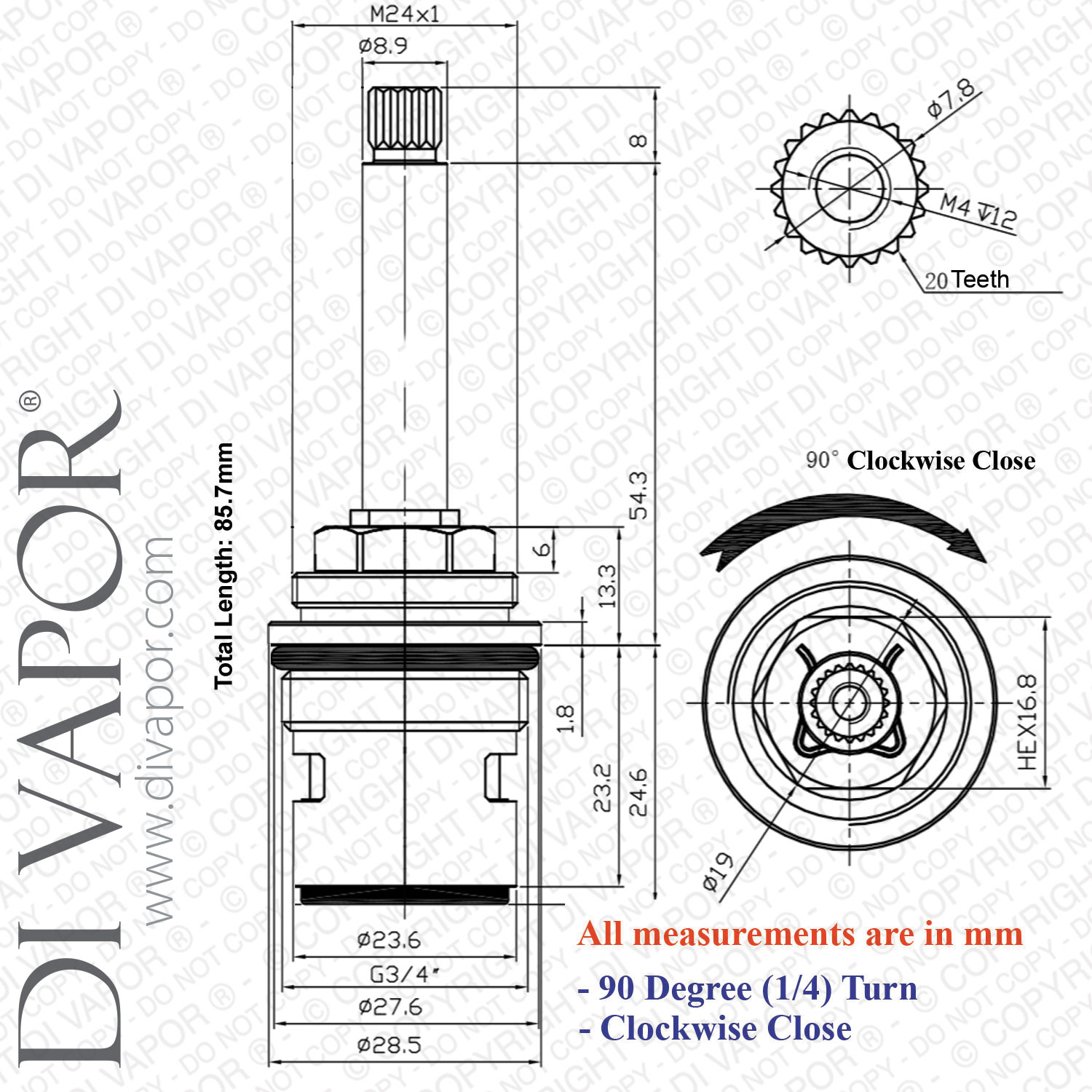

| Total Length (including bottom seal) | 85.7mm |
|---|---|
| Diameter at Widest Point | 28.5mm |

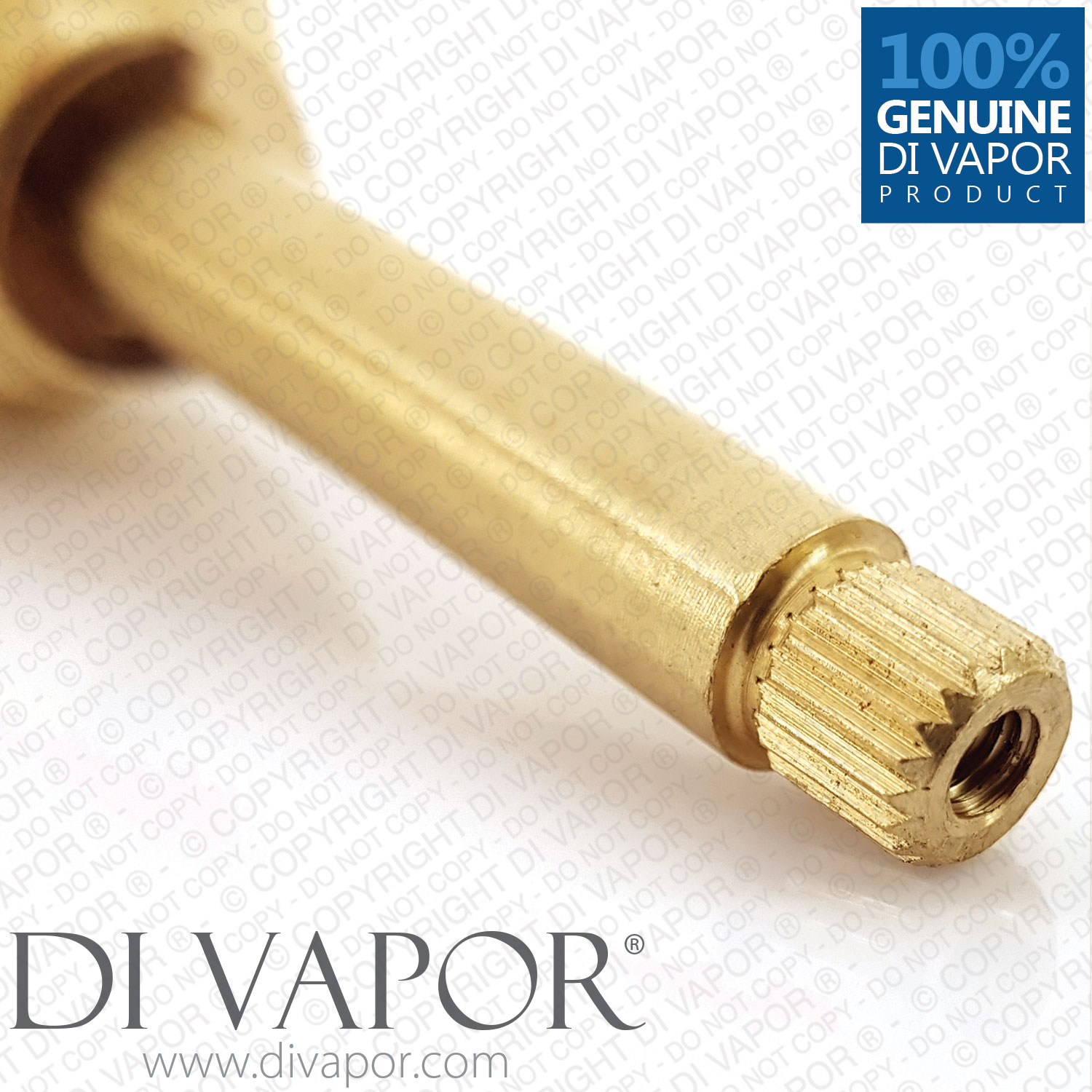

| Top Spline Diameter | 7.8mm |
| Top Spline Teeth / Notches | 20 |
| Barrel Diameter | 23.6mm |
| Lower Thread | 3/4" |

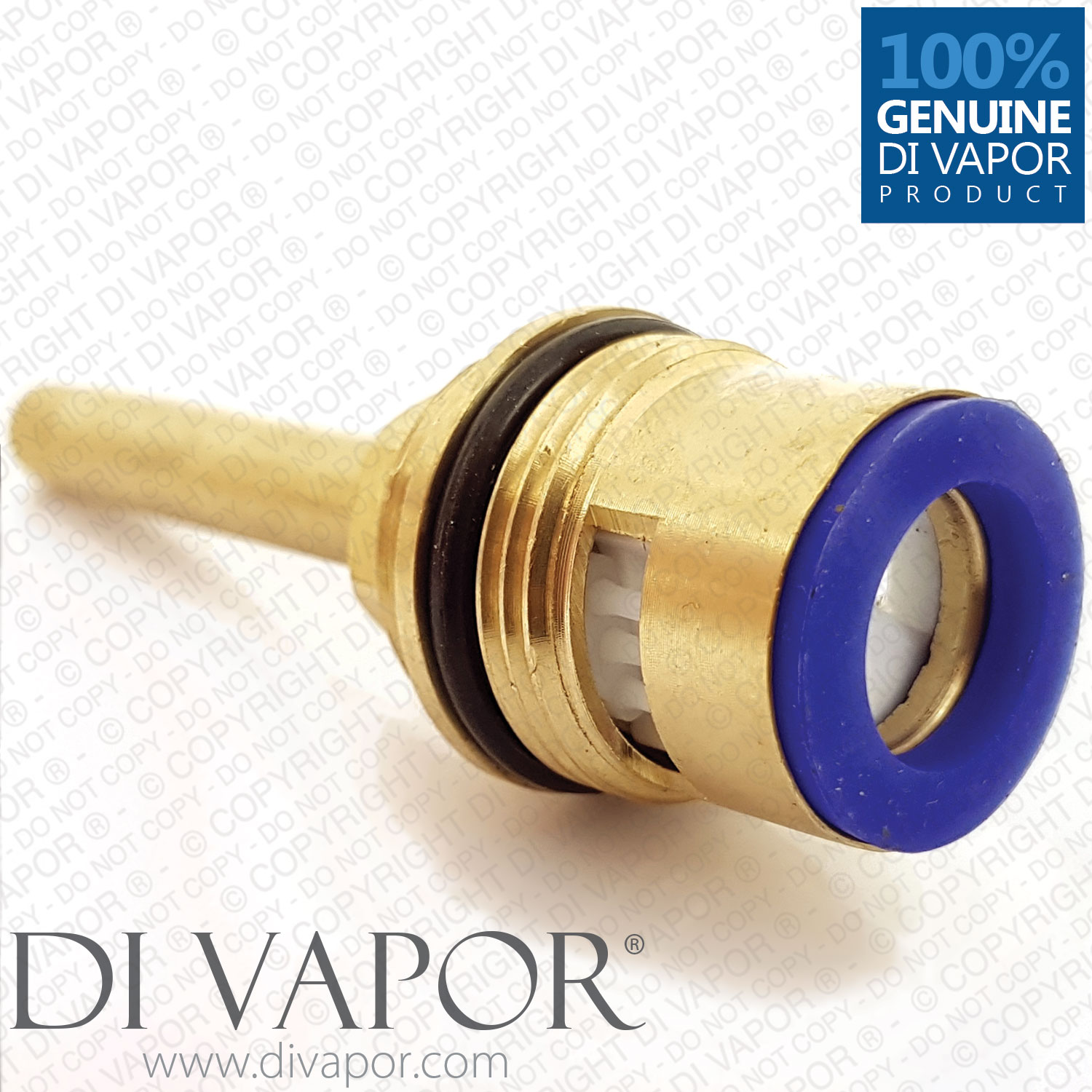

| Bottom Seal Colour | Blue (for Cold Side) |
| Close Direction | Clockwise Close (Anti-Clockwise Open) |
| Upper Thread (closer to spline) | 24mm |
| Spare Part | 87mm Ceramic Disc Cartridge Cold Side |
| Installation | Screw In |
| Material | Brass with Ceramic Core |
| General Instruction | How to Change a Ceramic Disc Flow Cartridge |
When the cartridge breaks and a replacing it is called for, turn off the water supply pipes. Remove the tap handle – since DF8203 is a cold side cartridge, disassemble the right side of the tap.
Use a small spanner or wrench to unscrew the cartridge free and clean the valve housing.
Grease the cartridge seals with silicone lubricant, then seat it in the valve and securely tighten it. Proceed to reassemble the tap handle.
If unsure if this is the right cartridge spare part, please contact us with a clear photo of the old cartridge. We will answer your query as fast as we can.
This 87mm ceramic disc flow cartridge spare part is suitable for valves with a 3/4 BSP or a thread measuring 2.6 centimetres. It is for the cold side of a shower or tap valve and is eligible for next day delivery, provided it is ordered before 3:00 PM from Monday to Friday.
Need the hot side of this spare part?
- DF8204 is the 87mm hot cartridge spare part.
What Makes a Ceramic Disc Cartridge Strong?
Fortified by fire, the ceramic used in a cartridge or valve is among the most robust of materials. This kind of tap, whether for bath or kitchen, is easy to maintain and holds out much longer than other valves.
A ceramic type valve has an upper and a lower disc. The above disc moves in conjunction with the opening and closing of the tap while the one underneath is immovable. Two water temperatures are combined by the valve with the help of a cartridge to thermometrically produce water that is neither too hot nor too cold. This can be adjusted by moving the temperature control handle from one side to another. Variables such as water hardness or pH level affect the cartridge minimally.
But if the valve requires a cartridge bearing a brass barrel, the brass might corrode, weaken, or become clogged dependent on water condition.
