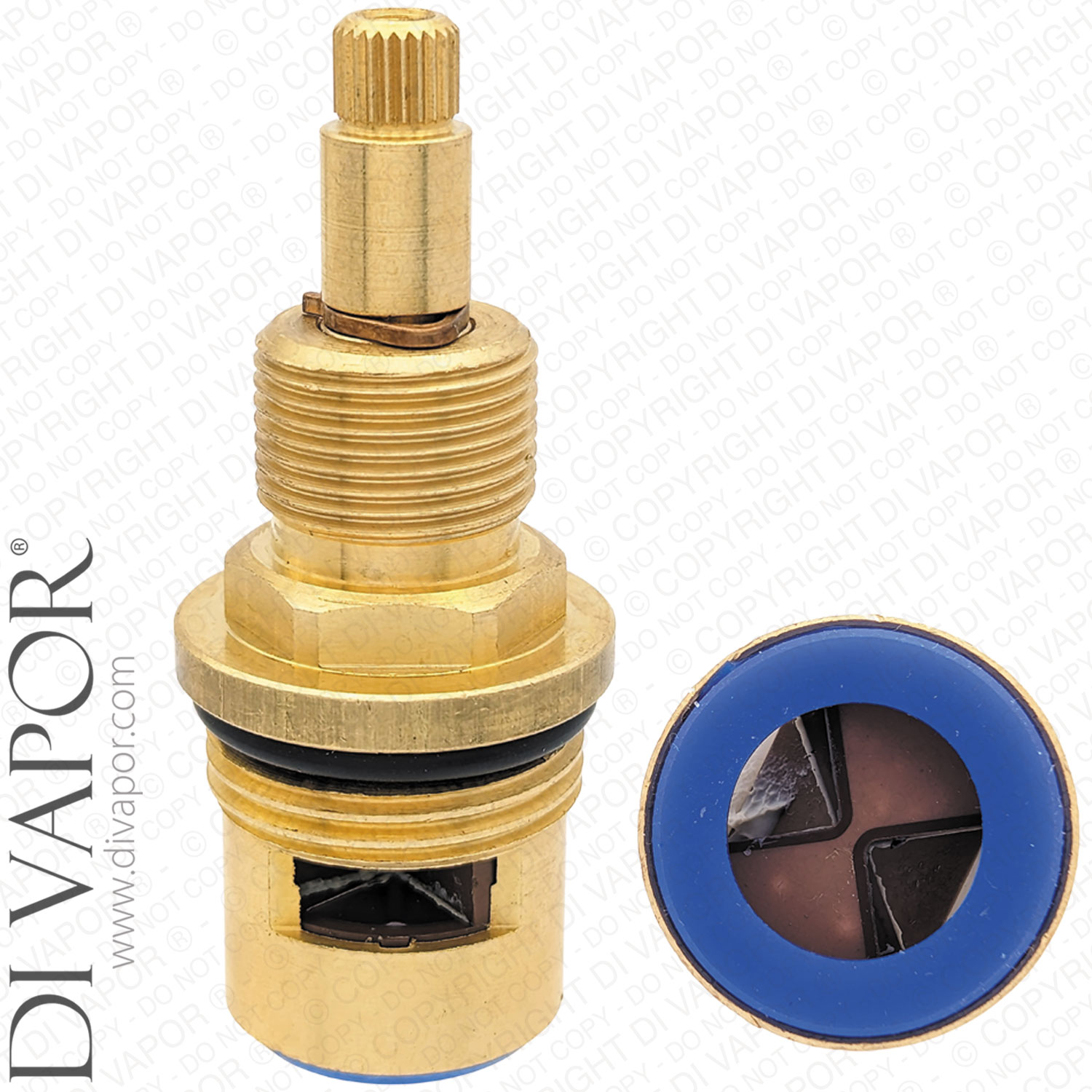

70mm 3/4" Flow Cartridge - D.R. - Anti-Clockwise Turn to Open - 24 Spline
Part number: Q4A476
Out of stock - Ask a Question now
Unfortunately, this specific item is now discontinued and can no longer be purchased from Di Vapor. See the description below for alternatives or scroll down this page and see the associated 'Other items'.
Is this the right part?
Send a photo of your item and we'll help confirm it.
Product description
Summary
3/4" Cartridge - Q4A476
Cartridge Measurements:
| Total Length (including bottom seal) | 70mm |
|---|---|
| Spindle Length (from top of nut) | Diameter at Widest Point: 30mm |

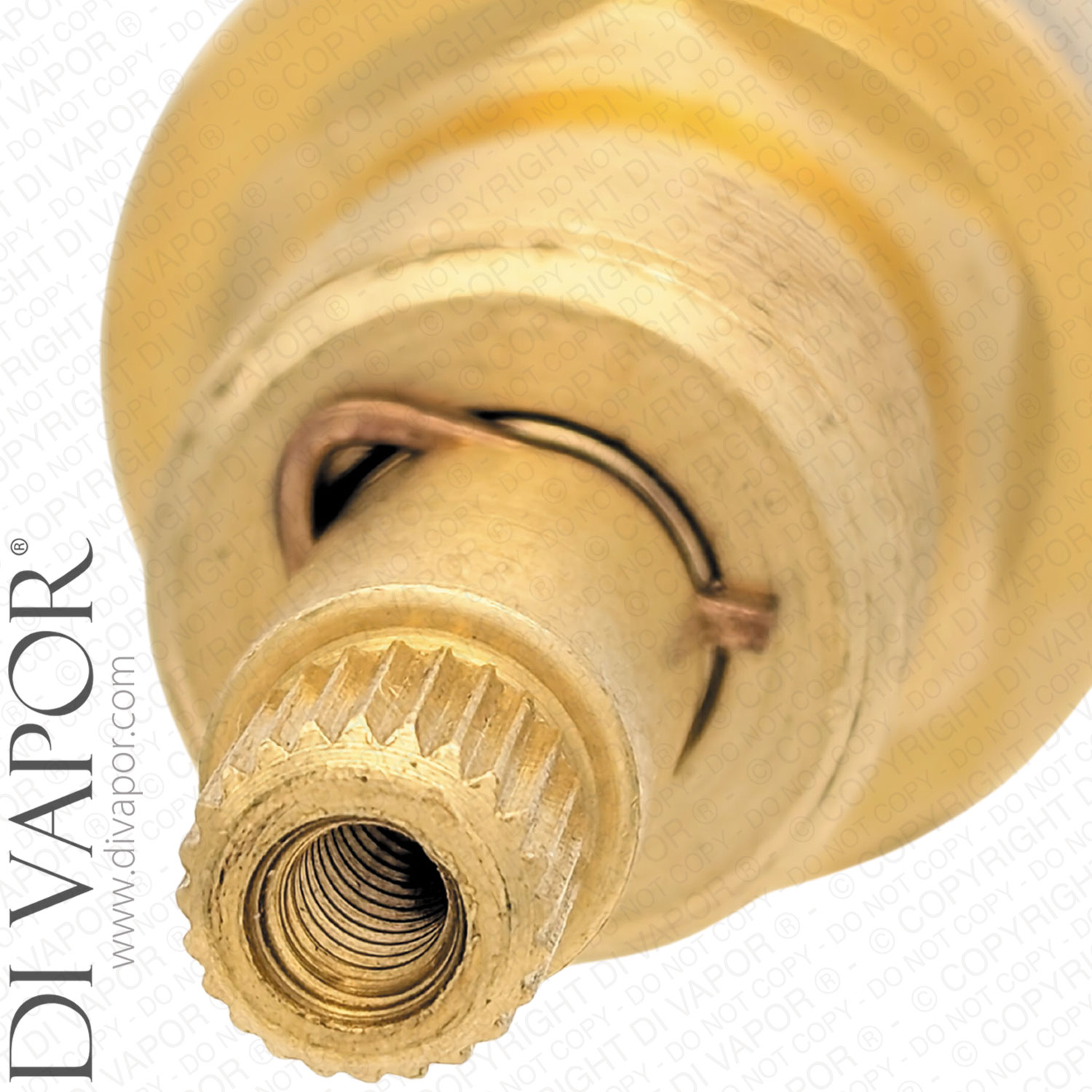

| Top Spline Diameter | 8.05mm |
| Top Spline Teeth / Notches | 24 |
| Lower Fitting Thread Diameter | 3/4" BSP (26mm) |
| Barrel Diameter Below Lower Thread | 24mm |
| Bottom Seal Colour | Blue |
| Close Direction | Clockwise Close (Anti-Clockwise Open) |
| Turn | Quarter Turn (1/4 Turn) 90° |
| Upper Thread Diameter (closer to spline) | 18.84mm |
