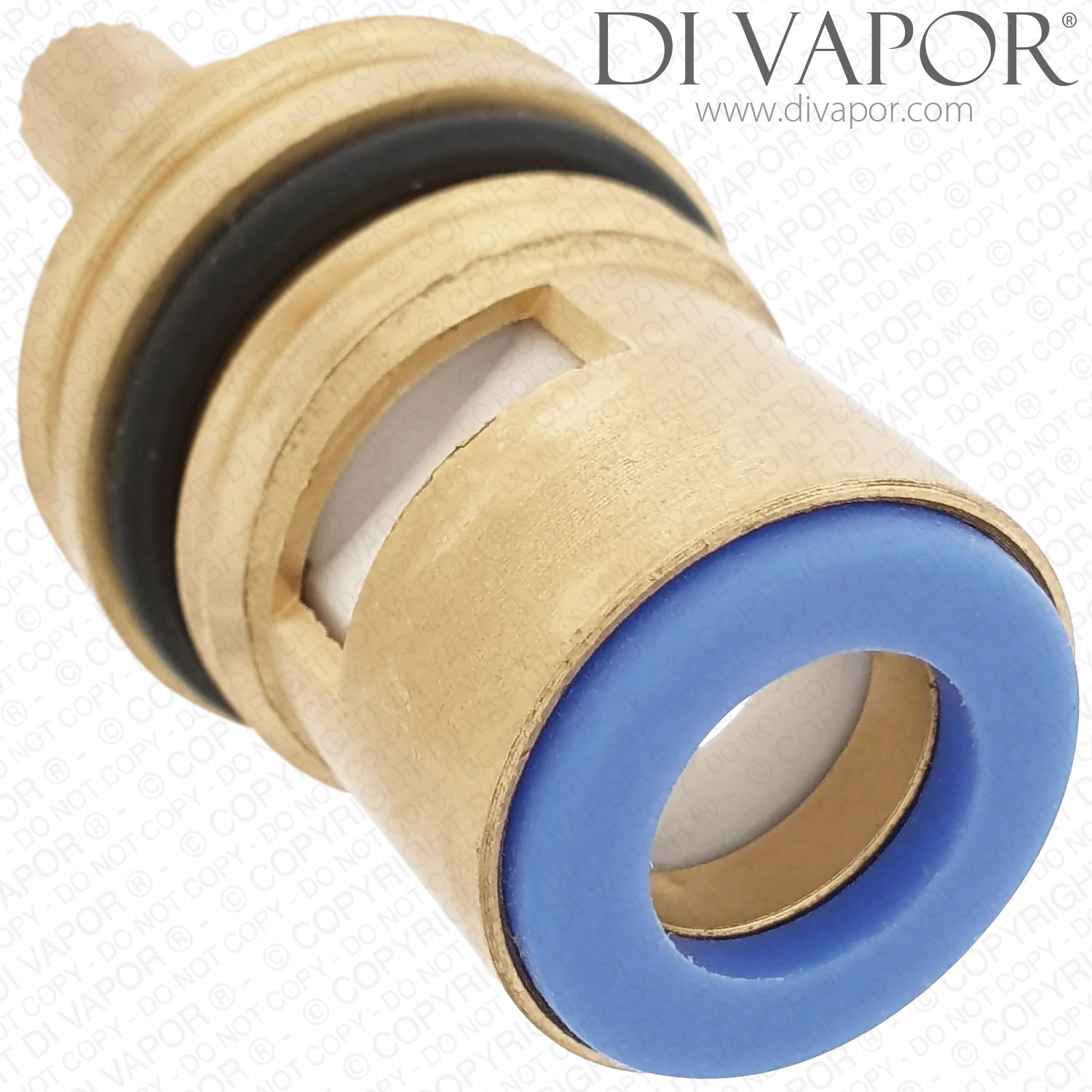

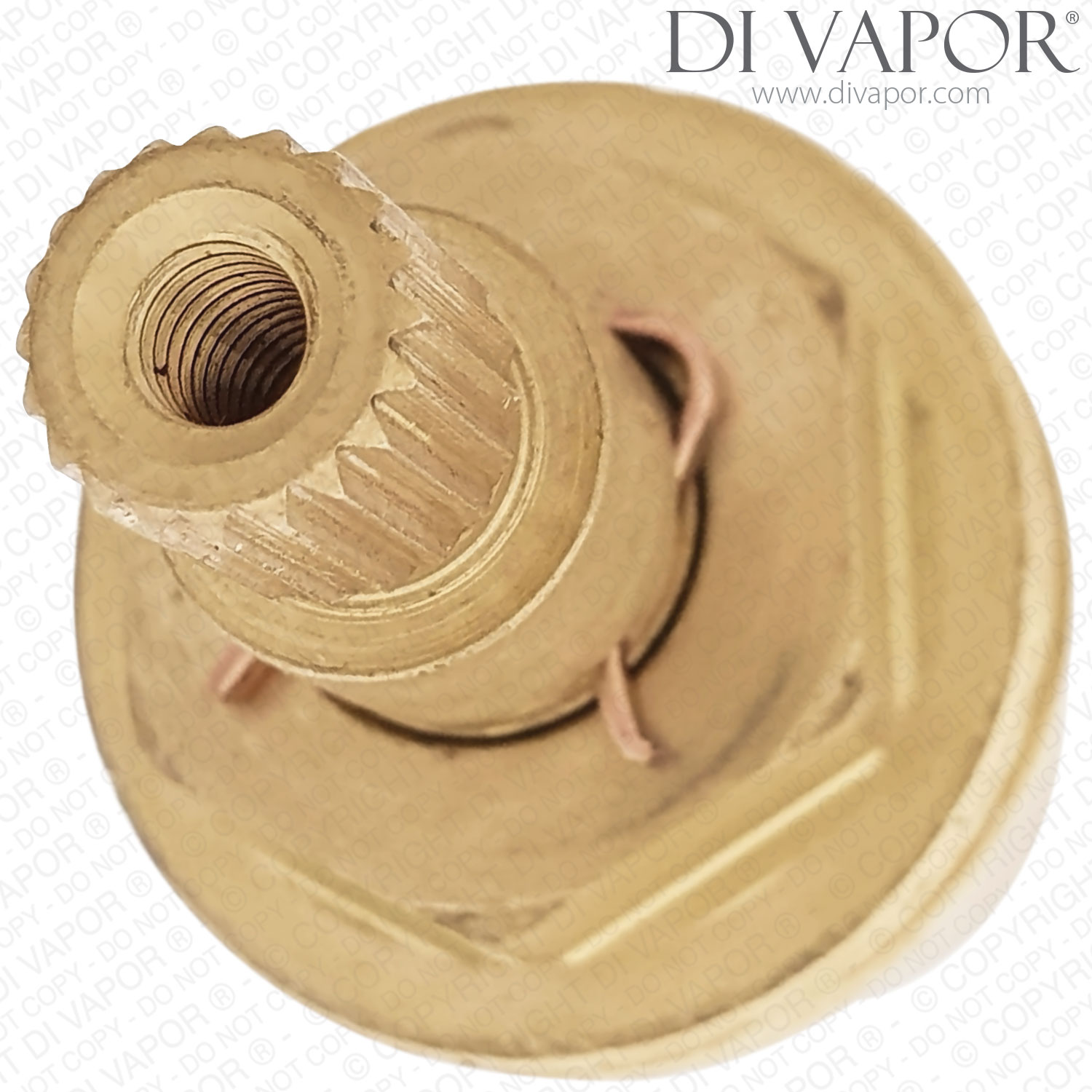

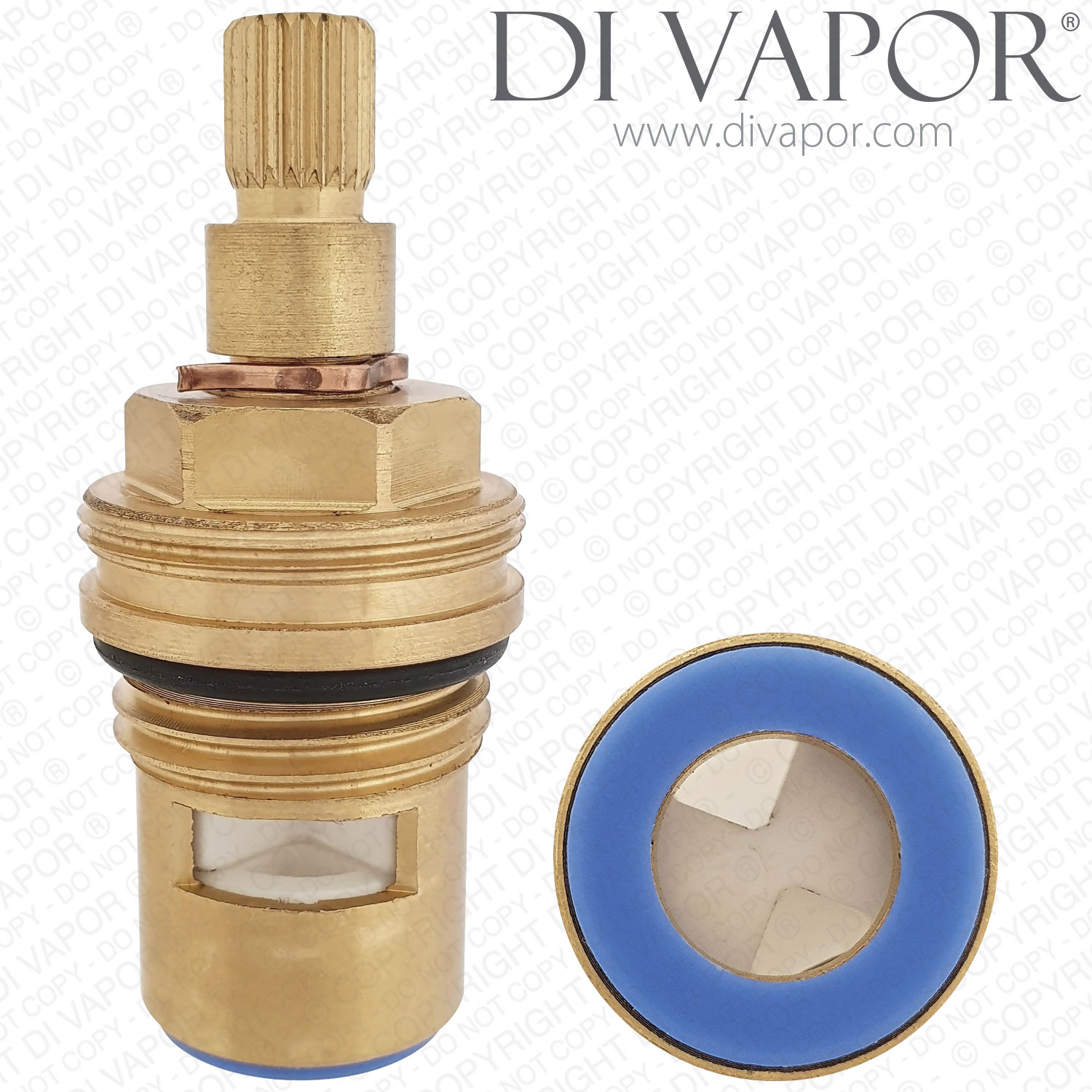

54mm Half Inch Cartridge - 20 Spline - Anti-Clockwise Turn Open - 1/4 Turn

SUMMARY

54mm Half Inch Cartridge - 20 Spline - Anti-Clockwise Turn Open - 1/4 Turn

Cartridge Measurements:
Total Length (including bottom seal): 54mm
Spindle Length (from top of nut): Diameter at Widest Point: 23.8mm
Top Spline Diameter: 7.6mm
Top Spline Teeth / Notches: 20
Lower Fitting Thread Diameter: 20.6mm
Barrel Diameter Below Lower Thread: 18.3mm
Bottom Seal Colour: Blue
Close Direction: Clockwise Close (Anti-Clockwise Open)
Turn: Quarter Turn (1/4 Turn) 90°
Upper Thread (closer to spline): 23.8mm
