Summary

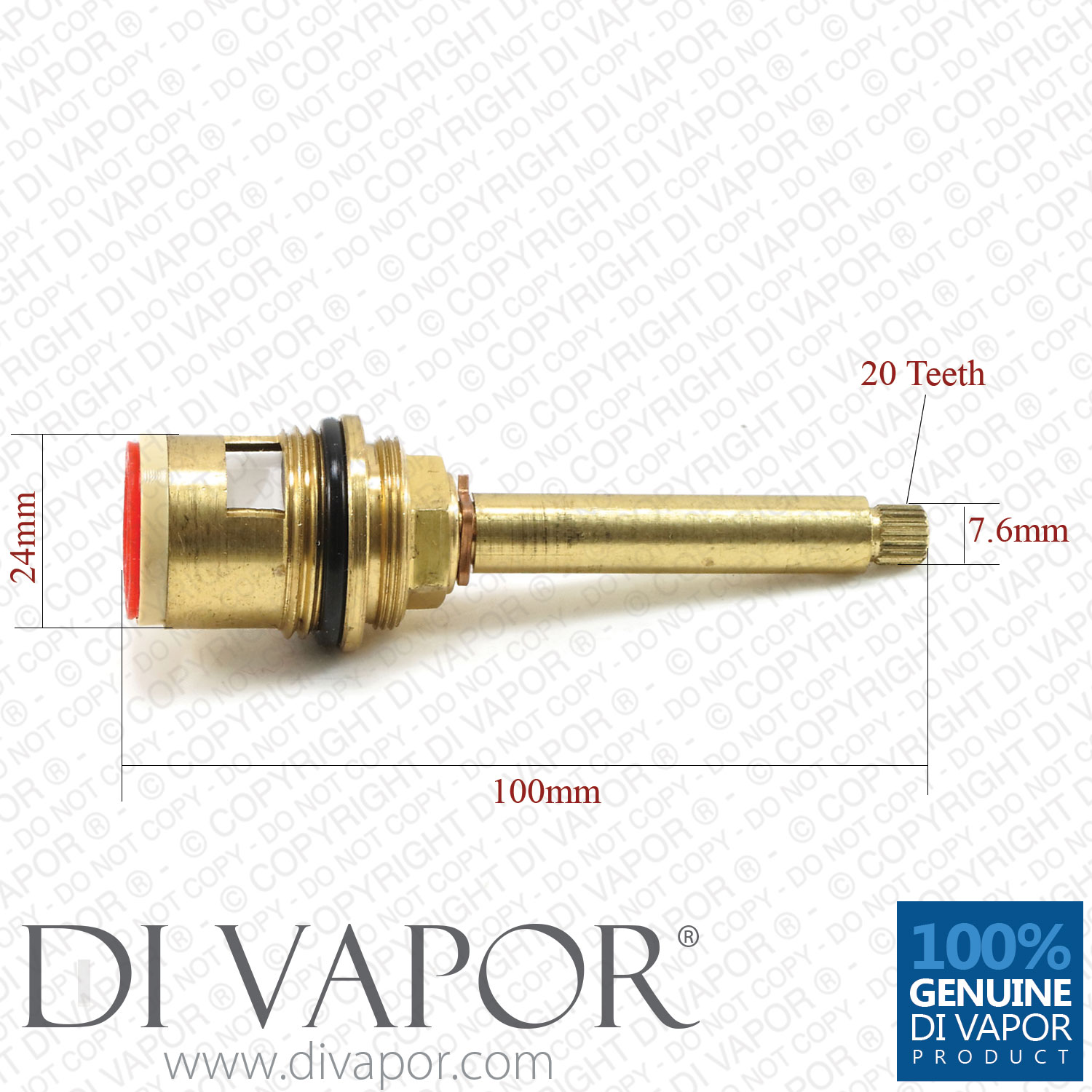

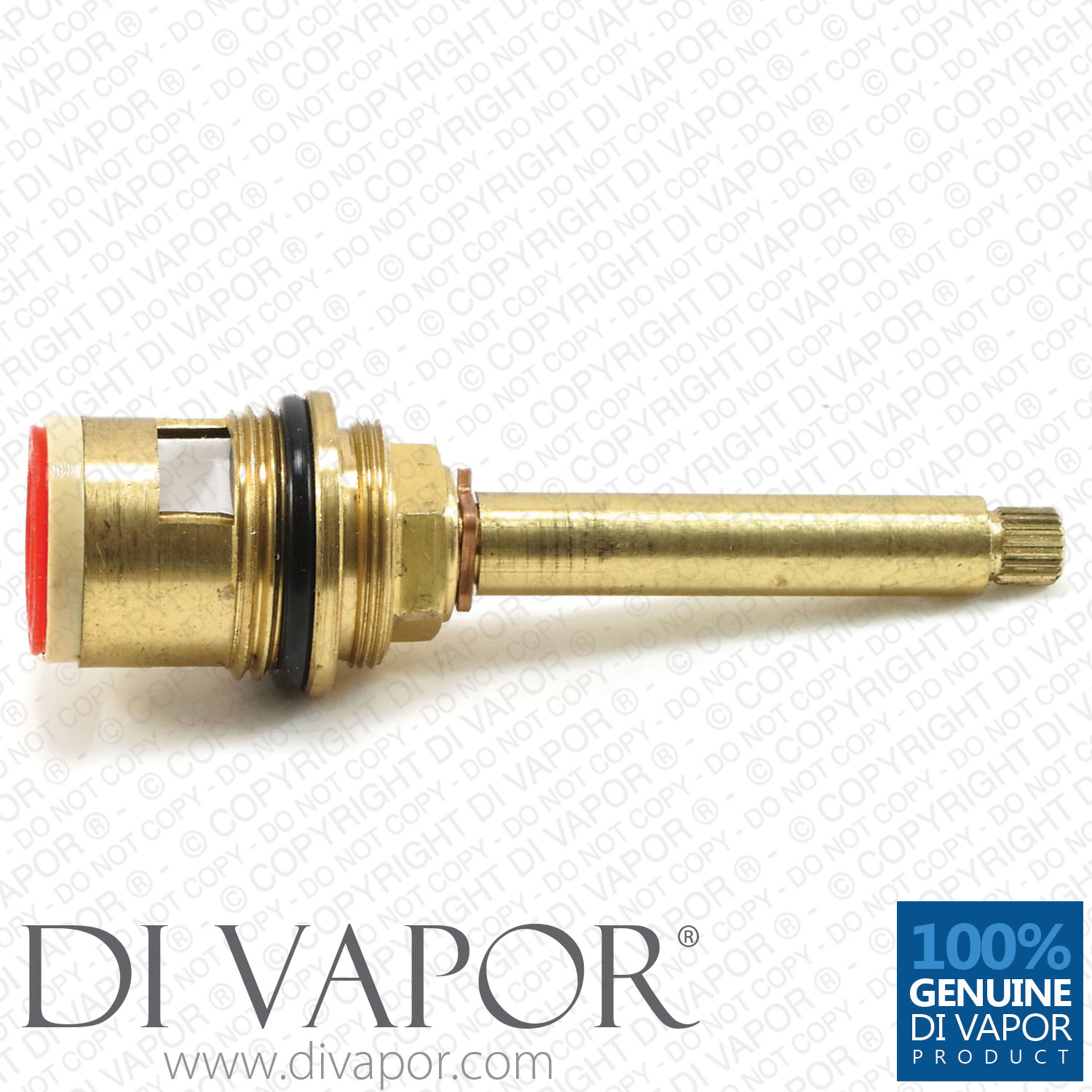

100mm On / Off Flow Ceramic Disc Cartridge for Steam Showers and Shower Valves (24mm Diameter Body x 100mm Total Length)

3/4" Brass Ceramic Disc valve

Colour of rubber washer at end may vary between red and blue.

Shower Spares Buying Guide: 100mm Ceramic Disc Flow Cartridge for 3/4 Inch BSP Steam Showers and Shower Valves (On / Off Cartridge)

So, you want to know if this 100mm flow ceramic disc on / off cartridge is the spare part for the shower or steam shower that you have to fix? Read below for information about this steam shower spare and how to know if it is the part you need.

The 100mm flow ceramic disc cartridge adjusts the amount of shower water flow according to your preference. At the same time, it turns the shower on / off. This cartridge steam shower part is brass with a white ceramic core, ergo, the name flow ceramic disc cartridge.

It is important to cover all bases to ensure you will buy the correct cartridge needed by your steam shower or shower valve.

Taking the measurements of the faulty shower cartridge is one way you can know if this is the part needed to accomplish a successful steam shower repair. Another easier way is to contact us through our Find a Part free service. Di Vapor’s excellent and accommodating spares experts will find the replacement shower flow cartridge for you.

Length

Leaking steam shower or shower valves that have water flow problems may require a replacement flow cartridge. This On / Off flow ceramic disc cartridge is 100mm (10cm) in length.

The length of the flow cartridge you have must be similar to this ceramic disc replacement. The handle will not fit properly if it is too long or too short.

The 100mm flow ceramic disc cartridge is also available in other lengths:

• 87mm
• and 110mm.

BSP

Shower valves can either be a 1/2 inch or 3/4 inch BSP thread size. A half-inch BSP (British Standard Pipe) will have cartridges that have threads measuring near 21mm (2.1cm). 3/4 inch BSP has threads that measure about 26mm (2.6cm). This 100mm flow ceramic disc cartridge is specifically for 3/4 inch BSP.

Splines

The spline of the 100mm flow ceramic disc cartridge is located at the topmost portion. It is the jagged head of the cartridge that is used as a rotational and anti-rotational tool. It allows the flow cartridge to turn the shower on / off without the handle moving on its own.

The teeth of the 100mm flow ceramic disc cartridge counts to 20. The spline teeth count on the faulty cartridge must be the same. The reason for this is that it should match to fit with the spline of the steam shower or shower valve handle.

Another thing to take into account is the diameter of the spline head. This 100mm flow ceramic disc cartridge has a spline head diameter of 7.6mm. Approximate this with the faulty cartridge to ensure it will fit the handle.
