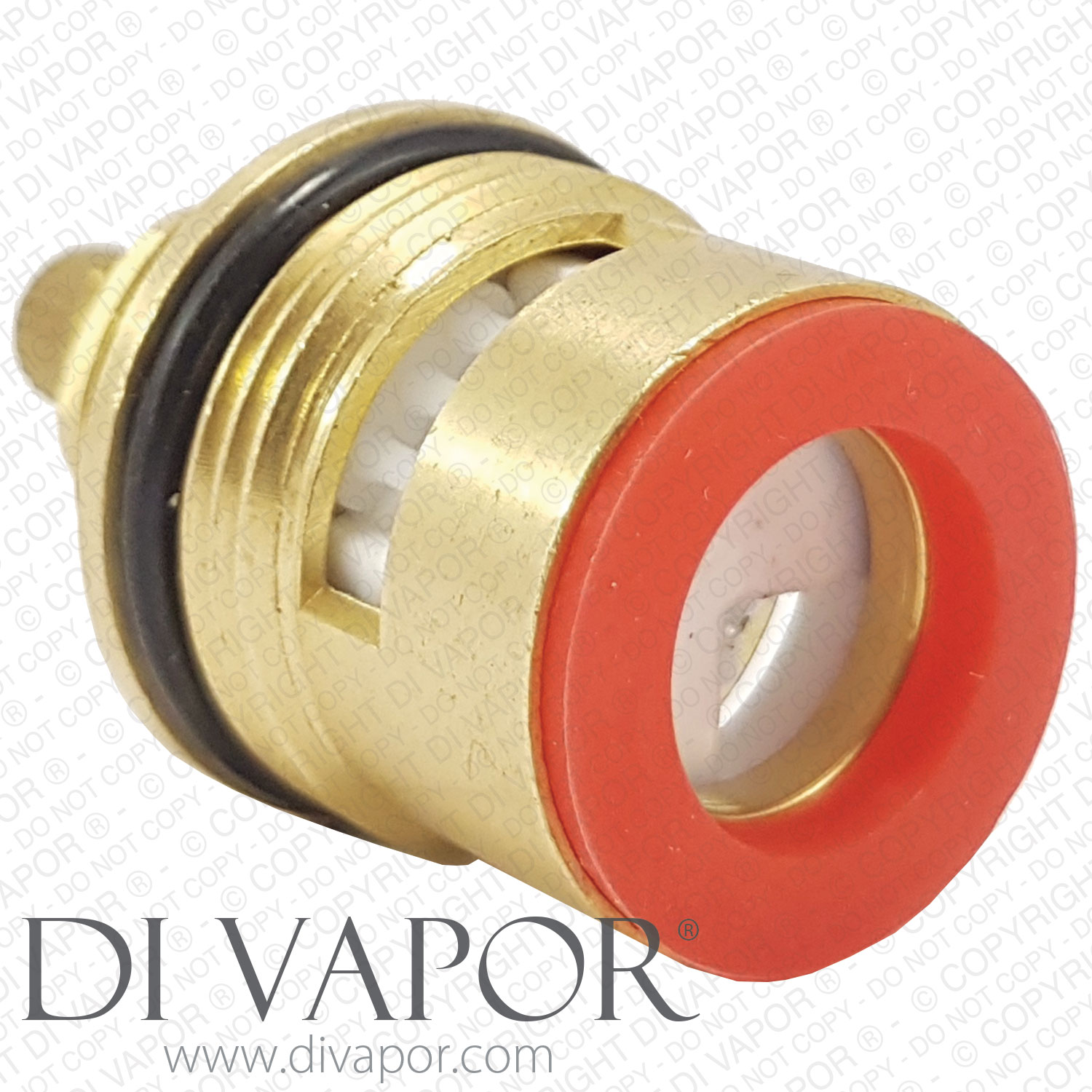

1/4 Turn 3/4 Inch Ceramic Disc Cartridge for Taps and Shower Valves (Anti-Clockwise Turn for Hot Side)
Send a photo of your item and we'll help confirm it.
Summary
1/4 Turn 3/4 Inch Ceramic Disc Cartridge for Taps and Shower Valves
| Total Length | 54mm |
|---|---|
| Number of Splines | 24mm |
| Un-threaded Body Width | 19mm |
| Body Diameter at Widest Point | 25mm |
- Quarter Turn, Three Quarter Inch Replacement CD Cartridge
| Cartridge Compatibility | 3/4” Kitchen Tap or Shower Valves |
|---|---|
| Spare Part | Tap Cartridge |
| Installation | Screw-Fit |
| Material | Brass with Ceramic Core |
| Number of External O-Rings | 1 |
| Bottom Seal Colour | Red (for Hot Side) |
| Open Direction | Clockwise 1/4 turn |
| Close Direction | Anti-clockwise 1/4 turn |
Pointers When Looking for the Right Tap or Shower Cartridge Spare Part
A number of cartridges have an identification number embossed on the barrel. If the broken cartridge does not have a set of numbers, you can take its measurements to gauge which tap cartridge replacement part will fit in your kitchen tap or shower unit.
Contact Us: If you are short on time, you can take a photo of the cartridge in question and send to us. We will happily assist you in searching for the correct tap cartridge replacement.
Taking the Measurement: Take the total length of the cartridge from the top of the splines to the bottom of the barrel seal. Measure its diameter, or how wide it is from one side of the thread to the other. If the cartridge does not come with threads, measure its widest part. Count the spline notches. Mark the starting point so that you will know where you began counting.

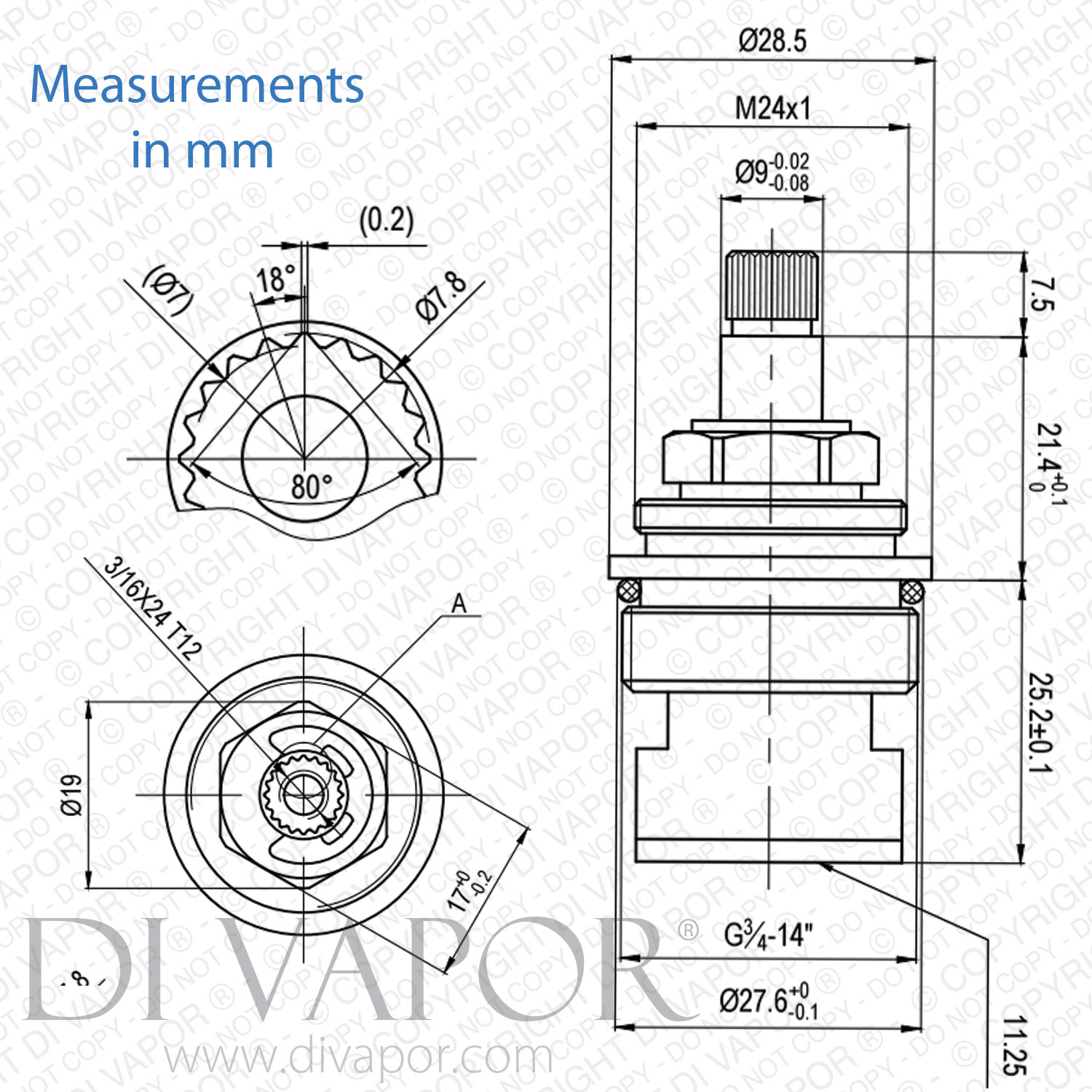

Please check the measurements of your old cartridge against the measurements of this tap / shower cartridge replacement part. A measurement diagram can be found above.
Cartridge Fitment Type: How the cartridge is secured in the valve is of utmost importance. If the cartridge has threads – screw-fitment – the replacement part must also have threads. If the cartridge does not have threads – push-fitment – the replacement spare part must not come with threads.
