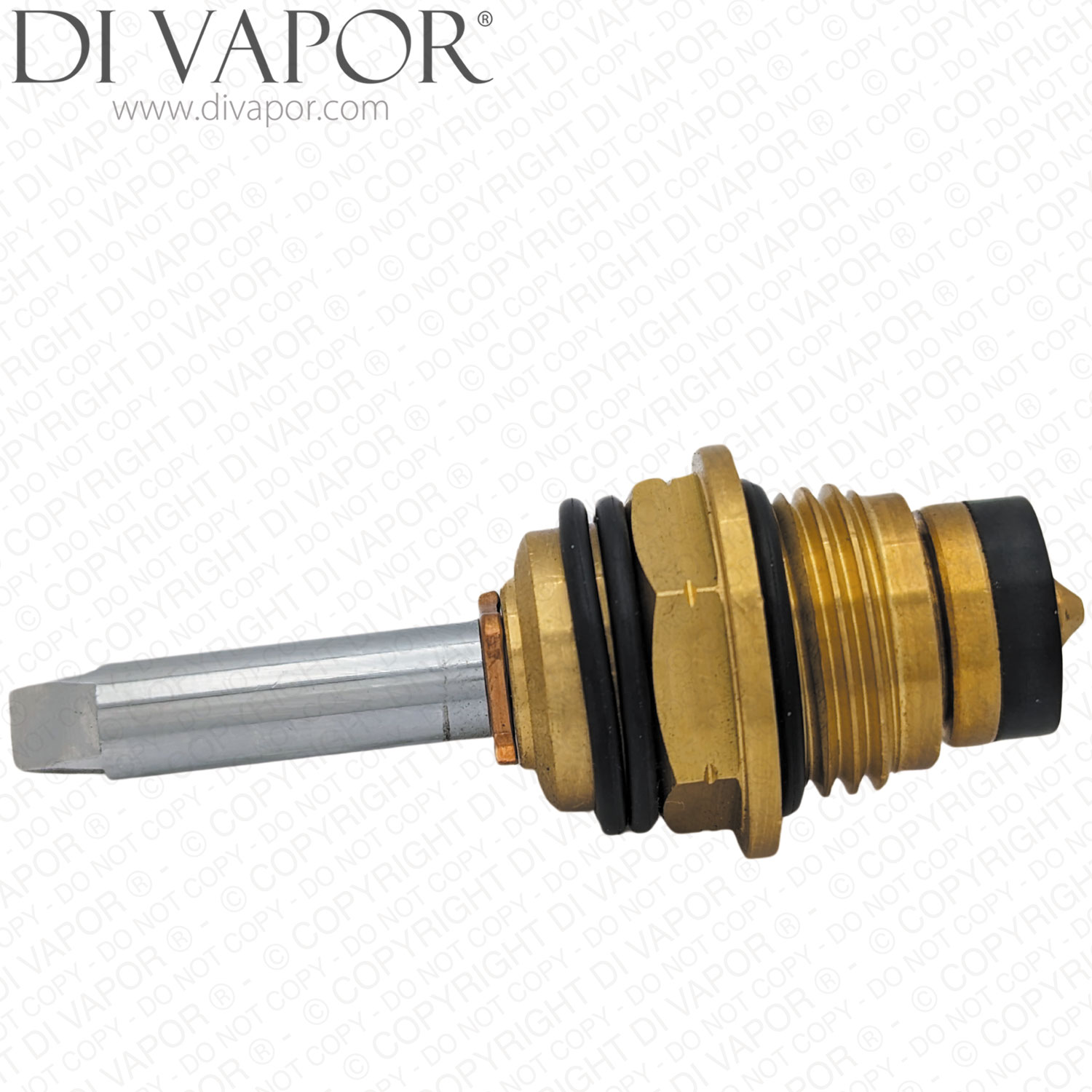

1/​2" Bath & Basin Tap Cartridge - 6mm x 6mm Square Head

SUMMARY

The cartridge comes with two o-rings which the shroud slides over.

Total Length (including bottom washer, excluding protruding rivet): 67.6mm (fully compressed) to 75mm fully extended.
Chrome Spindle Length (from top of brass): 32.7mm
Diameter at Widest Point: 27.4mm

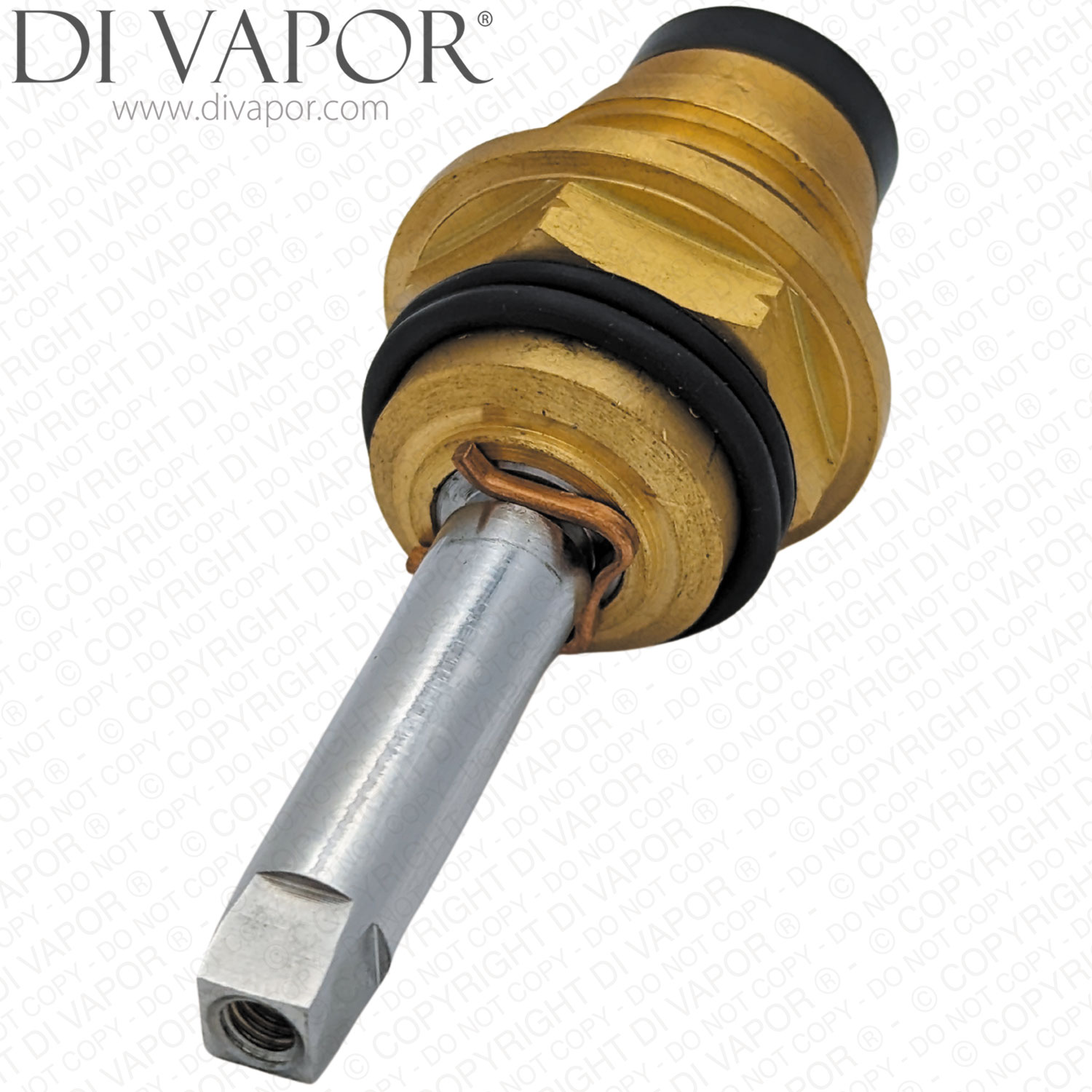

Top Spline Diameter: 6mm x 6mm (however the square head tapers so at the narrowest point at the tip it's 5.5mm and at the base it's about 6.3mm)
Brass Barrel Diameter: 16.2mm (diameter of washer is 16mm)
Lower Thread: 1/2" BSP (20.6mm)
Upper Nut Diameter: 20.9mm (flat to flat)
