Dornbracht 90173301700-08 Thermostat Handle 48mm Platinum
Send a photo of your item and we'll help confirm it.
Summary

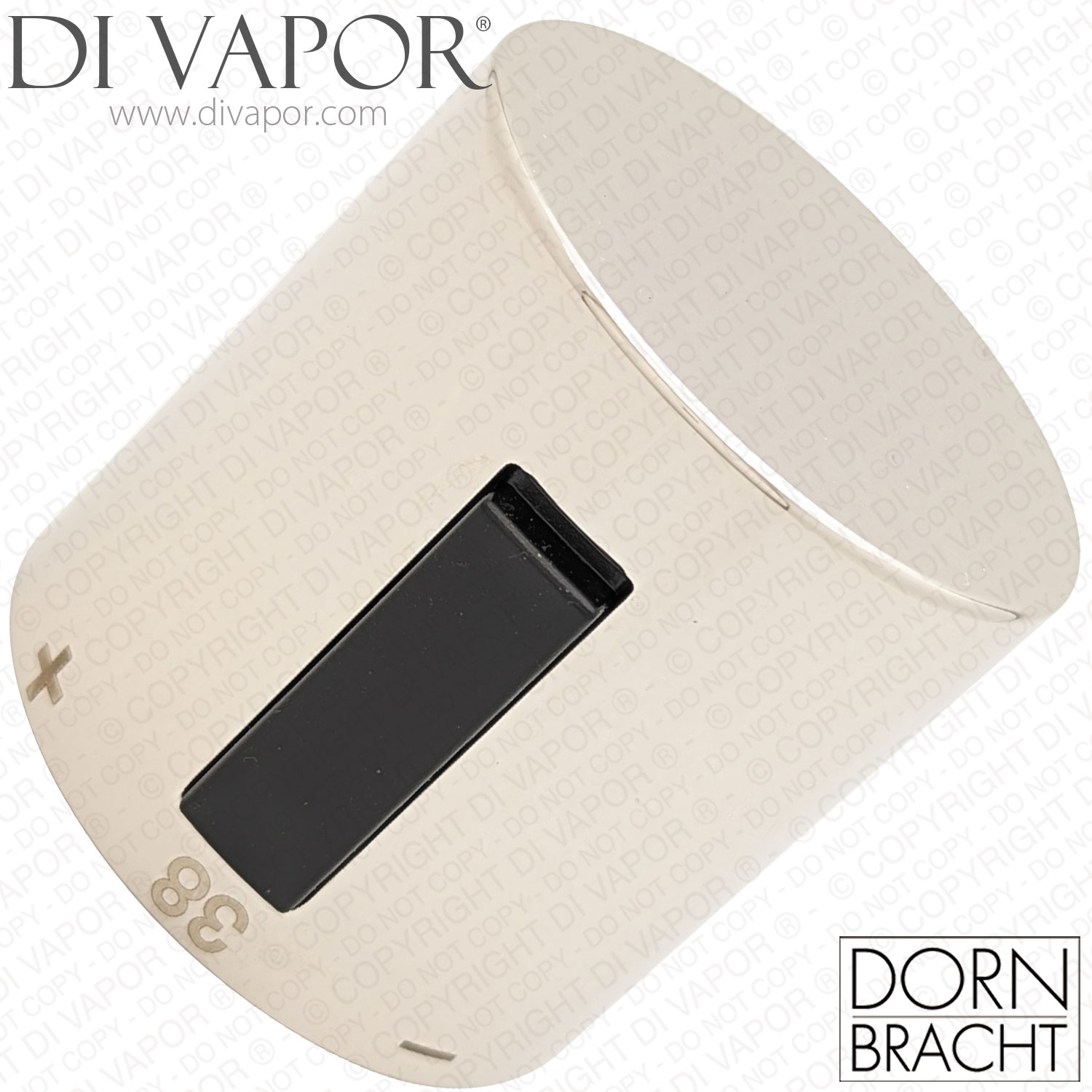

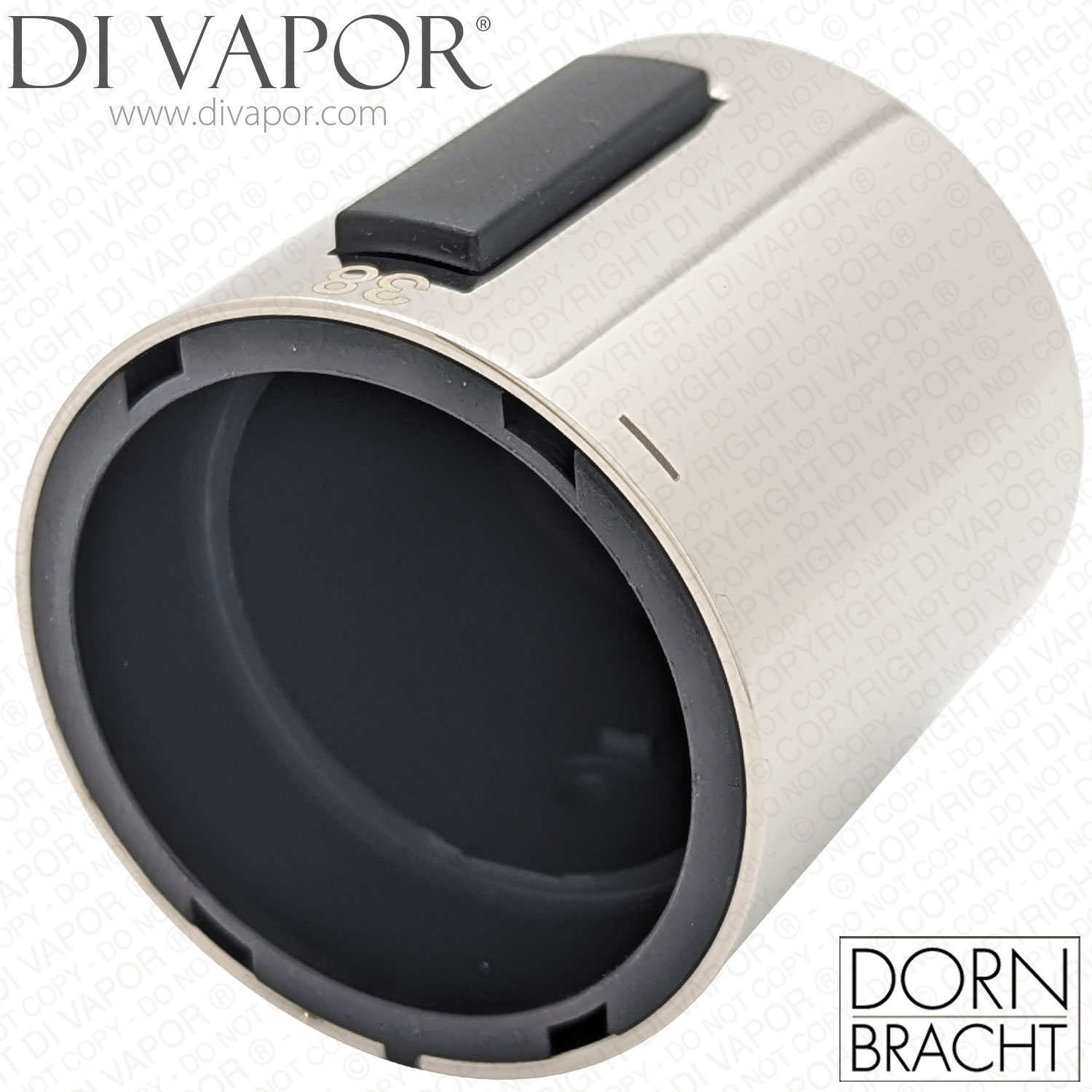

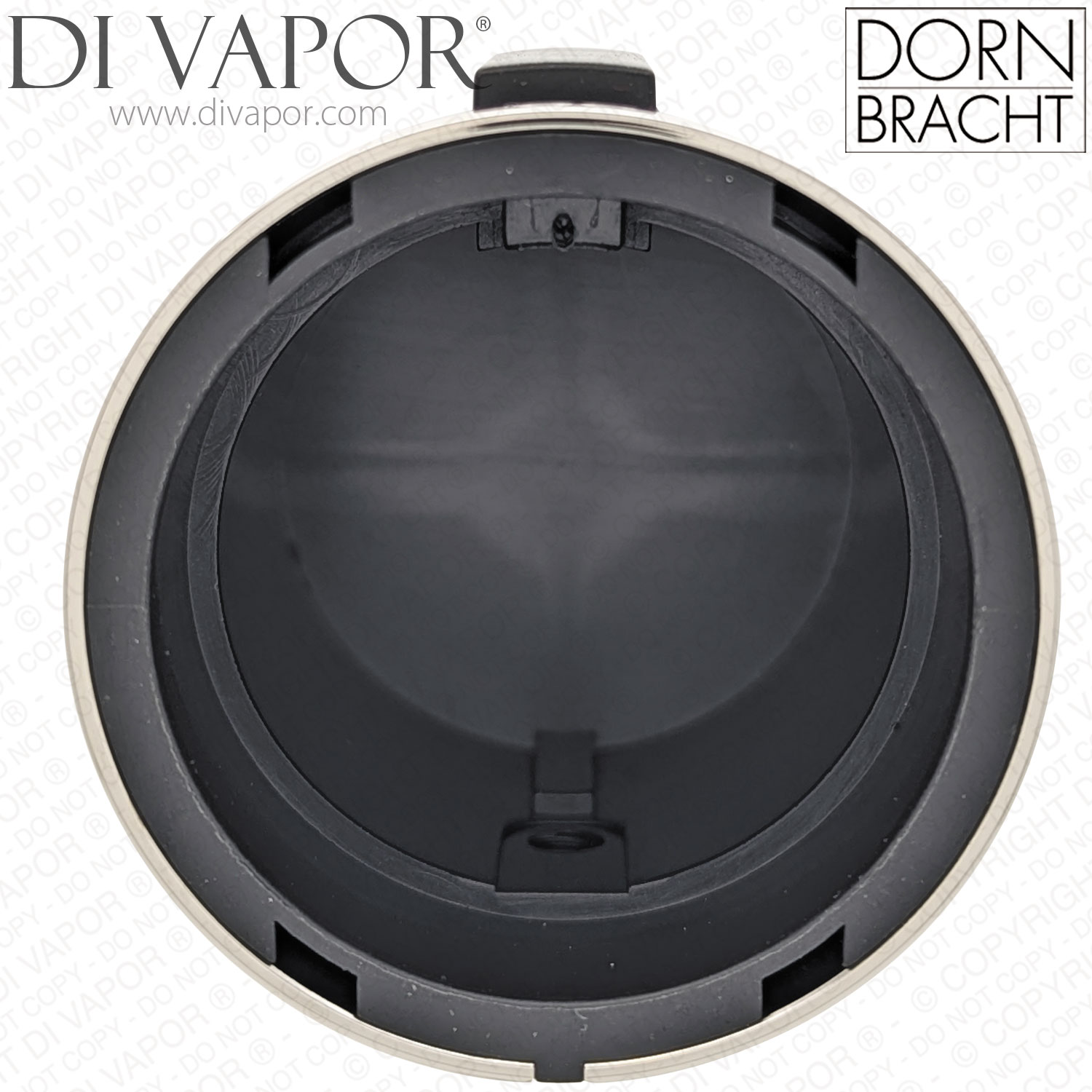

Dornbracht 90173301700-08 Thermostat Handle 48mm Platinum for Concealed Thermostatic Shower Valves
The Dornbracht 90173301700-08 is a 48mm thermostat handle in Platinum for selected Dornbracht concealed thermostatic shower valve trim assemblies. Dornbracht spare-parts documentation also shows the code in spaced service format as 90 17 33 017 00-08.
This is the external temperature control handle used on the thermostat side of the trim. It is not the thermostatic cartridge, diverter cartridge, sleeve or internal adapter, so the existing handle code and the valve spare-parts diagram should be checked before ordering.
Technical Details
| Brand | Dornbracht |
|---|---|
| Part code | 90173301700-08 |
| Dornbracht spare-list format | 90 17 33 017 00-08 |
| Part type | thermostat handle / temperature control handle |
| Nominal handle size | 48mm |
| Finish | Platinum |
| Application | selected Dornbracht concealed thermostatic shower valve trim assemblies |
Confirmed Compatible Models
- Dornbracht Series Specific Concealed Thermostat with Three Function Volume Control - Platinum 36 427 970-08
- Dornbracht Series Specific Concealed Thermostat with Three Function Volume Control - Platinum 36 427 670-08
- Dornbracht Series Specific Concealed Thermostat with Two Function Volume Control - Platinum 36 426 970-08 for TARA VAIA and META
- Dornbracht Madison Concealed Thermostat with Two Function Volume Control - Platinum 36 426 977-08
- Dornbracht xTOOL Concealed Thermostat without Diverter - Platinum 36 416 780-08 version-specific spare list up to 2/2/2021 only
Before You Order
- Match 90173301700-08 or 90 17 33 017 00-08 against the spare-parts list for your exact Dornbracht concealed thermostat.
- Do not order by the 48mm handle size alone, as similar Dornbracht thermostat handles are used in other finishes and on different trim assemblies.
- Check whether you need the external thermostat handle rather than the internal thermostatic cartridge, diverter cartridge, brass sleeve or handle-base adapter.
Related Spares You May Need
- Dornbracht 9090031700090 Diverter Cartridge
- Dornbracht 9090031630090 Diverter Cartridge
- Dornbracht 09121205290 Handle Base Extension
- Dornbracht 09121205490 Adapter
- Dornbracht 09230112490 Thermostatic Cartridge Adapter - D-09230112490
- Dornbracht 09184007790 Brass Sleeve
- Dornbracht 9015020130090 Thermostatic Cartridge
