STSR ST240 40mm 3 Function / Way Diverter Cartridge Spare
SUMMARY
STSR ST240 40mm 3 Function / Way Diverter Cartridge Replacement Spare (CARTUCCIA TERMOSTATICA) - A1XXZ9
Deviatore 40mm 3vie 3 pos. Hydro
20170607CMP000159

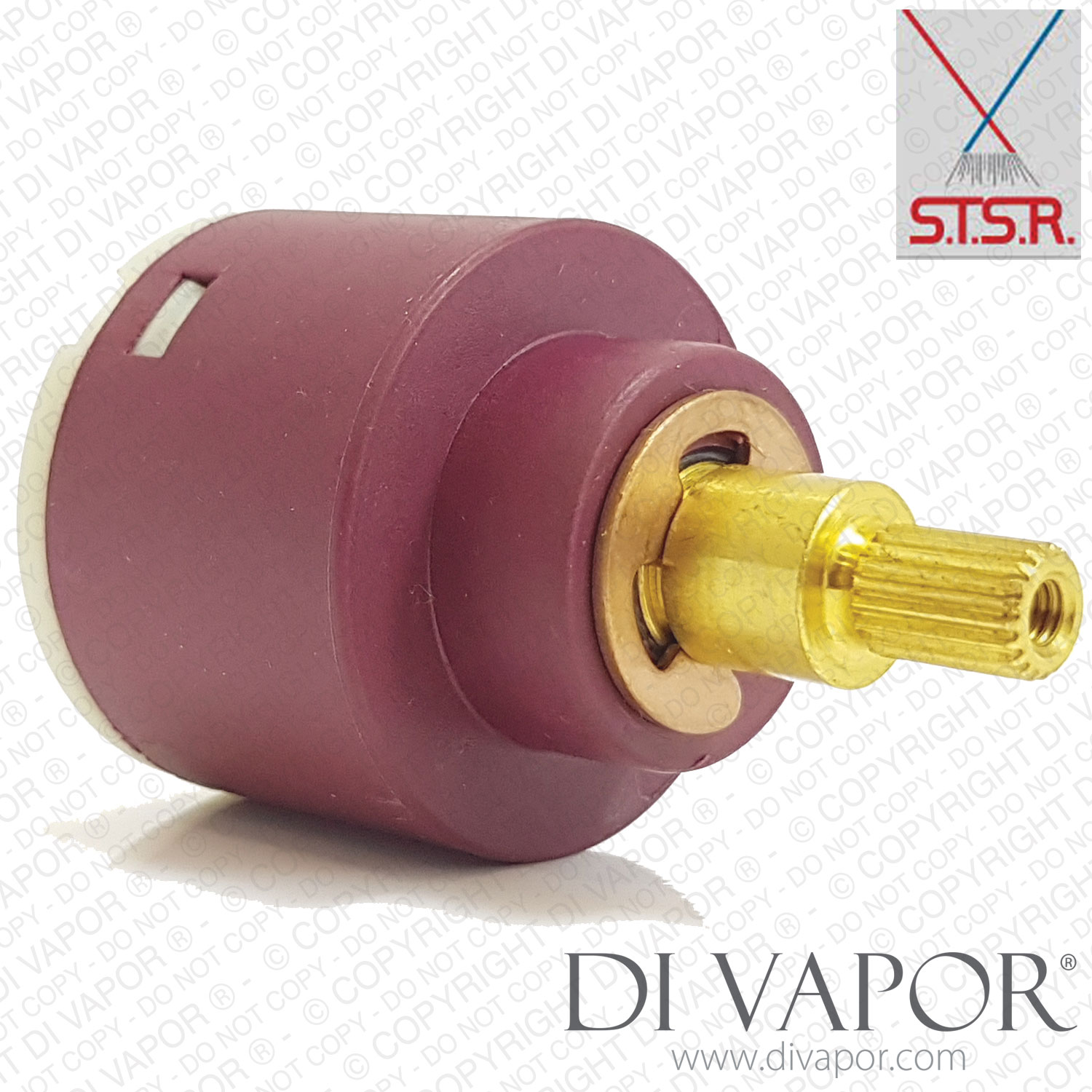

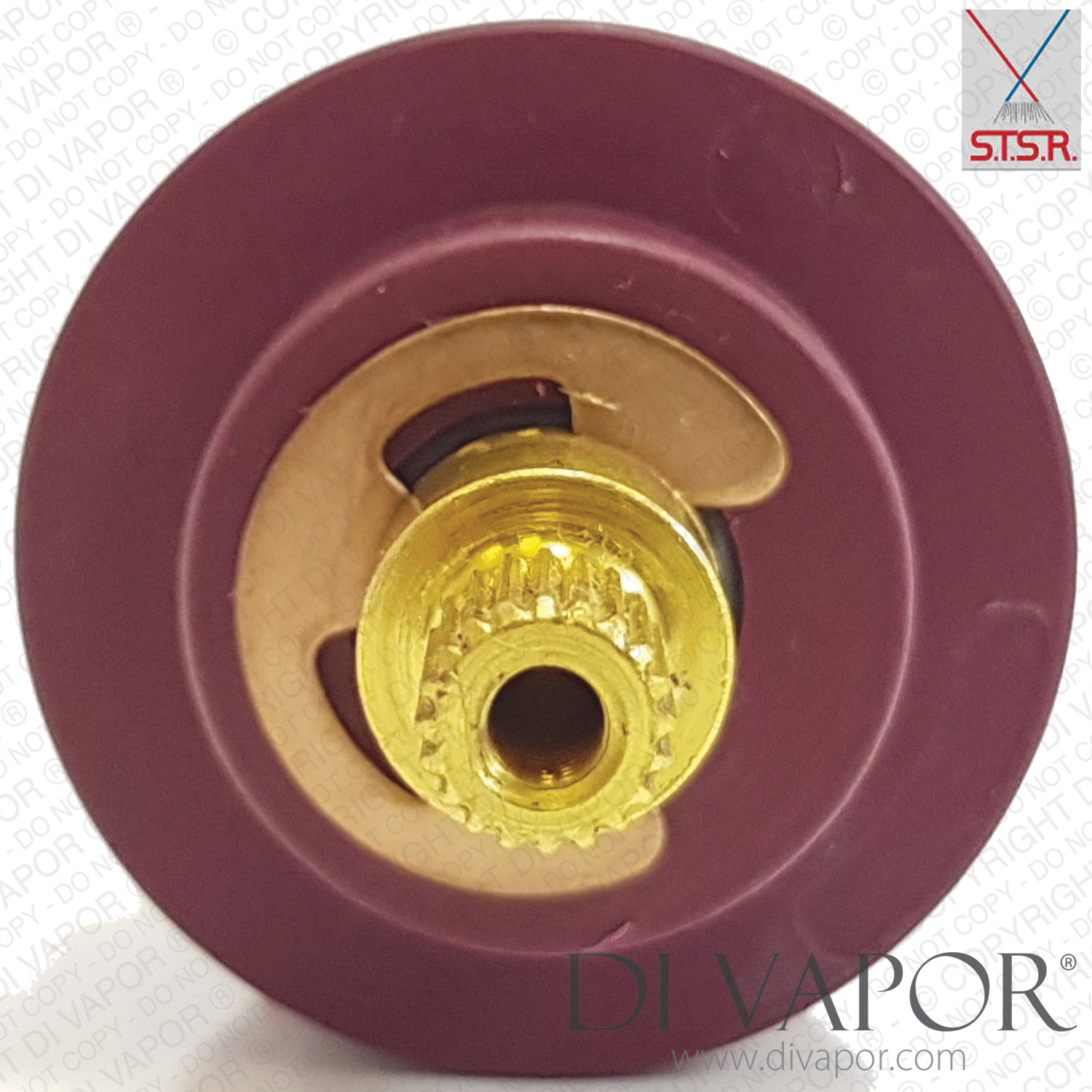

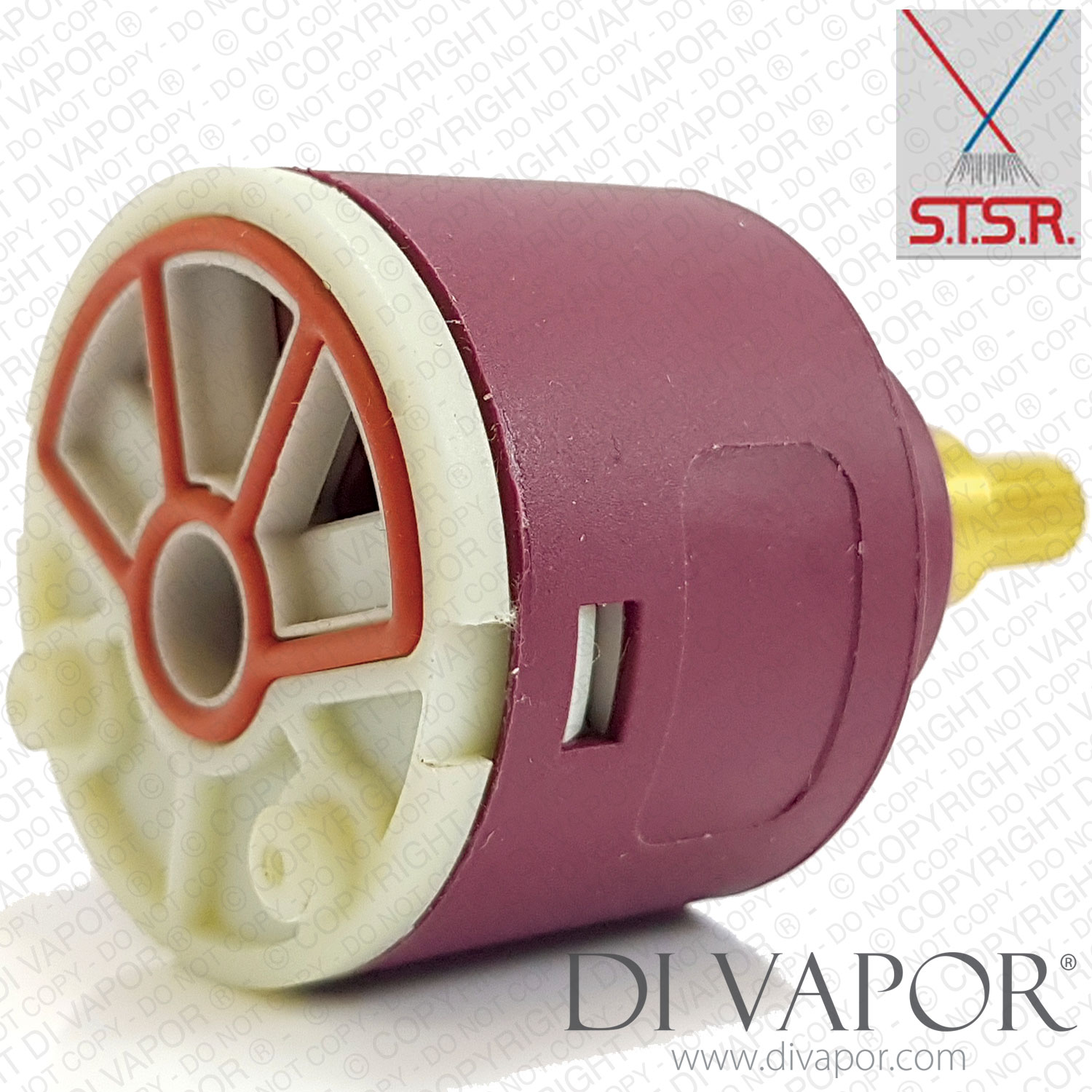

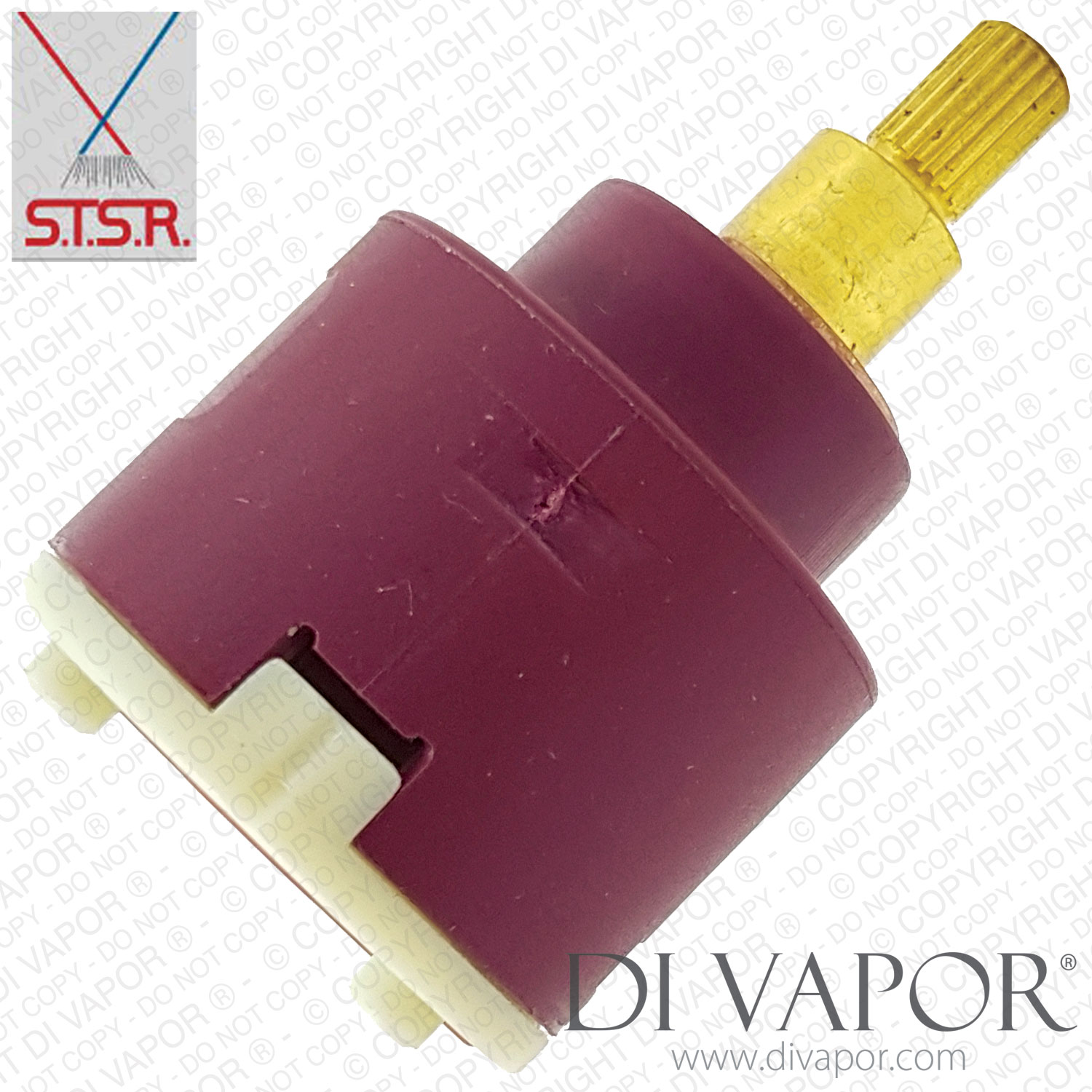

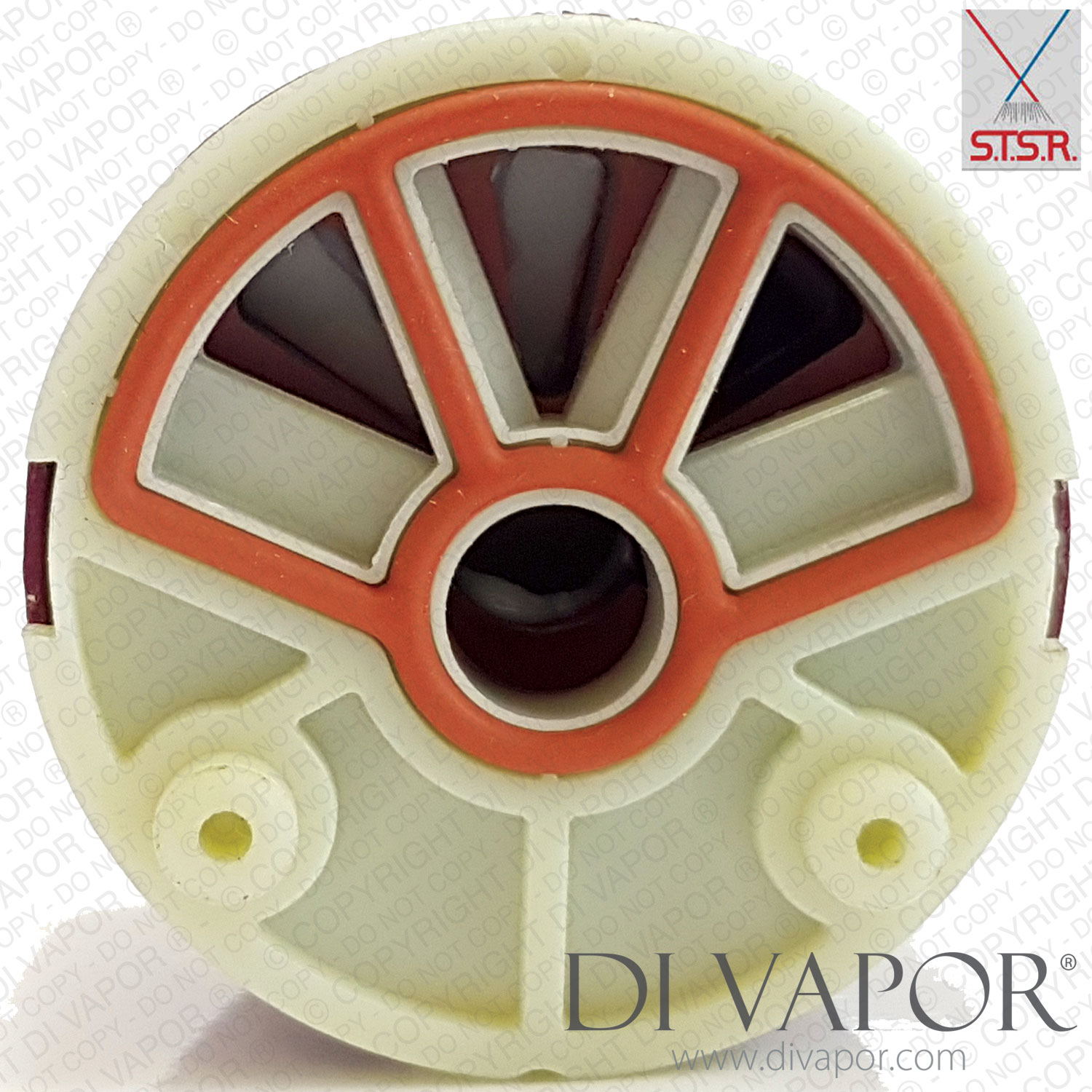

The STSR ST240 is a 40mm 3 function diverter cartridge used to direct water between three outlets or functions in a suitable shower, tap or valve assembly. It is intended for valves that use the STSR-ST240 diverter cartridge and should be matched against the removed cartridge before ordering.
This diverter cartridge is the internal control part operated by the diverter handle. Replacing a worn diverter cartridge can help restore outlet selection where the valve is stiff to turn, will not select the intended outlet cleanly, passes water to the wrong outlet, or allows dripping from a shower head or spout when the valve is turned off.

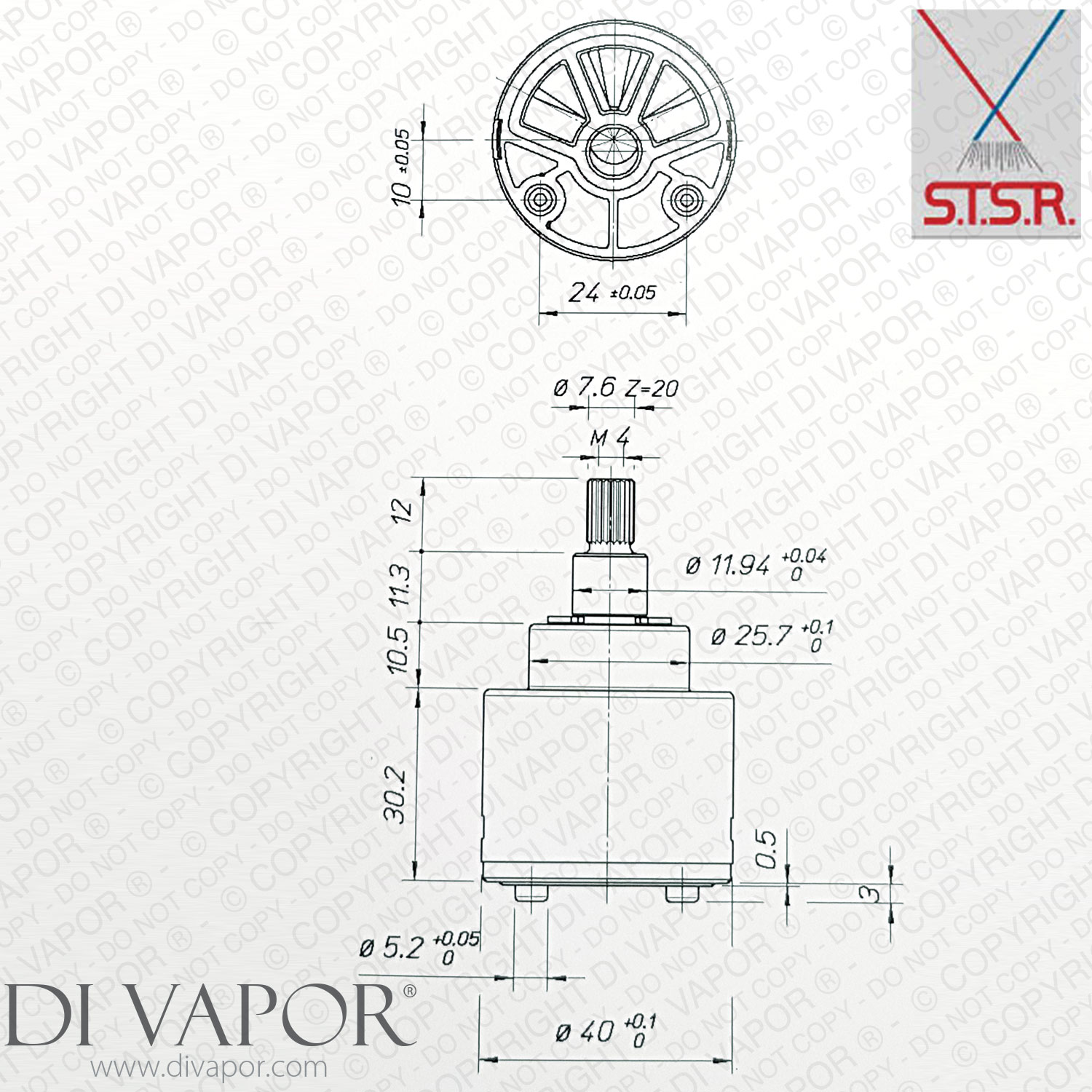

Technical Details
- - Di Vapor Part Number: STSR-ST240
- - Cartridge type: 3 function diverter cartridge
- - Width: 40mm at widest point
- - Total length: 66mm
- - Function reference: Deviatore 40mm 3vie 3 pos. Hydro
- - Additional reference codes shown: A1XXZ9 and 20170607CMP000159
Before Ordering
- - Remove the existing cartridge and compare the body diameter, total length, bottom profile, spindle shape and outlet configuration before ordering.
- - Do not order by the 40mm size alone as different 40mm cartridges can have different bodies, port layouts and operating positions.
- - Apply a suitable silicone grease to the O-rings and bottom seals during installation to help protect the seals and support smooth fitting.
