IXIA 3-Way Diverter Cartridge for Plumbfit IXIA SP 9101 / SP 9102 Shower Mixer Valves | Kyra | Oslo | Excel | Cruz
Part number: IXIA-SP-9101-DIV
Price: £99.95
Price includes UK VAT (Region: UK▼)
In stock
Not sure if this is the right part?
Send us a photo of your existing item and we'll help you confirm.
Product description
Summary

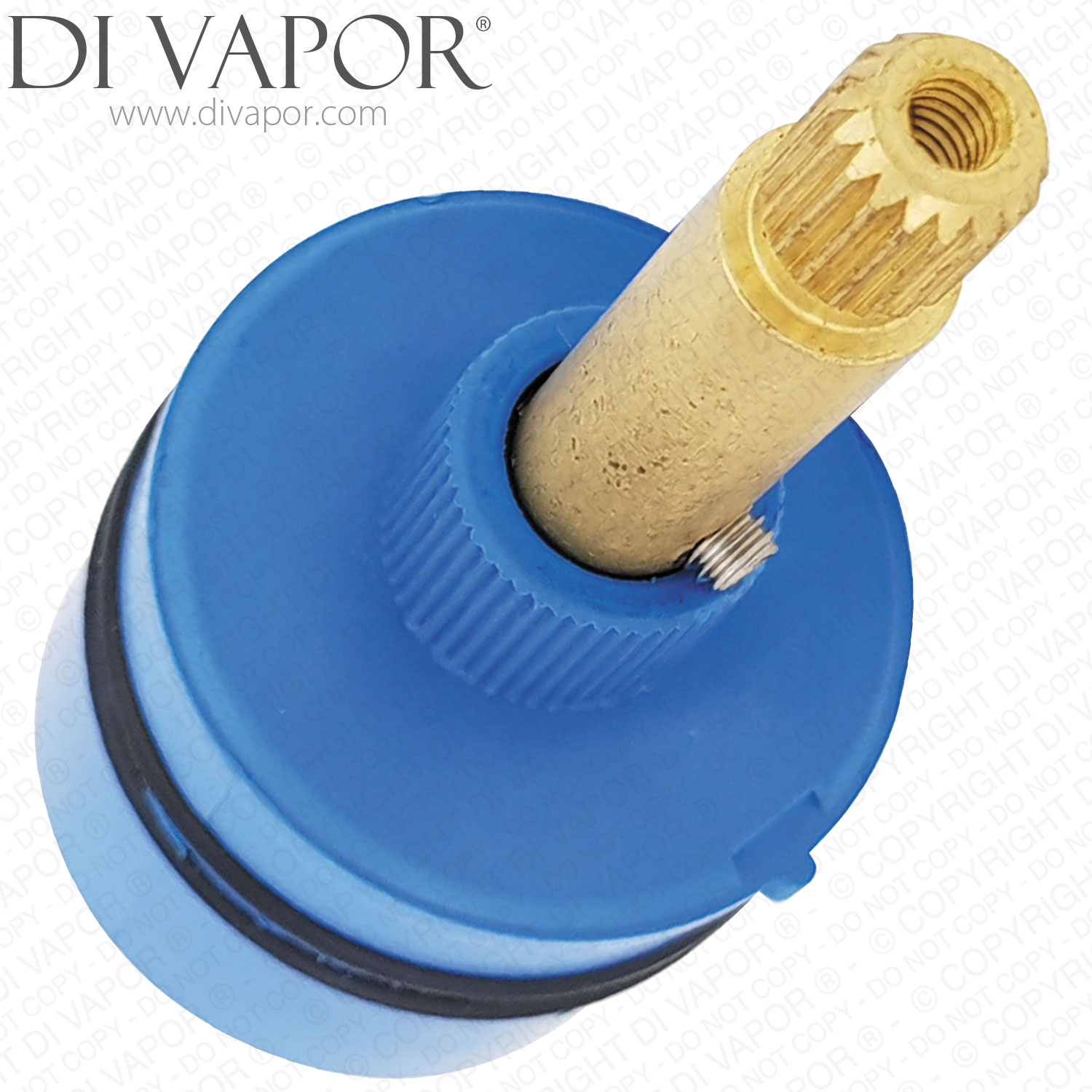

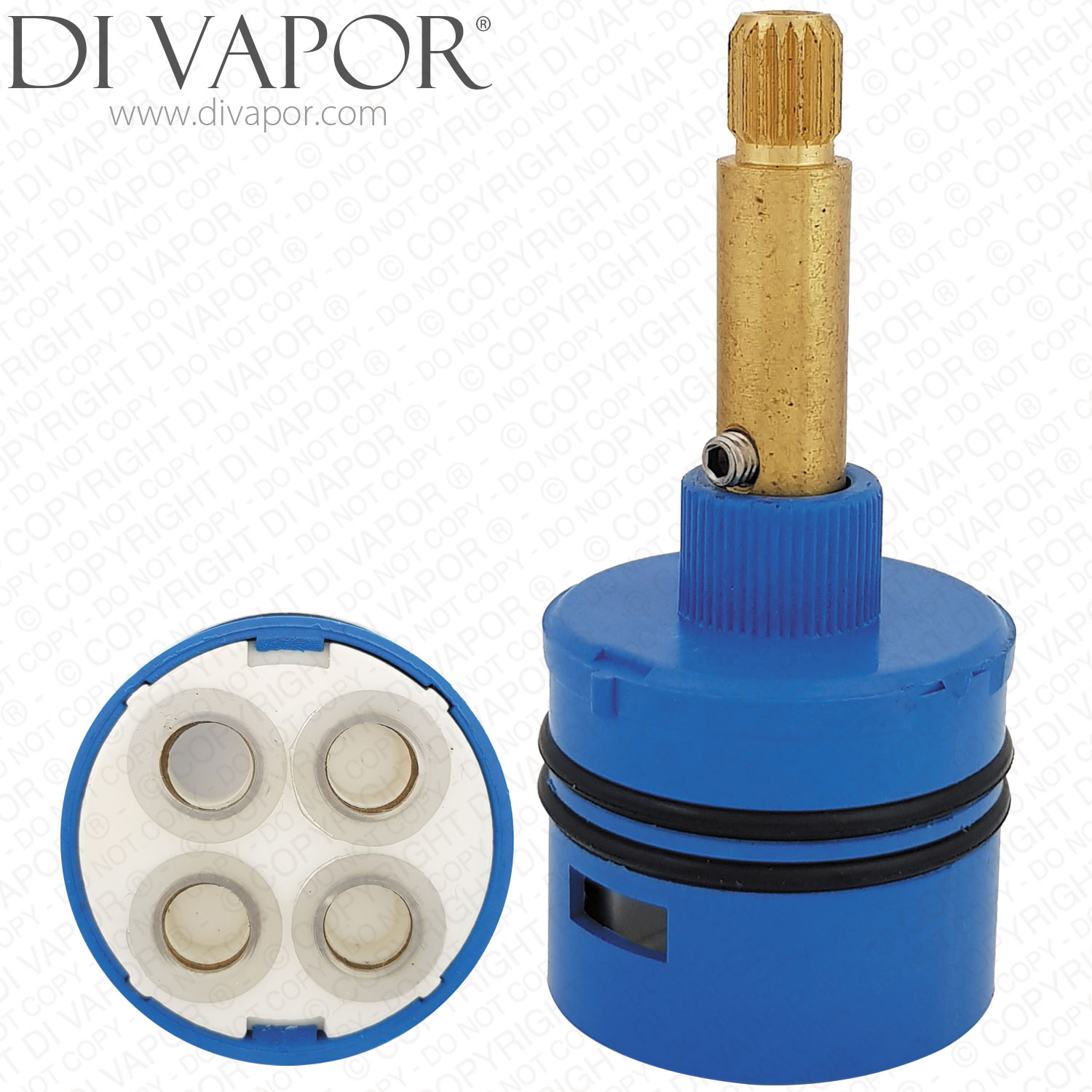

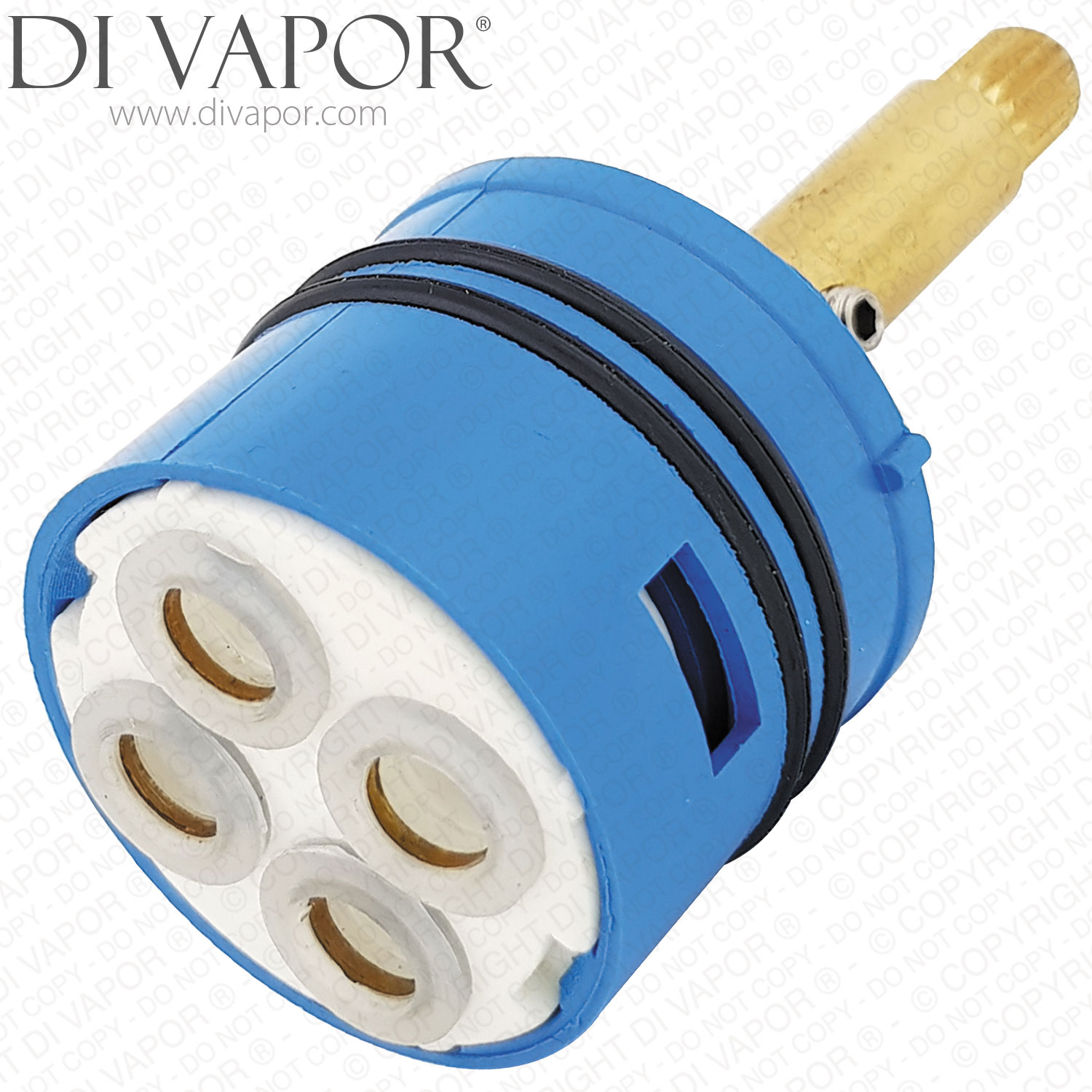

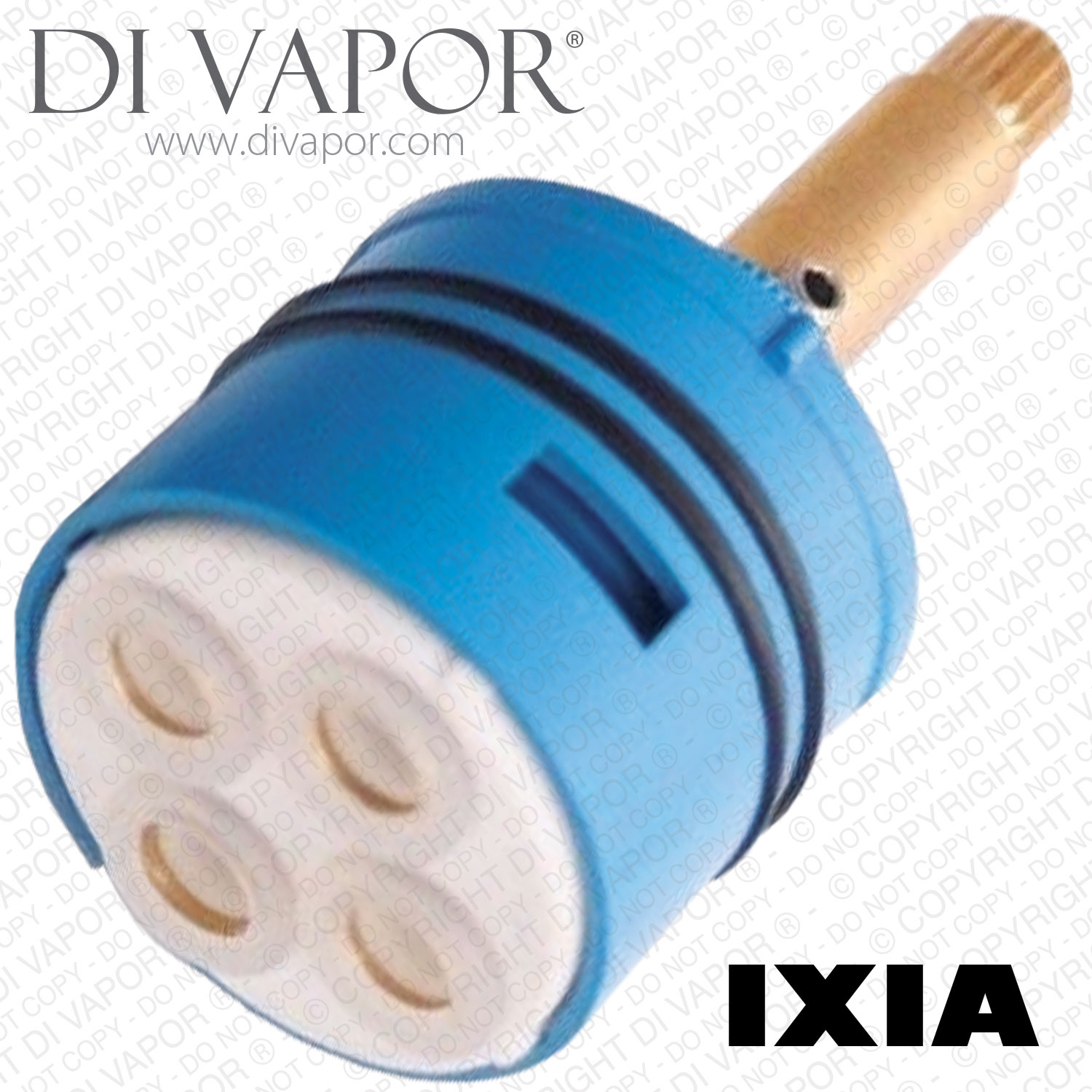

Replacement Diverter cartridge for Plumbfit shower mixer valves which use the IXIA SP 9101 and SP-9102 cartridge.This diverter cartridge will fit most IXIA Exposed and Concealed thermostatic shower mixers. It will work for 2, 3 and 4 ways valves as the outlets which aren't used are plugged.
Cartridge Measurements:
Total Length (including bottom seal): 74m (excluding locating pins)
Diameter at Widest Point: 35mm (at o'ring)
Brass Spindle Length (Including Spline): 33mm
Top Spline Diameter: 7.8mm
Top Spline Teeth / Notches: 18
Barrel Diameter: 34mm
Number of Function Outlets: 4
This diverter cartridge will fit the following Plumbfit Ltd. IXIA shower models:
Cruz Concealed Thermostatic Showers
- Cruz 3050 Concealed Thermostatic Mixer
- Cruz 3051 Thermostatic Mixer with Diverter
- Cruz 3053 Concealed Thermostatic Shower
- Cruz 3058 Concealed Thermostatic Shower
- Cruz 3059 Concealed Thermostatic Shower
- Cruz 3060 Concealed Thermostatic Shower
- Cruz 3061 Concealed Thermostatic Shower
- Cruz 3080 - S1 Concealed Thermostatic Shower
- Cruz 3080 - S10 Concealed Thermostatic Shower
- Cruz 3080 - S6 Concealed Thermostatic Shower
- Cruz 3097 Concealed Thermostatic Shower
- Cruz 3098 Concealed Thermostatic Shower
- Cruz 3305 Thermostatic Concealed Shower Mixer
Excel Concealed Thermostatic Showers
- Excel 1188 Concealed Thermostatic Shower
- Excel 1050 Concealed Thermostatic Mixer
- Excel 1051 Thermostatic Mixer with Diverter
- Excel 1161 Concealed Thermostatic Shower
- Excel 1162 Concealed Thermostatic Shower
- Excel 1162-S14 Concealed Thermostatic Shower
- Excel 1163 Concealed Thermostatic Shower
- Excel 1164 Concealed Thermostatic Shower
- Excel 1165 Concealed Thermostatic Shower
- Excel 1167 Concealed Thermostatic Shower
- Excel 1167-S14 Concealed Thermostatic Shower
- Excel 1180 - S6 Concealed Thermostatic Shower
- Excel 1180-S10 Concealed Thermostatic Shower
- Excel 1180-S18 Concealed Thermostatic Shower
- Excel 1182-S10 Concealed Thermostatic Shower
- Excel 1182-S12 Concealed Thermostatic Shower
- Excel 1182-S14 Concealed Thermostatic Shower
- Excel 1183 Concealed Thermostatic Shower
- Excel 1184 Concealed Thermostatic Shower
- Excel 1185 a Concealed Thermostatic Shower
- Excel 1185 Concealed Thermostatic Shower
- Excel 1186 Concealed Thermostatic Shower
- Excel 1187 Concealed Thermostatic Shower
- Excel 1189 Concealed Thermostatic Shower
- Excel 1190 Concealed Thermostatic Shower
- Excel 1193 Concealed Thermostatic Bath Shower
- Excel 1194 Concealed Thermostatic Bath Shower
- Excel 1195 Concealed Thermostatic Bath Shower
Oslo Concealed Thermostatic Showers
- Oslo 2050 Concealed Thermostatic Mixer
- Oslo 2051 Concealed Thermostatic Mixer + Diverter
- Oslo 2053 Concealed Thermostatic Shower
- Oslo 2054 Concealed Thermostatic Shower
- Oslo 2055 Concealed Thermostatic Shower
- Oslo 2056 Concealed Thermostatic Shower
- Oslo 2057 Concealed Thermostatic Shower
- Oslo 2063 Concealed Thermostatic Shower
- Oslo 2069 Concealed Thermostatic Shower
- Oslo 2070 Concealed Thermostatic Shower
- Oslo 2071 Concealed Thermostatic Shower
- Oslo 2072 - S6 Concealed Thermostatic Shower
- Oslo 2072-S10 Concealed Thermostatic Shower
- Oslo 2072-S18 Concealed Thermostatic Shower
- Oslo 2074 - S10 Concealed Thermostatic Shower
- Oslo 2074 - S12 Concealed Thermostatic Shower
- Oslo 2074 - S14 Concealed Thermostatic Shower
- Oslo 2081 Concealed Thermostatic Shower
- Oslo 2083 Concealed Thermostatic Shower
- Oslo 2084 Concealed Thermostatic Shower
- Oslo 2087 Concealed Thermostatic Shower
- Oslo 2088 Concealed Thermostatic Shower
- Oslo 2089 Concealed Thermostatic Shower
- Oslo 2090 Concealed Thermostatic Shower
- Oslo 2091 Concealed Thermostatic Shower
- Oslo 2092 Concealed Thermostatic Shower
- Oslo 2093 Concealed Thermostatic Shower
- Oslo 2094 Concealed Thermostatic Shower
- Oslo 2095 Concealed Thermostatic Bath Shower
- Oslo 2096 Concealed Thermostatic Bath Shower
- Oslo 2097 Concealed Thermostatic Shower
- Oslo 2098 Concealed Thermostatic Shower
- Oslo 2099 Concealed Thermostatic Shower
- Oslo 2100 Concealed Thermostatic Shower
Kyra Concealed Thermostatic Showers
- Kyra 6050 Concealed Thermostatic Shower Mixer
- Kyra 6051 Thermostatic Mixer
- Kyra 6052 Concealed Thermostatic Shower
- Kyra 6053 Concealed Thermostatic Shower
- Kyra 6059 Concealed Thermostatic Shower
- Kyra 6060 Concealed Thermostatic Shower
- Kyra 6060 Concealed Shower Bath Set
- Kyra 6063 Concealed Thermostatic Shower
- Kyra 6070 - S10 Concealed Thermostatic Shower
- Kyra 6070 - S12 Concealed Thermostatic Shower
- Kyra 6070 - S14 Concealed Thermostatic Shower
- Kyra 6070 - S15 Concealed Thermostatic Shower
Further Information about IXIA showers (according to Plumbfit):
All Ixia Concealed Thermostatic Shower Mixers feature:
- Thermostatic control for safe showers.
- Drip free ceramic disc technology used in our On-Off Valves.
- Only 50mm wall depth required for our Concealed Shower Mixers.
- Front access to the shower mixer for future maintenance.
- Solid Brass Mixer Body, Concealing Plate and Handles.
- High Quality Polished Chrome Finish.
- Experience exhilarating Power Shower Performance when used on a High Pressure Hot Water System.
