Dornbracht 9090031620090 Diverter Cartridge - Compatible Spare
Send a photo of your item and we'll help confirm it.
Summary

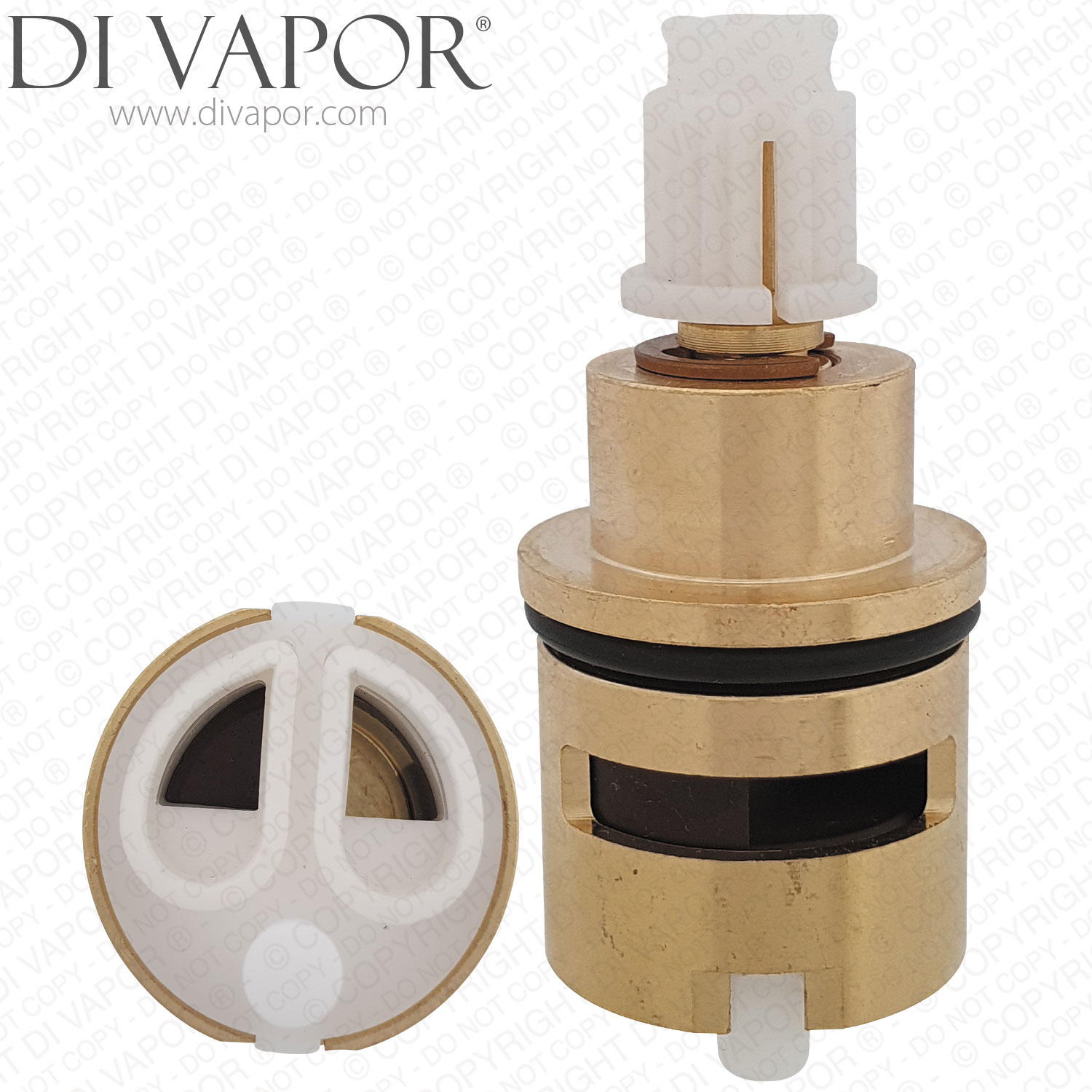

The Dornbracht 9090031620090 is a compatible spare progressive temperature-control cartridge for selected Dornbracht single lever mixer taps. Dornbracht documentation also shows the formatted code 90 90 03 162 00 90 and describes the part as a Lifetime progressive 180 degree temperature-control top.
This cartridge is used inside the mixer body to control progressive water flow and temperature through the tap handle. It can help resolve faults such as dripping from the spout when the tap is turned off, stiff handle movement, poor shut-off or inconsistent progressive temperature control where the existing cartridge is worn or scaled.
Technical Details
| Brand | Dornbracht |
|---|---|
| Part Number | 9090031620090 |
| Code variant | 90 90 03 162 00 90 |
| Part type | progressive temperature-control cartridge / top |
| Operation | progressive 180 degree |
| Closing direction | left-closing |
| Diameter reference | 29mm |
Check the cartridge code, tap model and spare-parts diagram before ordering. Do not rely on diameter alone because Dornbracht cartridges with similar dimensions may differ by operation, closing direction or fitting application.
Confirmed Compatible Models
- Dornbracht Imo Single-Lever Basin Mixer with Pop-Up Waste - Brushed Dark Platinum 33 507 670-99 Spare Parts
- Dornbracht Single Lever Tap Mixer without Drain 33527670 000010 Spare Parts
- Dornbracht Single Lever Tap Mixer with Drain 33507670 000010 Spare Parts
- Dornbracht IMO Single-lever basin mixer with pop-up waste 33 507 670-08
- Dornbracht IMO Single-lever basin mixer without pop-up waste 33 527 670-06
- Dornbracht 33 507/527 670/730 - FF family
- Dornbracht 33 600 730 - FF / 33600730-00 Supernova single-lever bidet mixer family
- Dornbracht 33 525 840-FF / 33525840 single-lever basin mixer family
Related Spares You May Need
Apply silicone grease to the cartridge O-rings and seals during installation. If the mixer body is heavily scaled, clean the seating area carefully before fitting the new cartridge and confirm the handle alignment before fully reassembling the tap.
