CEA Designs MILO360 Diverter Cartridge | MIL103 | Two Way
CEA Designs MILO360 Diverter Cartridge | MIL103 | Two WayDiverter Cartridge for CEA MixerDiverter Cartridge for CEA Designs MILO360CEA Designs MIL103 Diverter CartridgeCEA MILO360 Diverter Cartridge MIL103 with RedDiverter Cartridge for CEA Tap MixerDiverter Cartridge for CEA Shower MixerCEA White Cream Plastic Diverter Cartridge

CEA Designs MILO360 Single Lever Cartridge | MIL103 | Two Way

Part Number: CEA-MIL103-DIV

SALE: £48.68

You save: £31.21 (39%)
Price includes VAT
Quantity:
ADD TO BASKET
IN STOCK
Wrong Item? Click to see More
UK Lowest Price Guaranteed
Next Day Delivery Available
Product description

SUMMARY

This is a Single Lever cartridge for Cea MILO360 wall and deck mounted mixers.

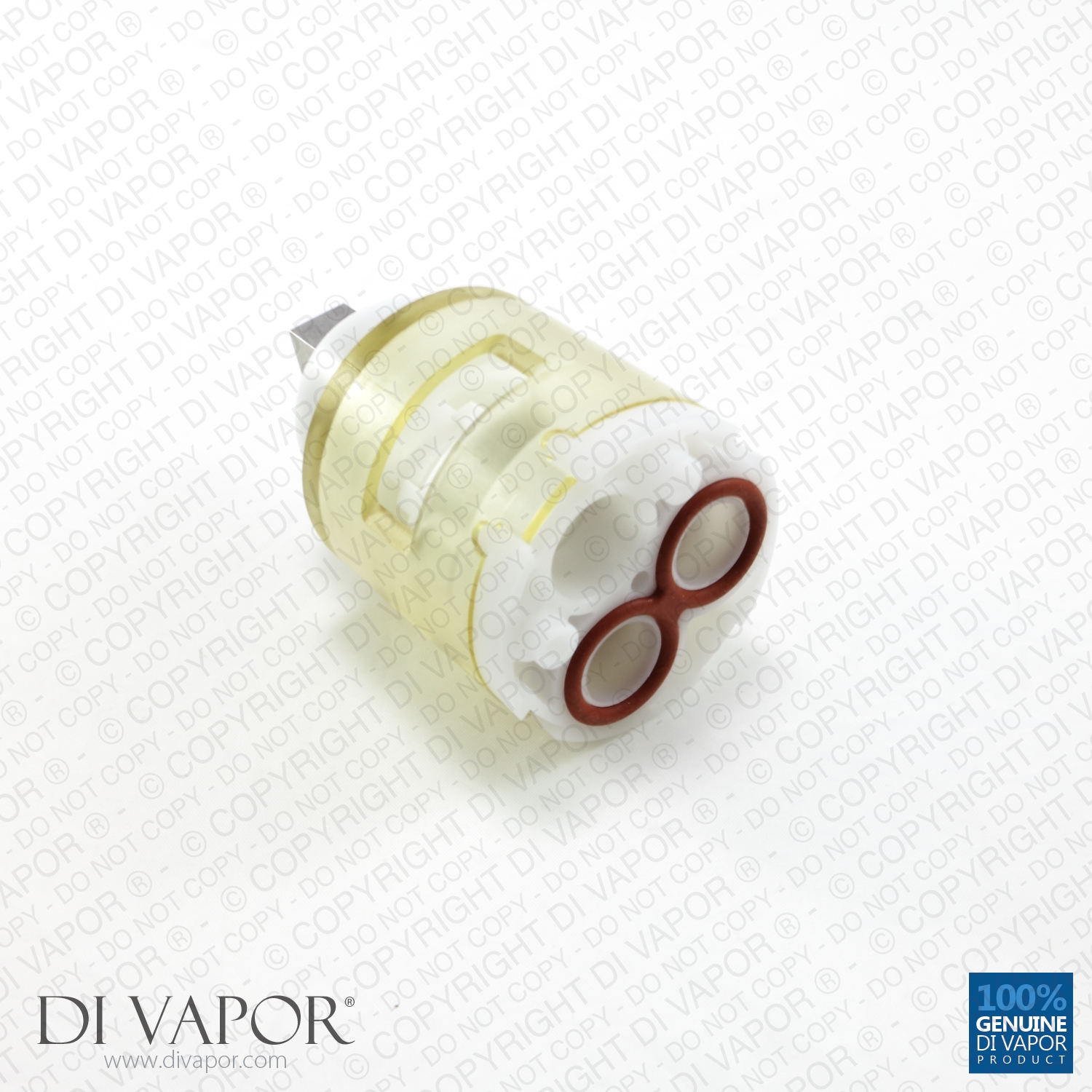

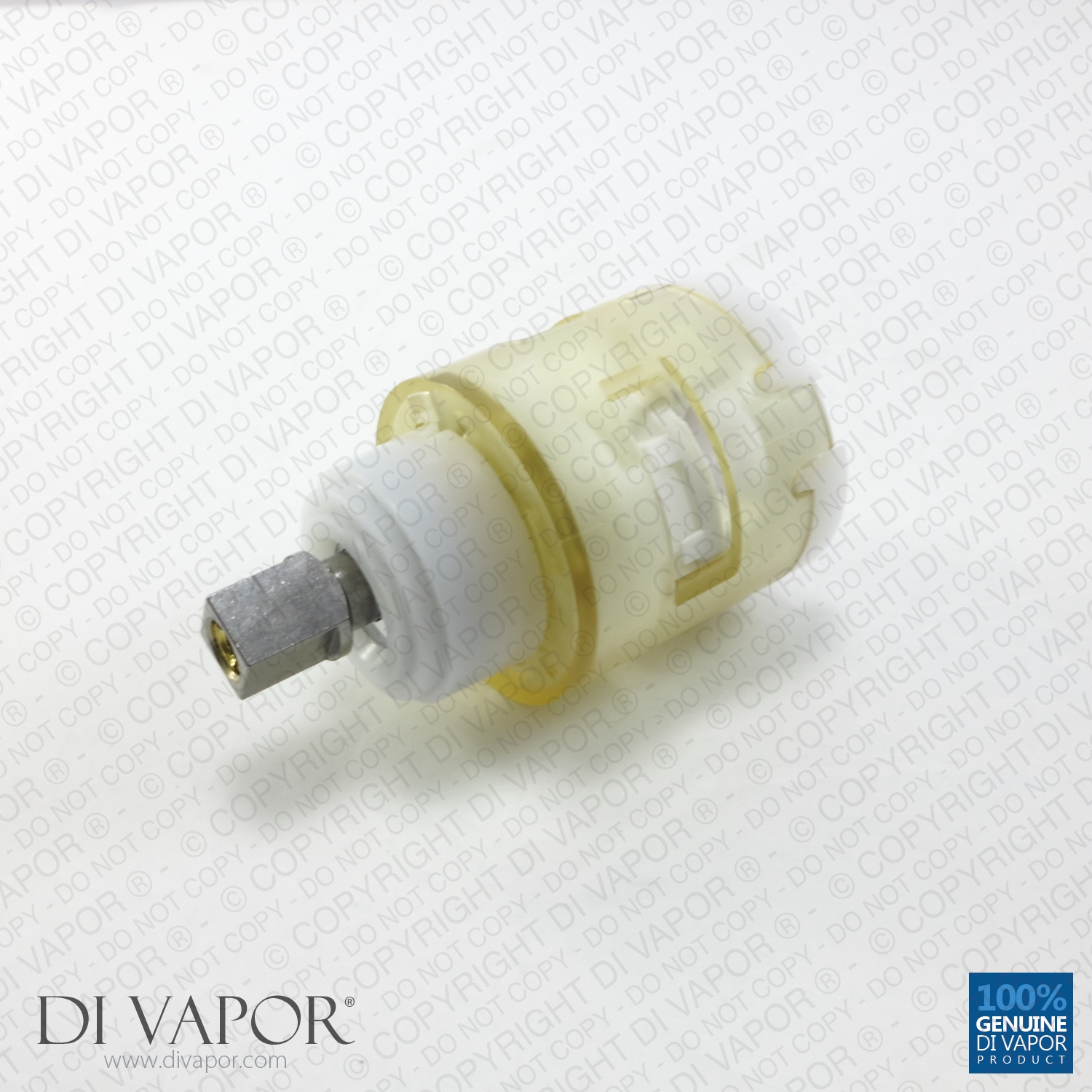

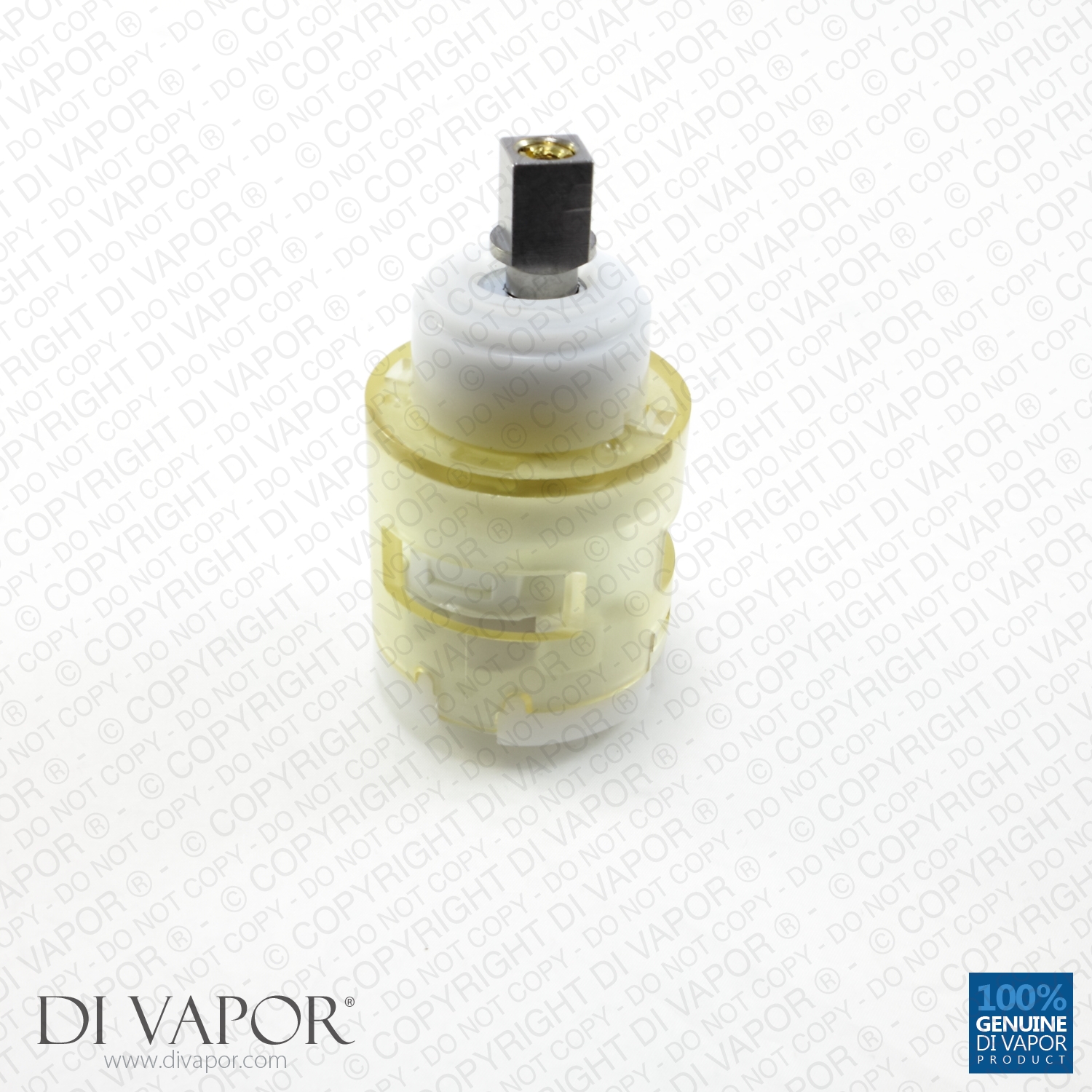

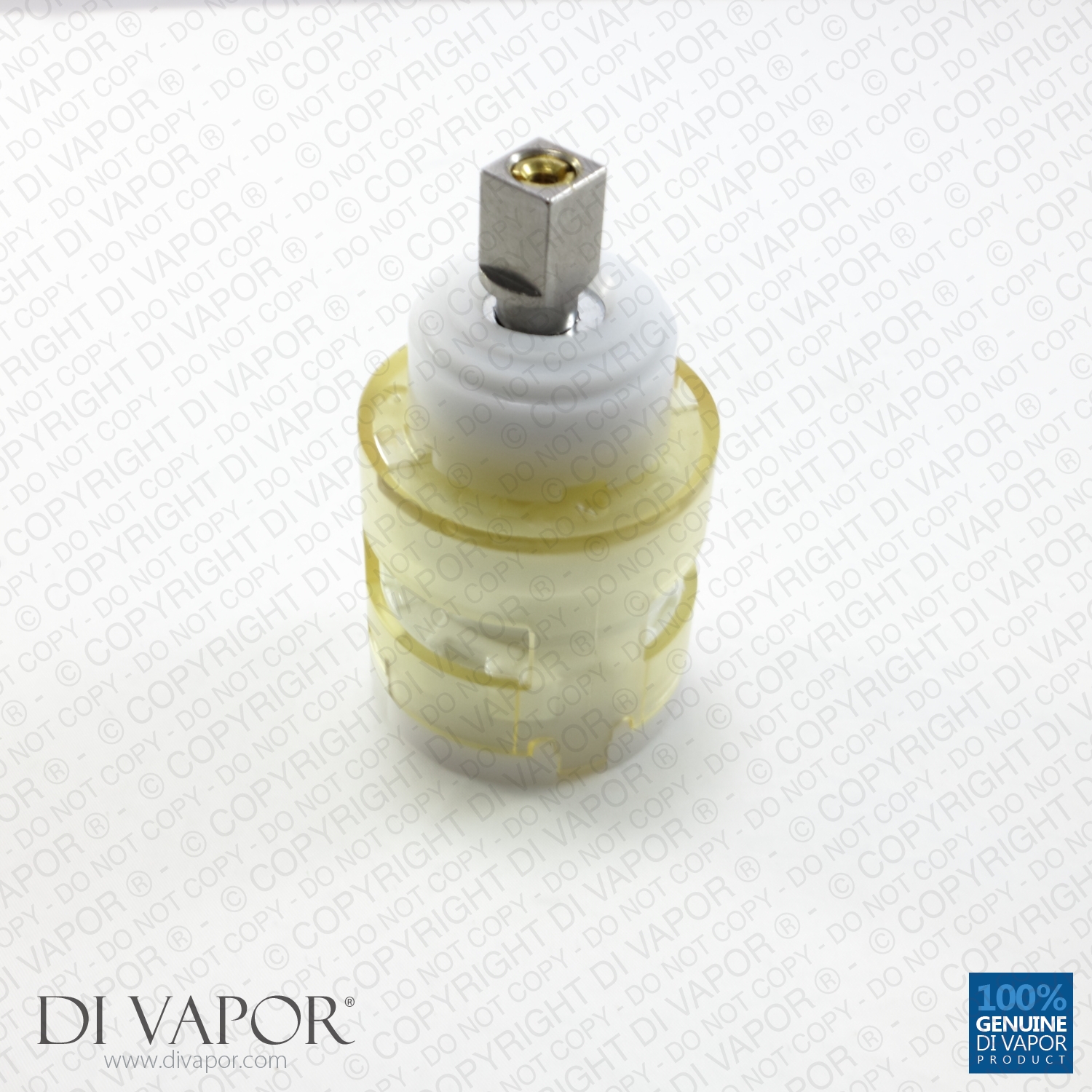

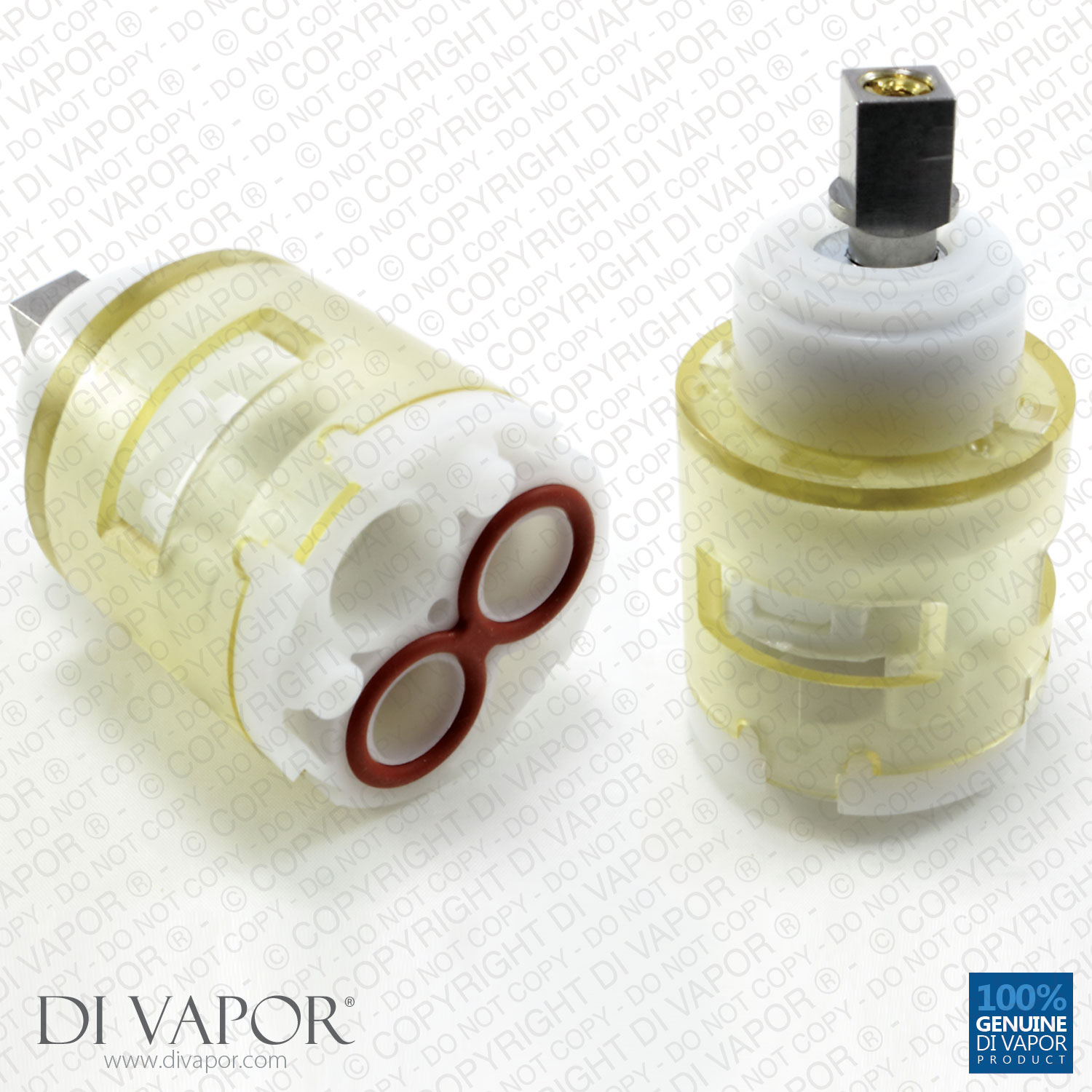

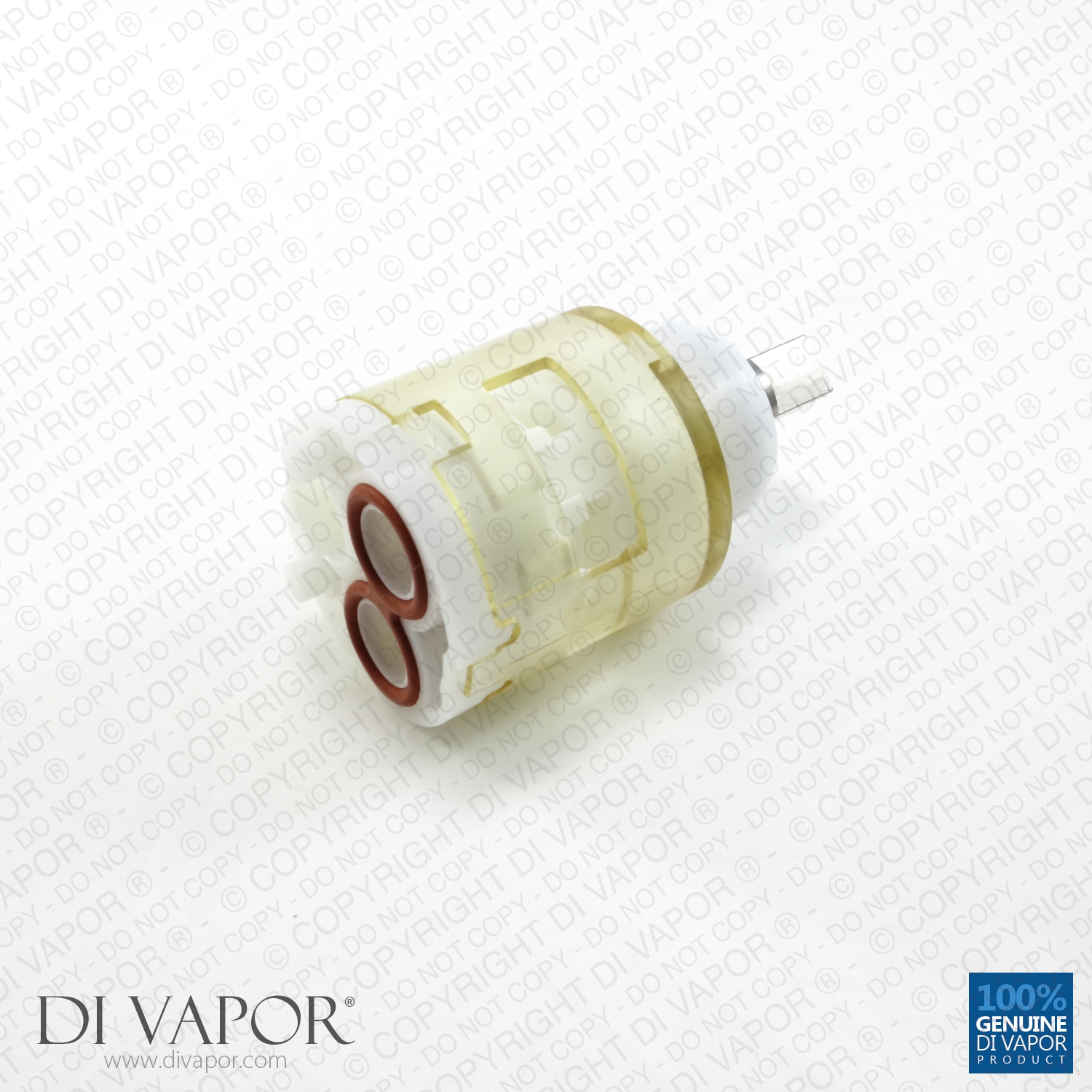

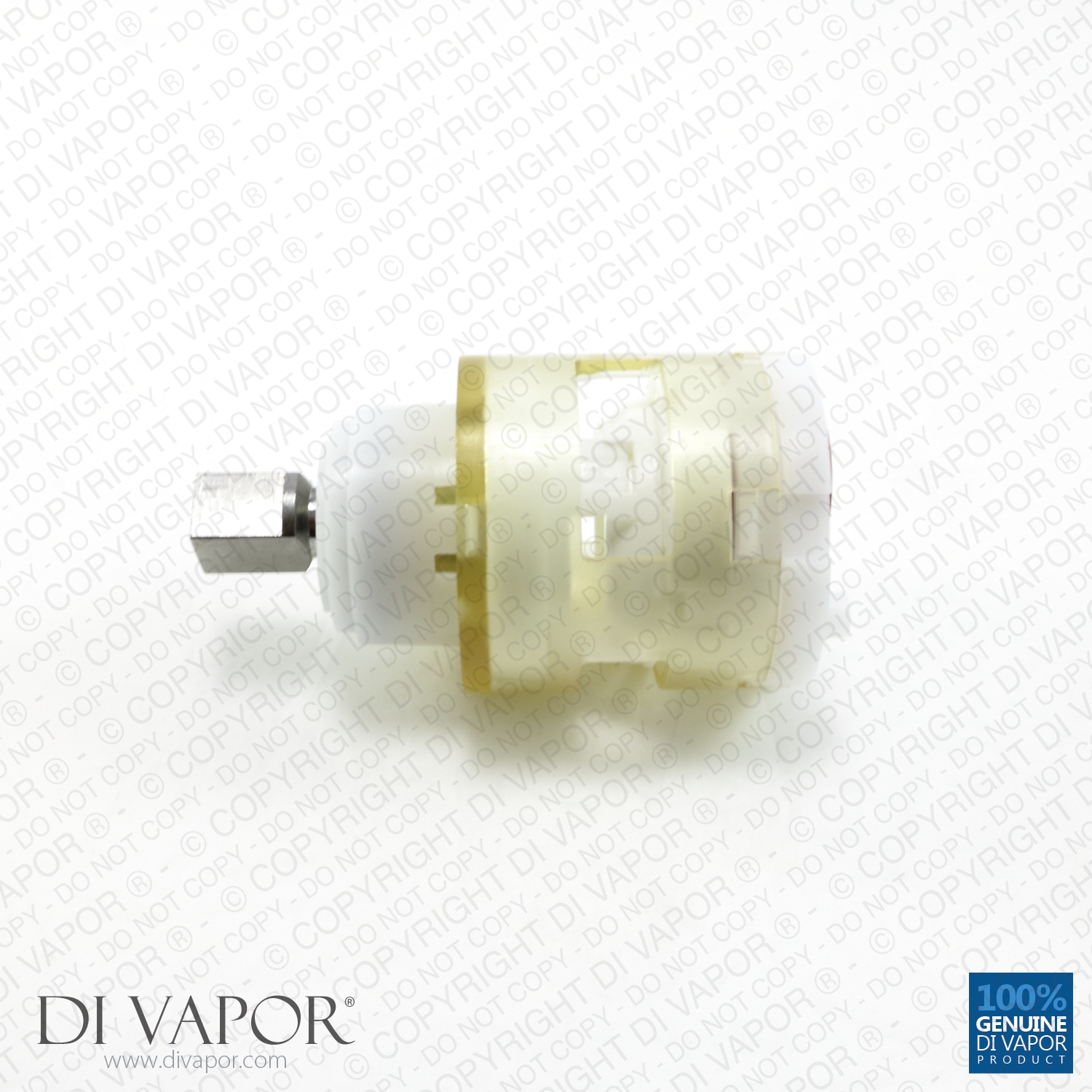

Please note, this cartridge is sold individually and the photo which shows the cartridge from the side and from the bottom is for information purposes only.

The finish of the handle can be in copper, bronze, black diamond, white, brass, sating nickel and polished chrome. No matter what the finish is, the same cartridge will be inside.

The mixer handle on this cartridge is designed for lever style mixers whose handle can move up and down to adjust water flow as well as side to side to adjust temperature.

This diverter is used in the following CEA MILO shower, bath and tap / faucet mixing valve models:
- CEA MILO360 MIL103 / MIL 103 / MIL-103 Wall and Deck Mounted Mixer Valve
- CEA MILO360 MIL02 / MIL 02 / MIL-02 Wall and Deck Mounted Mixer Valve
- CEA MILO360 MIL80 / MIL 80 / MIL-80 Wall and Deck Mounted Mixer Valve
- CEA MILO360 MIL81 / MIL-81 / MIL-81 Wall and Deck Mounted Mixer Valve
- CEA MILO360 MIL54 / MIL 54 / MIL-54 Wall and Deck Mounted Mixer Valve
- CEA MILO360 MIL01 / MIL 01 / MIL-01 Wall and Deck Mounted Mixer Valve
- CEA MILO360 MIL40 / MIL 40 / MIL-40 Wall and Deck Mounted Mixer Valve
- CEA MILO360 Mil41 / MIL 41 / MIL-41 Wall and Deck Mounted Mixer Valve
- CEA MILO360 MIL104 / MIL 104 / MIL-104 Wall and Deck Mounted Mixer Valve

Technical Information and Measurements for the MILO360 Diverter Cartridge

Cartridge Length (from top of metal handle to bottom of cartridge (not including the two positioning pins)): 81mm
Width of diverter barrel body: 45.2mm (at the widest point)
Diameter at top white plastic spline: 32.3mm (at the widest point, as this part tiers down to 28.5mm and 23mm respectively)
Diameter of top Square Metal Handle Spindle: 10.4mm (from flat side to flat side, not corner to corner)
Diameter of top Squares Spindle including the semi circle on both sides: 14mm
Cartridge Colour: White, beige / cream, silver and red.
Type: Push fit
Cartridge Material: Plastic cartridge body with ceramic discs inside with metal handle connector.
Number of Water Inlets: 2

The ceramic disks inside this cartridge can crack and the plastic body can also crack and break. If this has happened to your cartridge then you'll have to replace the cartridge with a new one as there are not replacement parts for this.
