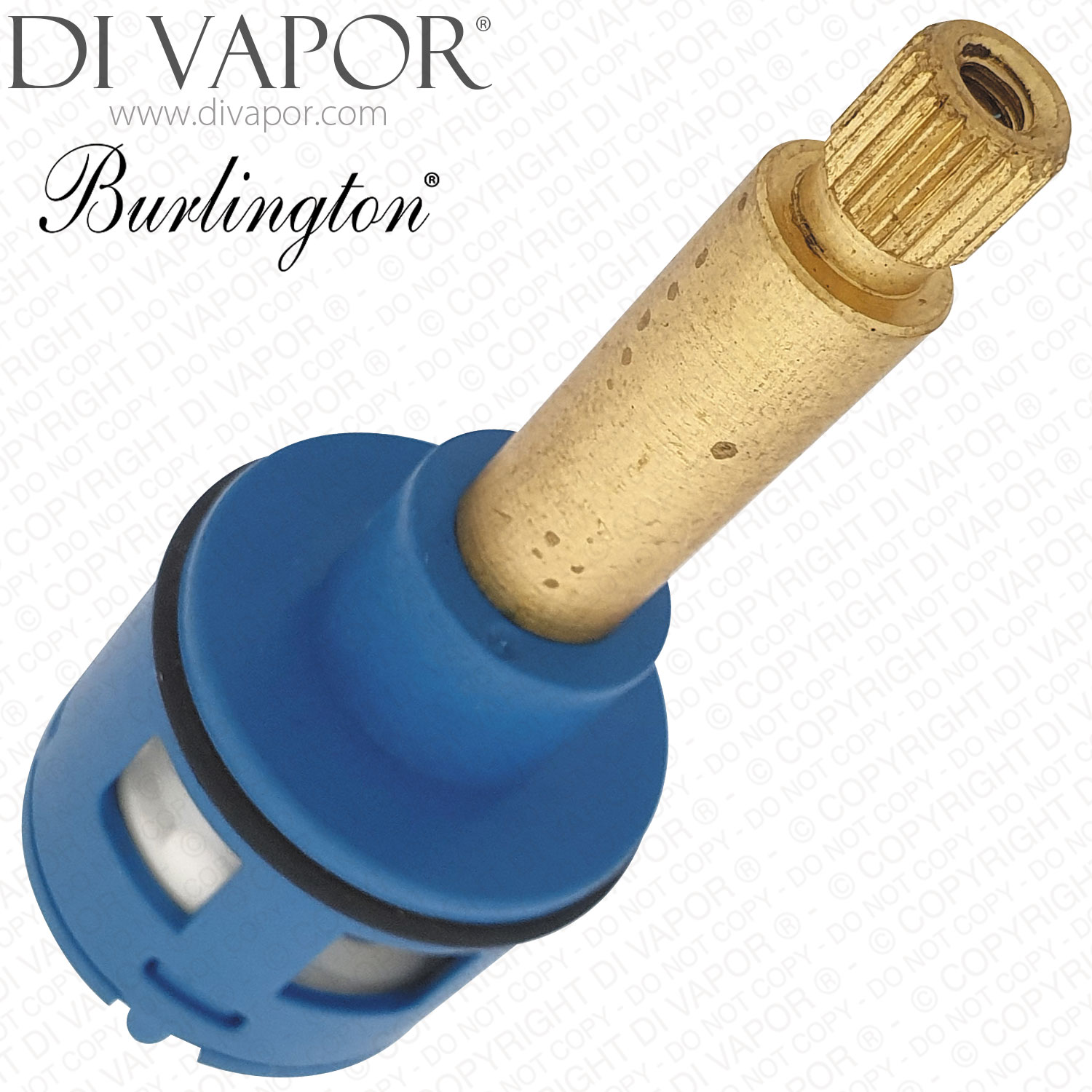

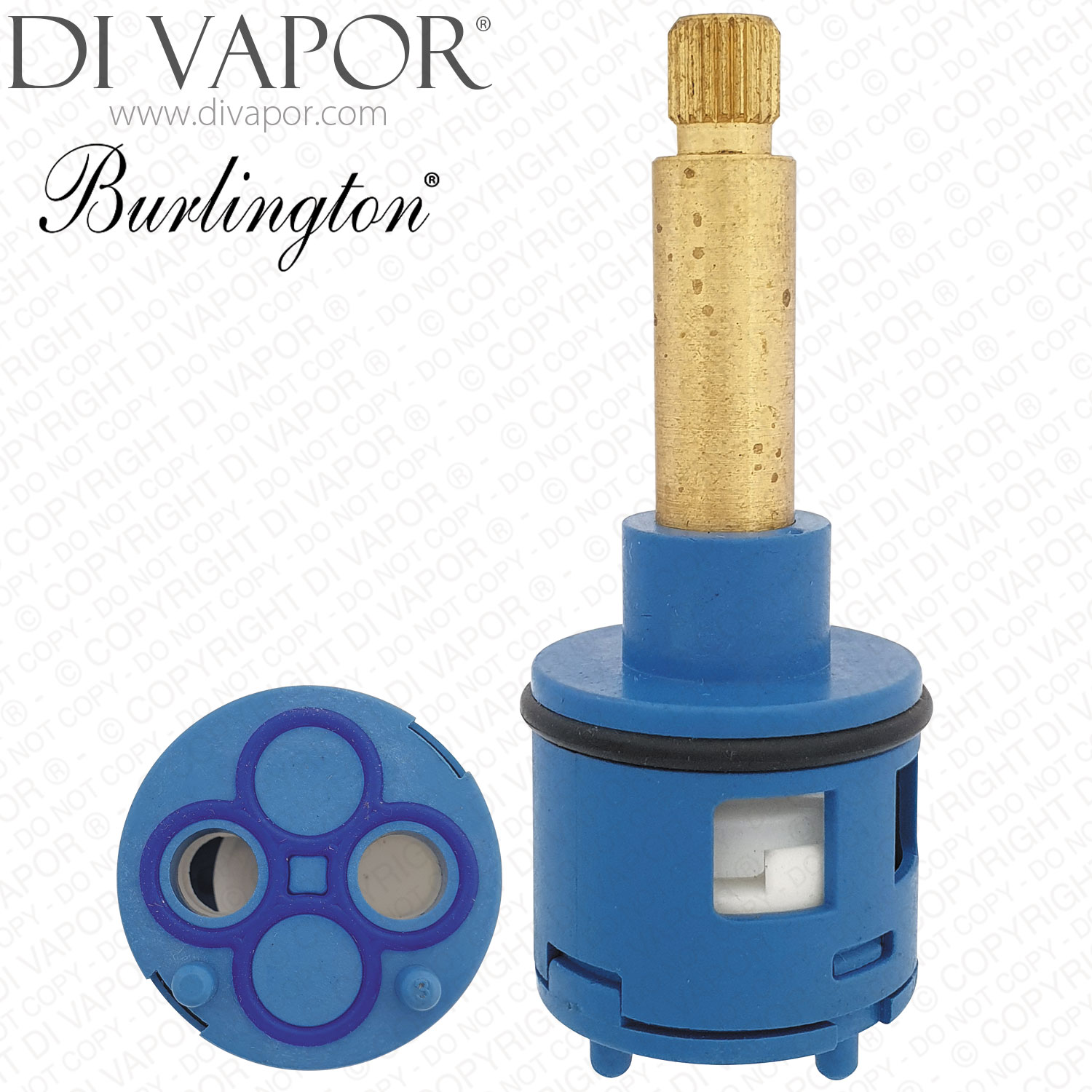

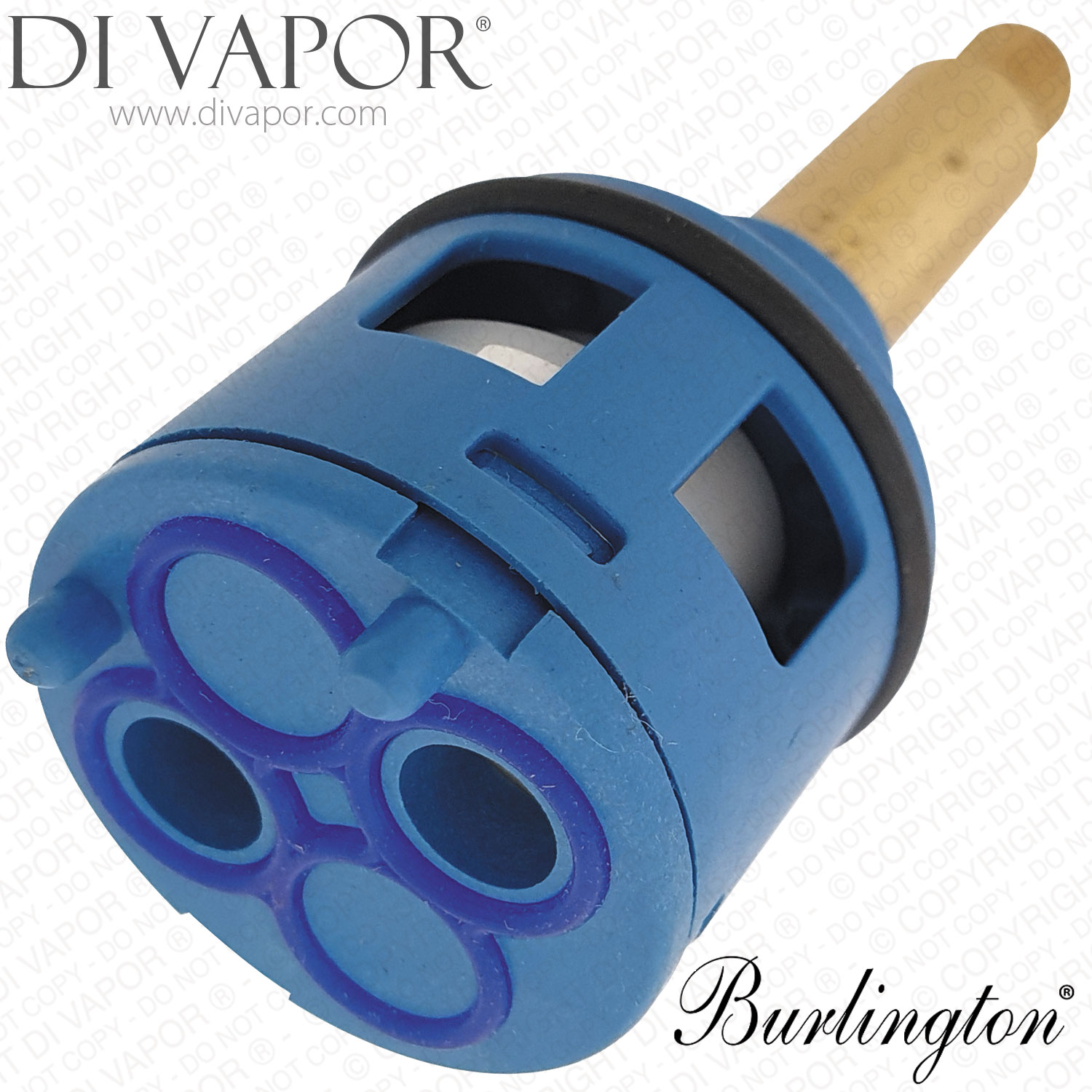

Burlington SP583 Shower Valve On/Off Diverter Flow Cartridge
SUMMARY
This Burlington SP583 on/off diverter flow cartridge is used in selected Burlington Eden and Tay dual-outlet thermostatic shower valves and bath shower mixer valves. It controls the water on and off function and switches flow between two outlets, depending on the valve configuration.
Common symptoms of a worn or scaled cartridge include stiff operation, poor outlet switching, water passing to the wrong outlet, or water dripping from the shower head or spout when the valve is turned off.
Technical Details
- - Part Number: SP583
- - Total length including bottom seal: 67mm, excluding locating pins
- - Diameter at widest point: 29.6mm at the O-ring
- - Brass spindle length including spline: 34mm
- - Top spline diameter: 7.6mm
- - Top spline teeth / notches: 20
- - Barrel diameter: 28mm
- - Number of function outlets: 2
- - Distance between locating pins: 16mm centre to centre
Before Ordering
- - Check the exact Burlington valve code and compare the spline count, two-outlet layout, locating pin spacing and key dimensions with your original cartridge.
Confirmed Compatible Models and Systems
- - Burlington EF2S Eden Thermostatic Exposed Shower Bar Valve Two Outlet Spare Parts
- - Burlington T2DB Tay Thermostatic Bath Shower Mixer Deck Mounted Tap Spare Parts
- - Burlington T2WB Tay Thermostatic Bath Shower Mixer Wall Mounted Tap Spare Parts
- - Burlington BT2DS MED_V17 Tay Thermostatic Bath Shower Mixer Deck Mounted Spare Parts
- - Burlington BT2DS-V17 | BT2DS.EXT+V17 Tay Thermostatic Bath Shower Mixer Deck Mounted Spare Parts
- - Burlington BT2WS MED_V16 Tay Thermostatic Bath Shower Mixer Wall Mounted Spare Parts
- - Burlington BT2WS-V17 Tay Thermostatic Bath Shower Mixer Wall Mounted Spare Parts
- - Burlington BT2WS-V60 Tay Thermostatic Bath Shower Mixer Wall Mounted Spare Parts
Related Spares You May Need
Thermostatic cartridge type can vary by valve build, so compare your existing thermostat carefully before ordering related internal parts.
- - TACSIL 3g Premium Cartridge Silicone Grease - WRAS Approved
- - Burlington SP726: Thermostatic Control Metal Block for Trent & Severn & Eden & Spey Shower Valves
- - Burlington SP1170 Thermostatic Cartridge
- - Burlington VQT2 Tay & Eden Thermostatic Cartridge - VQT2CX
- - Burlington SP1664: Check Valve
- - Burlington SP376: Adaptor (Pair) G1/2 Male Thread to 15mm Pipe
- - Burlington SP981: Wall Cover Flanges for Product EF1S & EF2S & T2WS & T2WB (Pair)
- - Burlington SP995: Pair of Deck Mounted Legs of Product T2DB & T2DS
