Bristan 5 Way CART-00620811 Diverter Cartridge (Red Plastic) for Prism, Quadrant and Qube Shower Valves
Send a photo of your item and we'll help confirm it.
Summary
Bristan 5 Way CART-00620811 Diverter Cartridge (Red Plastic) for Pre 2008 Prism, Quadrant and Qube Shower Valves.

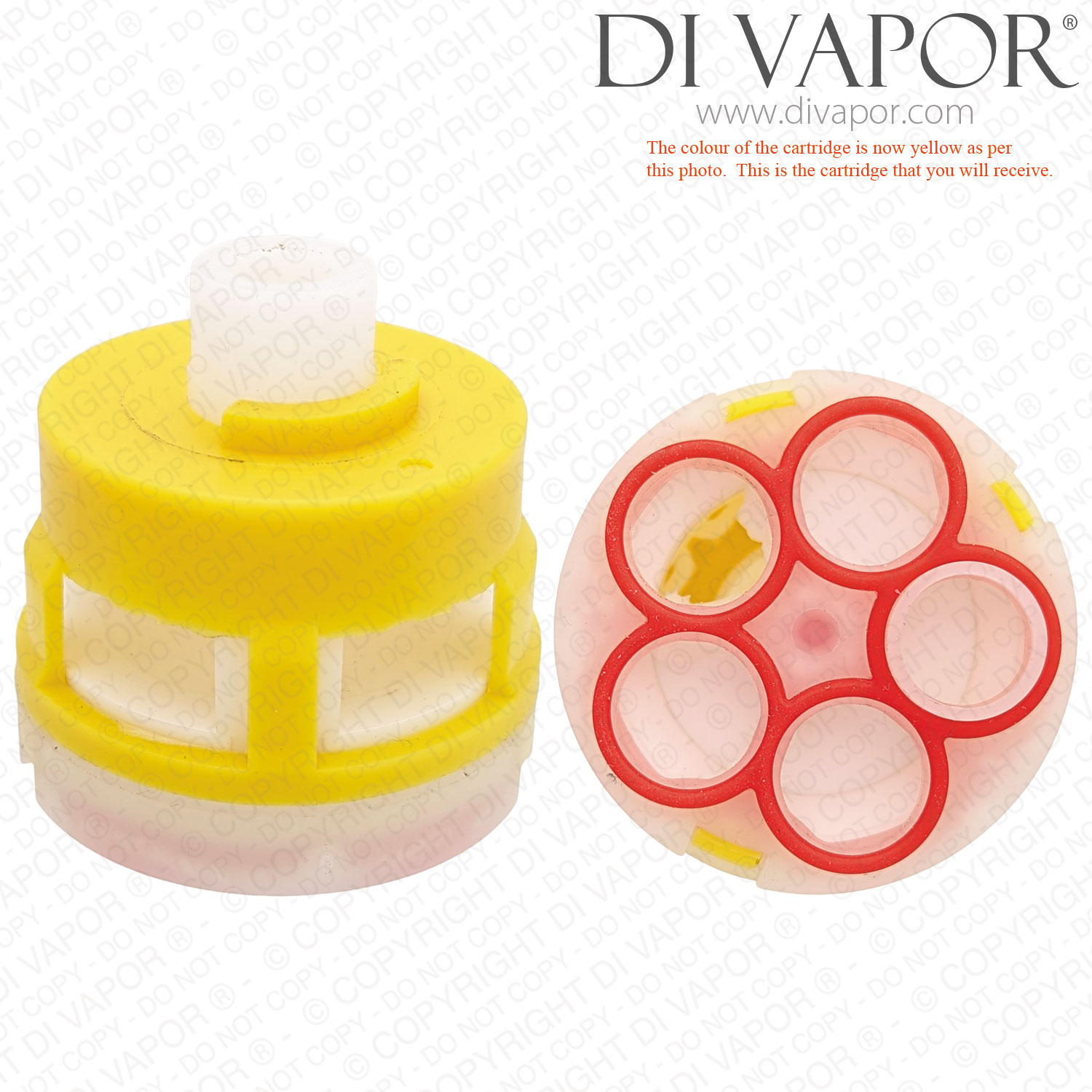

NOTE: The colour of the plastic is now YELLOW and not red.
Bristan CART-00620811 is a 5 way shower diverter cartridge used in selected pre-2008 Bristan Prism Quadrant and Qube shower diverter valves. It controls outlet selection inside the valve by directing water to the chosen shower outlet.

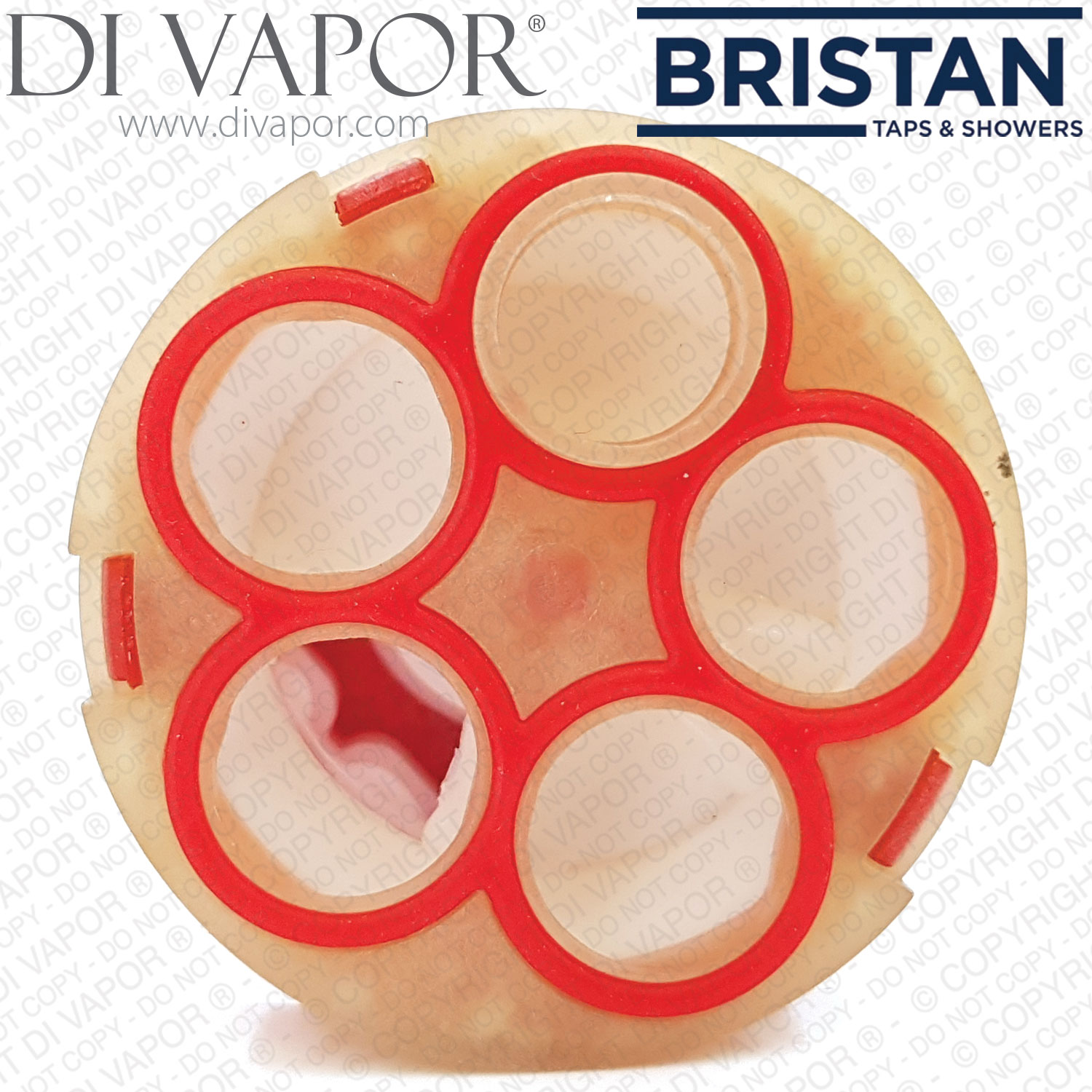

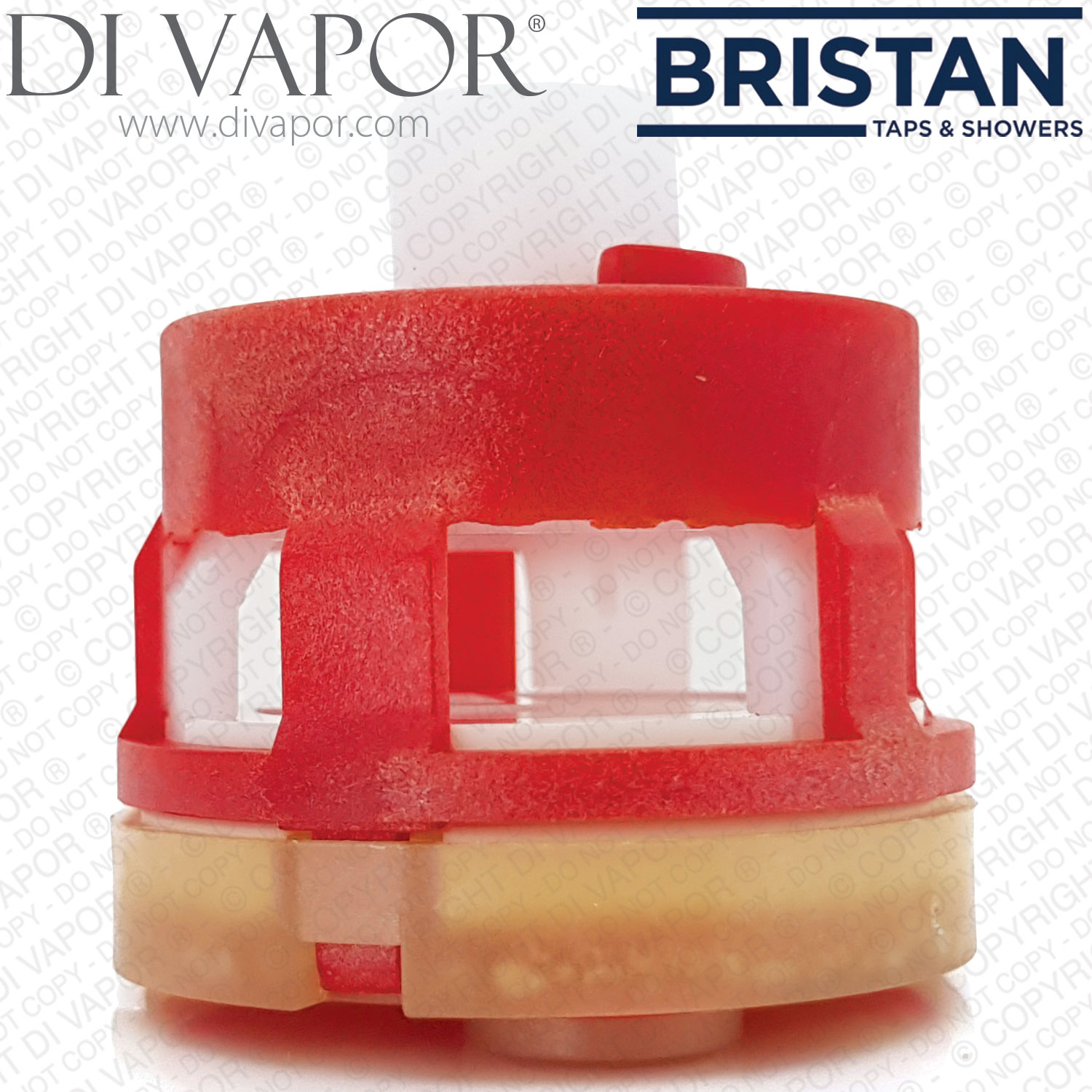

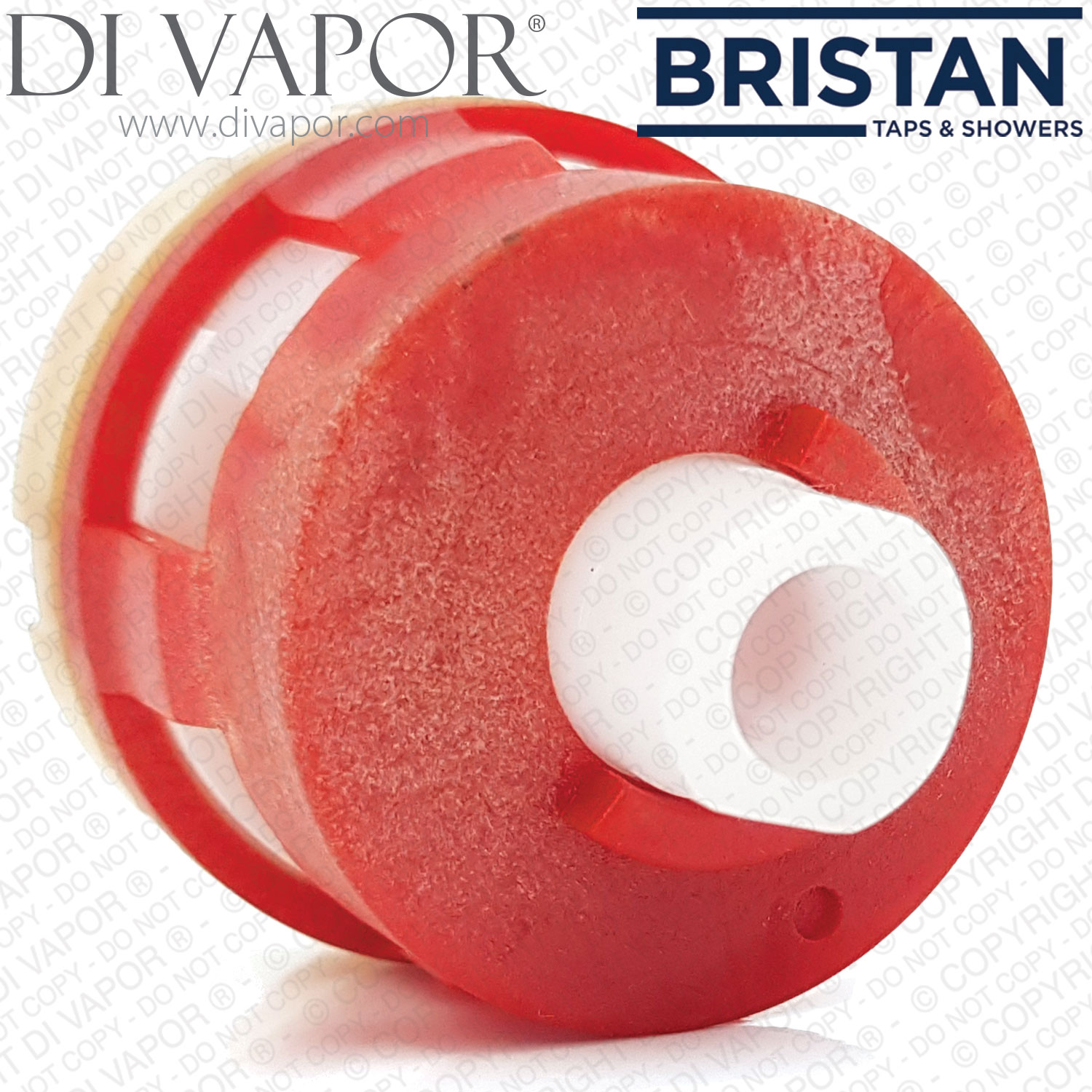

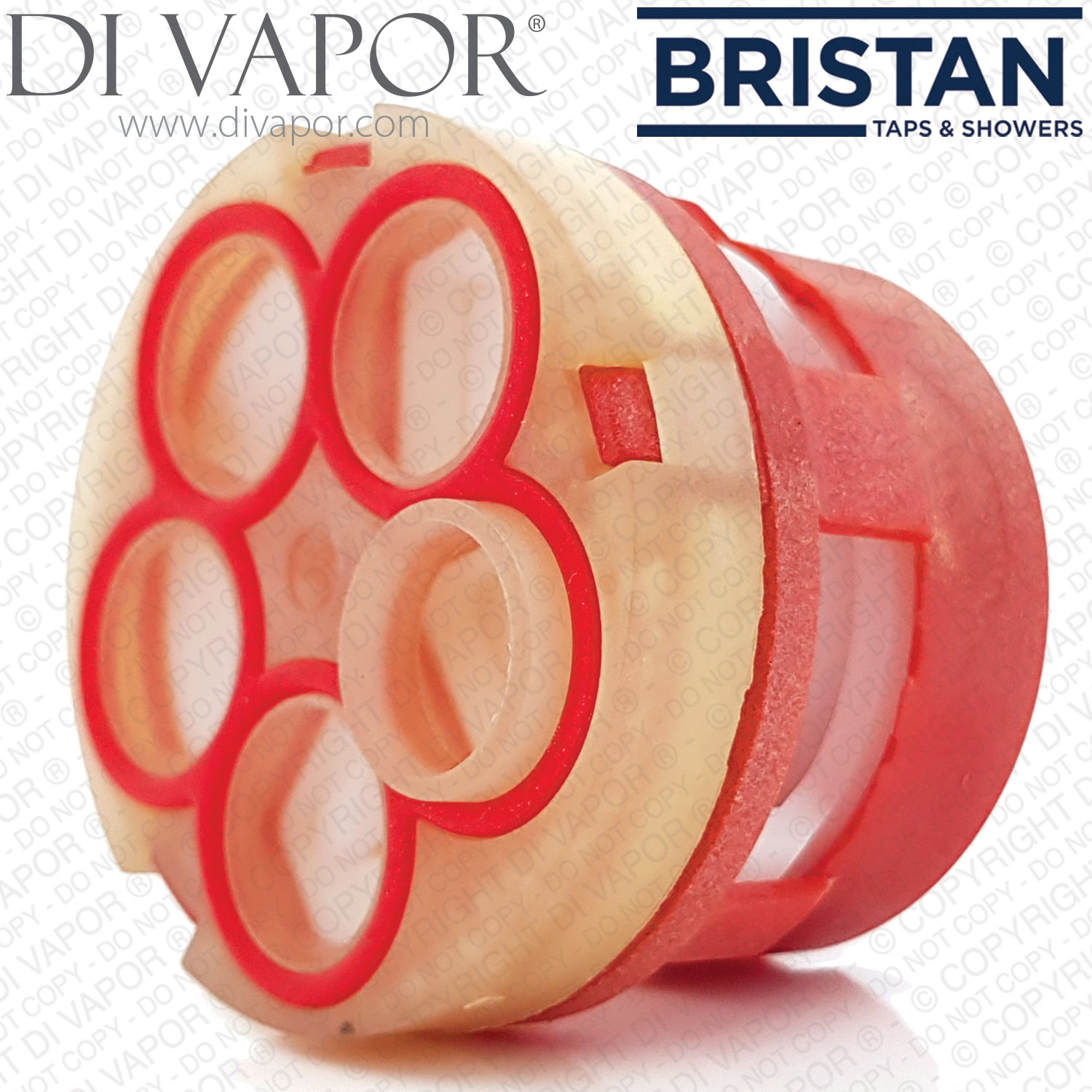

The original cartridge is identified by its red plastic body. Current stock is supplied in yellow plastic under the same CART-00620811 part number.
Signs of cartridge wear can include stiff selector movement, incomplete changeover between outlets, water passing to the wrong outlet or continued dripping from a shower head or spout after the shower is turned off.
Technical Details
| Part number | CART-00620811 |
|---|---|
| Part type | 5 way shower diverter cartridge |
| Overall height | 43mm excluding the locating circle |
| Cartridge body diameter | 43.3mm at the widest lower section |
| White plastic spindle length | 11mm |
| Spline diameter | 13.8mm measured across the flat edge |
| Current plastic colour | yellow |
| Earlier identification colour | red |
Confirmed Compatible Models
- Bristan Qube Diverter Three Outlets BR DV 286
- Bristan Qube Diverter 2 Outlets BR DV 287
- Bristan Prism Diverter 2 Outlets BR DV 281
What to Check Before Ordering
- Confirm that the shower diverter valve was manufactured before 2008
- Match the CART-00620811 code and cartridge measurements to the removed part
- Do not order from the Prism Quadrant or Qube range name alone because later valves can use different diverter cartridges
- For Bristan QU 5WDIV C valves the pre-2008 cartridge is CART 00620811 and the post-2008 cartridge is 00650428
Related Spares You May Need
- TACSIL 3g Premium Cartridge Silicone Grease - WRAS Approved
- Bristan WSHR 08276 Washer For Shroud - discontinued
- Bristan DIV 00620814 Diverter Mech/Retaining Nut (MZ) - discontinued
- Bristan Nut 04335CSET-BL Compression Nut & Olive - discontinued
Apply a small amount of suitable silicone grease to the cartridge O-rings and bottom seals during installation.
Use the Di Vapor Part Identification Service if you need help identifying your part.
