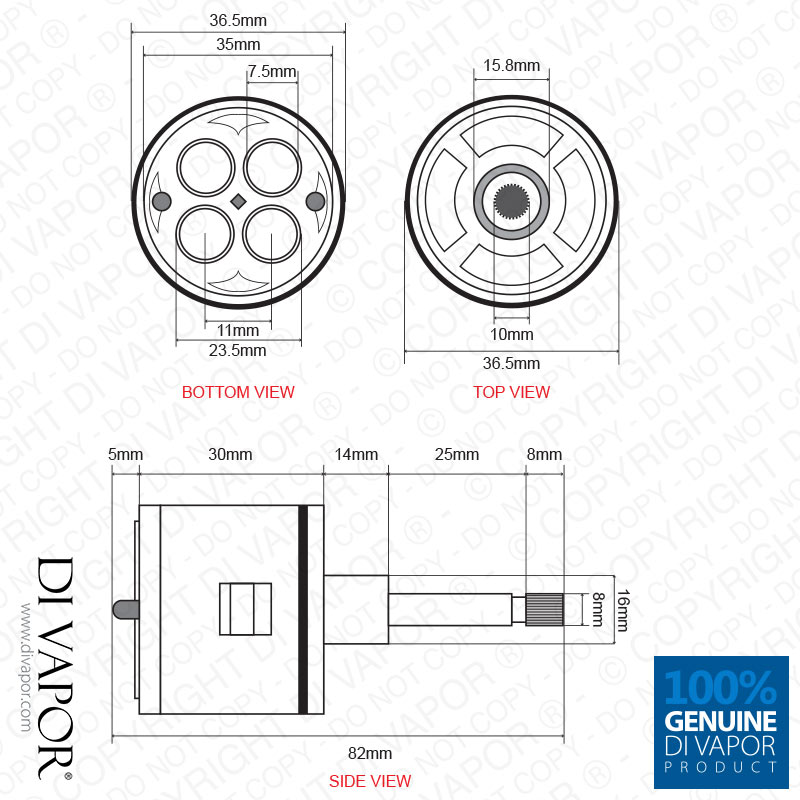

4 Way Diverter Cartridge - Technical Diagram

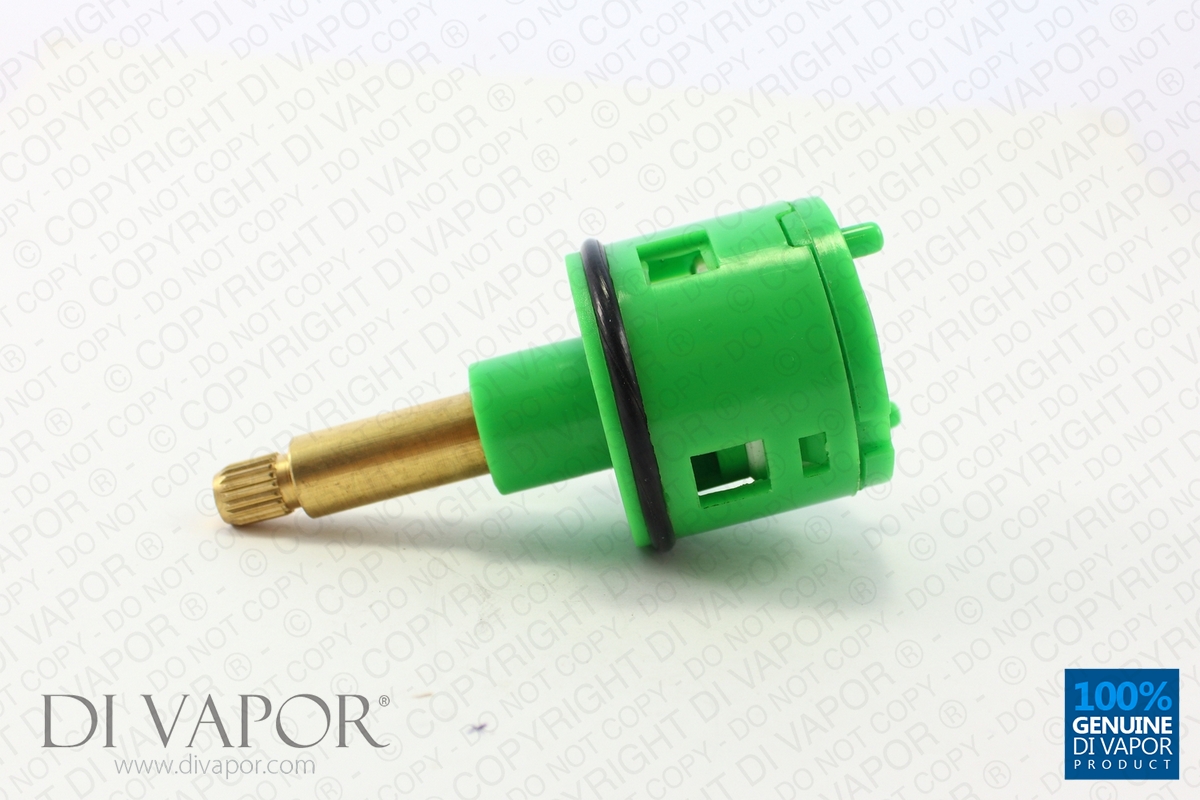

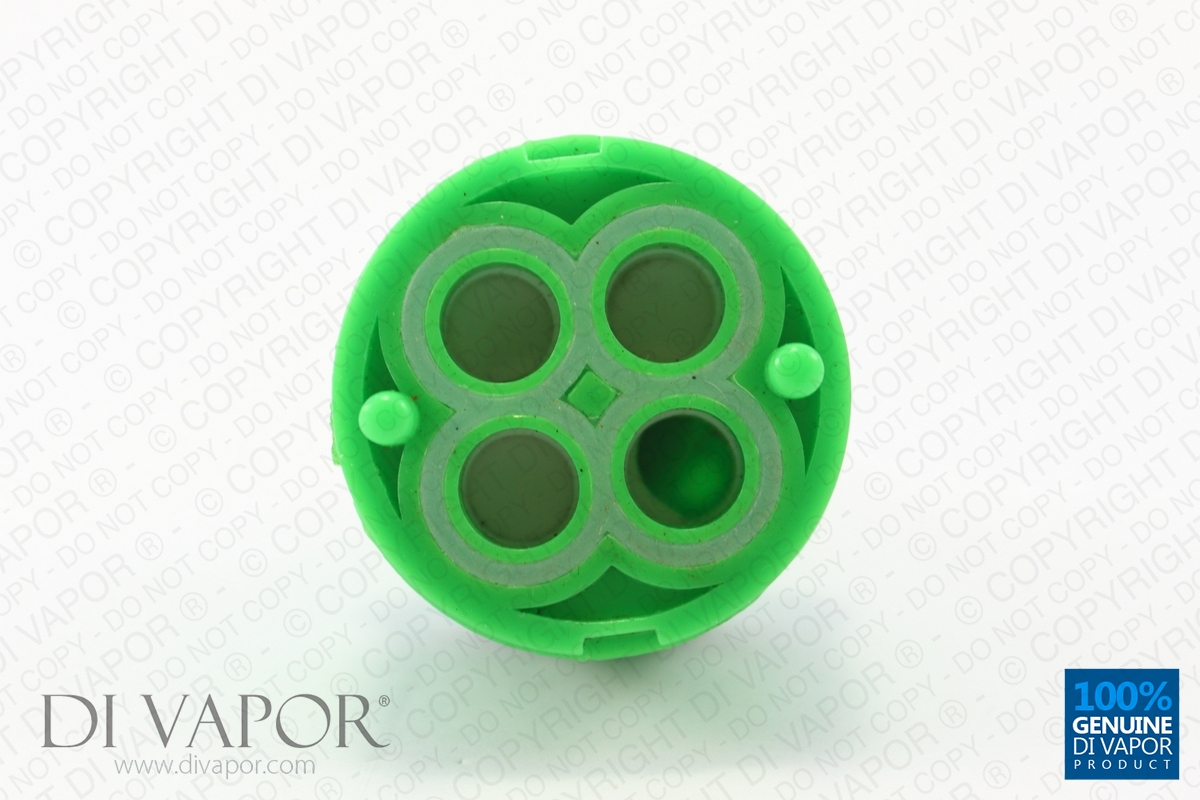

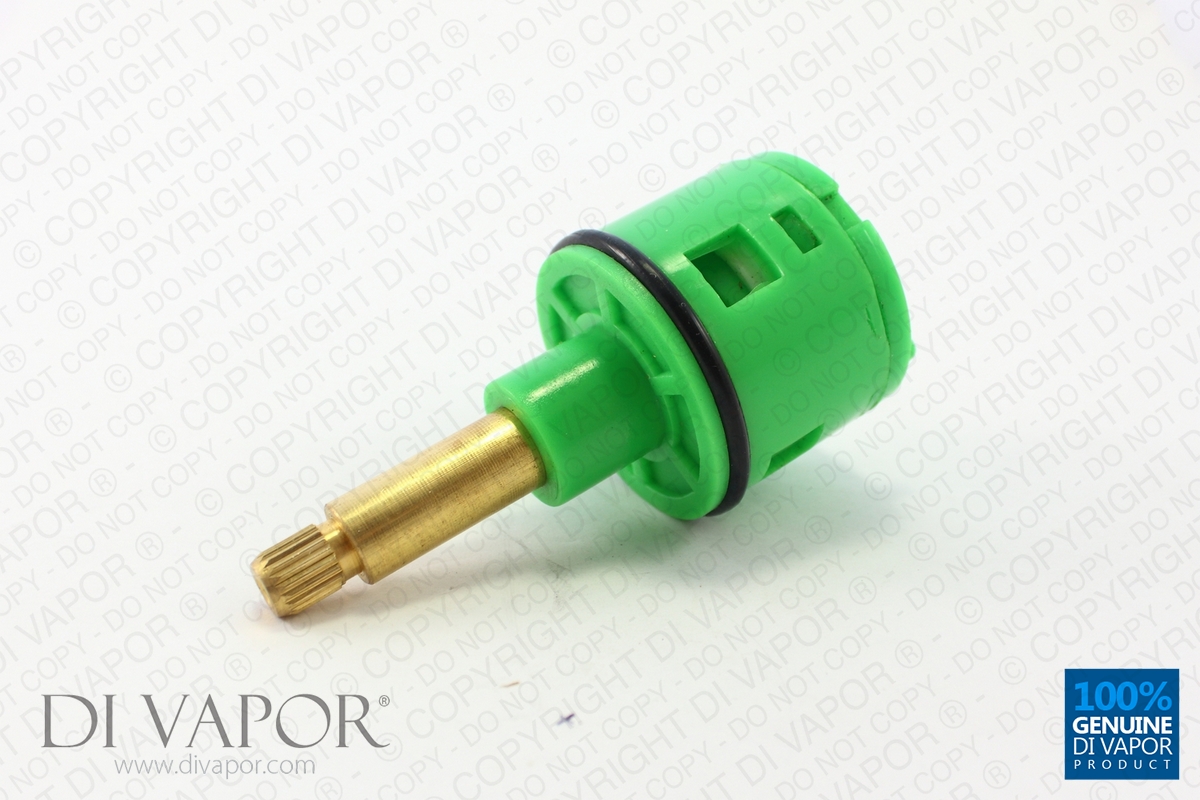

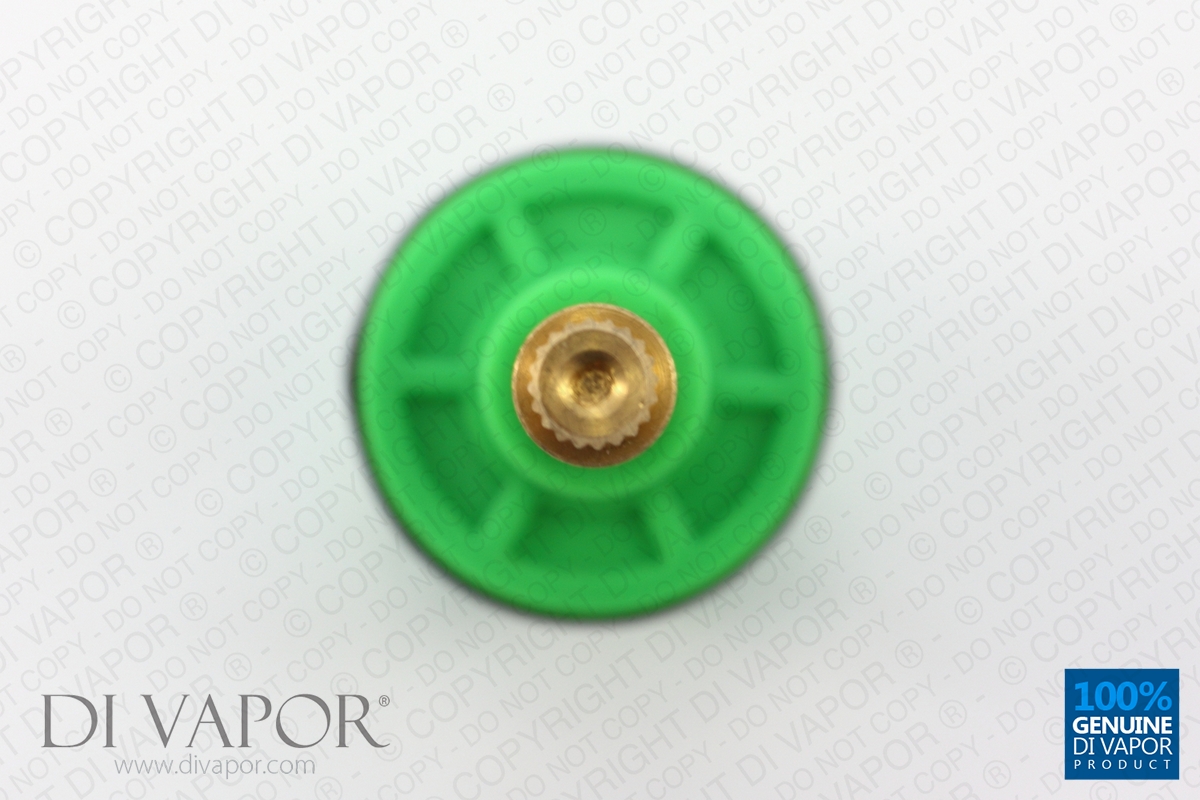

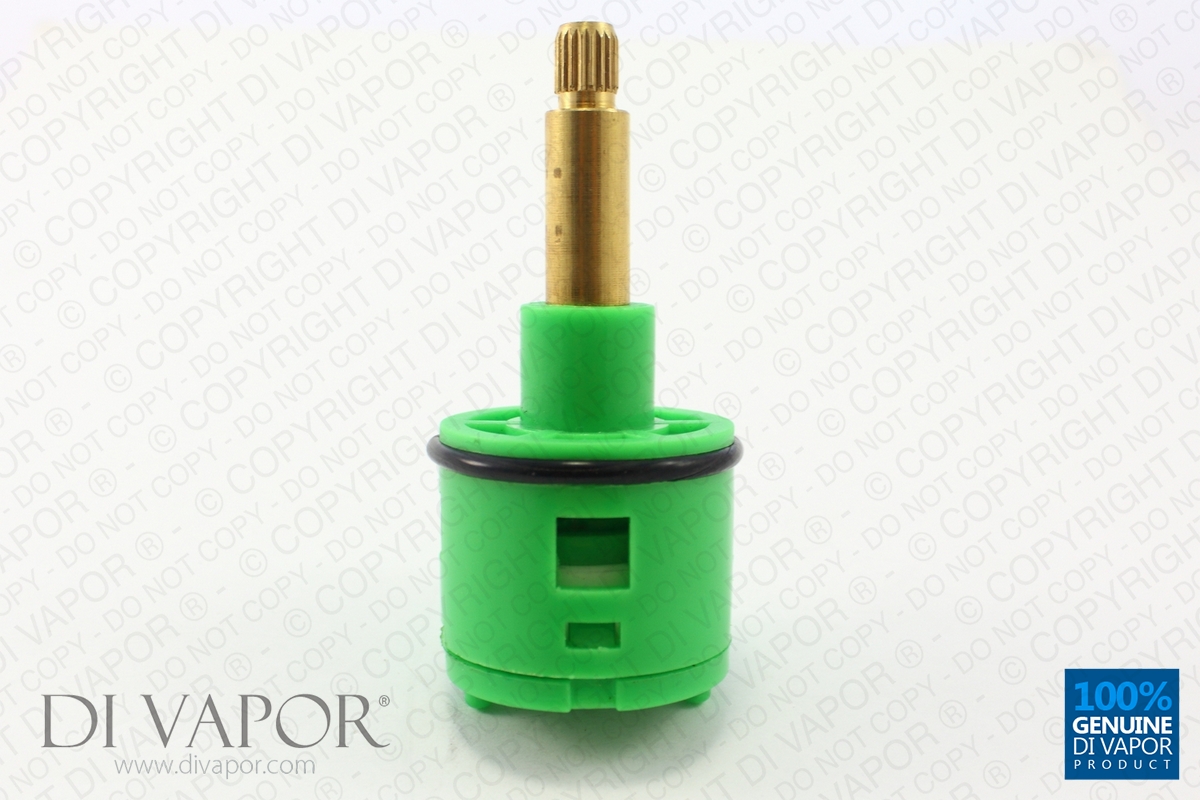

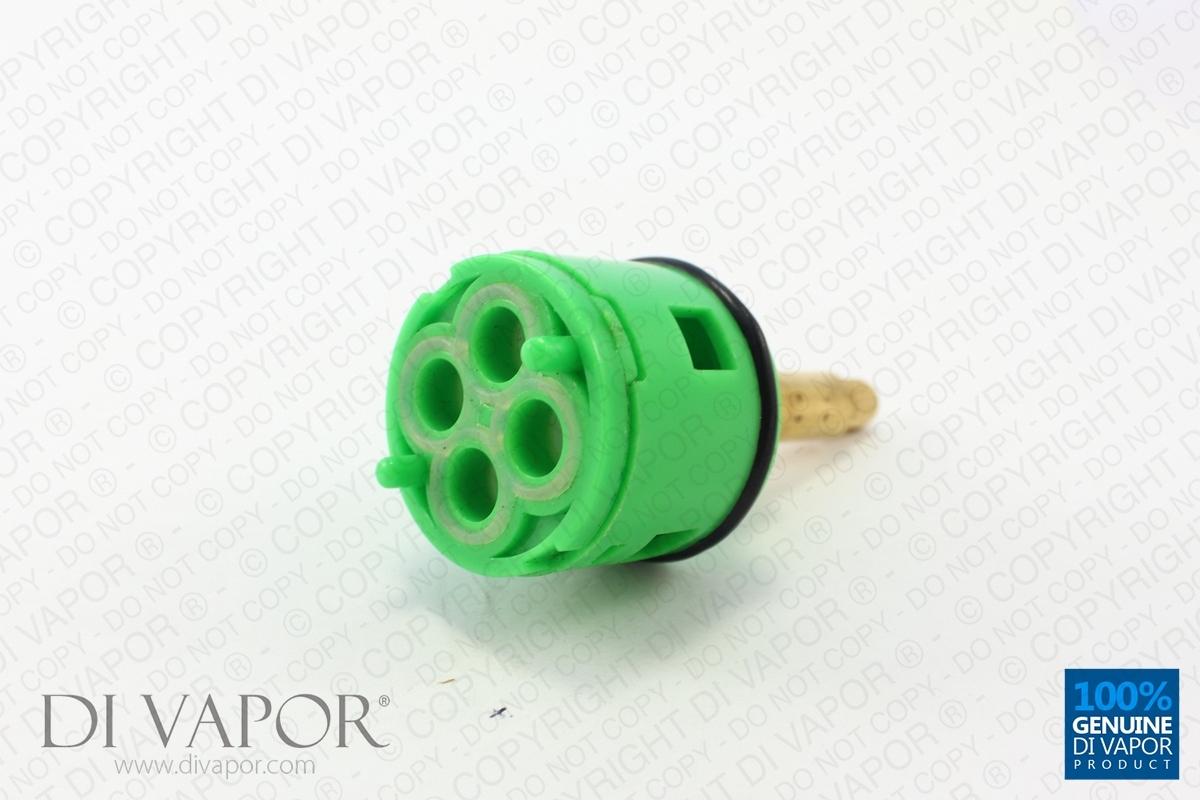

4 Way Shower Flow Diverter Valve Tap Core - Short Spigot - Green Housing

Part Number: 070100604

Out of stock - Ask a Question now

Unfortunately, this specific item is now discontinued and can no longer be purchased from Di Vapor. See the description below for alternatives or scroll down this page and see the associated 'Other items'.

Wrong Item? Click to see More

*** ITEM DISCONTINUED ***

Product description

SUMMARY

4 way diverter mixer valve cartridge - This diverter cartridge is designed to direct water flow to 4 outlets set within a tap set housing.

Push fitting with 36.5mm rubberised O ring

Typically used in a shower enclosure or whirlpool bath, diverting water to various features within the product. Manufactured from high quality moulded ABS, complete with ceramic mixer core and brass spigot support arm.

Full dimensions available in the technical diagram supplied. Please ensure that you check the compatibility of this valve with your shower or bath before purchasing.

If you require any further technical information, please contact our customer service team on 08454 650 800.

Dimensions: ⌀36mm x 82mm
