4 Way Shower Flow Diverter Valve Cartridge - (45mm Brass Spindle / 35mm Diameter)

SUMMARY

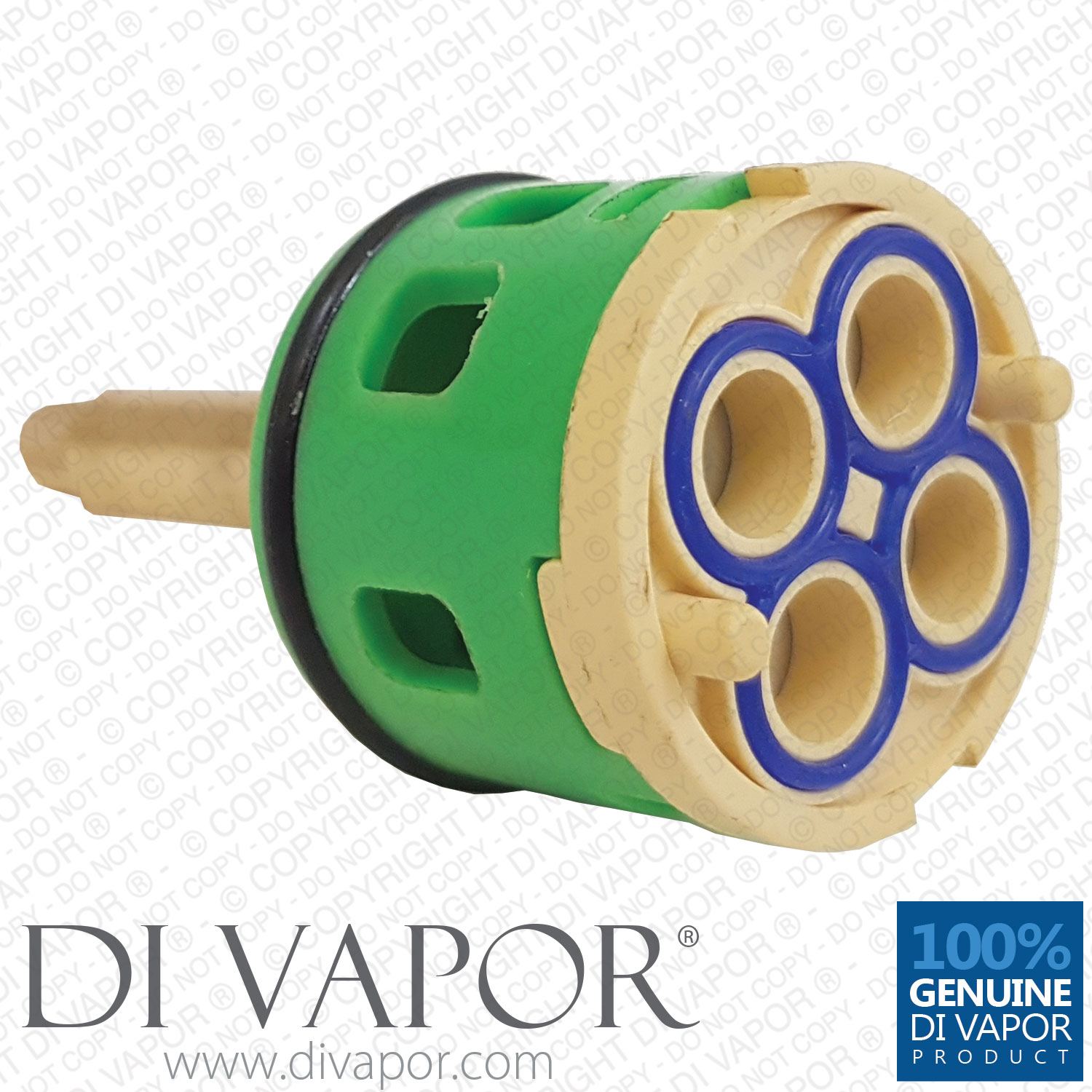

Genuine Di Vapor 4 way diverter mixer valve cartridge - This diverter cartridge is designed to direct water flow to 4 outlets set within a tap set housing.

Total Length (including locating pins): 84mm to 86mm

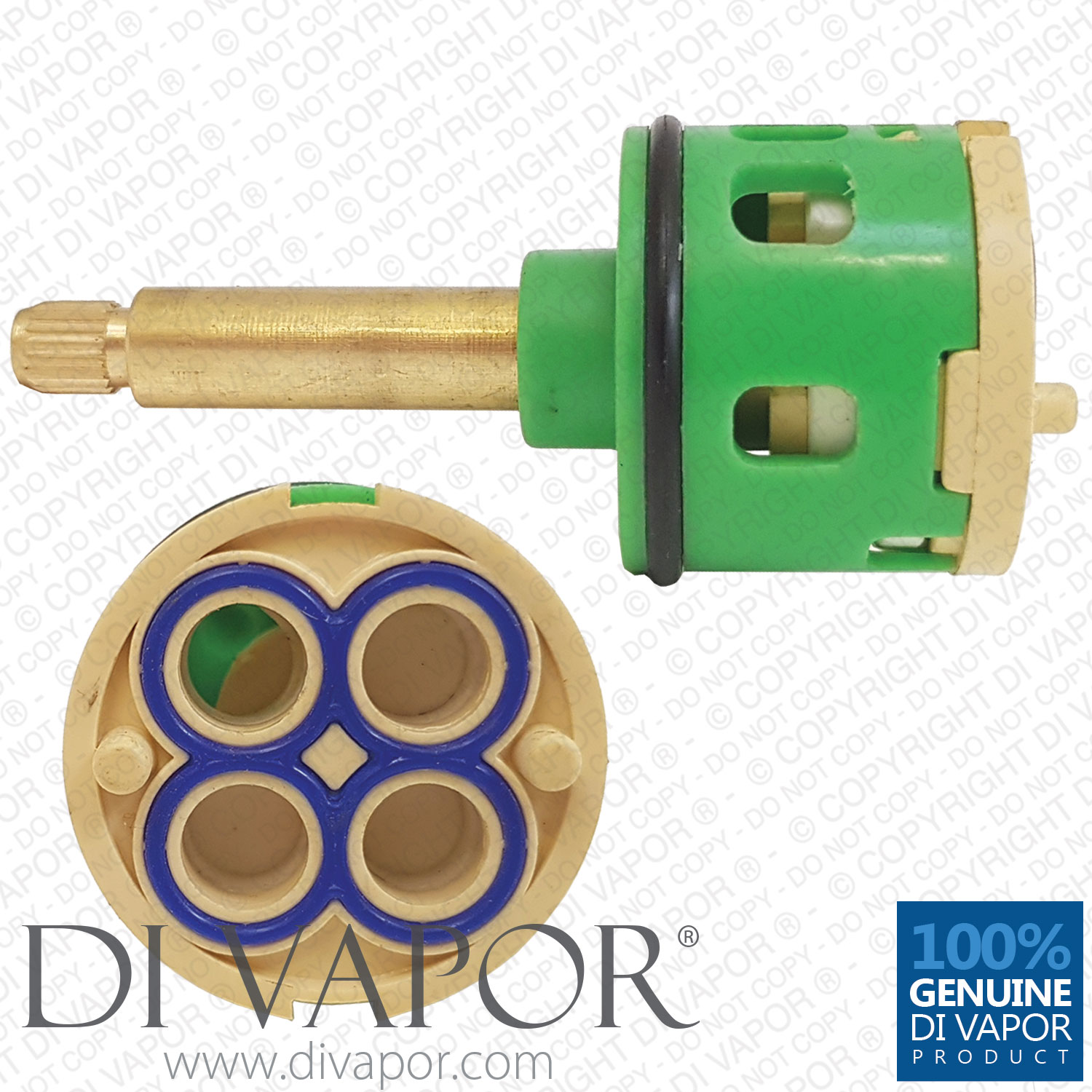

Total Spindle length (the entire brass part you can see in the photo): 44mm to 45mm (variable)

Length of spline with teeth: 10mm

Width of spline with teeth: 7.6mm / 20 Splines (there is no screw hole at the top)

Body height: (28.7)

Body diameter at black o'ring: 36mm

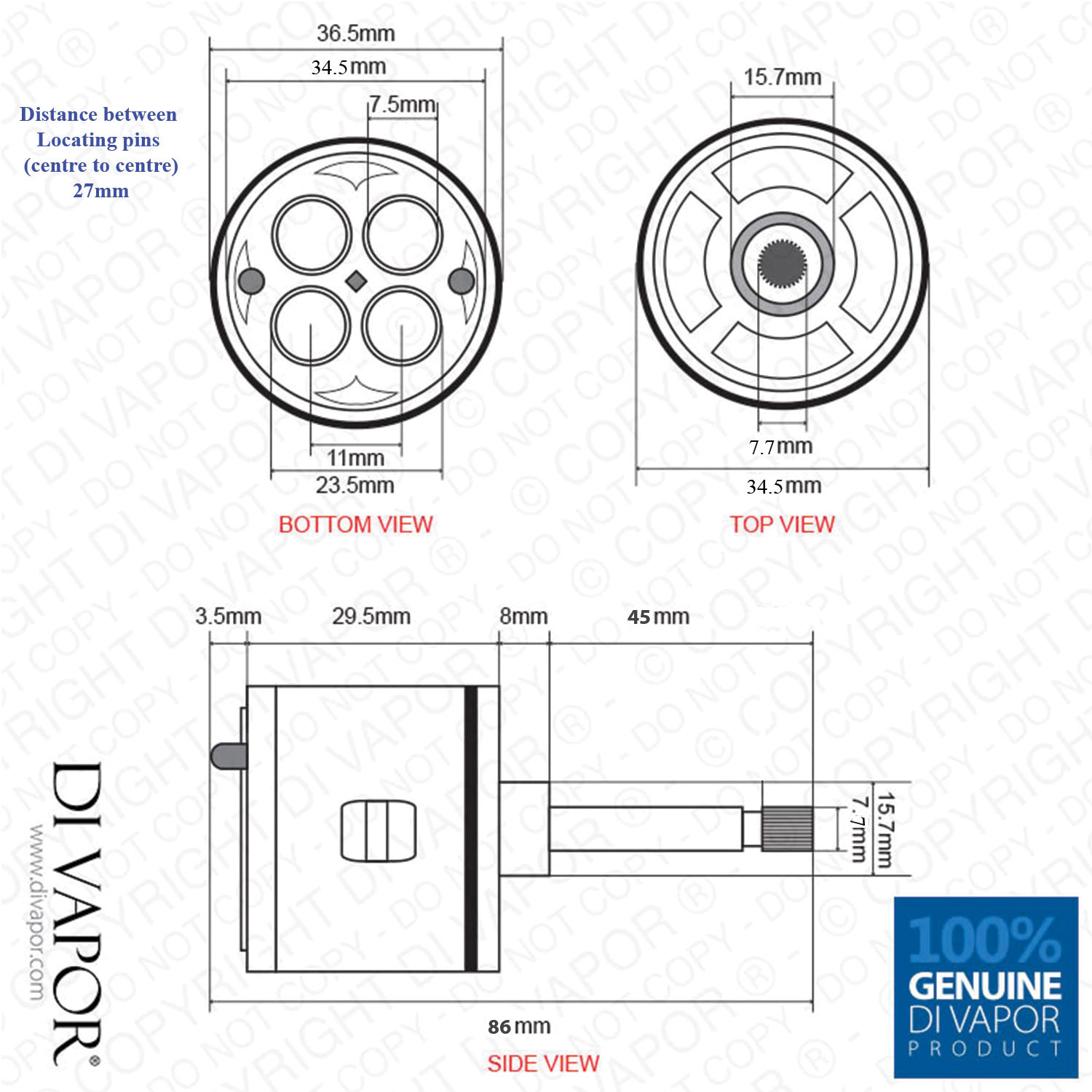

Total length including the locating pins is 86mm. The diameter of the cartridge is 34.5mm (i.e. 35mm) Please see the technical diagram for more detailed measurements.
