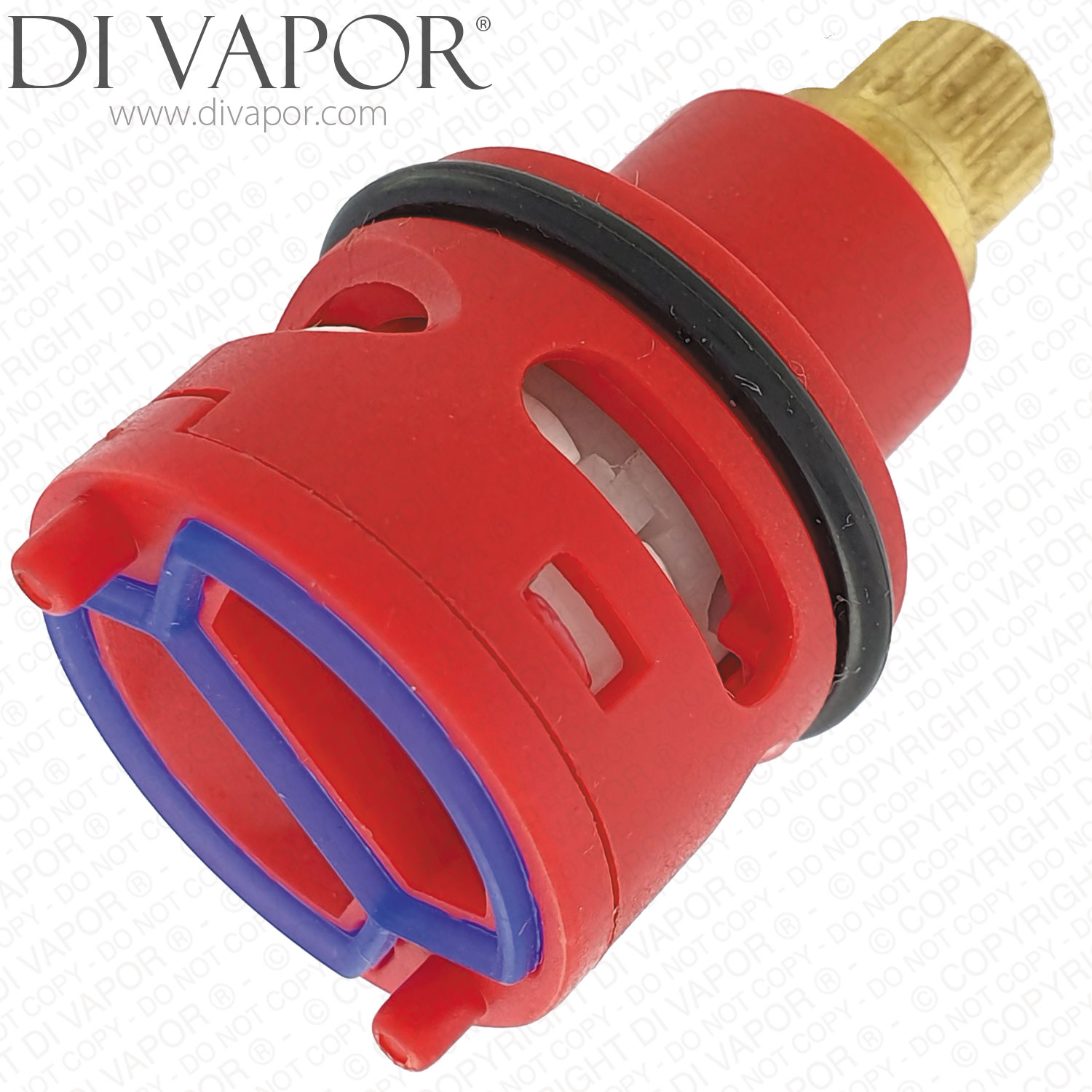

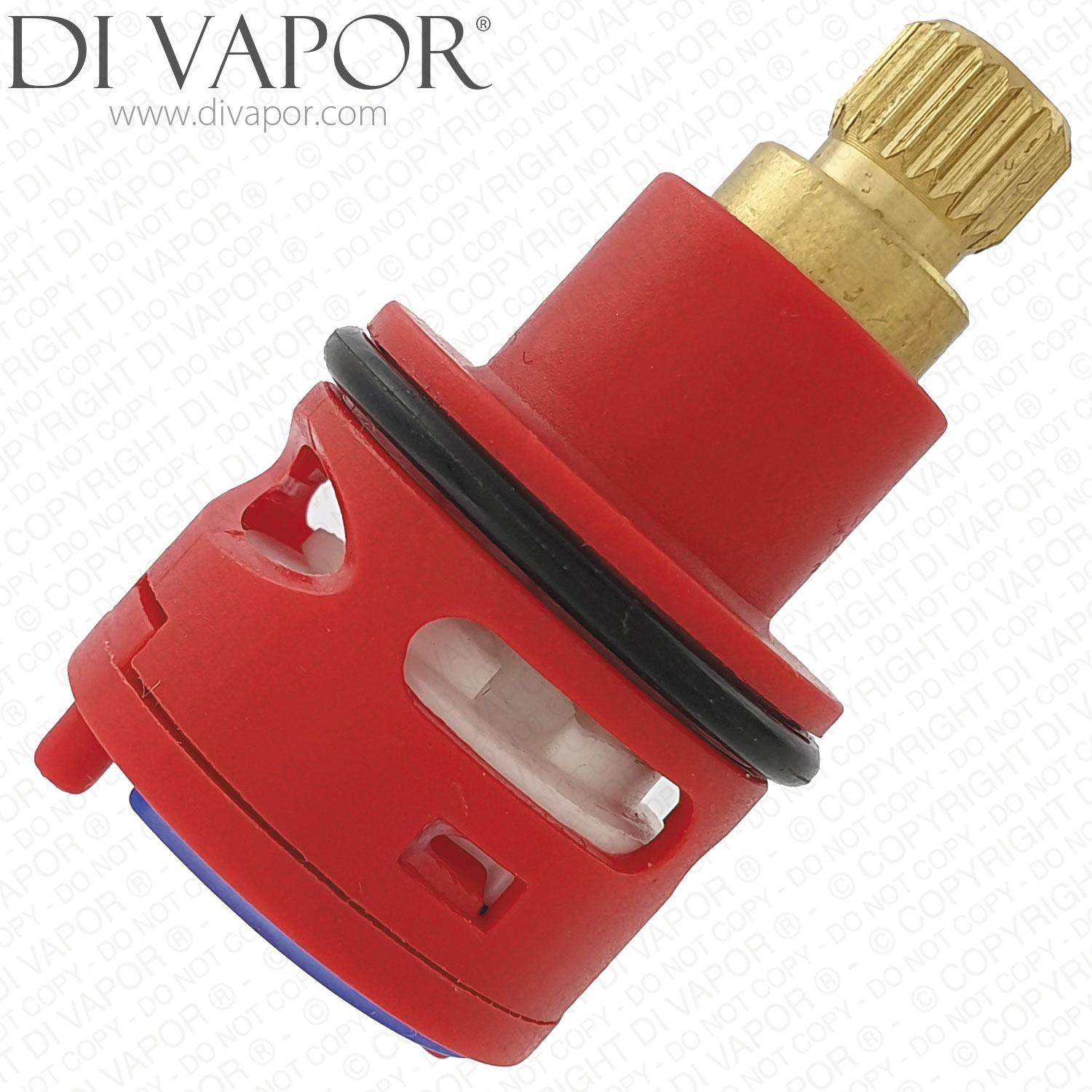

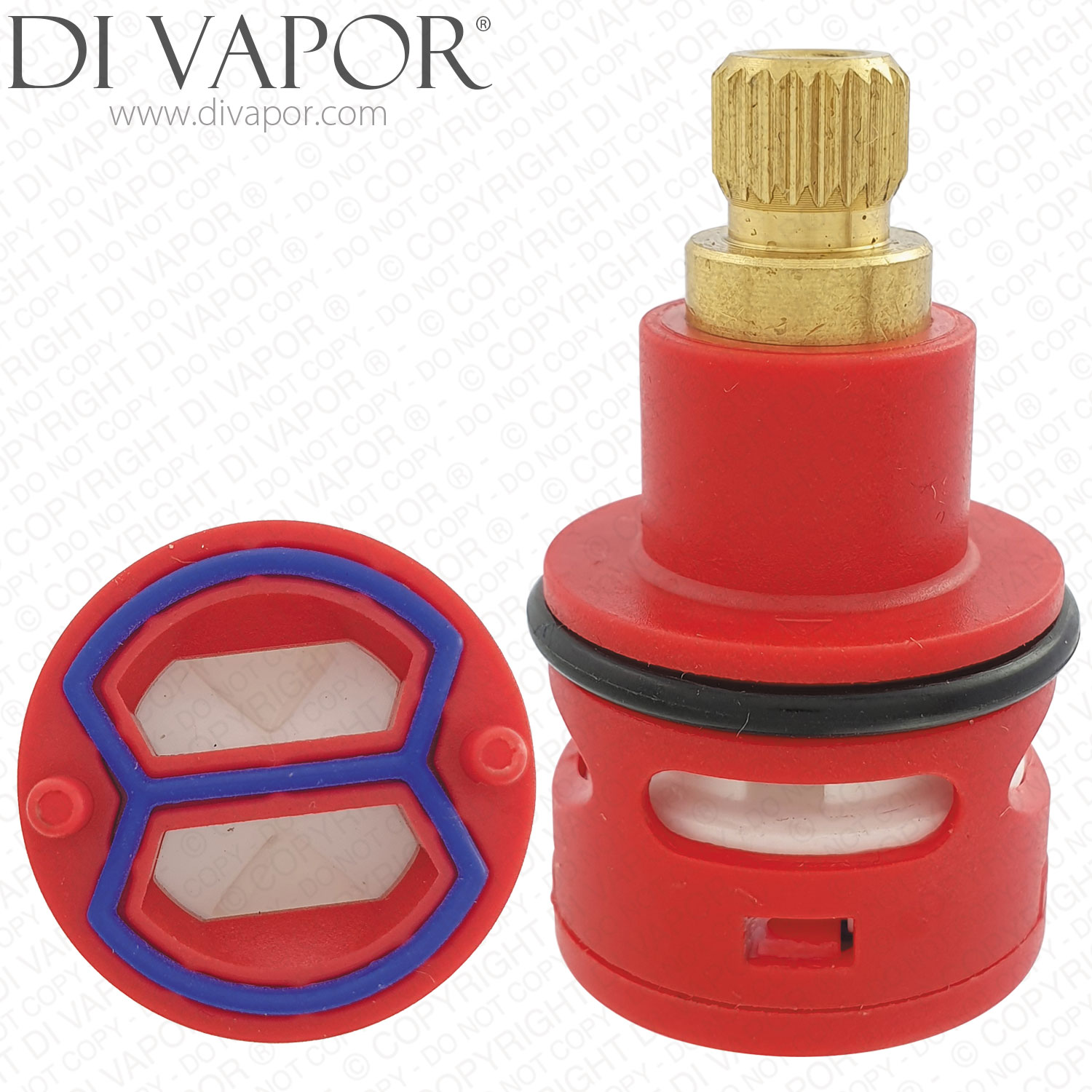

22mm 2-Way Diverter Cartridge - 38mm Height

SUMMARY

22mm 2-Way Diverter Cartridge - SH90205. This cartridge can shut water off between functions.

Cartridge Measurements:

Total Length (including bottom seal): 38mm (excluding locating pins)

Diameter at Widest Point: 23.3mm (at o'ring)

Brass Spindle Length (Including Spline): 10mm

Top Spline Diameter: 7.6mm

Top Spline Teeth / Notches: 20

Barrel Diameter: 22mm

Number of Function Outlets: 2

Distance Between Locating Pins at Bottom (Centre to Centre): 18mm

The 22mm 2-Way Shower Diverter Cartridge SH90205 is a replacement shower valve diverter cartridge with a 38mm measured height. It is used inside a shower valve diverter control to switch the water path between shower functions and can shut water off between functions.

This cartridge should be matched carefully against the removed part before ordering, as similar 22mm 2-way diverter cartridges are available with different body heights and dimensions. A worn diverter cartridge can cause poor outlet selection, stiff or unreliable operation, or water dripping from a shower head or spout when the control is turned off.

Technical Details

- - Part Number: SH90205

- - Cartridge type: 2-way shower diverter cartridge

- - Nominal cartridge diameter: 22mm

Check Before You Order

Measure the removed diverter cartridge and compare the overall height, locating pin spacing, top spline diameter and 20-tooth spline before ordering. Do not rely on the 22mm body diameter alone, as this does not confirm fitment.

Installation Note

Apply a suitable silicone grease to the O-rings and bottom seals during installation to help the cartridge seat correctly and reduce the risk of seal damage when fitting.

Related Spares You May Need

- - 22mm Shower Diverter Cartridge (2 Functions)

- - TACSIL 3g Premium Cartridge Silicone Grease - WRAS Approved
