Bristan VS02-B24 1/​2 Ceramic 1/​4 Turn Valve - Pair

SUMMARY

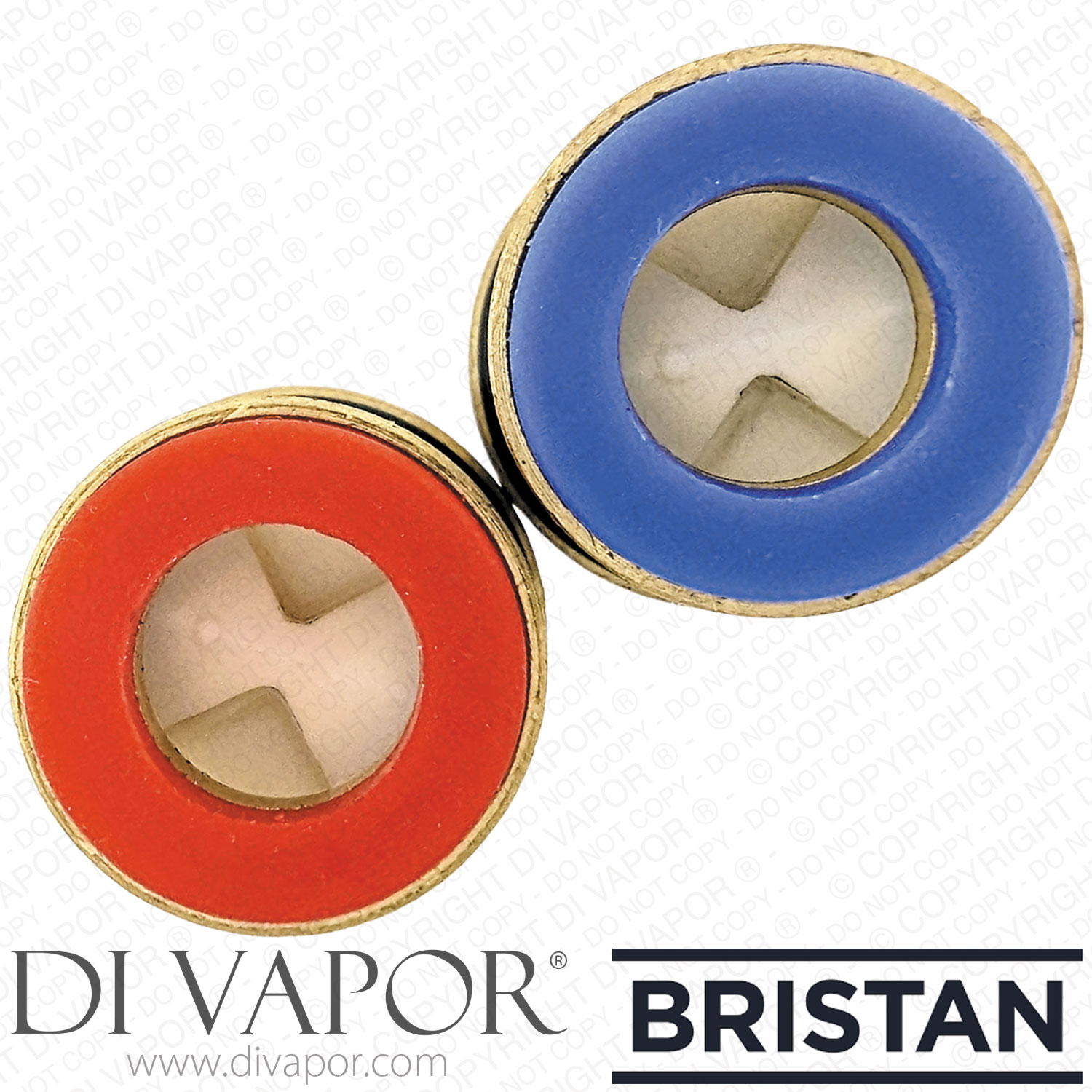

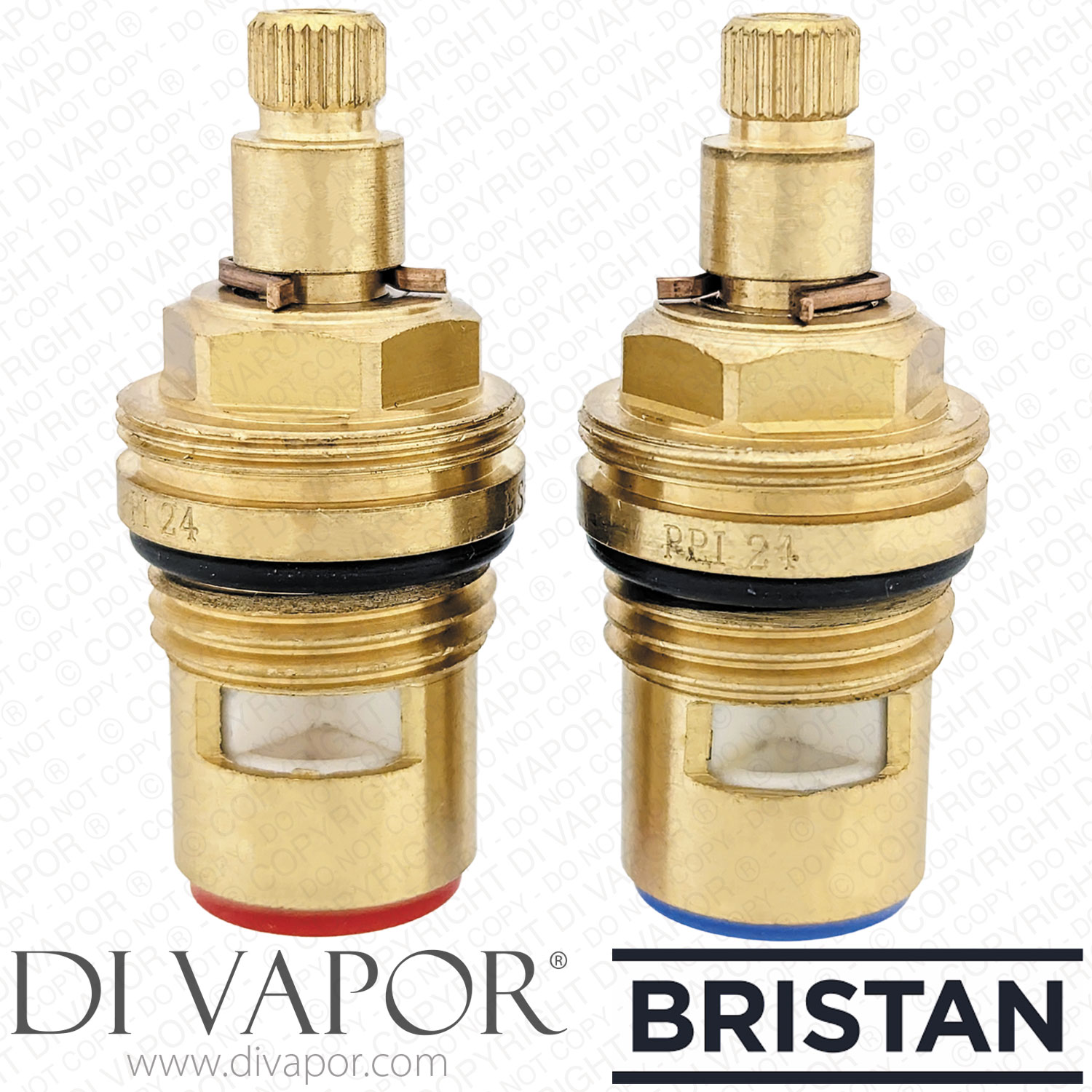

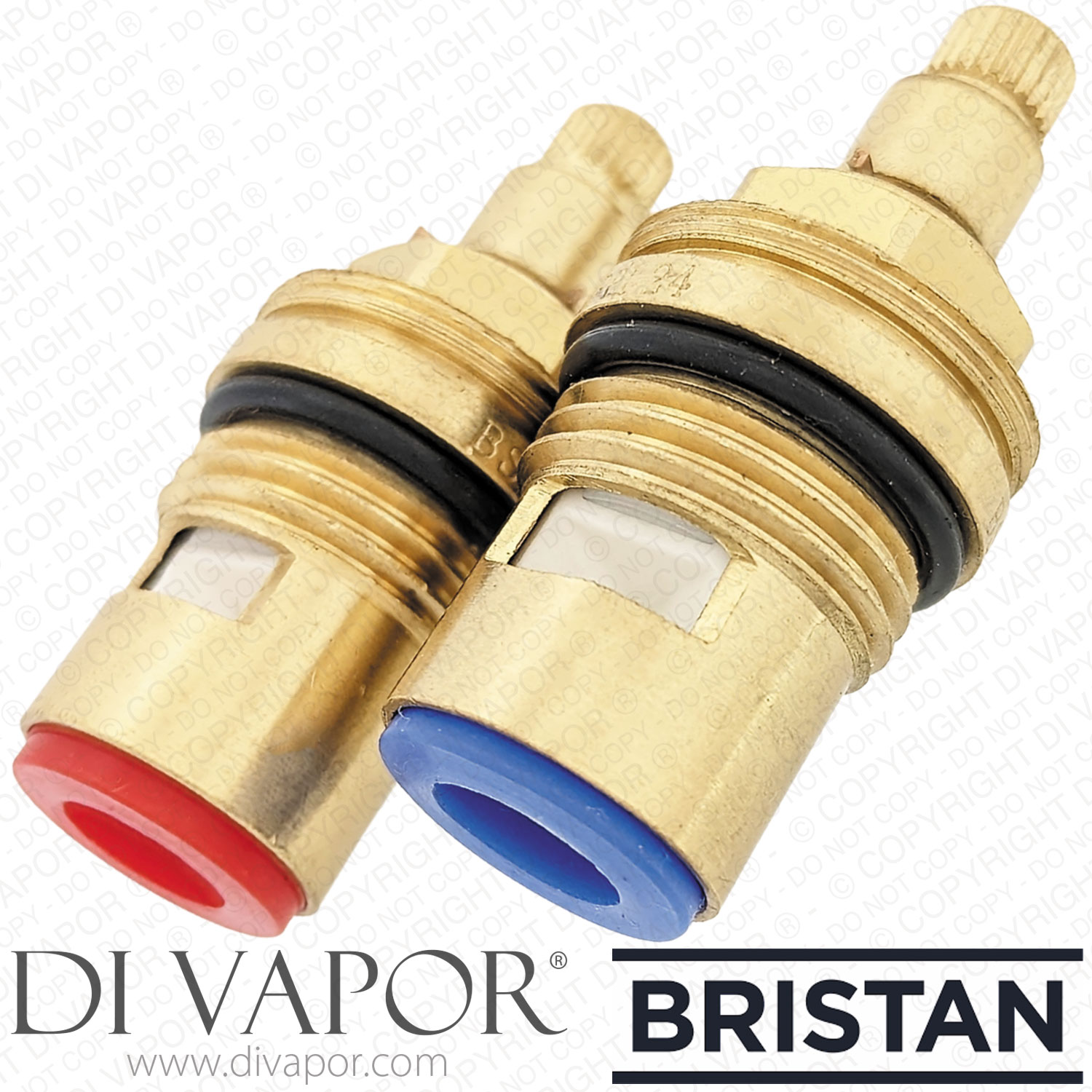

Bristan VS02-B24 1/2 Ceramic 1/4 Turn Valve - Pair

Please note that the design of the cartridge has slightly changed so you will receive a different version of the cartridge than in the main photo (the new version is backwards compatible).

The Bristan VS02-B24 is a pair of 1/2 ceramic 1/4 turn tap valves used to restore hot and cold water control in the Bristan Sonique two-handle basin mixer tap. These valves sit inside the tap body beneath the handles and control the opening and closing of the water flow through a quarter-turn ceramic mechanism.

This replacement valve pair is suitable where the existing tap is difficult to shut off fully, has poor handle control or continues to drip from the spout when the tap is turned off. The valve design has changed, so the supplied cartridges may look different from older fitted versions while retaining the same VS02-B24 part code.

Technical Details

- - Brand: Bristan

- - Part Number: VS02-B24

- - Part type: 1/2 ceramic 1/4 turn tap valve pair

- - Pack contents: pair of valves

- - Operation: quarter turn ceramic valve mechanism

- - Application: two-handle basin mixer tap water flow control

Confirmed Compatible Models

- - Bristan SOQ BAS2 C Sonique Basin Mixer Tap

Before You Order Check

- - Check the existing valve code where visible and compare the tap model before ordering.

- - Do not order by thread size or spline appearance alone, as tap valves can vary by handedness, spline form and overall body design.

- - If the old valve differs visually from the product image, note that the VS02-B24 cartridge design has changed.

Troubleshooting

- - Symptom: water drips from the tap spout when turned off. Likely Cause: worn ceramic valve seal or internal ceramic disc wear. Solution: replace the affected hot or cold valve, or fit the supplied pair for matched operation.

- - Symptom: handle turns but flow control is poor. Likely Cause: worn or damaged quarter-turn valve mechanism. Solution: isolate the water supply, remove the handle assembly and replace the valve with the correct VS02-B24 part.

- - Symptom: unsure whether the valve is correct. Likely Cause: tap revision or unidentified existing cartridge. Solution: use Di Vapor's part identification service with clear photos and dimensions before ordering.
