Bristan BLH217 Thermostatic Cartridge PPI
Send a photo of your item and we'll help confirm it.
Summary

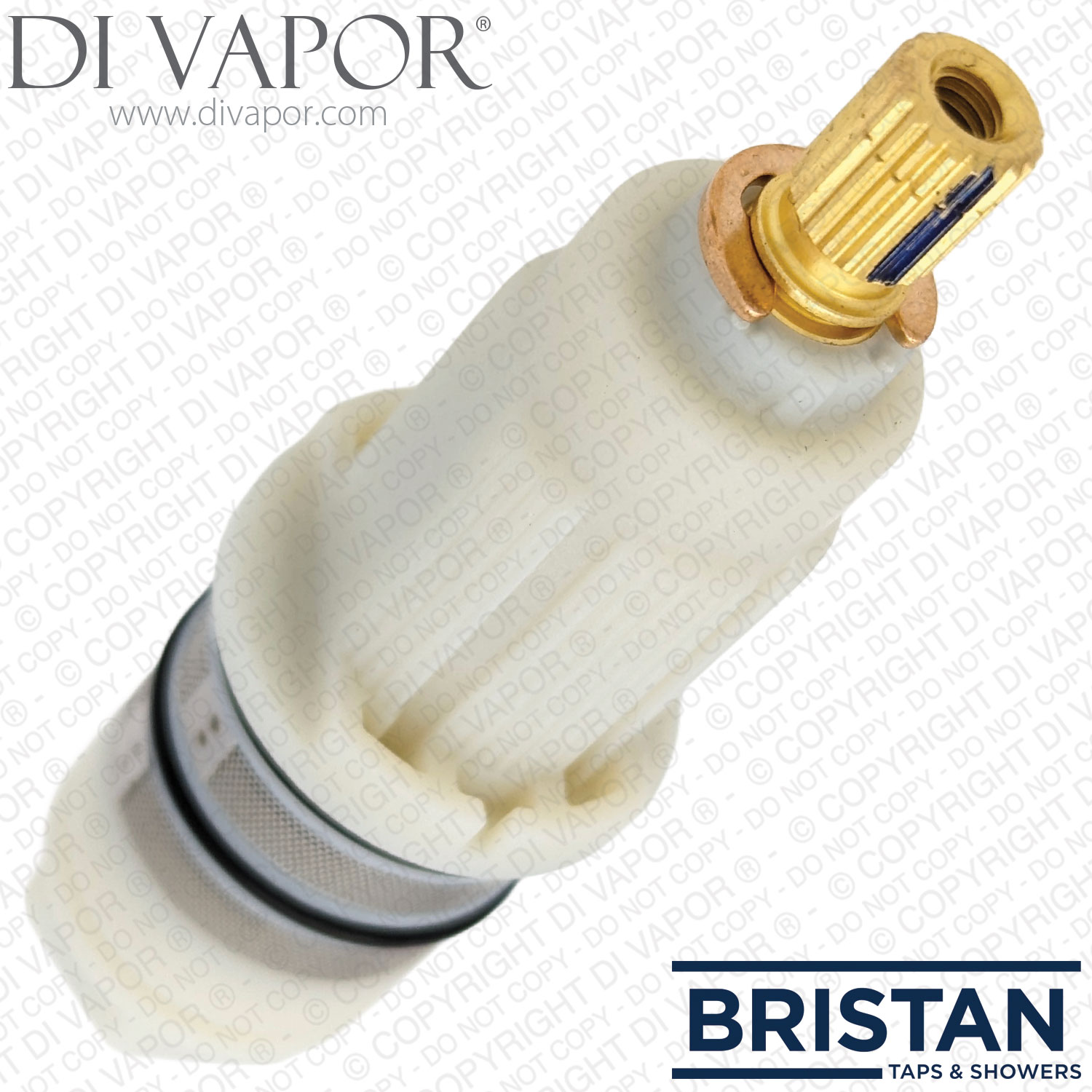

Bristan BLH217 is a white thermostatic cartridge for Bristan Zing Cool Touch and Safe Touch bar mixer showers. It controls the temperature blend inside the shower valve and is used when the original thermostatic cartridge is scaled, worn or no longer regulating temperature correctly.
This cartridge is used in confirmed Bristan Zing thermostatic bar shower assemblies. Check the shower model code before ordering because Bristan notes that spare parts can differ between product revisions.
Technical Details
| Brand | Bristan |
|---|---|
| Part Number | BLH217 |
| Part type | thermostatic cartridge |
| Colour | White |
| Application | temperature control cartridge for Bristan thermostatic bar mixer showers |
| Confirmed shower system inlet type | 15mm compression |
| Confirmed shower system outlet | G 1/2 |
| Confirmed installation orientation | hot supply on the left and cold supply on the right |
| Confirmed preset temperature stop | 38°C with override up to 46°C on the matched Bristan Zing systems |
Before Ordering Checks
- Match the code BLH217 on the removed part, diagram or Bristan spare parts list before ordering.
- Confirm the shower model is a Zing Cool Touch or Safe Touch bar shower because earlier or later revisions may use different internal parts.
- If the issue is poor shut-off or dripping from the shower head after the shower is turned off, also inspect the flow valve and retaining nut before ordering.
Installation Notes
Isolate the hot and cold water supplies before servicing the valve. Remove the temperature handle and stop parts to access the cartridge retaining nut, then remove the thermostatic cartridge for cleaning or replacement. Inspect seals during reassembly and use WRAS-approved silicone grease on suitable seals where required.
Confirmed Compatible Models
- Bristan ZI SHXSMCT C Zing Cool Touch Safe Touch Bar Shower Spare Parts
- Bristan ZI SHXSMCTFF C Zing Cool Touch Safe Touch Shower Bar with Fast Fit Connections Spare Parts
Related Spares You May Need
- Bristan SK100052 Evo Hose Retainer 22mm Diameter Chrome - (DEM 1 PA0093-01)
- Bristan BLH208 Screws for Riser Bracket M4x63 M4x42

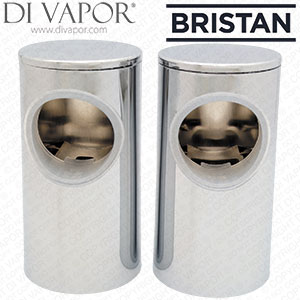

- Bristan BLH209 Wall Brackets 22mm Rail
- Bristan BLH210 Riser Rail 670x22mm
- Bristan BLH211 Temperature Handle Assembly
- Bristan BLH212 Handset Holder for 22mm Rail
- Bristan BLH215 Flow Handle Assembly Used in ZING Bars
- Bristan BLH216 Flow Valve 1/2" Cartridge
- Bristan BLH218 Cartridge Retaining Nut M32x1
- Bristan WMNT10 C Wall Mount Fixing Kit Spare Parts
- Bristan 1F00124CP Shroud for WMNT10 Chrome
- 150mm Universal Shower Hose - NXT734
