Bristan 08SN25S1504.04 Sedal 25mm Designer Cold Start Flat Cartridge

SUMMARY

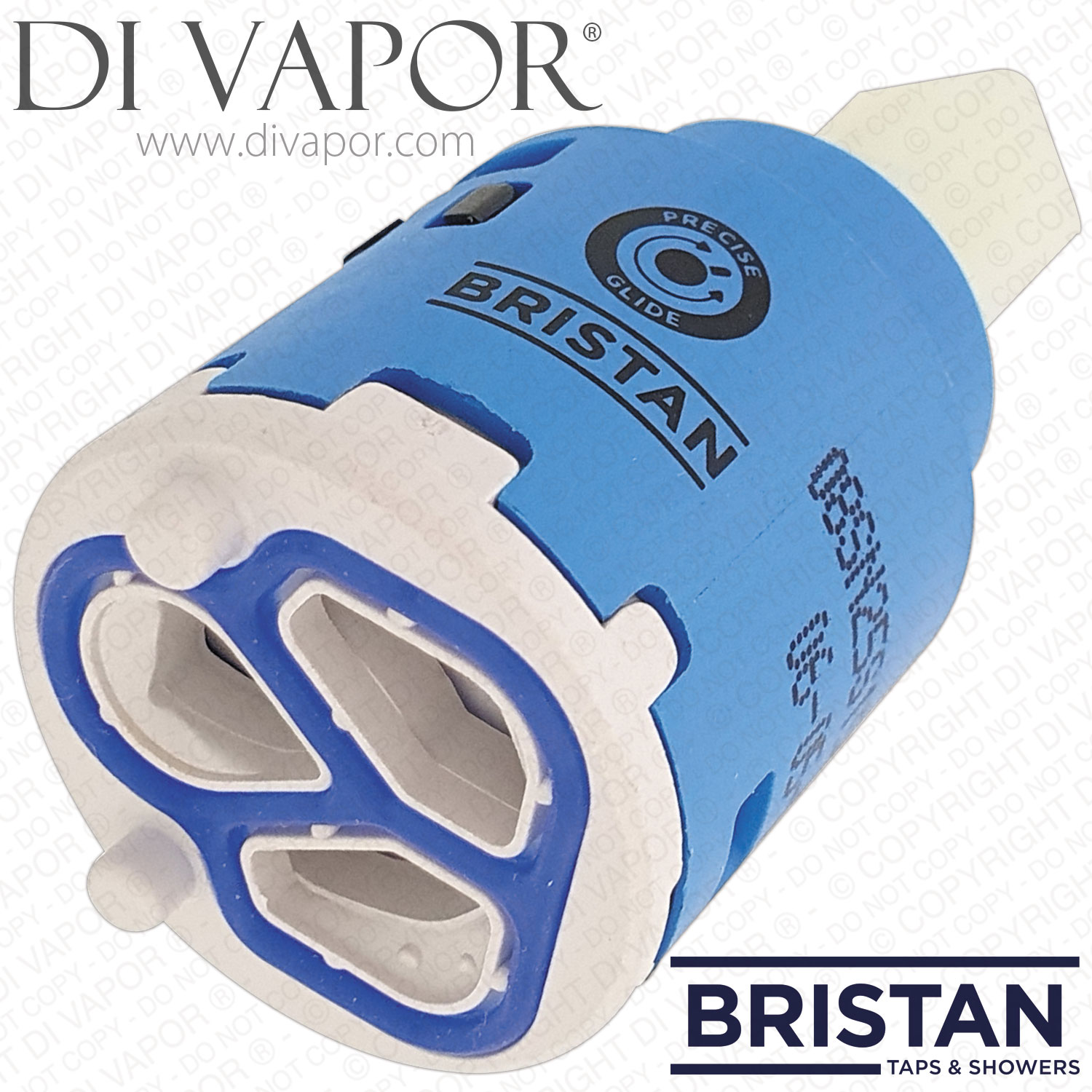

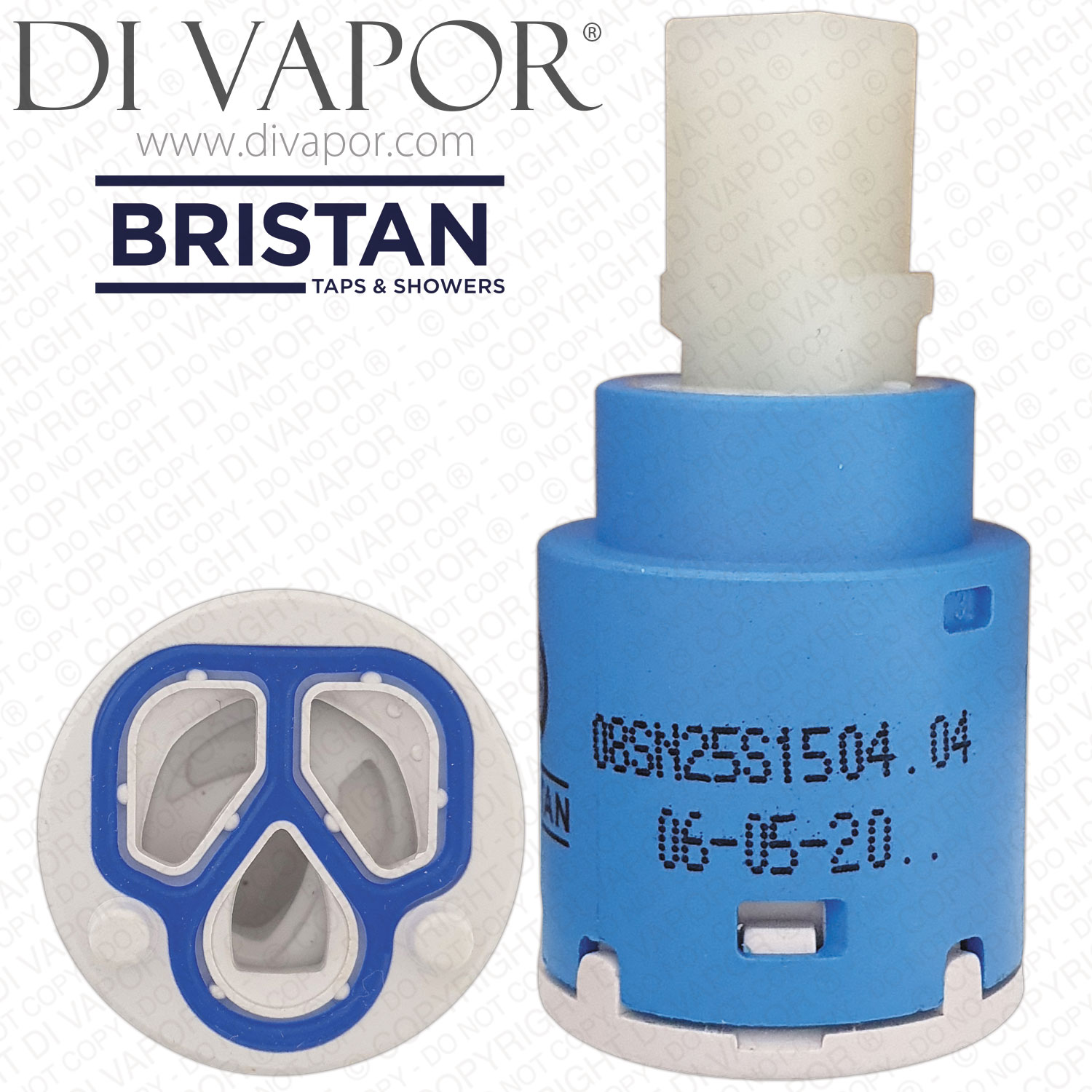

Bristan 08SN25S1504.04 Sedal 25mm Cold Start Flat Mirror Tap Cartridge

The Bristan 08SN25S1504.04 is a Sedal 25mm Designer Cold Start flat mirror single lever cartridge for a matching Bristan mixer tap body that takes this exact cartridge code.

This cartridge controls the opening, shut-off and mixing movement inside the tap. A worn cartridge can cause stiff or loose handle operation, poor shut-off, inconsistent mixing or water passing through the spout when the tap is turned off.

Technical Details

- - Part Number: 08SN25S1504.04

- - Sedal base code: 08SN25S1504

- - Sedal cartridge family: SN-25 S/D COLD MIRROR

- - Cartridge type: 25mm single lever cold start cartridge

- - Base style: flat S/D

- - Mirror operation: right to hot when viewed from the inlet side

- - Opening angle: 22.5 degrees

- - Turning angle: 90 degrees

- - Recommended working pressure: 1 bar to 5 bar

- - Maximum recommended hot water temperature: 65 degrees Celsius

- - Overall assembled height: 48.1mm

- - Lower body diameter: 24.9mm

- - Upper body diameter: 19mm

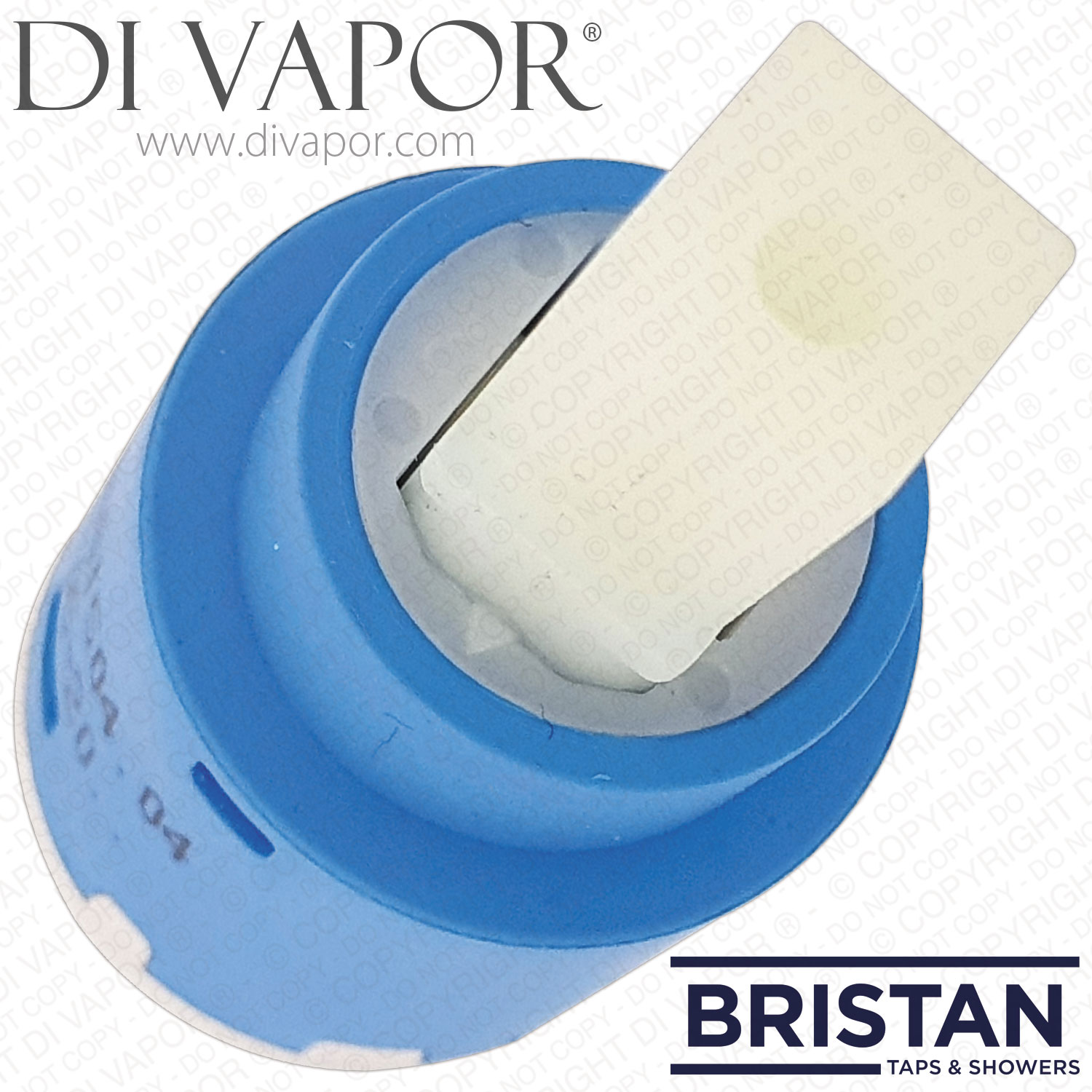

- - Stem top: 9mm square

- - Stem screw thread: M4 x 0.7-6H

Before You Order

Match the removed cartridge against the full part code 08SN25S1504.04, the 25mm body size, the flat S/D locating base, the 9mm square stem top and the cold-start mirror orientation. Do not order from the 25mm diameter alone, as similar Sedal and Bristan cold-start cartridges use different base styles and handle movement orientation.

Related Spares You May Need

- - Bristan 08SN25S1503.04 Sedal 25mm Designer Cold Start Flat Cartridge - related flat cold-start S/D variant; check the removed cartridge orientation before ordering.

- - Bristan 08SN25L1504.04 Sedal 25mm Designer Cold Start Stepped Cartridge - related stepped cold-start mirror variant; check the base style against the removed cartridge before ordering.
