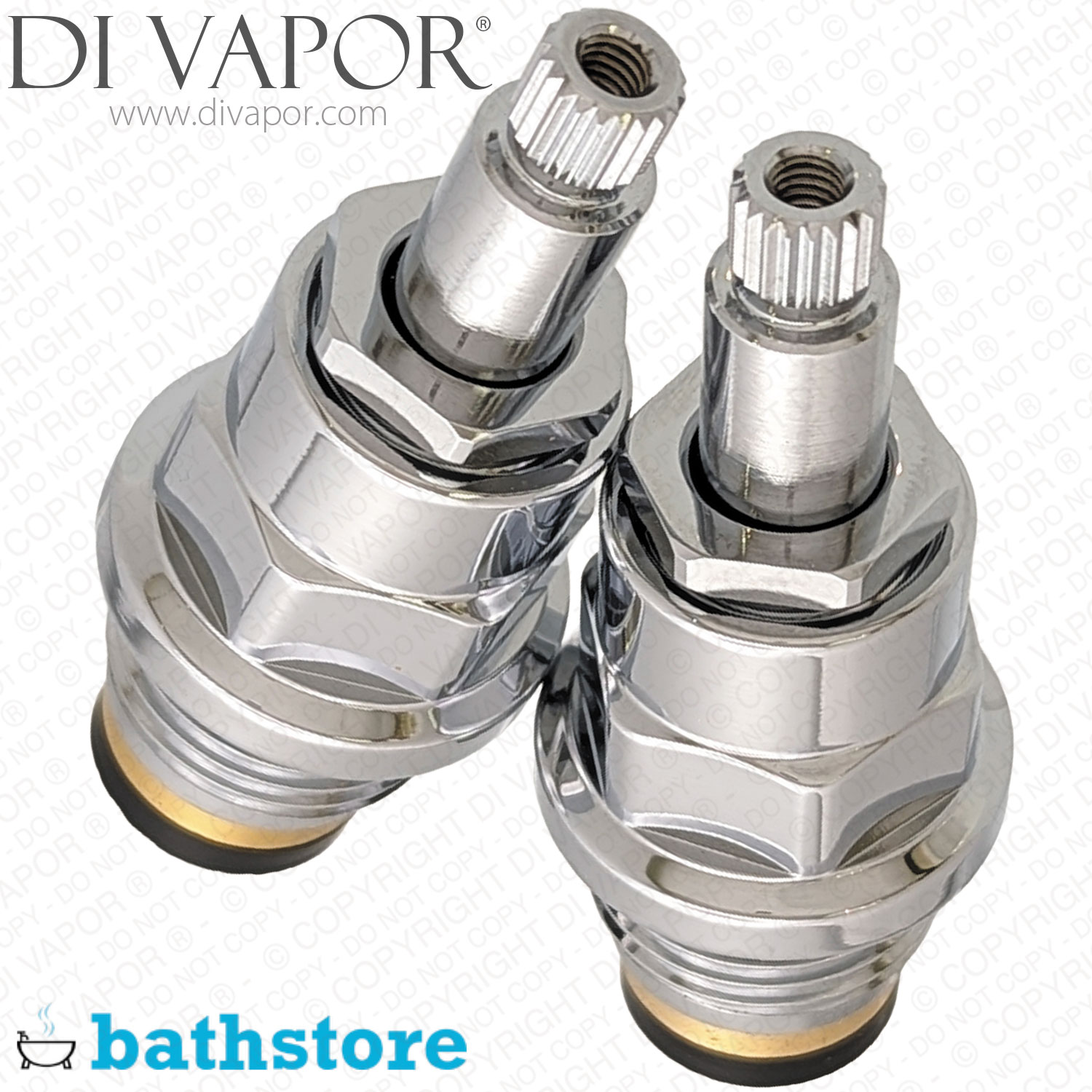

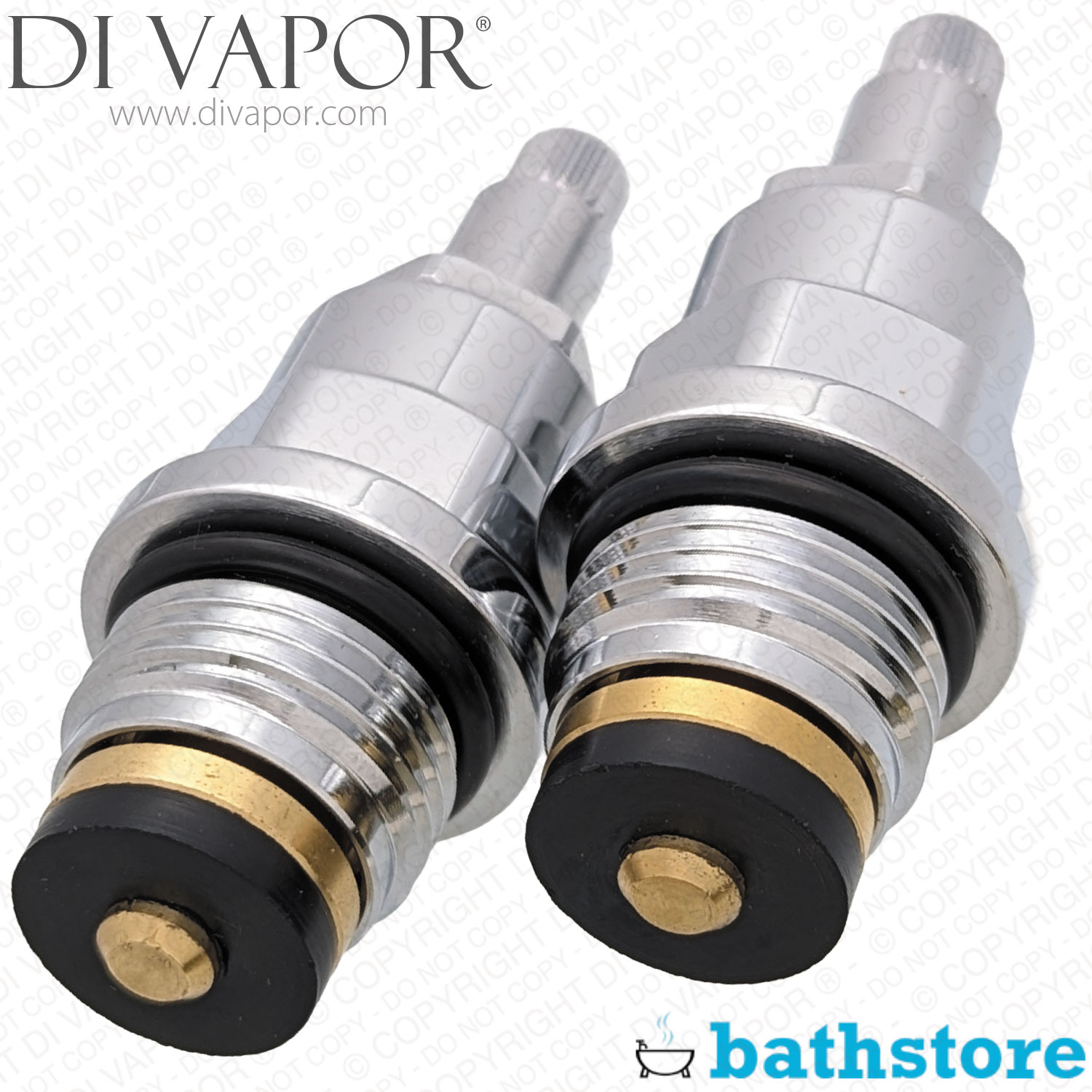

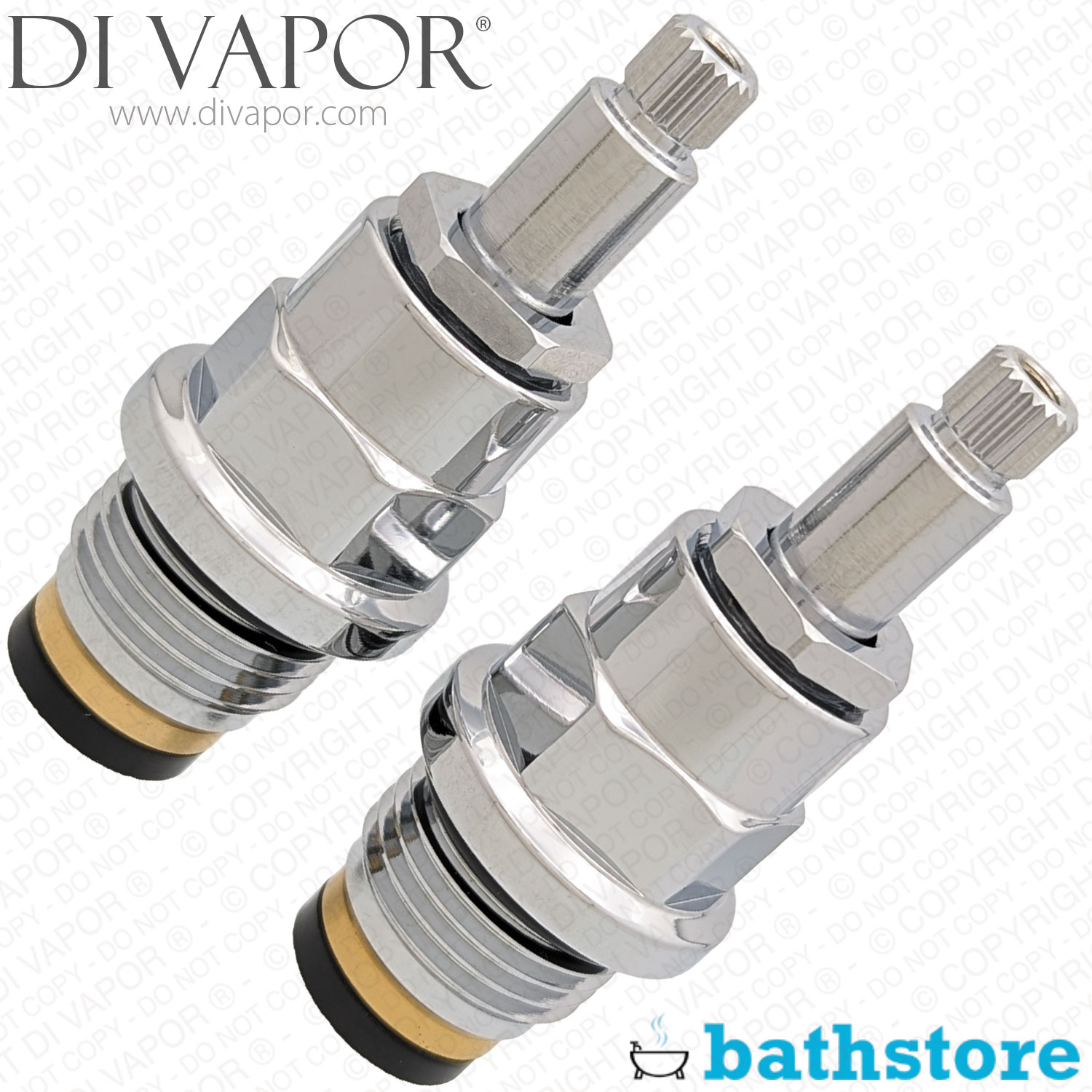

Bathstore 90000013870 Spare Pair of Bensham 1885 of 1/2 Inch Side Bodies Tap Valve Cartridges - Pre Nov 2015
SUMMARY
Bathstore 90000013870 is a pair of replacement 1/2 inch side body tap valve cartridges for Bensham 1885 taps made before November 2015. This pair replaces the separate hot and cold side body assemblies 90000013470 and 90000013490.
These side bodies restore normal tap operation where the original assemblies are worn, seized, leaking, or no longer shutting off correctly. Common signs of failure include dripping from the spout, stiffness when turning the tap, or poor shut-off. The internal valve cartridge used in this design is the same on both the hot and cold sides.
Technical Details
- - 20mm thread diameter
- - 18mm bottom washer diameter
- - 92mm overall height excluding the bottom rivet.
- - The internal cartridge used in these side bodies is 66.5mm overall length, including the bottom seal and excluding the protruding rivet.
- - Top Spline Diameter: 7.6mm
- - Top Spline Teeth / Notches: 20
- - Rubber Seal Diameter: 16.7mm
- - Lower Thread: 1/2" BSP (20.7mm)
- - Close Direction: Anti-Clockwise Close (Clockwise Open)
- - This pair is for the pre-November 2015 Bensham 1885 1/2 inch side body arrangement and not the later post-November 2015 cartridge versions.
Before ordering check
- - Check that your tap uses the pre-November 2015 Bensham 1885 1/2 inch side bodies.
- - Check the listed dimensions against your original parts before ordering.
Related Spares You May Need
- - Bathstore 90000013470 Spare Bensham Hot 1/2" Side Bodies - Pre Nov 2015
- - Bathstore 90000013490 Spare Bensham Cold 1/2" Side Bodies - Pre Nov 2015
- - TACSIL 3g Premium Cartridge Silicone Grease - WRAS Approved
