Aqualisa MD100BAR Midas 100 Bar Mixer Shower
SUMMARY

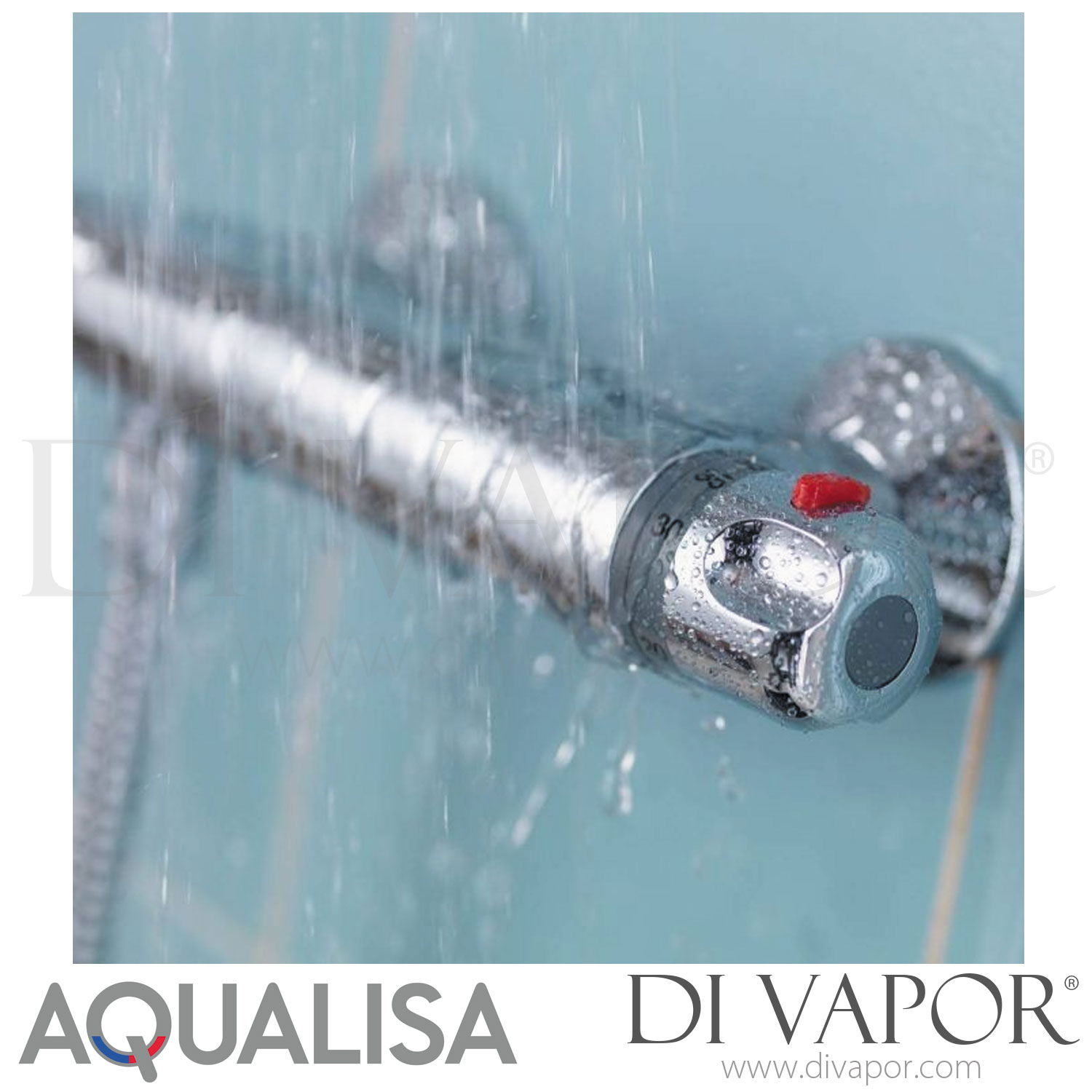

The Aqualisa MD100BAR Midas 100 is an exposed thermostatic bar mixer shower with separate flow and temperature controls, a chrome finish and a 90mm Harmony shower head. This page covers the MD100BAR shower and the verified component spare parts used to service the valve, controls, shower kit and wall connection parts.
The MD100BAR uses a thermostatic cartridge to regulate mixed outlet temperature and a separate flow control assembly to control water delivery. When servicing the shower, match the visible part, code and function before ordering, especially where cartridge-only and cartridge-with-handle versions are both available.
Technical Details
- - Brand: Aqualisa
- - Model code: MD100BAR
- - Shower type: exposed thermostatic bar mixer shower
- - Finish: chrome
- - Controls: separate flow and temperature controls
- - Shower head: 90mm Harmony handset with 4 spray patterns
- - Minimum pressure: 0.1 bar
- - Maximum pressure: 10 bar
- - Inlet connections: 3/4 inch BSP
- - Outlet connection: 1/2 inch BSP
- - Supply orientation: hot on the left and cold on the right
- - Inlet centres: 150mm nominal with adjustment from 130mm to 170mm when using the eccentric elbows
- - Valve body material: brass
- - Knob material: ABS
- - Suitable water systems listed for the model include gravity, boosted gravity, combi and balanced high pressure systems
Service Notes
Check the cartridge, flow control, filters and check valves when troubleshooting temperature instability, poor hot water control, reduced flow or poor shut-off. If water drips from the shower head when the shower is turned off, the flow control assembly or sealing parts should be inspected as part of diagnosis.
Use the cartridge measurements and supplied-with-handle details before choosing between the cartridge-only version and the complete cartridge assembly with temperature control handle. Inspect the stop ring, grub screw and knob screw during refitting so the temperature handle can be positioned correctly.

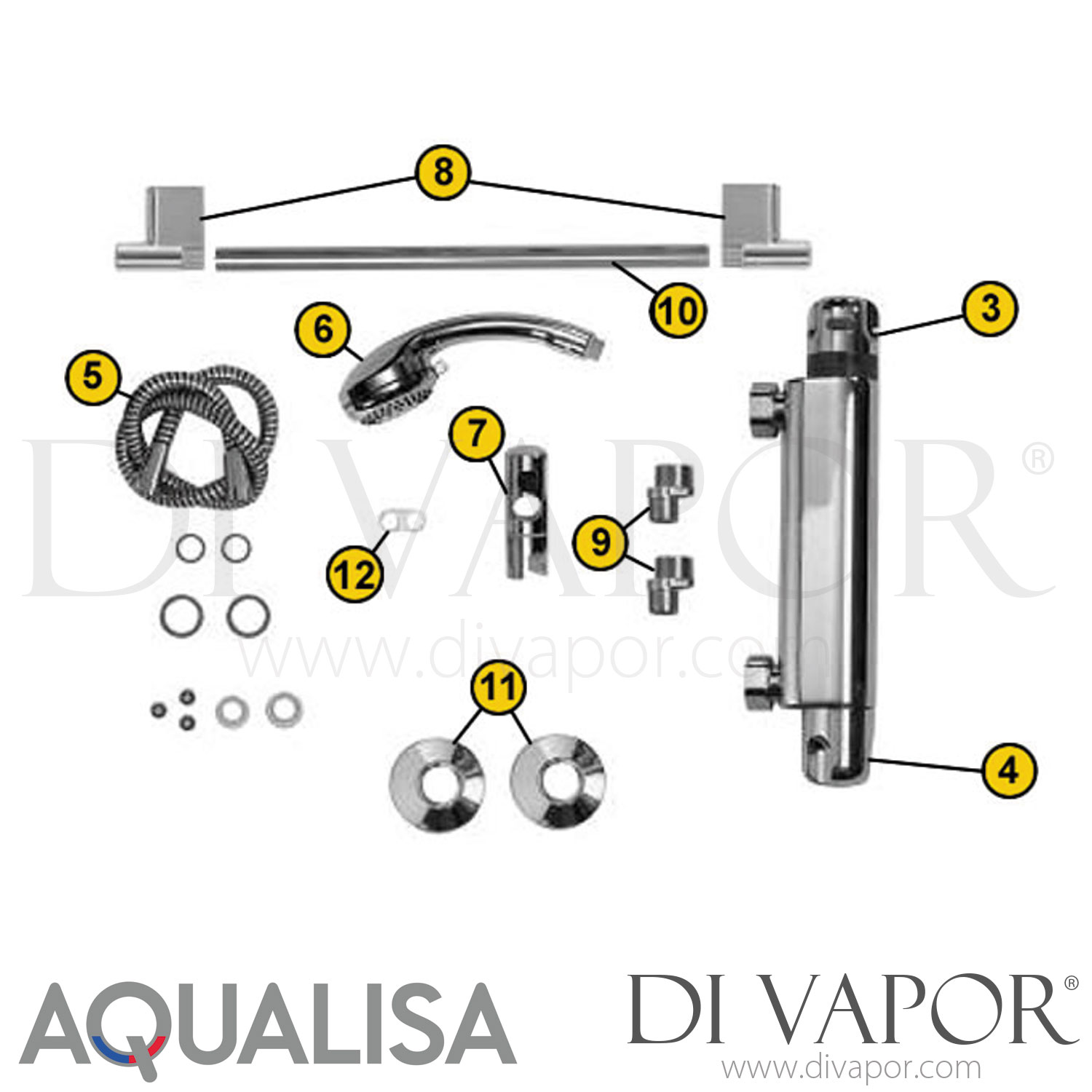

Related Spares You May Need
- - Aqualisa 518103 Temperature Control Handle
- - Aqualisa 518102 MIDAS 100 FLOW CONTROL SERVICE KIT (INC KNOB) - 700579
- - Aqualisa 518102 MIDAS 100 Flow Control Know - Knob Only
- - Aqualisa 235019 HYDRAMAX HOSE CHROME
- - Aqualisa 901503 HARMONY HEAD 90MM LIGHT GREY CP
- - Aqualisa 518702 MIDAS RAIL ENDS COMPLETE
- - Aqualisa 518701 MIDAS ECCENTRIC ELBOWS
- - Aqualisa 525301 MIDAS WALL FIXINGS & COVERS (PAIR)
- - Aqualisa 298603 SPARE SLIMLINE RAIL 22MM (SPARES)
- - Aqualisa 518109 MIDAS 100/200 COVER PLATE CP (SPARES)
- - Aqualisa 518101 Midas Thermostatic Cartridge (No Handle)
- - Aqualisa Midas 100 Cartridge Including Temperature Control Handle
- - Aqualisa Stop Ring for 518103 / 518101 Handle
- - Aqualisa 518105 MIDAS 100 KNOB SCREW
- - Aqualisa 518107 MIDAS 100/200 FILTERS
- - Aqualisa 518108 MIDAS 100 CHECK VALVES
- - Aqualisa 518110 MIDAS 100/200 GRUB SCREW
- - Aqualisa 910077 MIDAS PLUS 3 SPRAY ADJ HANDSET
Need help confirming the right MD100BAR spare? Compare the visible part, code and function with your existing shower before ordering, or use the part identification service if the valve has been altered or previously repaired.

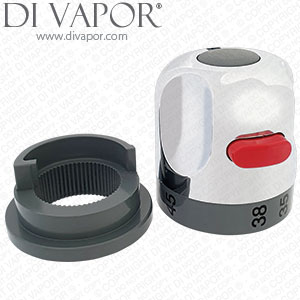

Aqualisa 518103 is a temperature control handle for the Aqualisa Midas 100 mixer valve range. It is used on the temperature side of the valve to let the user adjust the blended outlet water temperature.This handle is the separate control handle only. If the thermostatic cartridge...

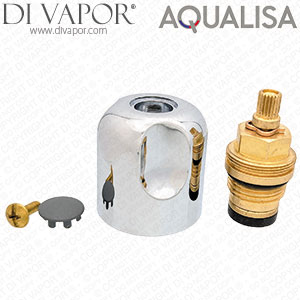

Aqualisa 518102 MIDAS 100 FLOW CONTROL SERVICE KIT (INC KNOB)
Aqualisa 901503 HARMONY HEAD 90MM LIGHT GREY CP
Aqualisa 525301 MIDAS WALL FIXINGS & COVERS (PAIR)
Aqualisa 298603 SPARE SLIMLINE RAIL 22MM (SPARES)
Aqualisa 518109 MIDAS 100/200 COVER PLATE CP (SPARES)

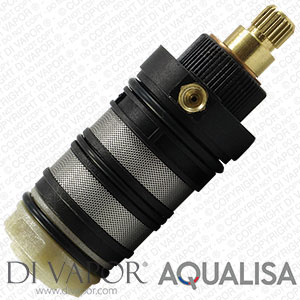

Aqualisa 518101 is the thermostatic cartridge used in Midas 100 high pressure mixer valves. This listing is for the cartridge only and does not include the temperature control handle.This cartridge controls mixed water temperature inside the valve. When the original cartridge is ...

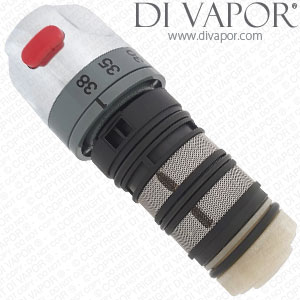

Aqualisa AQ-518101 is a thermostatic cartridge assembly for the Aqualisa Midas 100 high pressure mixer valve range. It is supplied with the temperature control handle and is used to control the blended outlet water temperature inside the valve.This part is intended for Midas 100 ...
Aqualisa 910077 MIDAS PLUS 3 SPRAY ADJ HANDSET
