Rangemaster Belfast Monobloc TBM1BF Cold Tap Cartridge Compatible Spare - RMTBM1BF53
Send a photo of your item and we'll help confirm it.
Summary
Rangemaster Belfast Monobloc TBM1BF Cold Tap Cartridge Compatible Spare - RMTBM1BF53
Kitchen Tap Spare Parts FAQ
Q: I have to repair a leaky Rangemaster Belfast tap. Will this compatible cartridge be good?
A: This valve is a good replacement part. It can stop the dripping as long as the problem stems from a faulty cartridge.
Q: The tap handle squeaks every time I open the tap. Will a replacement cartridge fix it?
A: A replacement Rangemaster Belfast cartridge might be needed if it is due to worn-out cartridge threads.
Q: Are knowing the measurements of the tap cartridge for Rangemaster Belfast important?
A: Yes, it is important as some taps with the same codes could use different generations of cartridges. Knowing the measurements will help you find out, empirically, if the part will fit in the tap.
These are the measurements for the Rangemaster Belfast Monobloc tap replacement valve.
| Cartridge Length | 53.8mm |
|---|---|
| Nut Height | 6.2mm |
| Diameter at Widest Part | 23.8mm |
| Diameter at Bottom Part | 18.3mm |
| Diameter at Spline | 7.8mm |
| Spline Teeth Count | 28 |
| BSP | 1/2 Inch |

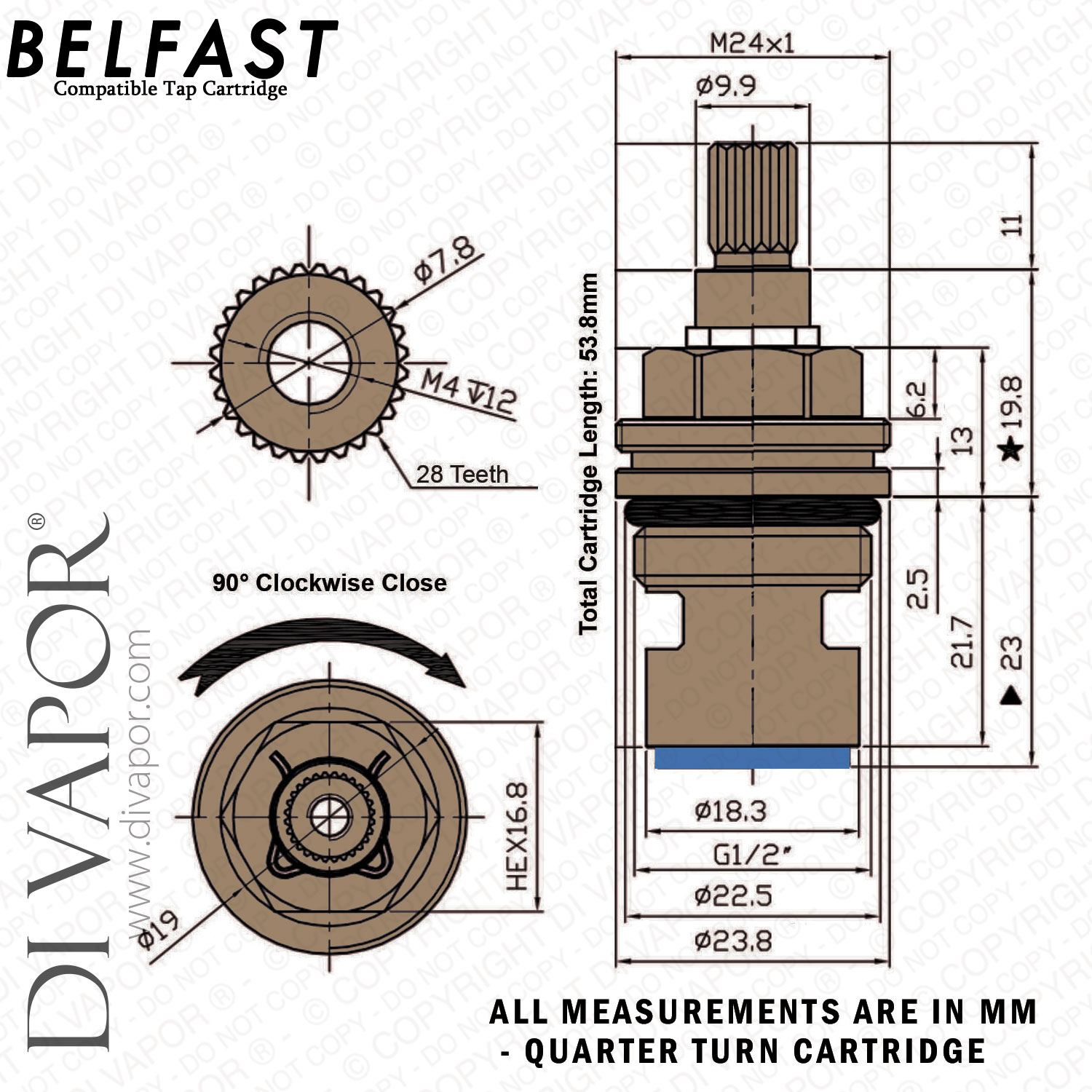

For a visual depiction of the measurements, please view the second image found in the gallery.
Q: Is this the clockwise cartridge?

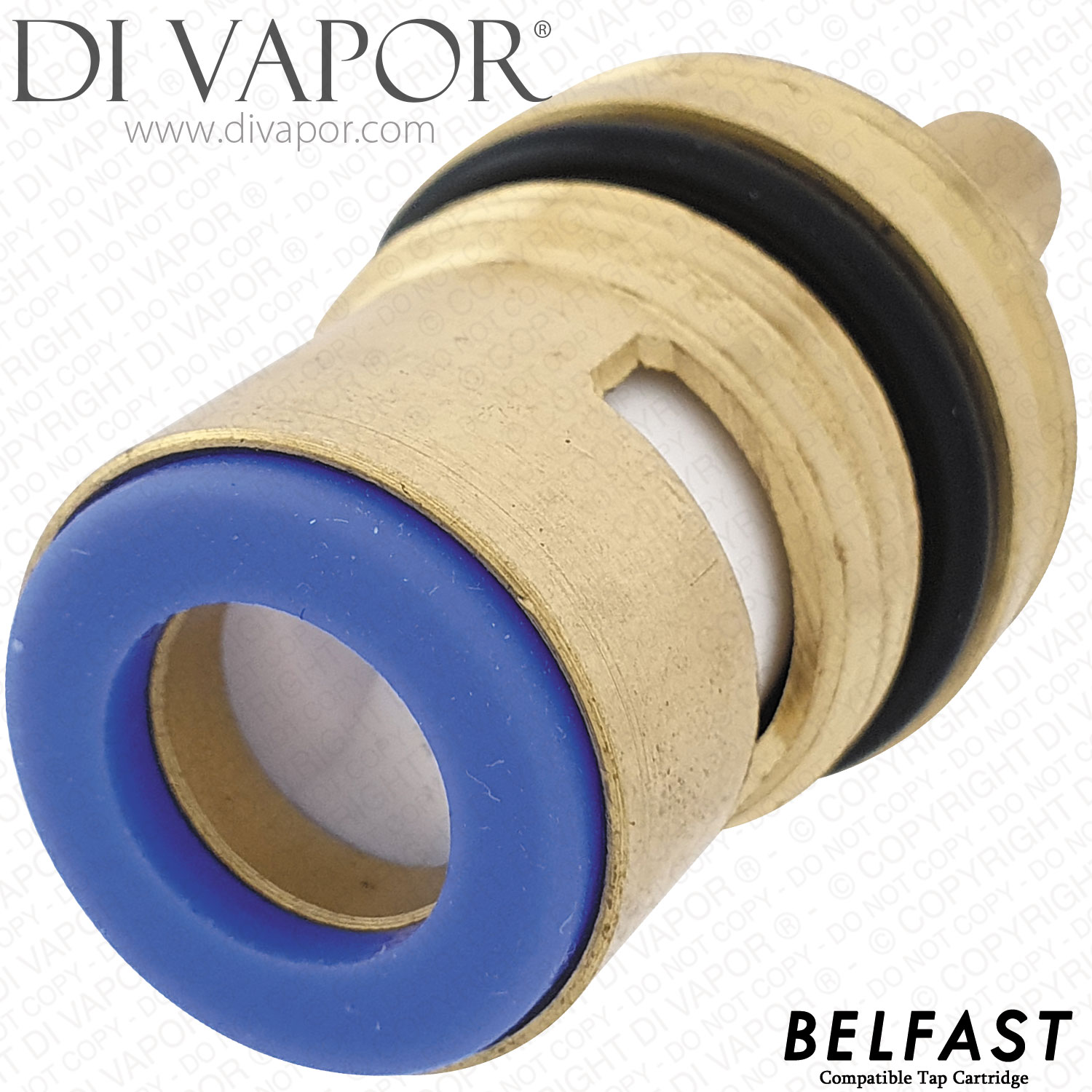

A: This blue bottom seal cartridge is an anti-clockwise open cartridge.
The clockwise open cartridge (red) is RMTBM1BF54. » Please click on the link to jump to the page.
