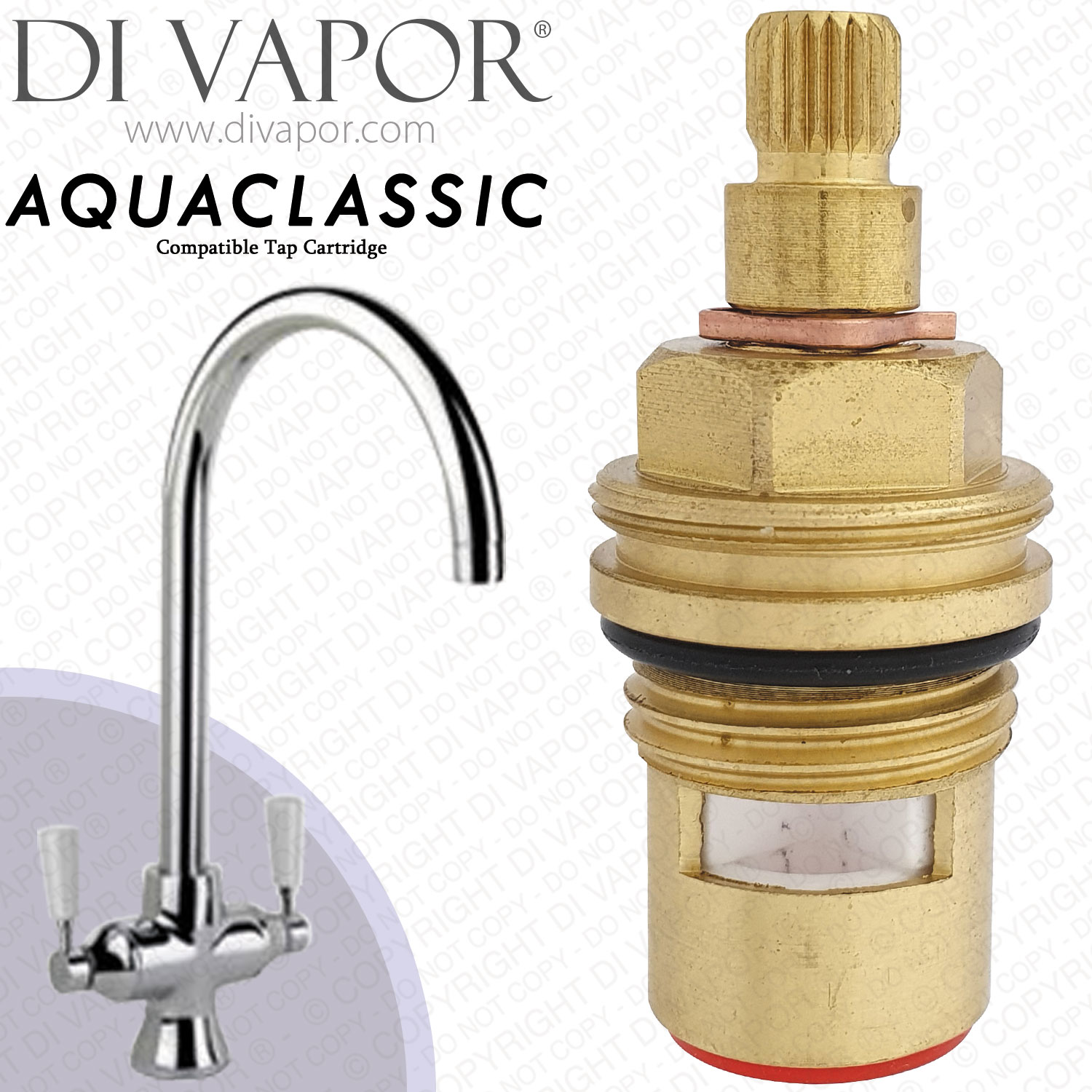

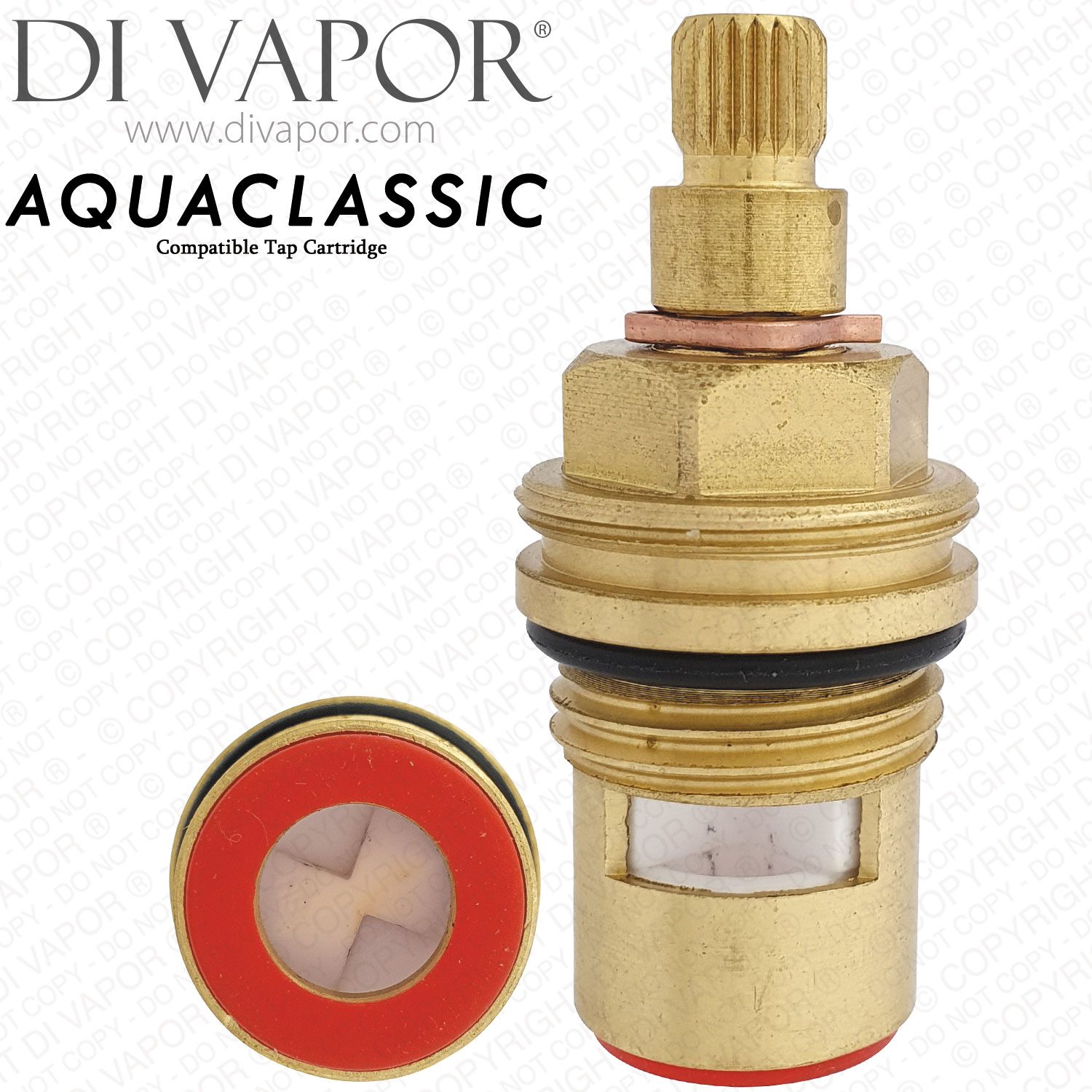

Rangemaster Aquaclassic TSA4 Spa Filter Hot Cartridge Compatible Spare - 20 Splines - RMTSA4224
Send a photo of your item and we'll help confirm it.
Summary
Rangemaster Aquaclassic TSA4 Spa Filter Hot Cartridge Compatible Spare - 20 Splines - RMTSA4224
| Valve Type | Ceramic Disc Cartridge |
|---|---|
| Bottom Seal Colour | Red (Hot Side) |
| Rotation Angle | 90° (Quarter Turn) |
| Open Direction | Clockwise |
| Close Direction | Anti-Clockwise |

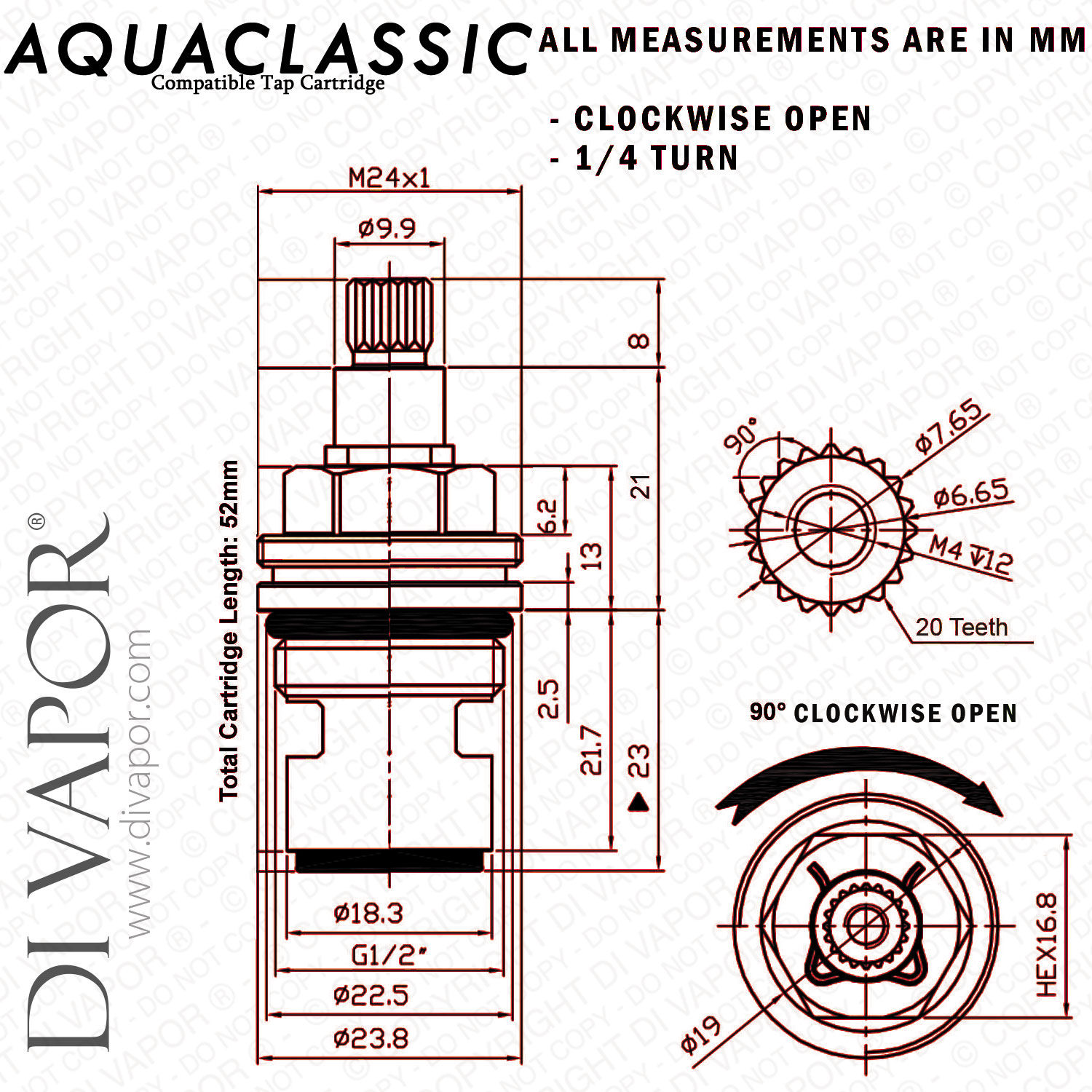

The compatible cartridge for Rangemaster Aquaclassic TSA4 tap measures:
- Height 52mm • Diameter at Widest Part 23.8mm • Diameter at Bottom Part 18.3mm • Diameter at Spline 7.65mm • Spline Teeth Count 20
Kindly note that this replacement cartridge has a total of 20 teeth on its spline. Some taps of the same model carry a 28 spline cartridge.

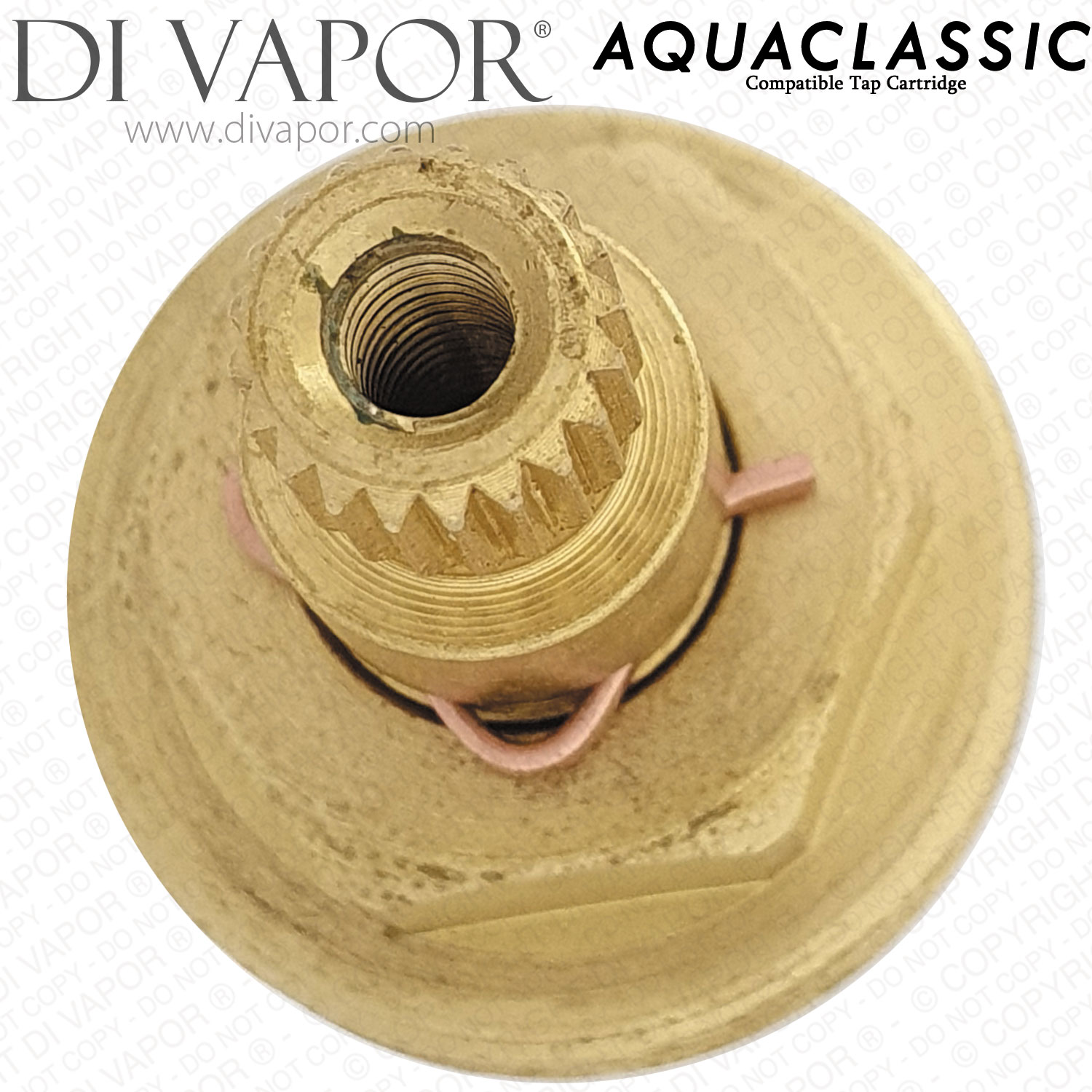

(On counting the spline teeth: mark one peak as a starting point.)
Please click HERE – RMTSA4733 for the hot valve 28 teeth.
A diverter cartridge is the part that sits in the cold side of the Rangemaster Aquaclassic Spa Filter tap. It is either a 28 or an 18 spline cartridge.
| 28 Spline Diverter | RMTSA4666 |
|---|---|
| 18 Spline Diverter | RMTSA4889 |
