Rangemaster Aquaclassic 2 TAC2 Hot 28 Spline Tap Cartridge Compatible Spare (TAC2CM from 2012 Onwards) (Leisure Taps) - RMTAC228H
Send a photo of your item and we'll help confirm it.
Summary
Rangemaster Aquaclassic 2 TAC2 Hot 28 Spline Tap Cartridge Compatible Spare (TAC2CM from 2012 Onwards) (Leisure Taps) - RMTAC228H
Please click HERE for more replacement cartridges for Rangemaster Aquaclassic tap series.
Valve Specifications
This valve for Rangemaster TAC2 has 28 spline teeth. Other taps of the same model has 20.
Marking one spline tooth with a pen as a starting point will make the counting easier.
Cartridge Information
| Valve Type | Ceramic Disc |
|---|---|
| Rotation Angle | 90° (Quarter Turn) |
| Bottom Seal Colour | Red |
| Open Direction | Clockwise |

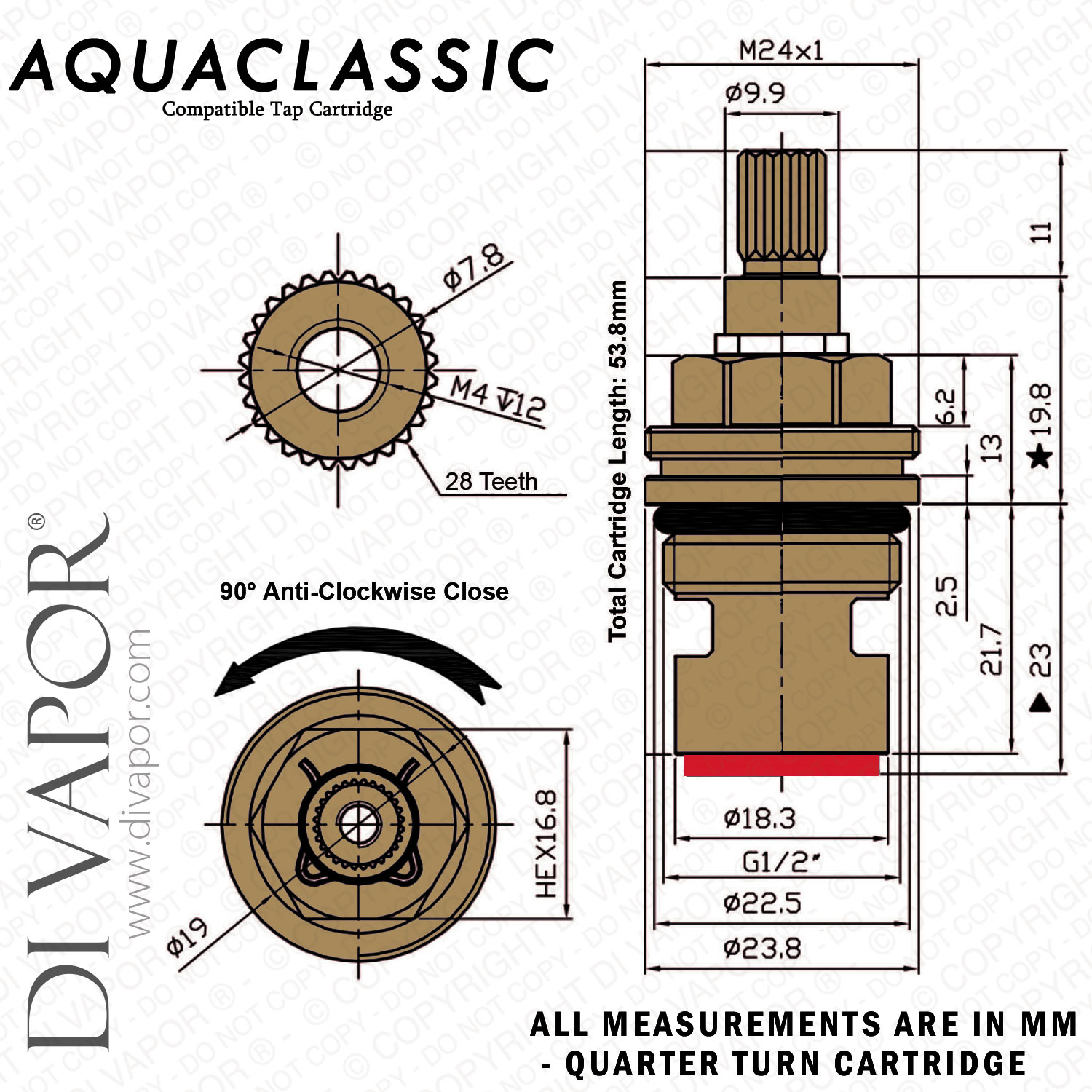

Measurements
| Spline Teeth Count | 28 |
|---|---|
| Diameter at Spline | 7.8mm |
| Cartridge Length | 53.8mm |
| Nut Height | 6.2mm |
| Diameter at Widest Part | 23.8mm |
| Diameter at Bottom Part | 18.3mm |
Suitability
| Compatible with | Rangemaster Aquaclassic 2 Post-2012 |
|---|---|
| Cold Tap Valve | RMTAC228C |
