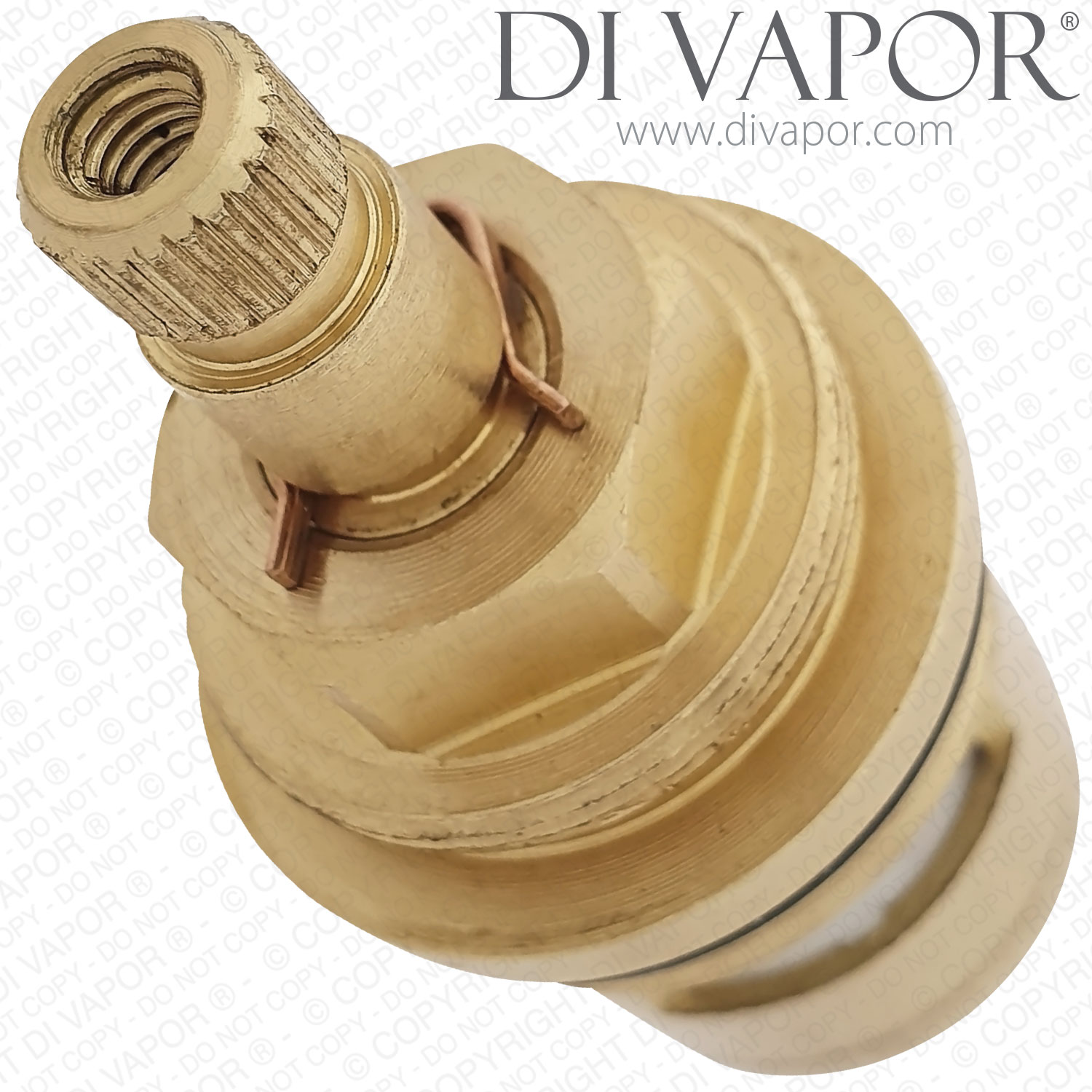

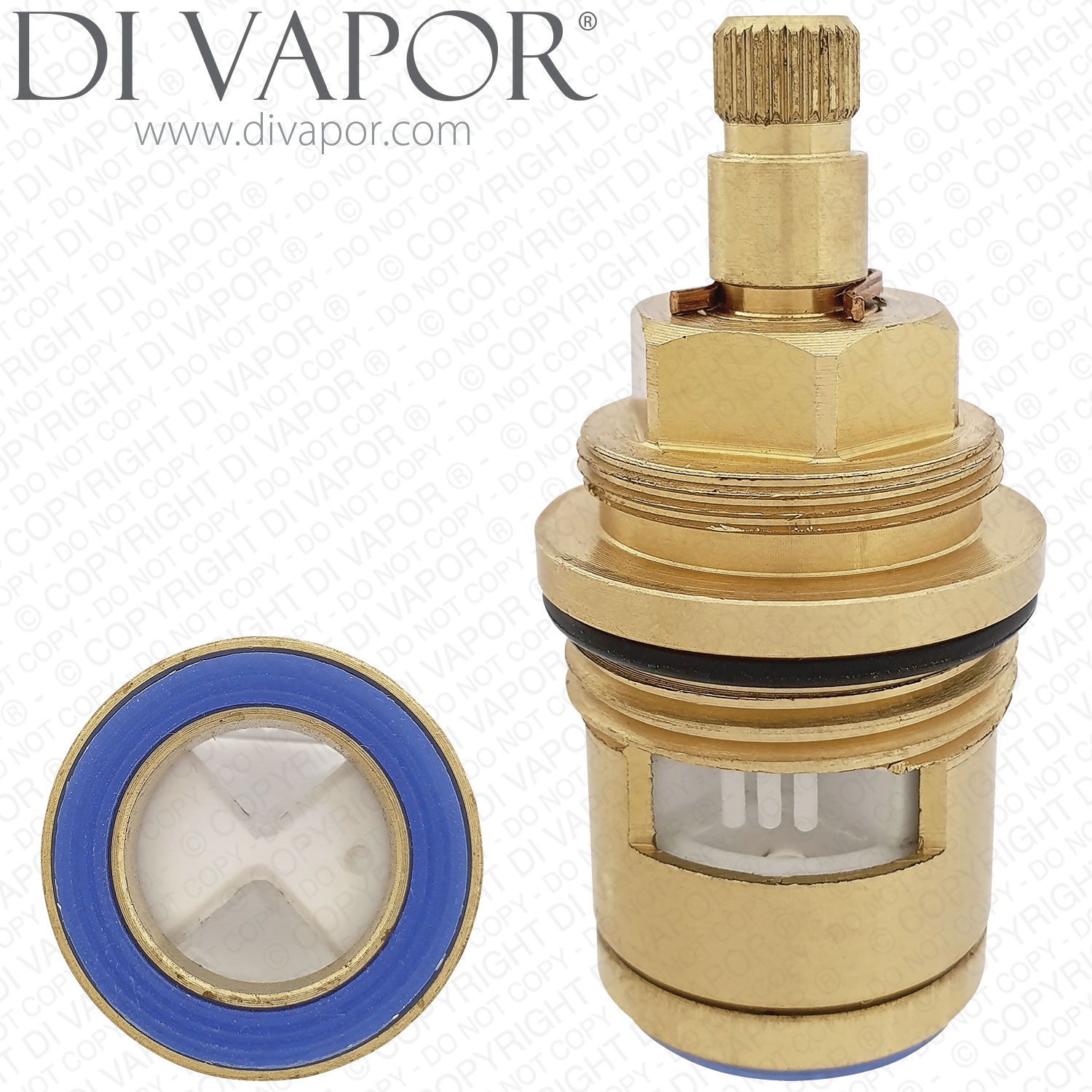

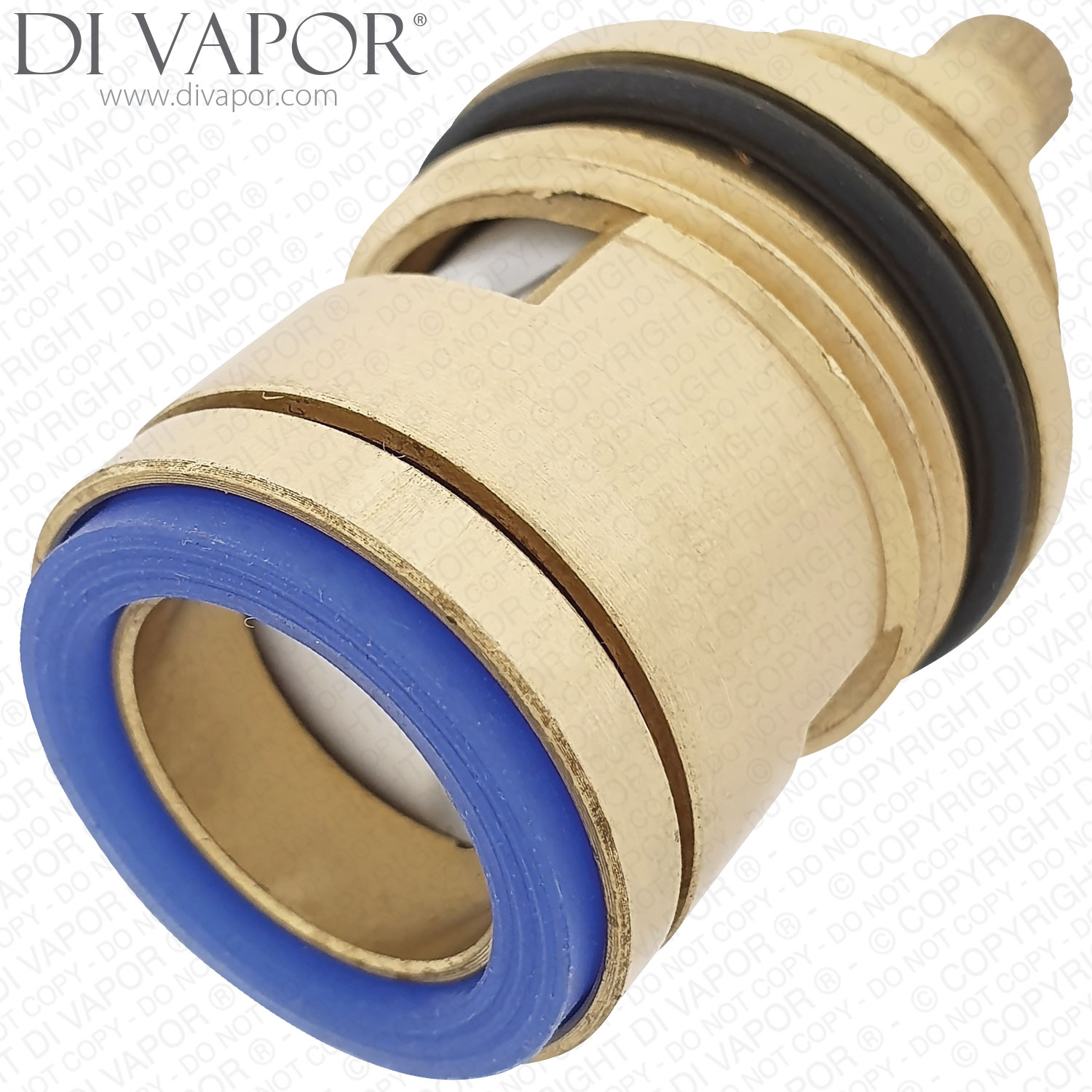

M277490 3/4 Inch Valve Cartridge 24 spline, 56mm - Anti-Clockwise Open
Part number: M277490
Price: £29.00
Sale: £19.83
You save: £9.17 (32%)
Price includes UK VAT (Region: UK▼)
In stock
Is this the right part?
Send a photo of your item and we'll help confirm it.
Product description
Summary
M277490 3/4 Inch Valve Cartridge 24 spline, 56mm - Anti-Clockwise Open
Cartridge Measurements:
| Total Length (including bottom seal) | 56.5mm |
|---|---|
| Spindle Length | Diameter at Widest Point: 28.7mm |
| Top Spline Diameter | 7.7mm |
| Top Spline Teeth / Notches | 24 |
| Lower Thread Diameter | 26.1mm |
| Barrel Diameter Below Lower Thread | 24.2mm |
| Bottom Seal Colour | Blue |
| Close Direction | Anti-Clockwise Open (Clockwise Close) |
| Turn | Quarter Turn (1/4 Turn) 90° |
| Upper Thread (closer to spline) | 23.8mm |
