Lamona Rhone TAP3456 Hot Tap Cartridge with Bush Compatible Spare (Howdens) - LMTAP345628
Send a photo of your item and we'll help confirm it.
Summary

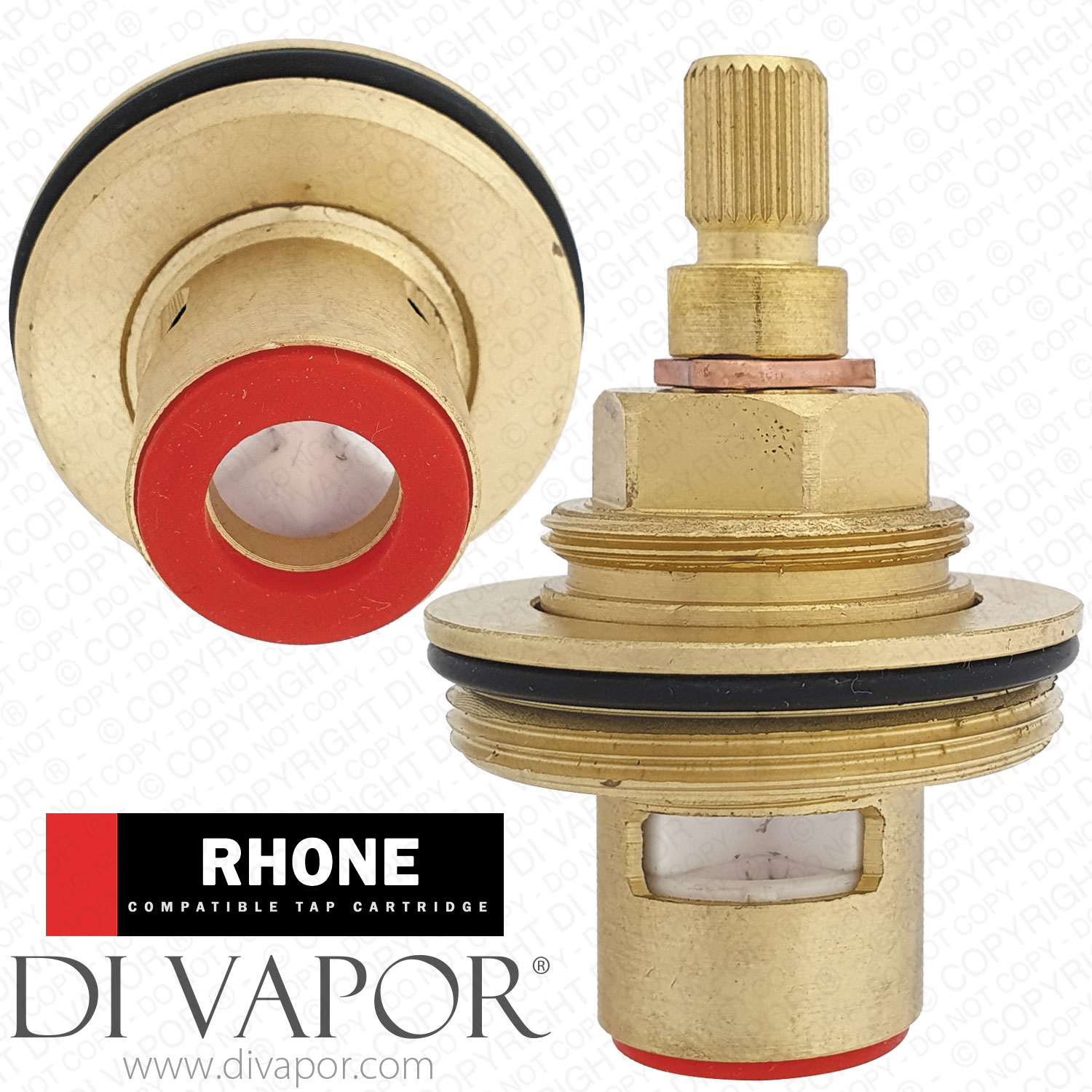

Lamona Rhone TAP3456 Hot Tap Cartridge with Bush Compatible Spare (Howdens) - LMTAP345628
Please click HERE for more Howdens Lamona Tap Spares.
Lamona Rhone Replacement Tap Valve and Bush Overview
Measurements of the Cartridge
| Length | 53.8mm |
|---|---|
| Diameter at Cartridge O-Ring | 22.5mm |
| Diameter at Bottom Part of Barrel | 18.3mm |
| Diameter at Spline | 7.8mm |
| Spline Teeth Count | 28 |
Please check if the cartridge you have has 28 teeth as others use a 20 teeth cartridge.
Measurements of the Bush
| Bush Collar Height | 8mm |
|---|---|
| Diameter at Widest Part | 36mm |
| Diameter at Bush O-Ring | 35.6mm |

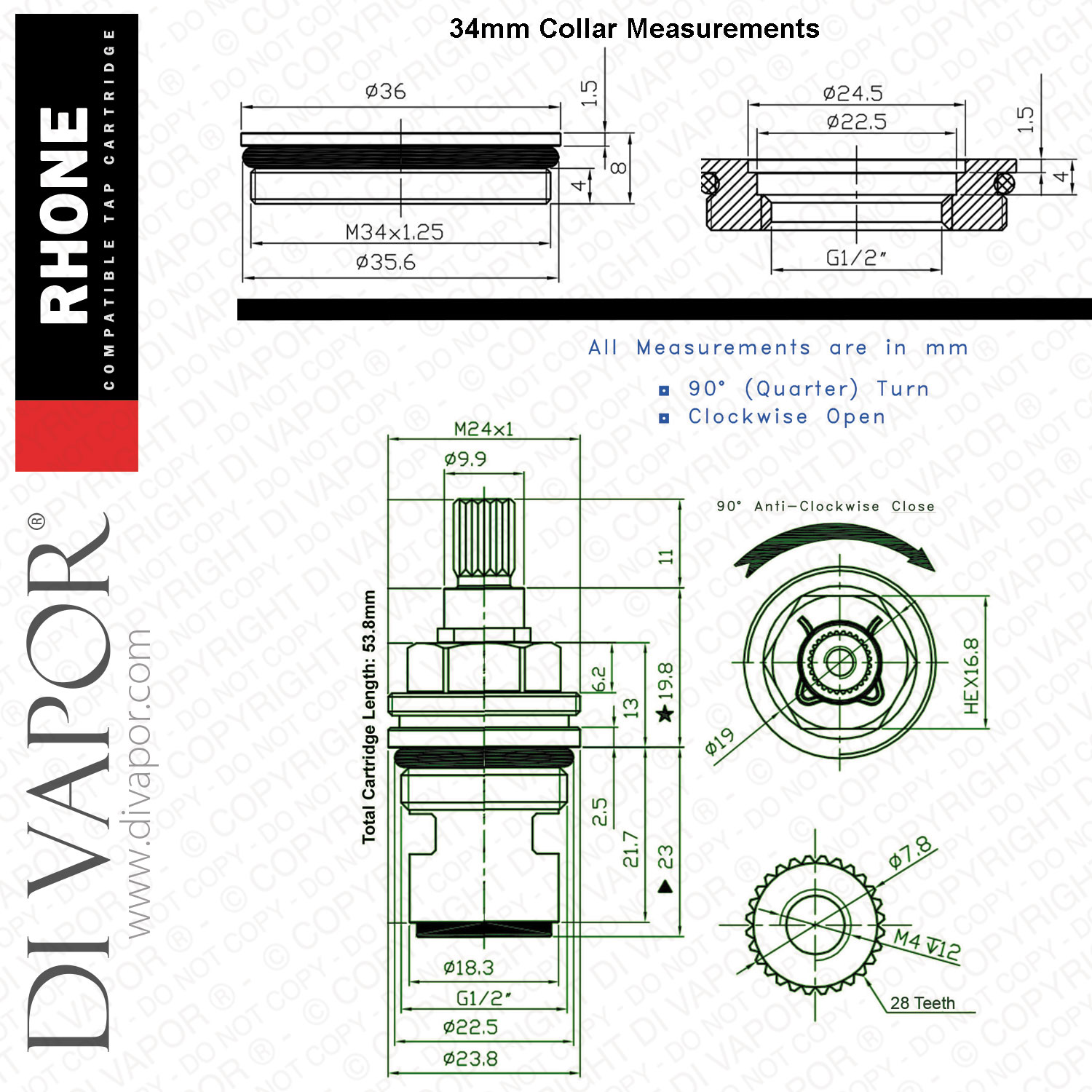

A diagram of the full measurements is available in the image gallery.
Other Information
| Cartridge Type | Ceramic Disc Valve |
|---|---|
| Bottom Seal Colour | Red (Hot Insert) |
| Rotation Angle | 90° (Quarter Turn) |
| Open Direction | Clockwise |
| Close Direction | Anti-Clockwise |
Compatibility Information
| For | Lamona (Howdens) |
|---|---|
| Tap Model | TAP3456 Rhone Kitchen Tap |
Other Compatible Cartridges
| Cold Cartridge with Bush | LMTAP345627 |
|---|---|
| Hot Cartridge without Bush | LMTAP345672 |
| Cold Cartridge without Bush | LMTAP345671 |
Contact Information
| WhatsApp Number | 07754 173340 |
|---|---|
| Email Address | help@divapor.com |
| Cartridge ID Service URL | https://www.divapor.com/find-a-part.php |
Di Vapor is your helpful tap cartridge expert!
Ask us questions, contact us for help finding or verifying spares. We are happy to serve your spares needs.
