Lamona Black and Chrome TAP3630 Cold Tap Cartridge (20 Splines) Compatible Spare (Howdens) - LMTAP363063
Send a photo of your item and we'll help confirm it.
Summary
Lamona Black and Chrome TAP3630 Cold Tap Cartridge (20 Splines) Compatible Spare (Howdens) - LMTAP363063

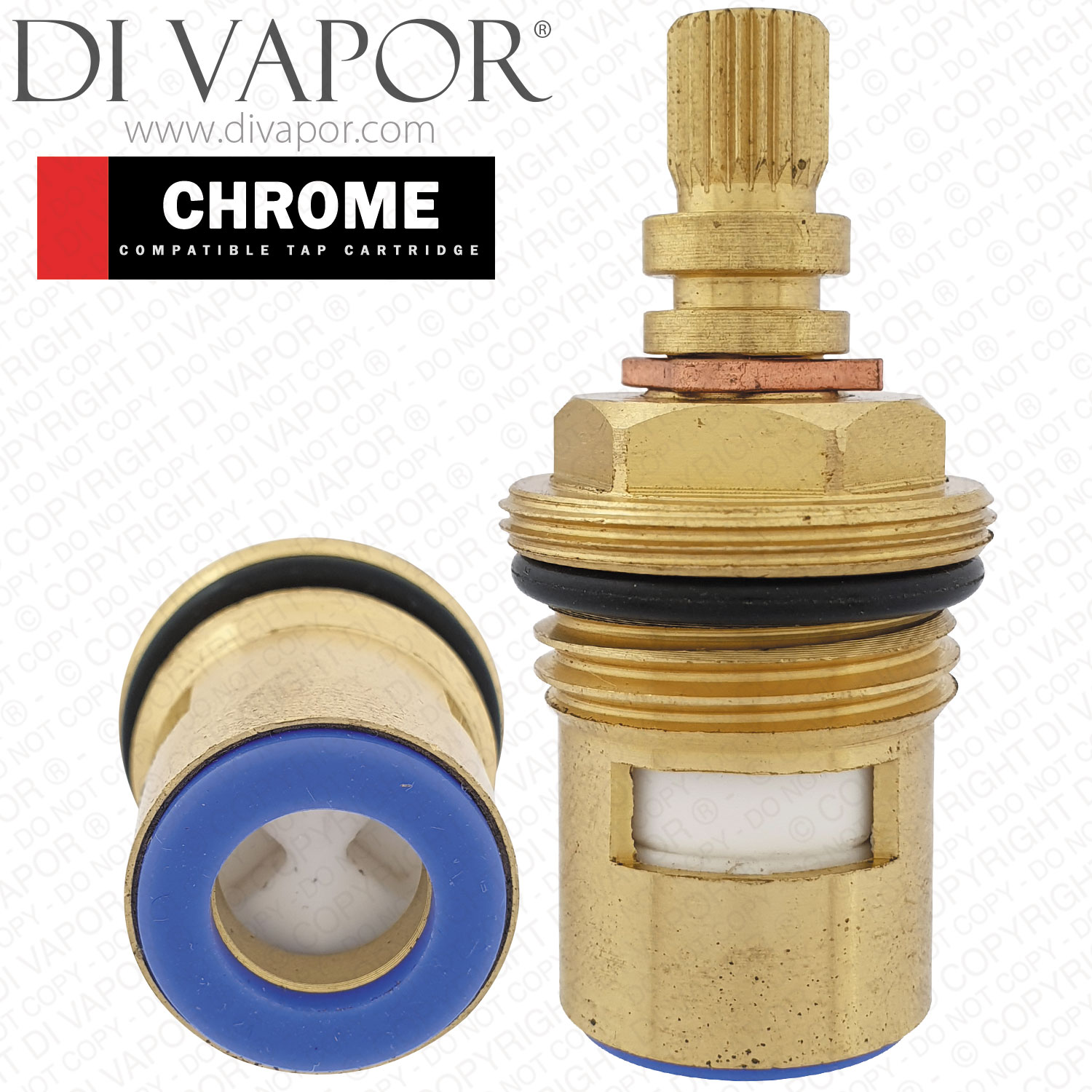

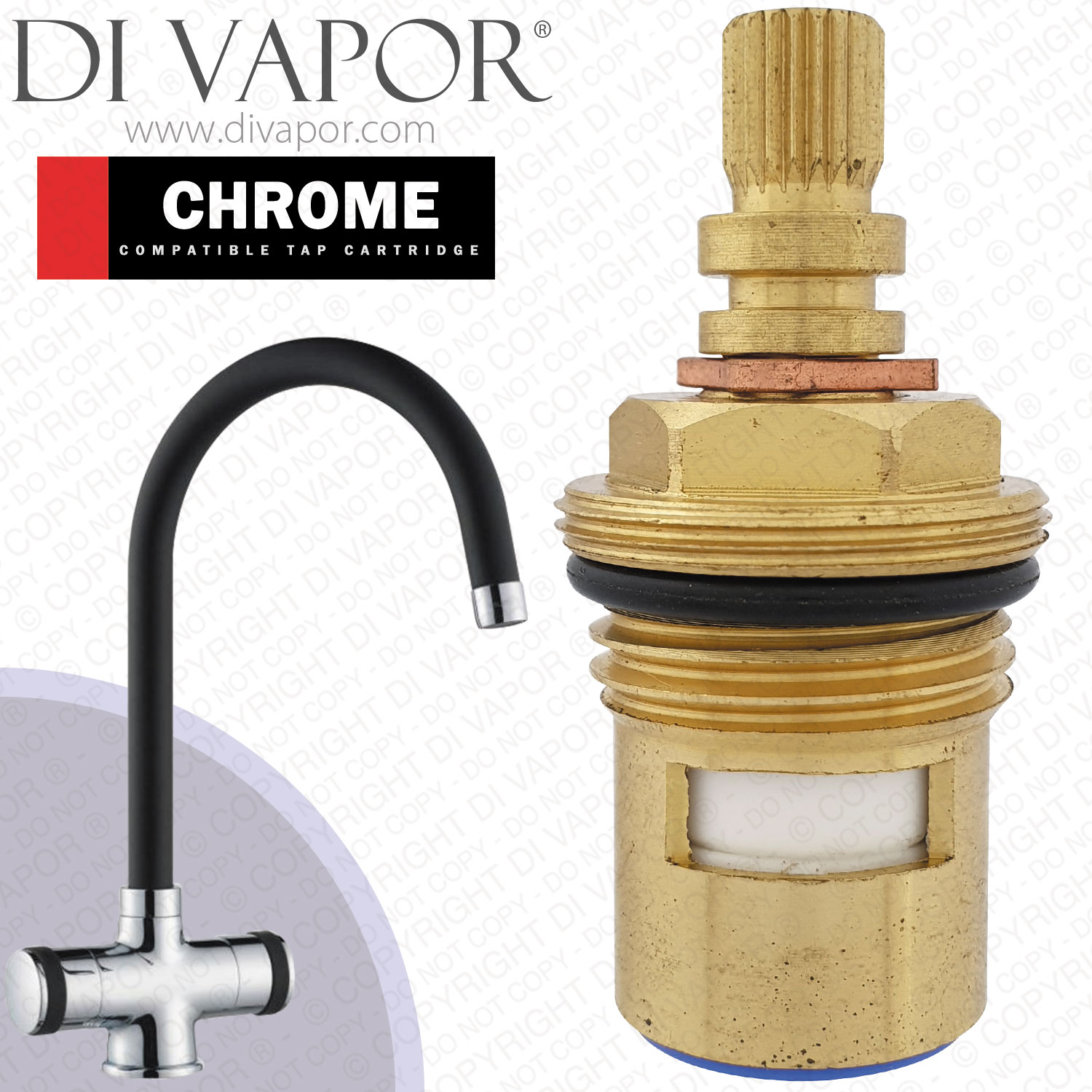

Howdens Lamona Tap Parts Information: TAP3630 Black and Chrome Replacement Cartridge
This is a replacement cartridge with 20 spline teeth. Please be aware that some Lamona TAP3630 taps use a cartridge with 28 teeth.

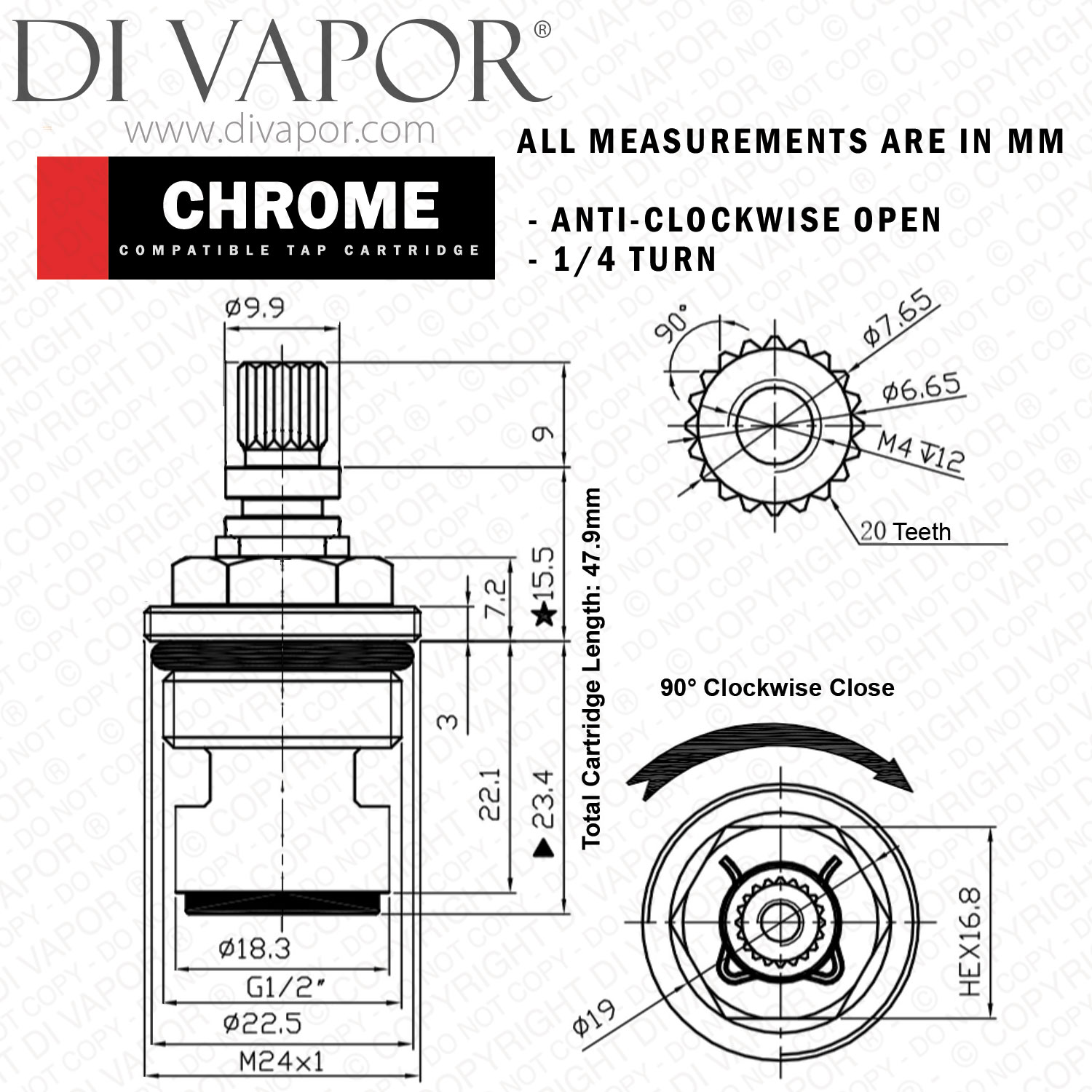

Cartridge Measurements
| Cartridge Length | 47.9mm |
|---|---|
| Diameter at O-Ring | 22.5mm |
| Diameter at Bottom Part | 18.3mm |

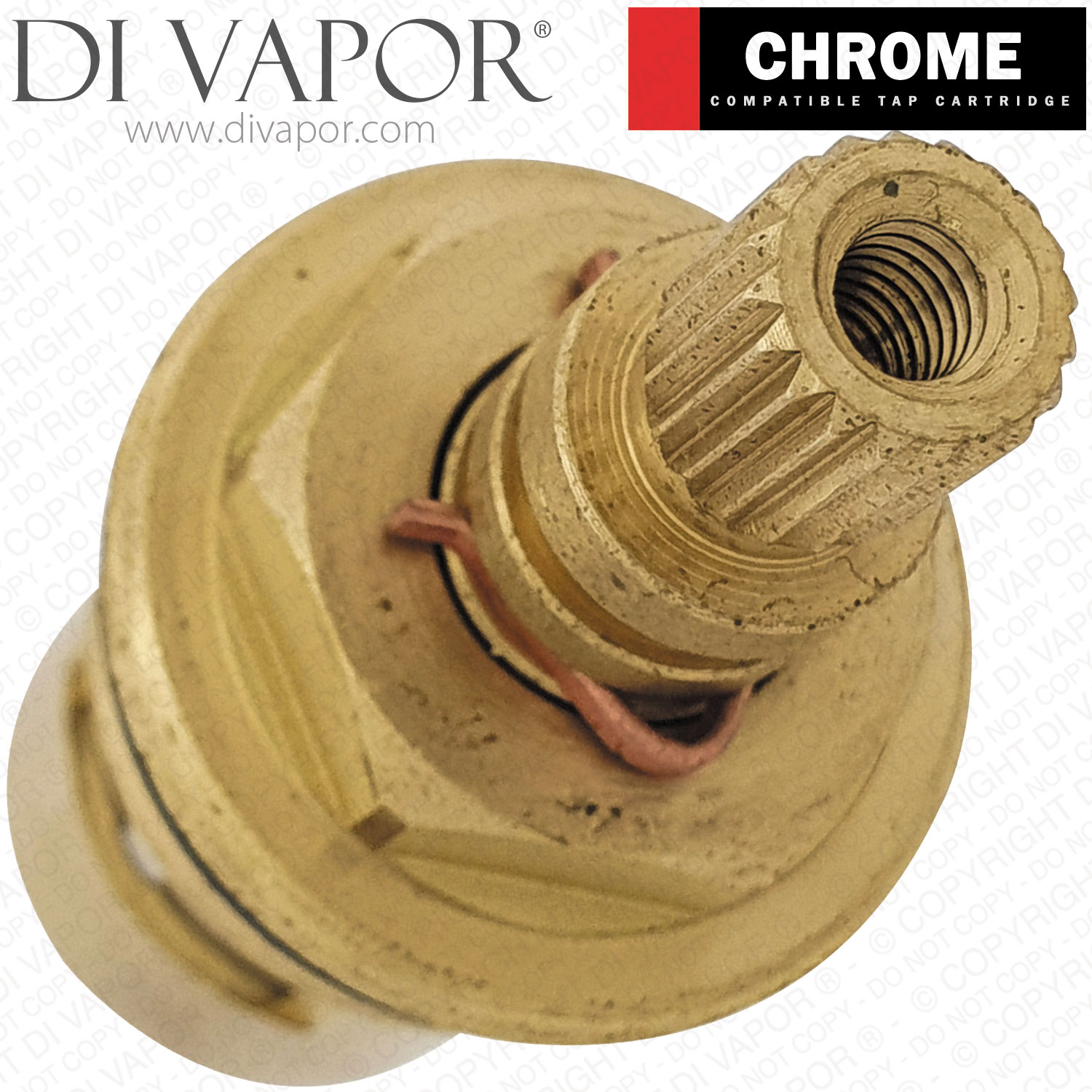

| Diameter at Spline | 7.65mm |
| Spline Teeth Count | 20 |
Other Information
| Valve Type | Ceramic Disc Cartridge |
|---|---|
| Bottom Seal Colour | Blue (Cold) |
| Rotation Angle | 90° (Quarter Turn) |
| Open Direction | Anti-Clockwise |
| Close Direction | Clockwise |
Compatibility Information
| Compatible with | Lamona (Howdens) |
|---|---|
| Tap Model | TAP3630 Black and Chrome Kitchen Tap |
20 Spline Teeth Compatible Valve
(Clicking or tapping on the red fonts will take you to the corresponding cartridge page.)
Hot Cartridge: LMTAP363064
28 Spline Teeth Compatible Valves
| Cold Cartridge | LMTAP363012 |
|---|---|
| Cold Cartridge with Collar | LMTAP363074 |
| Hot Cartridge | LMTAP363013 |
| Hot Cartridge with Collar | LMTAP363075 |
Got Questions? Contact Us
| Email Address | help@divapor.com |
|---|---|
| WhatsApp Number | 07754 173340 |
| Cartridge ID Service | https://www.divapor.com/find-a-part.php |
Di Vapor is your leading tap cartridge provider!
Ask us questions, contact us for help finding or verifying spares. We are happy to serve your spares needs.
