Franke SP3547-H Hot Tap Cartridge
SUMMARY
Franke SP3547-H Hot Tap Cartridge
The Franke SP3547-H hot tap cartridge is a hot-side ceramic tap valve insert for selected Franke twin-handle kitchen mixer taps. It controls hot water flow from the tap handle and is used where the existing hot valve is marked or matched to SP3547-H.

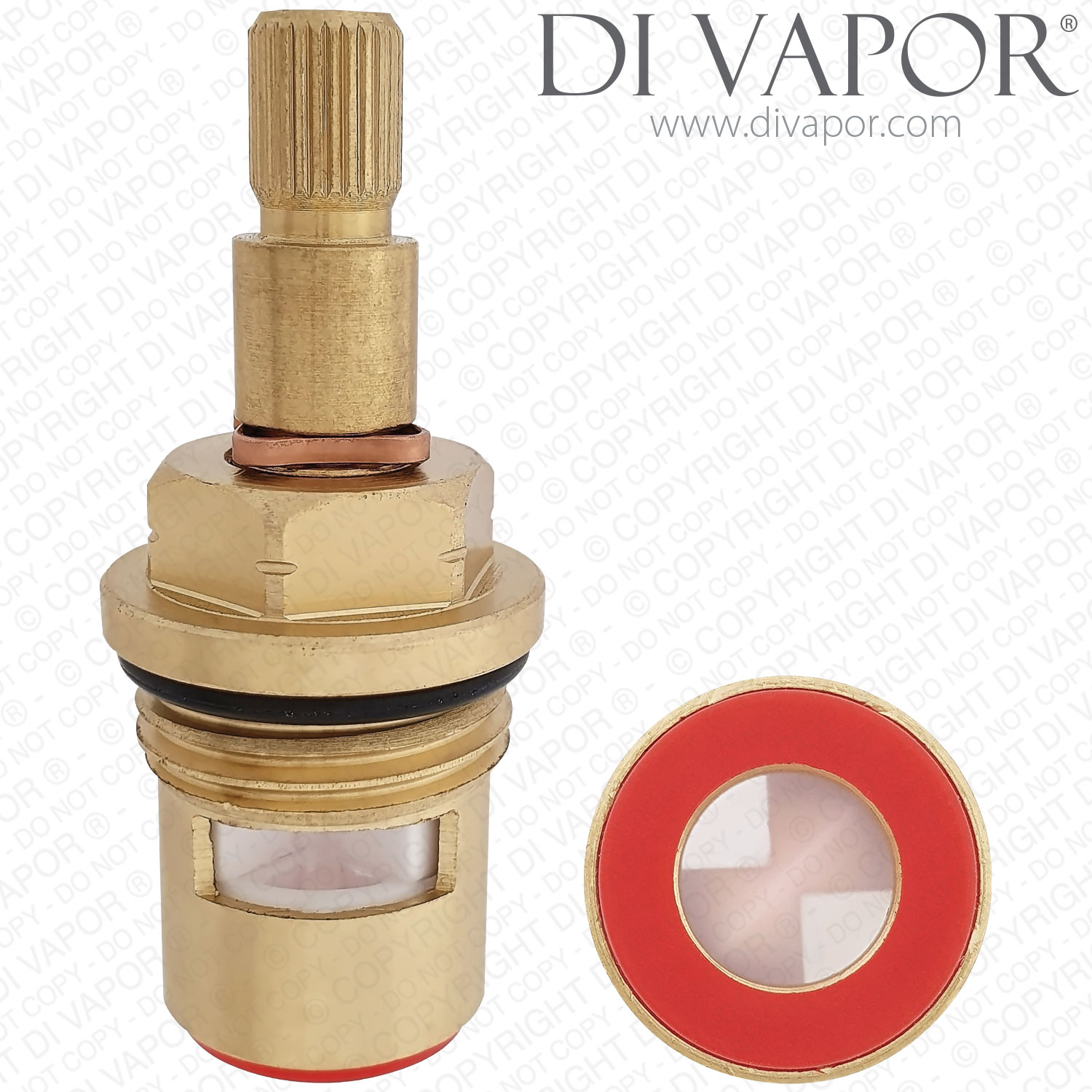

This screw-in brass quarter-turn valve has a red bottom seal and is the hot-side cartridge. The matching cold-side cartridge is SP3547-C.
Technical Details
- - Part Number: SP3547-H
- - Side: Hot
- - Former code reference: 3547R
- - Fitting: 1/2" BSP screw-in

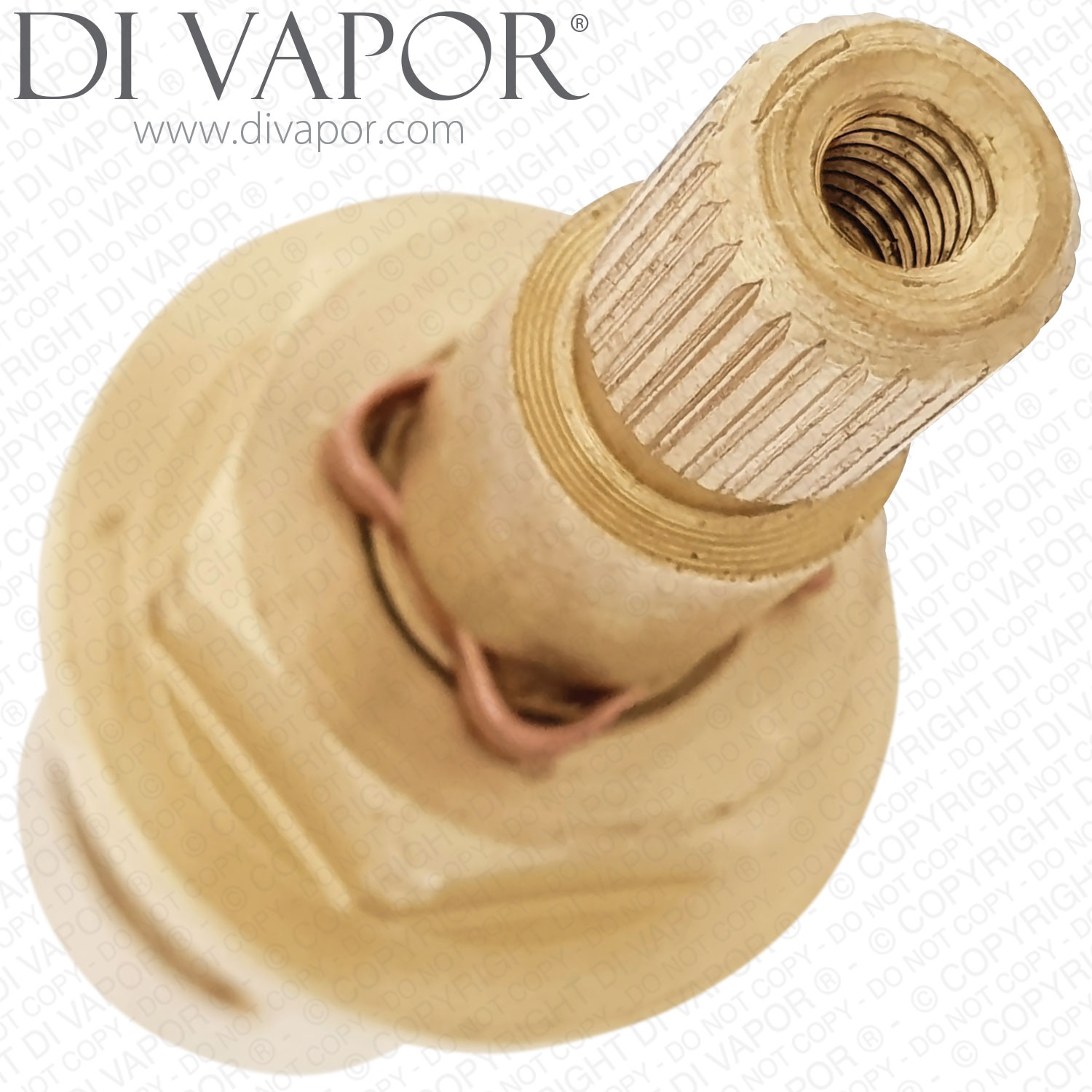

- - Spline: 28 teeth
- - Top spline diameter: 7.8mm
- - Spline height: 11mm
- - Total length: 53.8mm
- - Widest diameter: 23.8mm
- - Nut height: 6.2mm
- - Upper thread: 13mm
- - Lower thread: 21.7mm
- - Bottom seal colour: Red
- - Material: Brass
- - Operation: 90-degree quarter turn and anti-clockwise close
A worn hot tap cartridge can cause dripping from the spout or water passing when the handle is turned off. If water is leaking from the base of the spout rather than from the outlet, check the spout O-rings before replacing the valve.
Confirmed Compatible Models
- - Franke Davos tap
- - Franke Davos J tap
- - Franke Cotswold tap
- - Franke Planar tap
- - Franke Vesta 115.0311.216 from March 2014
Before Ordering
Check the old cartridge side, spline count, overall length, thread form and bottom seal colour before ordering. Do not select this valve by spline count or diameter alone, as similar Franke cartridges can use different hot and cold closing directions.
Related Spares You May Need
- - TACSIL 3g Premium Cartridge Silicone Grease - WRAS Approved
