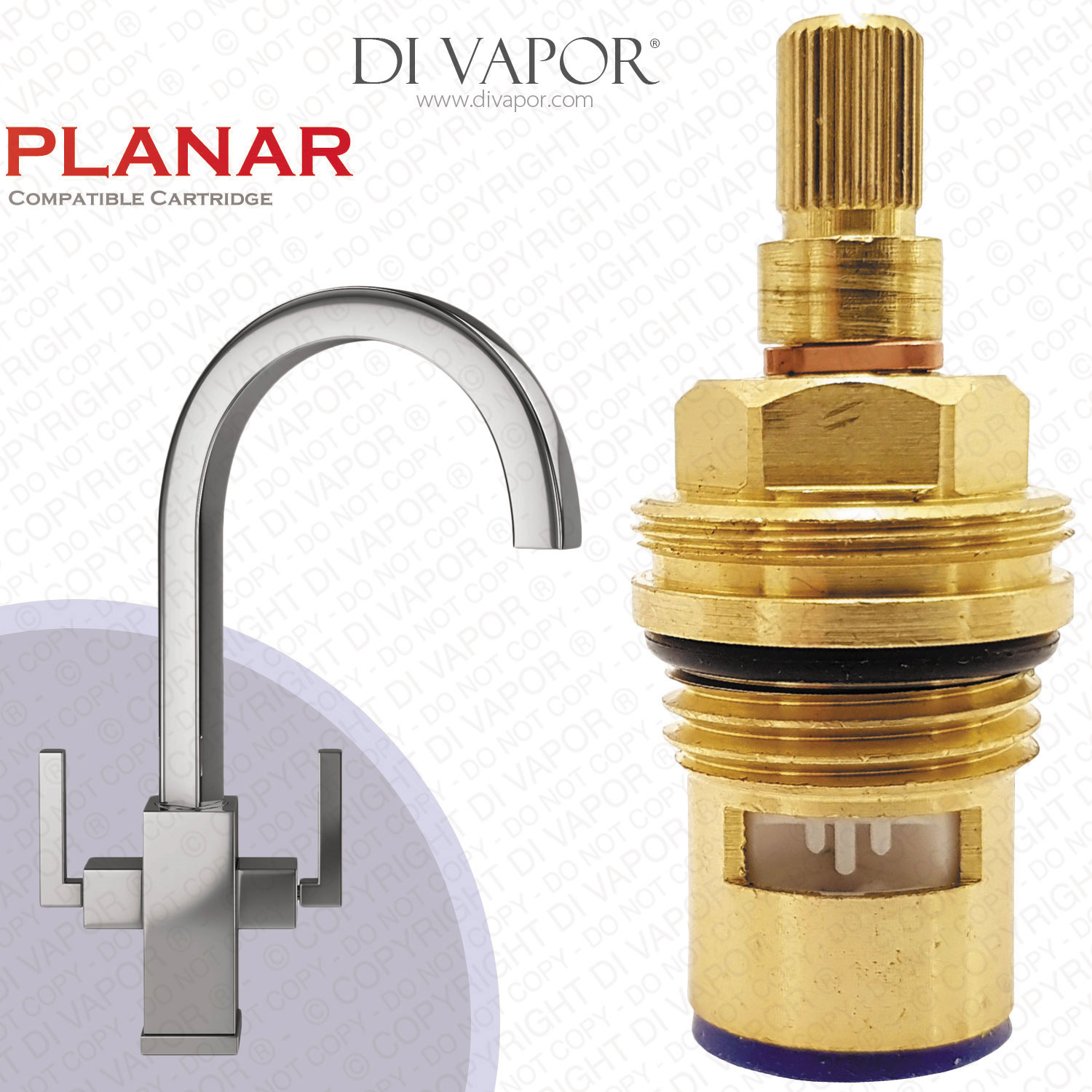

Franke Planar 2307R-C Cold Tap Valve - 1/2" Gland Assy - 3547R-C / 133.0438.152 Compatible Kitchen Tap Cartridge
Send a photo of your item and we'll help confirm it.
Summary
Franke Planar 2307R-C Cold Tap Valve - 1/2 Inch Gland Assy - 3547R-C / 133.0438.152 Compatible Kitchen Tap Cartridge manufactured from the year 2005 onwards.
| Cartridge Compatibility | Franke Planar |
|---|---|
| Spare Part | Kitchen Tap Cartridge Replacement (Cold Side) |
| FUN# | 133.0438.152 |
| Installation | Screw In |
| Material | Brass with Ceramic Core |
| Bottom Seal Colour | Blue |
The 2307R-C / 3547R-C compatible Franke Planar tap spare cartridge replacement part can be dispatched on the same working day when ordered before 3:00 PM, Monday to Friday.
The Franke Planar tap has two versions: the pre-February 2008 and the version post-February 2008. And there are three versions of the cartridge: the 3549R, the 3547R, and the 2307R. The earlier one comes with 20 splines (product code 3549R) and the current ones (product codes 3547R and 2307R) has 28 spline teeth.
Difference between the latest cartridge versions lays in the thread count: the 3547R has one thread and the 2307R has two threads. The shift from one cartridge design to another took place in 2007. Also, the 2307R is made with a larger bottom seal than the 3547R.
To know which is the right replacement part, please do check the exact cartridge your tap is carrying by accessing it from the tap valve seat. This can be done by removing the handle and undoing the cartridge out using a small spanner.
Other Franke Planar tap spares:
Technical Information: Frank Planar Cartridge Spare Part 2307R-C / 3547R-C
The 2307R-C and the 3547R-C are compatible with the Franke Planar model kitchen tap. The cartridge has a spline count of 28. The spline diameter measures 7.8 millimetres. It opens with an anticlockwise quarter turn and closes with a clockwise quarter turn.

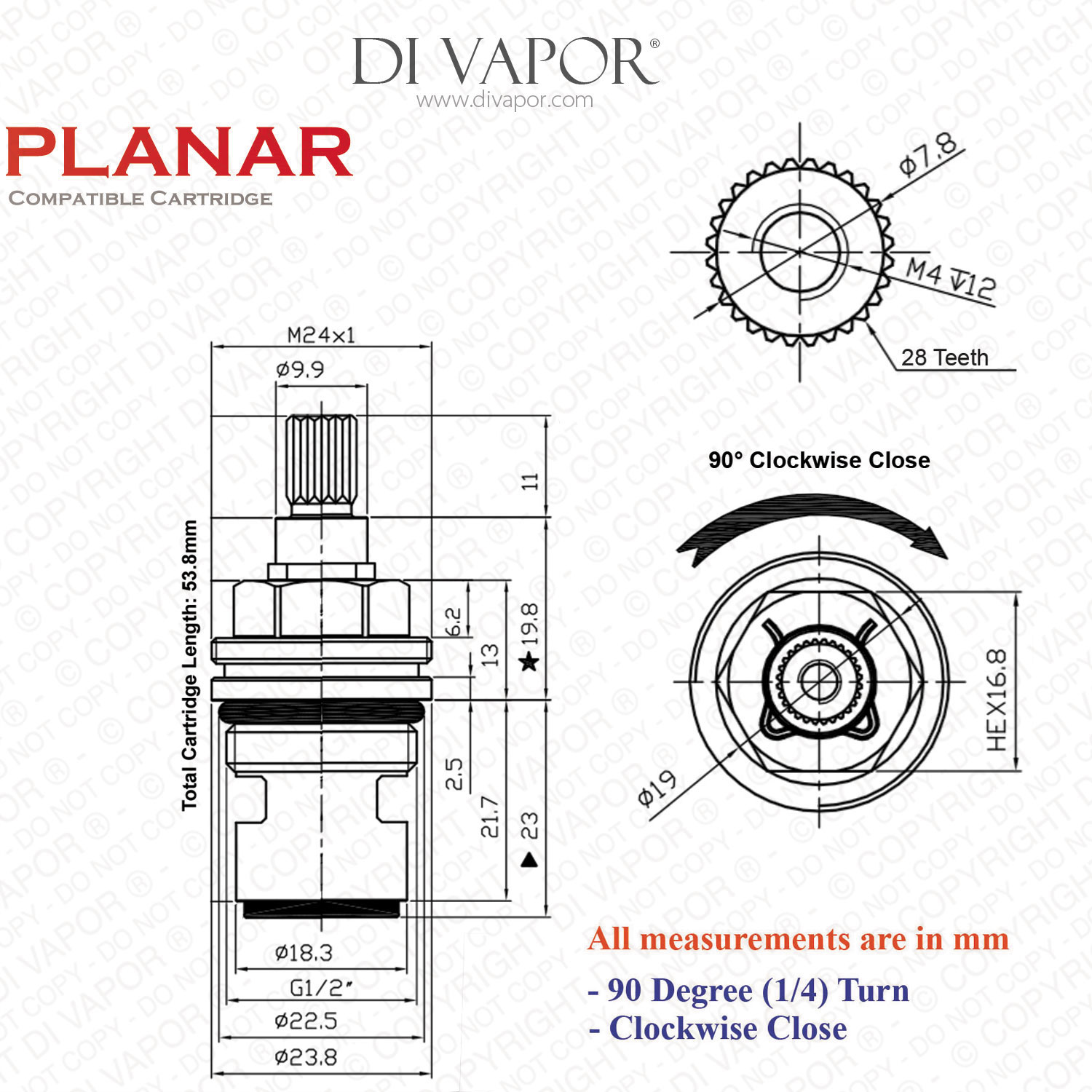

Cartridge Measurements:
| Total Length (including bottom seal) | 53.8mm |
|---|---|
| Diameter at Widest Point | 23.8mm |
| Top Spline Diameter | 7.8mm |
| Top Spline Teeth / Notches | 28 Teeth |
| Bottom Seal Colour | Blue (for Cold Side) |
| Close Direction | Clockwise Close |
| Frequently Asked Questions | Franke Planar Tap Spare Cartridge |
Q: How do I remove the handle?
A: To remove the handle from a Franke Planar tap first unscrew the tap handle. Then remove the piece that held the handle. There are two small grub screws located under it – use a hex key (Allen key) to unscrew.
