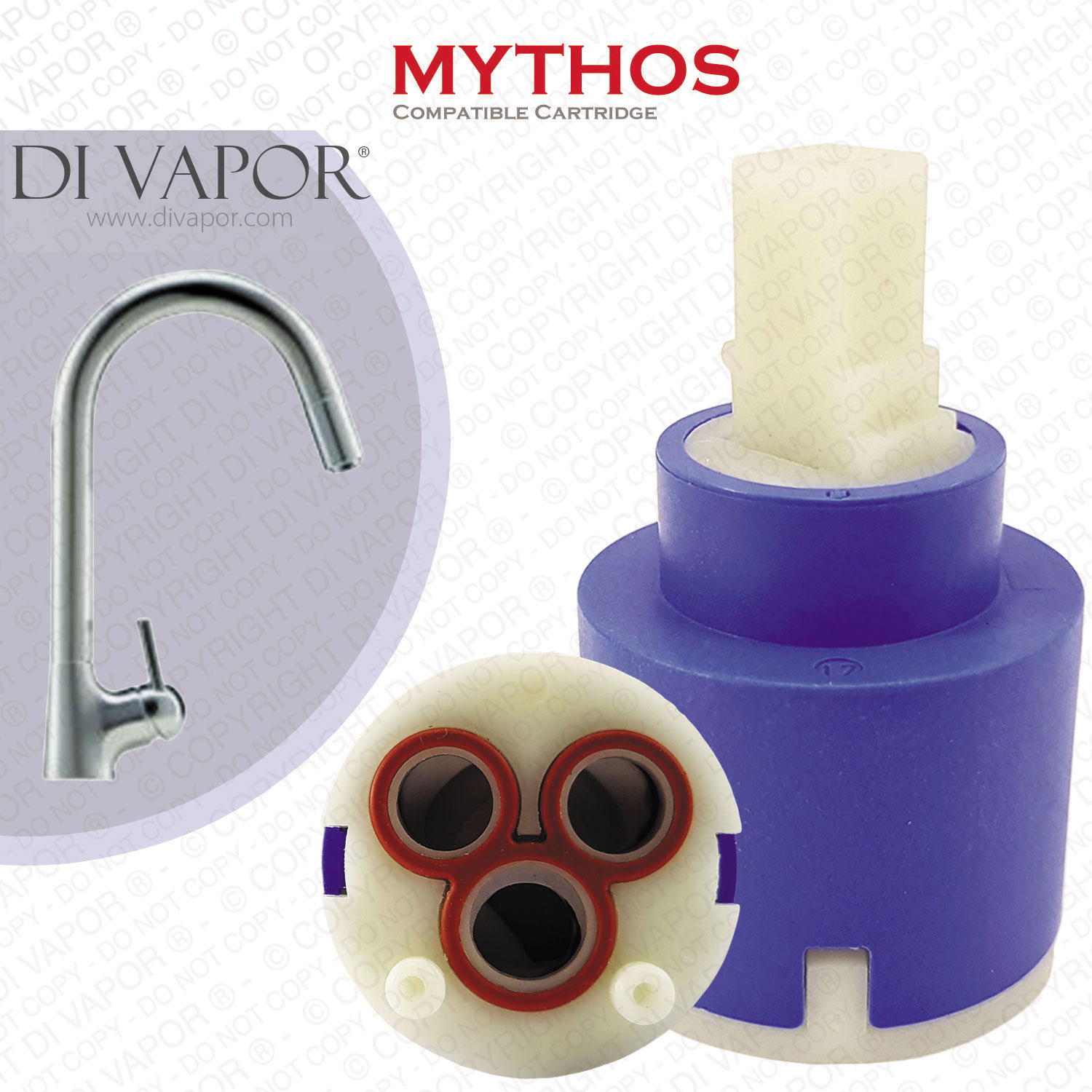

Franke Mythos 40mm Single Lever Ceramic Tap Cartridge 133.0069.392 / 1229R Compatible Cartridge
Send a photo of your item and we'll help confirm it.
Summary
Franke Mythos 40mm Single Lever Ceramic Tap Cartridge (133.0069.392) / 1229R Compatible Cartridge from January 2002 until March 2010.
Franke Mythos Tap Spares Information
Measurements:
| Total length (excluding locating pins) | 62mm (6.2cm) |
|---|---|
| Barrel diameter | 39.5mm (3.95cm) |
Distance between locating pins at bottom (Centre to Centre): 24mm (2.4cm)

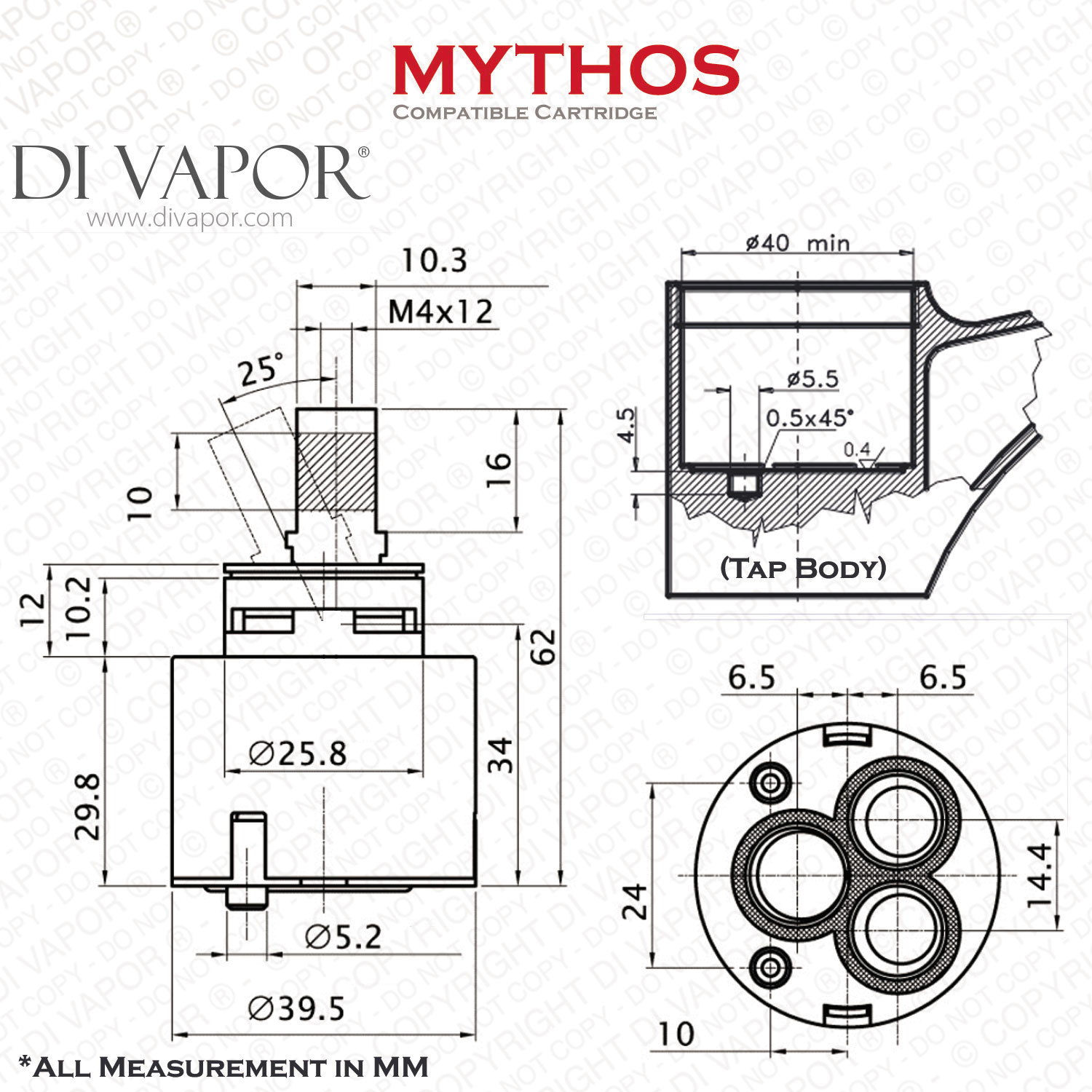

Please refer to the second photo in the gallery above to see the diagram of the complete measurements.
Other information:
Original spare part number: 1229R (133.0069.392)
This is the Franke Mythos tap cartridge for taps sold between January 2002 and March 2010.
Should you need the Franke Mythos quarter-turn cartridge, please refer to these links:
Franke Mythos Tap Cartridge Spare 40mm Installation Guide
Please be certain that water supply lines are turned off before starting the Franke Mythos kitchen tap repair.
1. Loosen the screw on the underside of the tap handle. Pull to remove the handle.
2. Remove the cartridge retaining nut.
3. Lift the old cartridge to remove it from the tap valve.
4. Coat the bottom O-ring of the replacement Franke Mythos tap cartridge. (A selection of silicone grease can be found at the section below.)
5. Seat the cartridge in the valve. Make sure the locating pins are inserted in the right holes in the tap to prevent it from turning.
6. Restore the retaining nut and the tap handle.
