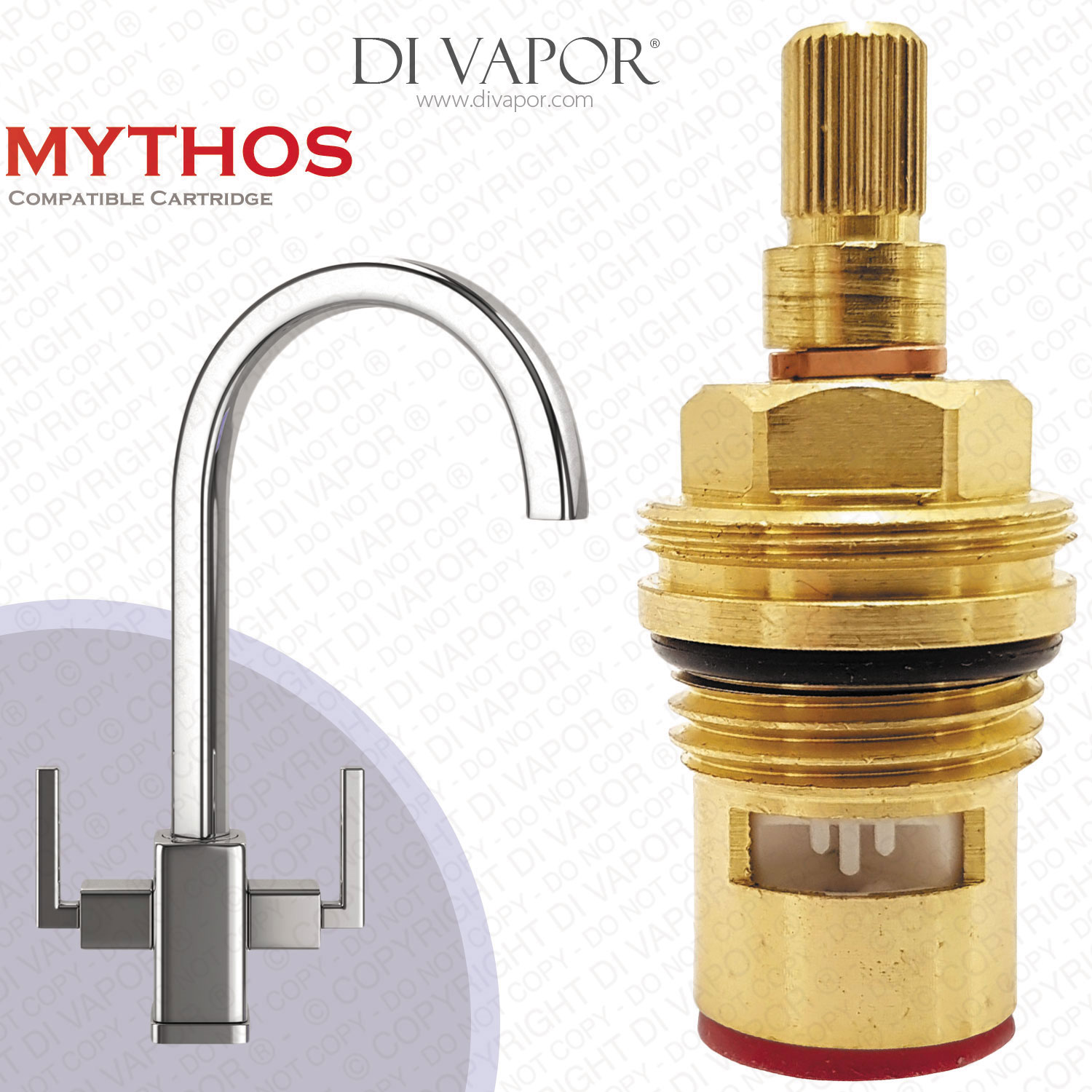

Franke Mythos 2552RC MTX, MTG and MTV Hot Tap Valve (133.0069.365) - 1/2 Inch Gland Assy - S1022 / 133.0438.154 Compatible Cartridge - FR-MY72
Send a photo of your item and we'll help confirm it.
Summary
Franke Mythos 2552RC MTX, MTG & MTV Hot Tap Valve (133.0069.365) - 1/2 Inch Gland Assy - S1022 / 133.0438.154 Compatible Cartridge used in Franke Mythos 115.0049.966 from 2006 until March 2014
Know Your Tap Spares: Franke Mythos MTX, MTG and MTV Hot Tap Valve Compatible Cartridge (2552RC, S1022, 133.0438.154)
This is the compatible tap spare for the Franke Mythos MTX, MTG and MTV tap valve cartridge. It will surely fit taps which use hot tap valves 2552RC, S1022 or 133.0438.154; from 2006 to March 2014. It is also the spare part used in many other kitchen taps. This is how you identify if this tap valve cartridge is suitable for your kitchen tap.
The general information and technical specifications of the Franke Mythos MTX / MTG / MTV tap valve replacement have to be taken into consideration before making the purchase to make sure you get the right spare part to carry out a successful tap repair.
Please contact us if you have more questions about this tap valve cartridge.
General Information: Franke Mythos tap valve compatible hot cartridge 2552RC, S1022 or 133.0438.154
The compatible cartridge for Franke Mythos MTX / MTG / MTV tap valve is a ceramic disc cartridge that works as a gateway to allow and restrict water flow. It can switch the tap open and close by a 90° turn of the tap’s lever handle.
The Franke Mythos tap valve cartridge has a bottom seal colour of red. The open and close direction is determined by the colour of the cartridge bottom seal: red for hot opens clockwise (closes in the opposite direction) and blue for cold opens anti-clockwise (closes in the opposite direction).
The original cartridge has spare part numbers 2552RC, S1022 and 133.0438.154. This compatible replacement cartridge for Franke Mythos MTX / MTG / MTV tap valve has a cold valve equivalent. Both hot and cold cartridges can be replaced together for a more comprehensive tap repair.
To summarize the first part:
| Original spare part number | 2552RC, S1022 and 133.0438.154 |
|---|---|
| For Franke Mythos manufactured on | 2006 - March 2014 |
| Cartridge type | Ceramic disc tap valve cartridge |
| Bottom seal colour | Red (Hot) |
| Close direction | Anti-clockwise close |
| Open direction | Clockwise open |
| Franke Mythos cold valve | FR-MY71 (Please visit the tap spare part page for the fitting instruction and FAQ.) |
Technical Specifications of the Franke Mythos (MTX / MTG / MTV) Tap Valve Compatible Hot Cartridge

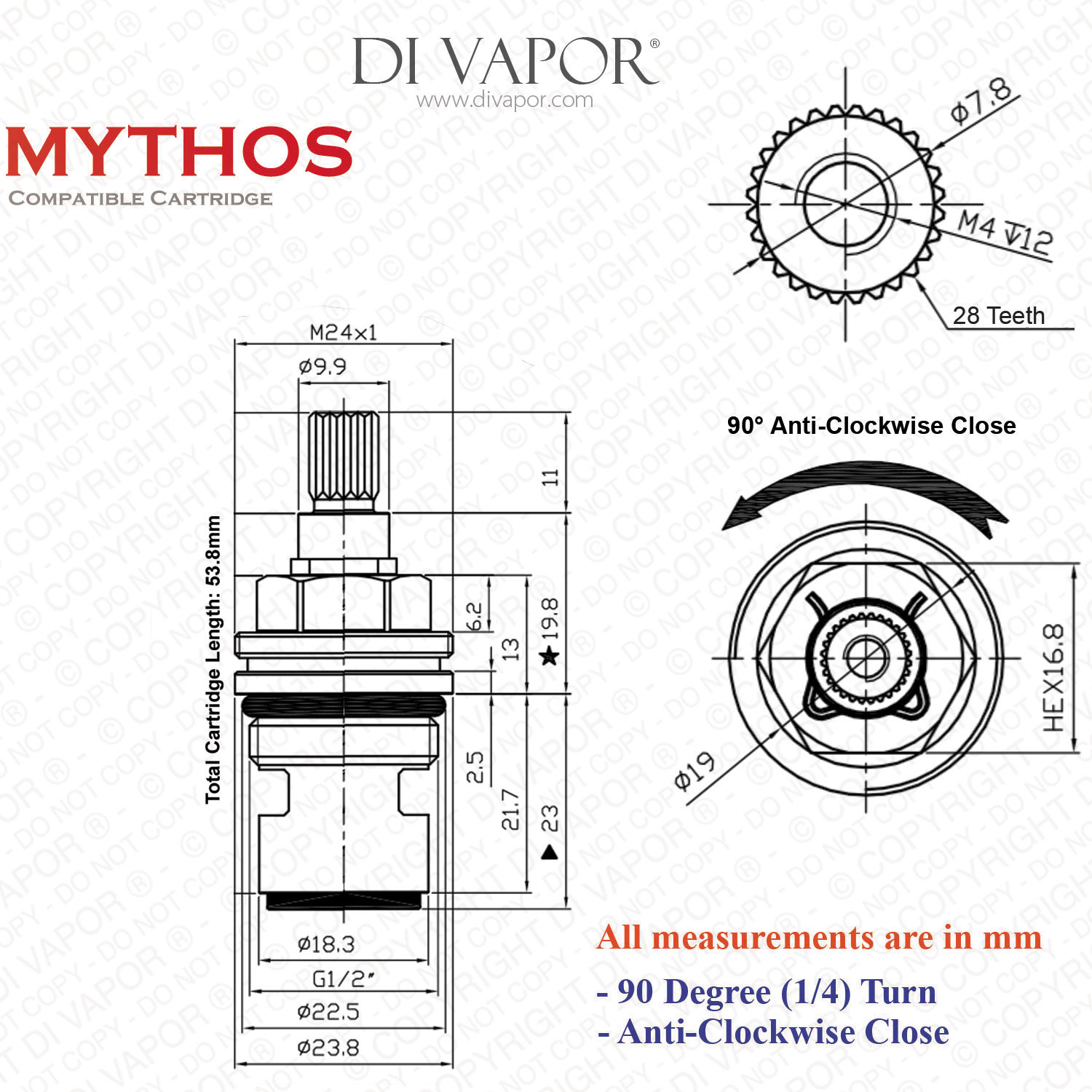

Have a non-Franke tap? As this Franke Mythos MTX, MTG, MTV tap valve replacement is fitted in numerous taps regardless of brand, these technical specifications will also help you ascertain if this tap valve is what you need. There is a diagram of the complete measurements that can be found in the gallery above.
| Total length | 53.8mm (5.38cm) |
|---|---|
| Diameter at widest part | 23.8mm (2.38cm) |
| Diameter at O-ring | 22.5mm (2.25cm) |
| Diameter of spline | 7.8mm |
| Spline teeth count | 28 |
Record the measurements of the cartridge you have and compare it with the measurements of the Franke Mythos MTX / MTG / MTV tap valve 2552RC, S1022 and 133.0438.154 compatible cartridge. Round off the measurements to the nearest mm and you can determine if this is the part needed.
Di Vapor is the supplier for tap spares made for popular brands including:
The Franke Mythos 2552RC MTX, MTG and MTV Hot Tap Valve (133.0069.365) - 1/2 Inch Gland Assy - S1022 / 133.0438.154 Compatible Cartridge will be despatched on the same day when purchased before 3 PM from Monday to Friday.
