SUMMARY

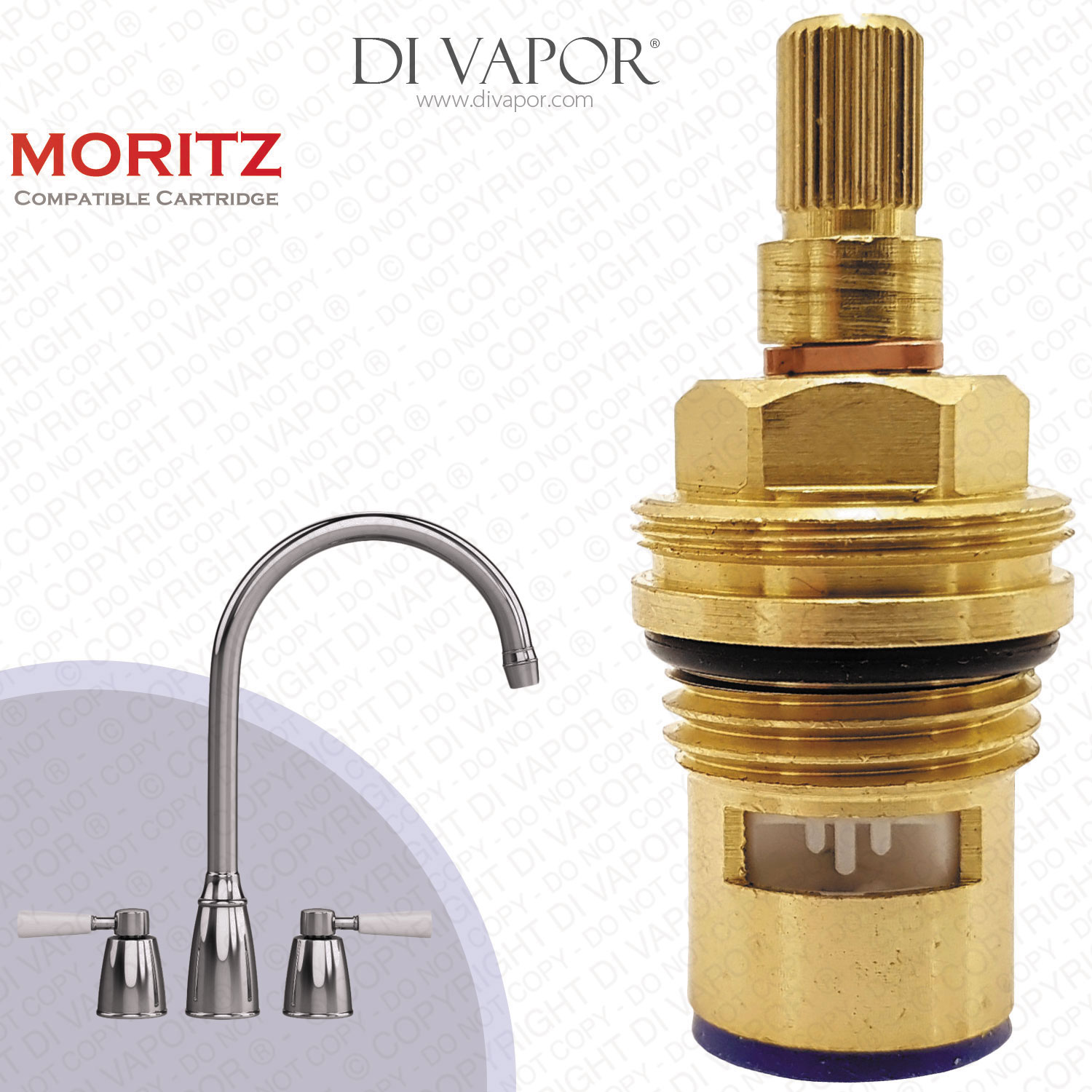

Franke Moritz 3561R-C Tap Cold Valve Cartridge (133.0194.088) - 1427R / 133.0438.152 Compatible Cartridge used in Franke Moritz 1150311292 kitchen taps from March 2014 onwards.

Franke Moritz Tap Cartridge Replacement Measurements and Other Information

Cartridge Measurements:
Total length: 53.8mm (5.38cm)
Diameter at widest point: 23.8mm (2.38cm)
Top spline diameter: 7.8mm
Spline teeth / notches: 28

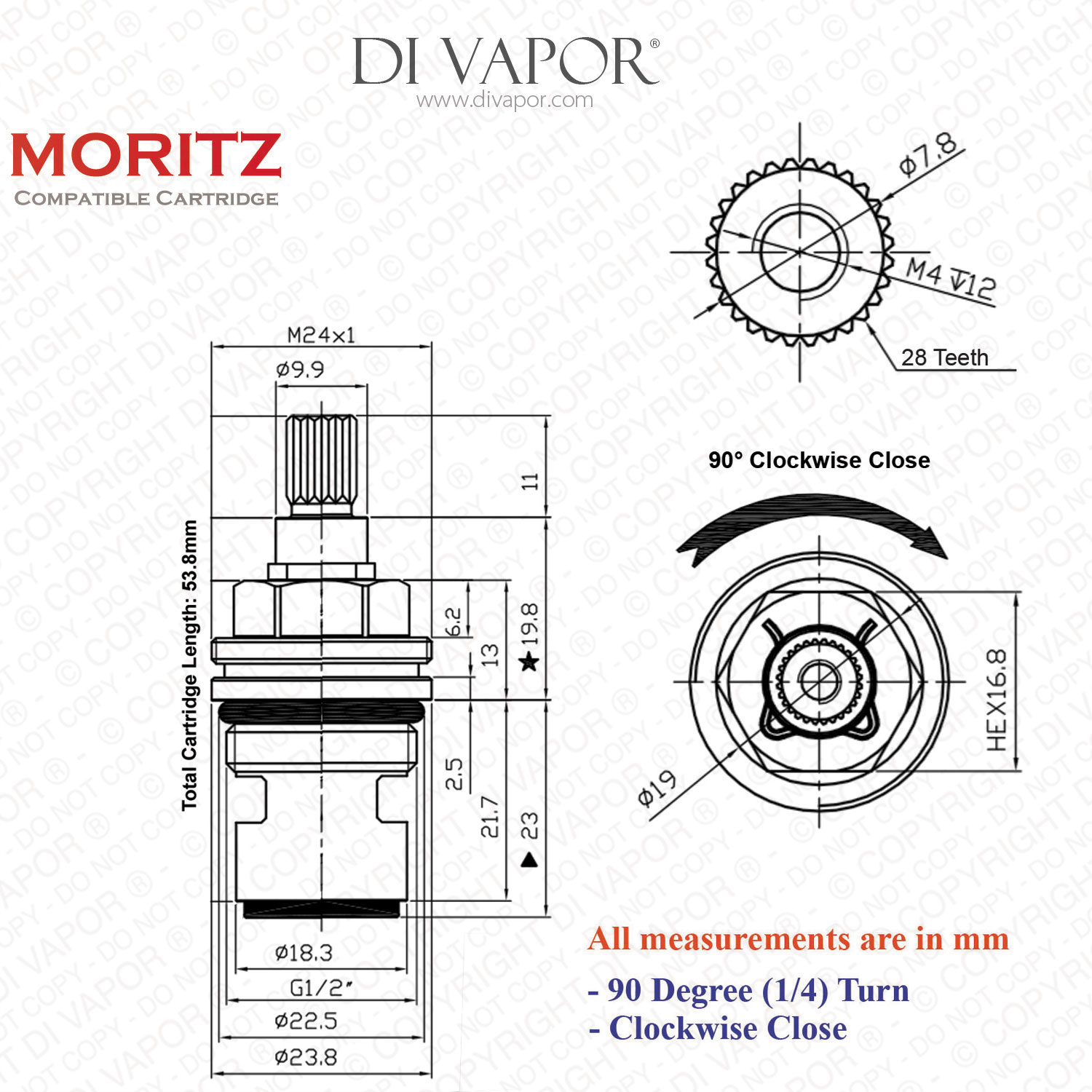

Please refer to the second photo above for a visual representation of the measurements.


Other information:
Bottom seal colour: Blue (Cold)
Close direction: Clockwise close (Anti-clockwise open)
Hot valve cartridge: FR-MO89
Original spare part number:
– 3561R for pre-2014 Franke Moritz taps.
– 1427R for post-2014 Franke Moritz taps.

Simple Guide: Franke Moritz Tap Cartridge Installation

Before proceeding to fit this Franke spare cartridge, please make sure you shut off the tap’s water supply.

1. There is a grub screw opposite the handle lever. Use an Allen key to loosen the screw. Lift the handle to remove.

2. Unscrew the valve cover anti-clockwise to remove. This can be done by hand.

3. Use an adjustable spanner to remove the old cartridge. Turn it anti-clockwise to remove.

4. Grease the replacement Franke Moritz tap cartridge O-ring and seat it in the valve. Tighten using the spanner.

5. Reassemble the valve cover and the handle.


We carry many other tap spares for brands:
– Franke
– Carron
– Blanco
– Abode
