Franke Eiger SP3561-C Cold Tap Valve Cartridge (133.0194.089) - 1/2" BSP - SP3561 Compatible Cartridge
Send a photo of your item and we'll help confirm it.
Summary
Franke Eiger SP3561-C Cold Tap Valve Cartridge (133.0194.089) - 1/2 Inch BSP - SP3561 Compatible Cartridge used in Franke Eiger 115.0049.990 tap.
Franke Eiger Tap Cartridge Measurements and Other Information
Measurements:
| Total length | 53.8mm (5.38cm) |
|---|---|
| Diameter at the widest part | 23.8mm (2.38cm) |
| Spline diameter | 7.8mm |
| Number of Splines | 28 |

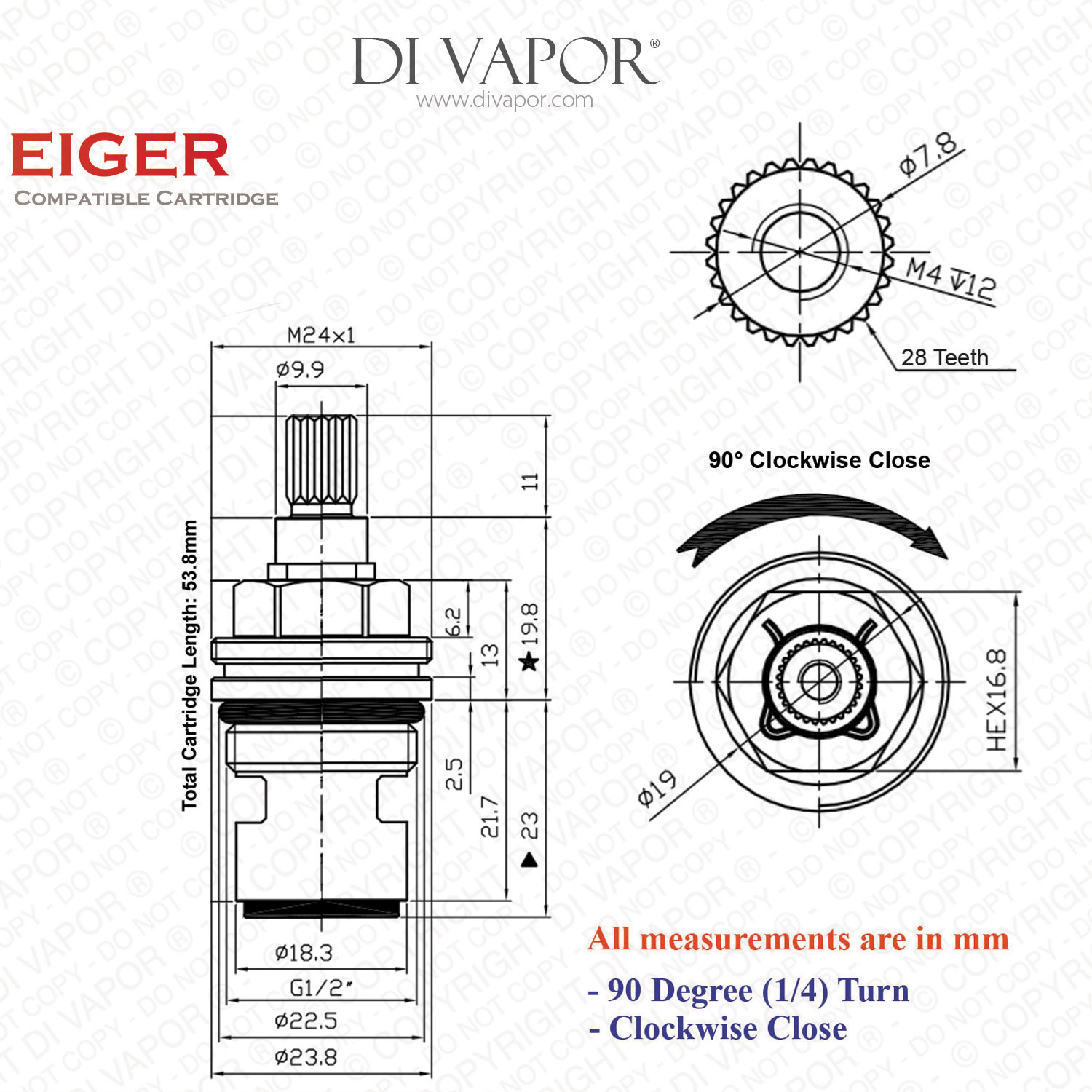

Please refer to the second photo above for the diagram of the complete measurements of this replacement cartridge for the Franke Eiger tap.
Other information:
| Bottom seal colour | Blue |
|---|---|
| Close direction | Clockwise close (Anti-clockwise open) |
| Original part number | SP3561-C, 133.0194.089, SP3561 |
Frequently Asked Questions: Franke Eiger Tap Cartridge – SP3561 Compatible Spares
Question: The plumber said that cartridge was causing the leak and both cartridges will need to be replaced. Is this true?
Answer: Yes, it can be that both cartridges of the Franke Eiger need to be replaced when leaks happen. It is because sometimes it is hard to know which particular cartridge is faulty. And changing both cartridges brings about a more complete and longer-lasting repair.
FR-EG26 is the hot Franke Eiger tap cartridge.
Franke Eiger Tap Repair Guide: Cartridge Replacement
It is important to isolate water supply to the tap before starting the repair.
1. Use a 2mm hexagonal key to loosen the grub screw underneath the handle. After the grub screw is loosened pull the handle to remove.
2. Next, undo the threads on the collar (SP3131) by turning it anti-clockwise. This can be done by hand.
3. Use a spanner on the cartridge nut and turn it anti-clockwise to remove.
4. Use plumbing grease on the O-ring of the replacement Franke Eiger tap cartridge and slide it in the valve. Tighten the threads using the spanner.
5. Reassemble the handle and open water supply lines.
This Franke Eiger tap cartridge will be dispatched on the same day when the purchase is made before 3:00 PM, Mondays to Fridays.
We are one of the UK’s best suppliers of kitchen tap cartridges. We provide spare parts for taps:
Message us should you need any help in identifying the spare part you need. We are ready to assist you.
