Franke Davos SP3547-H Tap Valve Replacement (133.0358.165) - 1/2" BSP - 54mm Height, 28 Teeth Spline - Post 2007 Hot Side Compatible Cartridge
Send a photo of your item and we'll help confirm it.
Summary
Franke Davos SP3547-H Tap Valve Replacement (133.0358.165) - 1/2 Inch BSP - 54mm Height, 28 Teeth Spline - Post 2007 Hot Side Compatible Cartridge
| Cartridge Compatibility | Franke Davos SP3547 |
|---|---|
| Spare Part | Kitchen Tap Cartridge - Hot |
| FUN# | 133.0358.165 |
The compatible Franke Davos tap cartridge replacement hot side spare part can be dispatched on the same working day when ordered before 3:00 PM, Monday to Friday.
Franke Davos SP3547-C is the cold insert for the Davos tap.
Technical Information: Franke Davos Tap Cartridge Spare Part
Formerly known as the 3547R, the SP3547-H compatible tap cartridge replacement part for the Franke Davos swivel spout model kitchen tap. It has a spline notch total of 28. The top spline diameter is 7.8mm and spline height is 11mm. It opens with a 90-degree quarter turn and closes anti-clockwise.

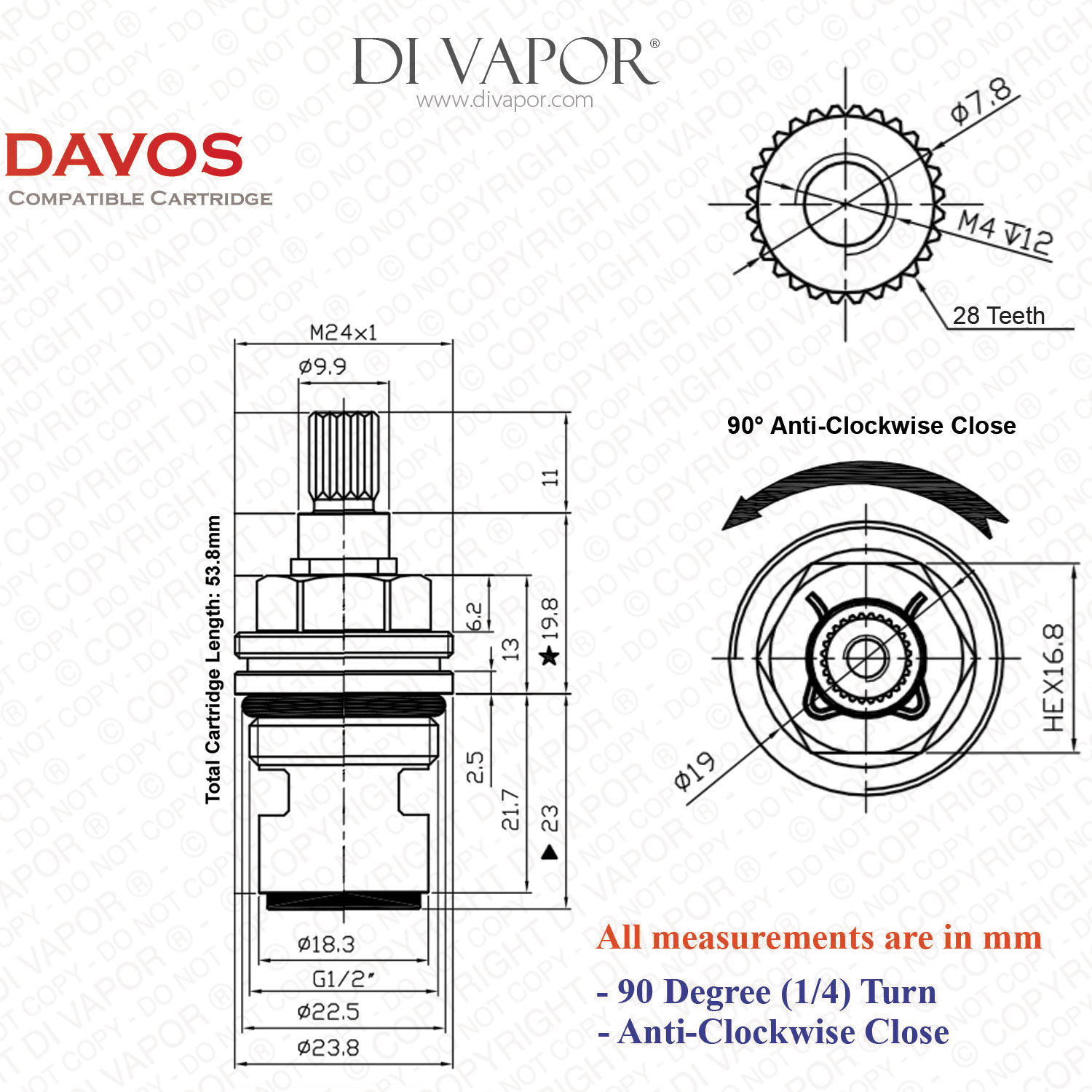

Please refer to the technical diagram above for more detailed information on this Franke Davos cartridge spares.
| Total Length | 53.8mm |
|---|---|
| Diameter at Widest Point | 23.8mm |
| Nut Height | 6.2mm |
| Upper Thread | 13mm |
| Lower Thread | 21.7mm |
| Bottom Seal Colour | Red |
| Installation | Screw-in |
| Material | Brass |
Frequently Asked Questions: Franke Davos Tap Cartridge Spare Part
Q: The leak comes from the base of the tap. Do I have to replace the cartridge?
A: The leak might be caused by a strained O-ring. Check the O-ring, and change if it looks worn out. But if the problem is not solved, the cartridge might need to be replaced.
Looking for another Franke tap spare?
- We have a selection of Franke compatible tap spares.
Having trouble finding the right Franke tap valve replacement?
- Send us a message. We will get back to you in no time.
