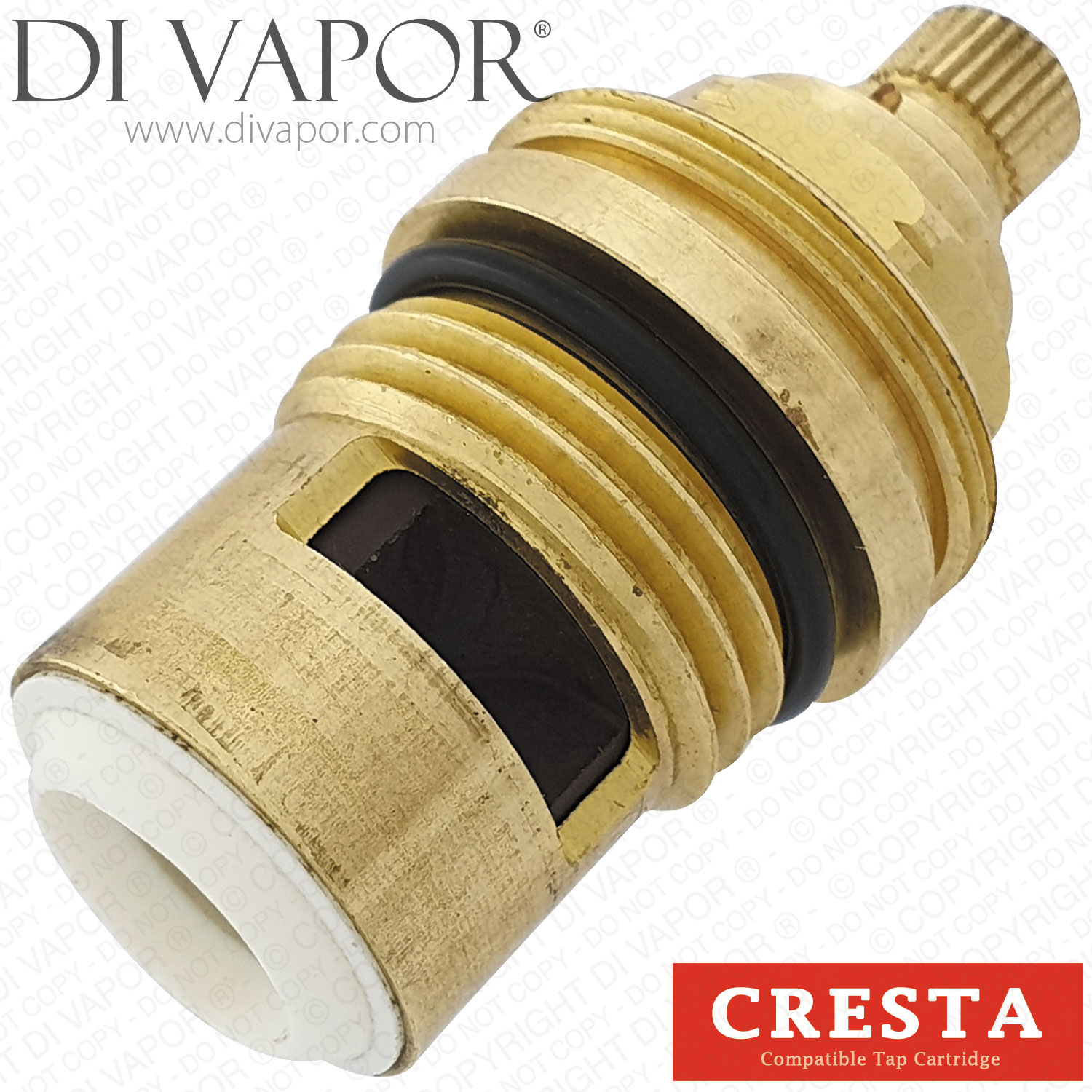

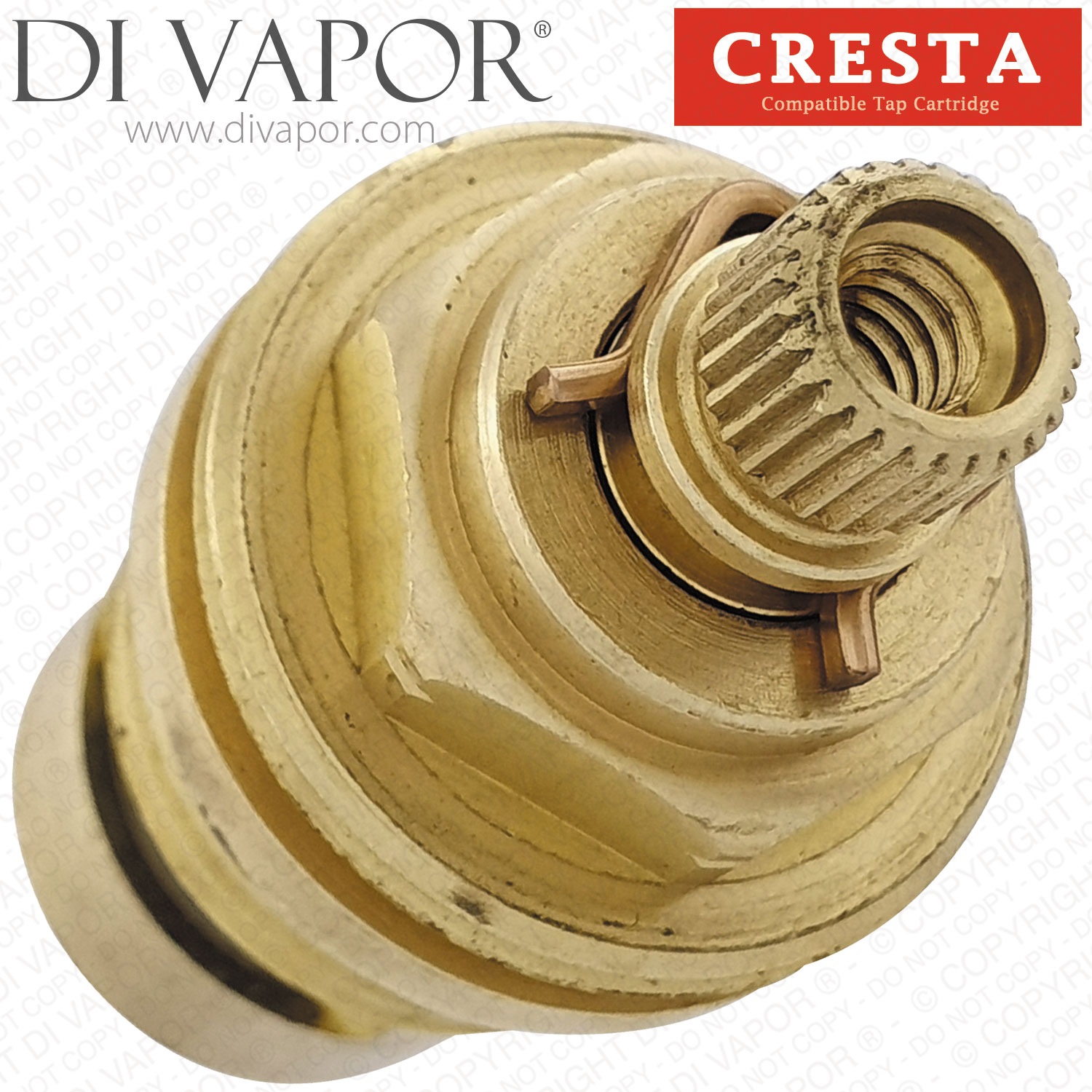

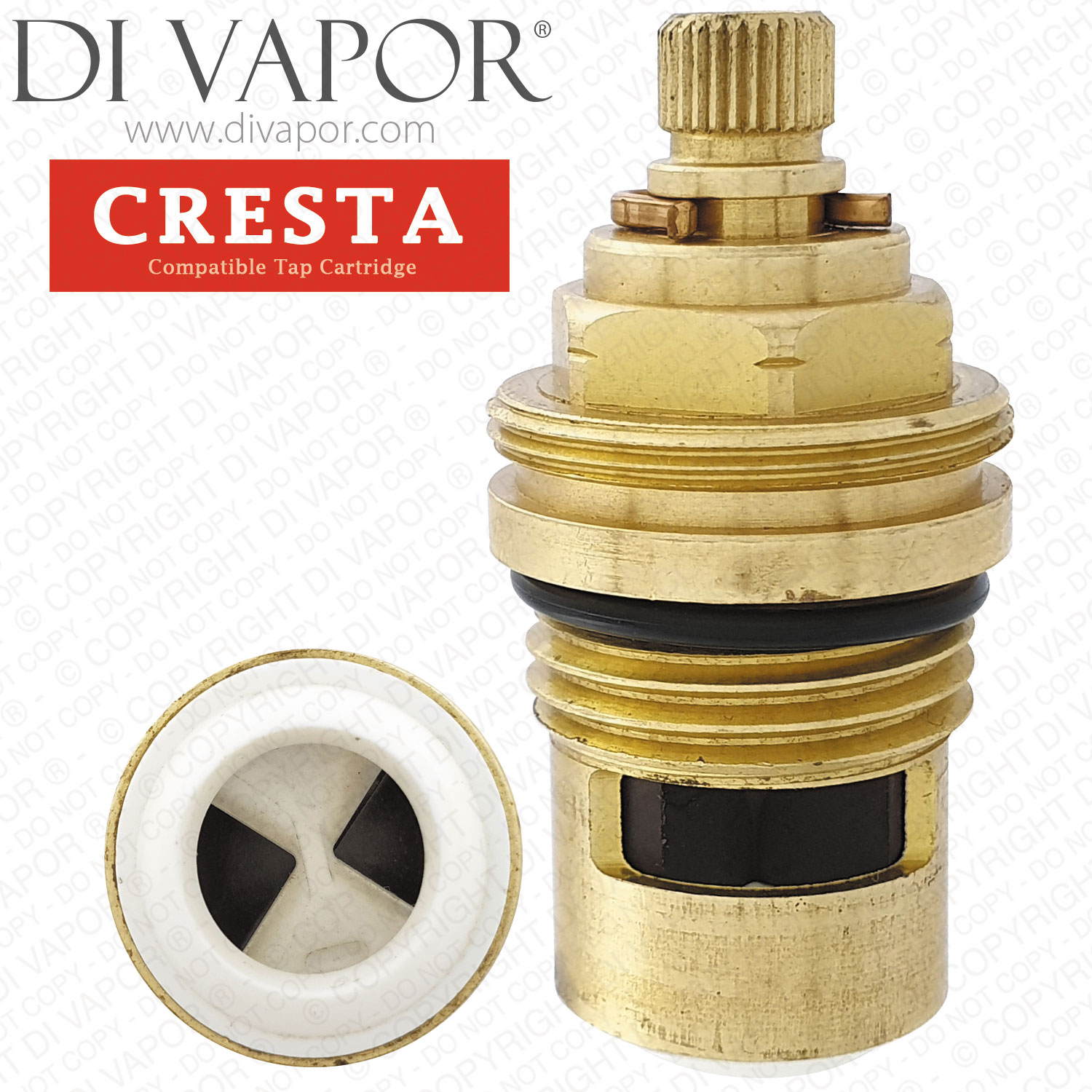

Franke Cresta 3540R-C / 3982R-C Kitchen Tap Valve 1/2" BSP - 133.0358.080 Compatible Cold Side Cartridge

SUMMARY

Franke Cresta 3540R-C / 3982R-C Kitchen Tap Valve 1/2 Inch BSP - 133.0358.080 Compatible Cold Side Cartridge used from March 2012 in Cresta 1150250642 valves.

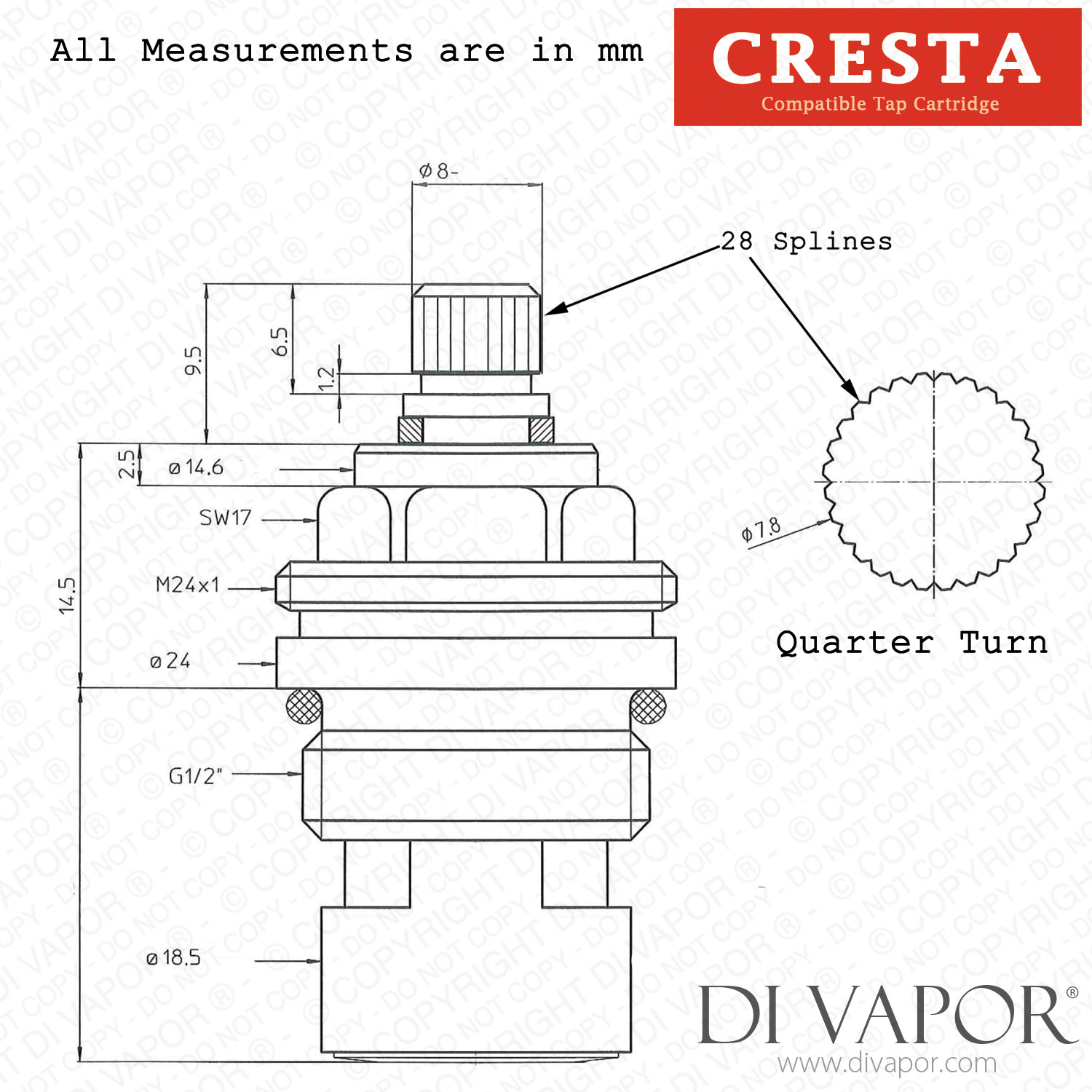

Cartridge Measurements:
Total Length (including bottom seal): 47mm
Diameter at Widest Point: 23.7mm
Top Spline Diameter: 7.8mm
Top Spline Teeth / Notches: 28
Lower Thread Diameter: 27.8mm
Barrel Diameter Below Lower Thread: 18.5mm
Bottom Seal Colour: White
Close Direction: Clockwise Close (Anti-Clockwise Open)
Turn: Quarter Turn (1/4 Turn) 90°
Upper Thread (closer to spline): 23.7mm
