Franke Bridge SP3656 / 3656R-C (133.0202.762) Cold Kitchen Tap Cartridge Replacement for 155.0049.960 Tap (Traditional)
SUMMARY
Franke Bridge SP3656 / 3656R-C (133.0202.762) Cold Kitchen Tap Cartridge Replacement for 155.0049.960 Tap (Traditional)
65mm Compression Cartridge with 24 splines.

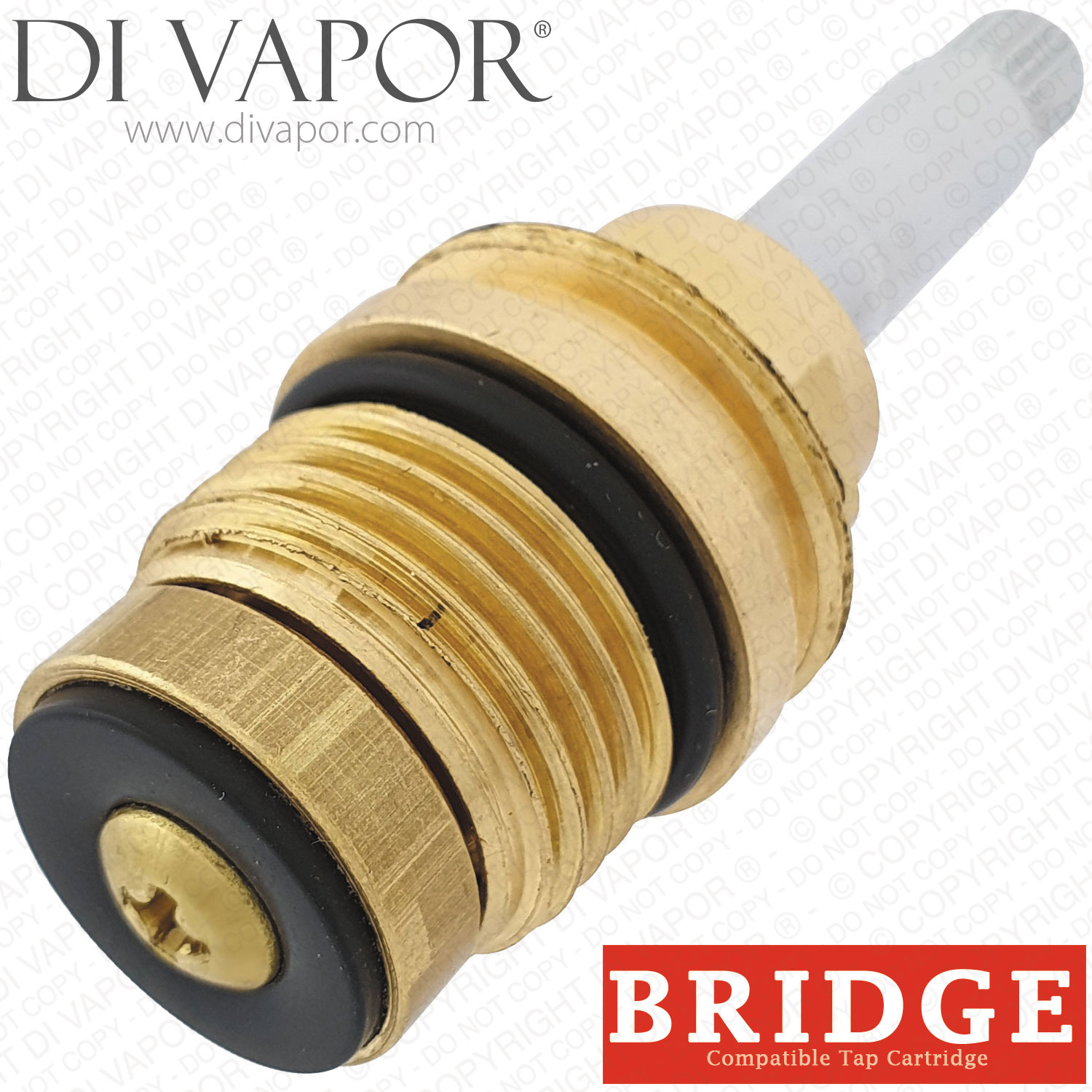

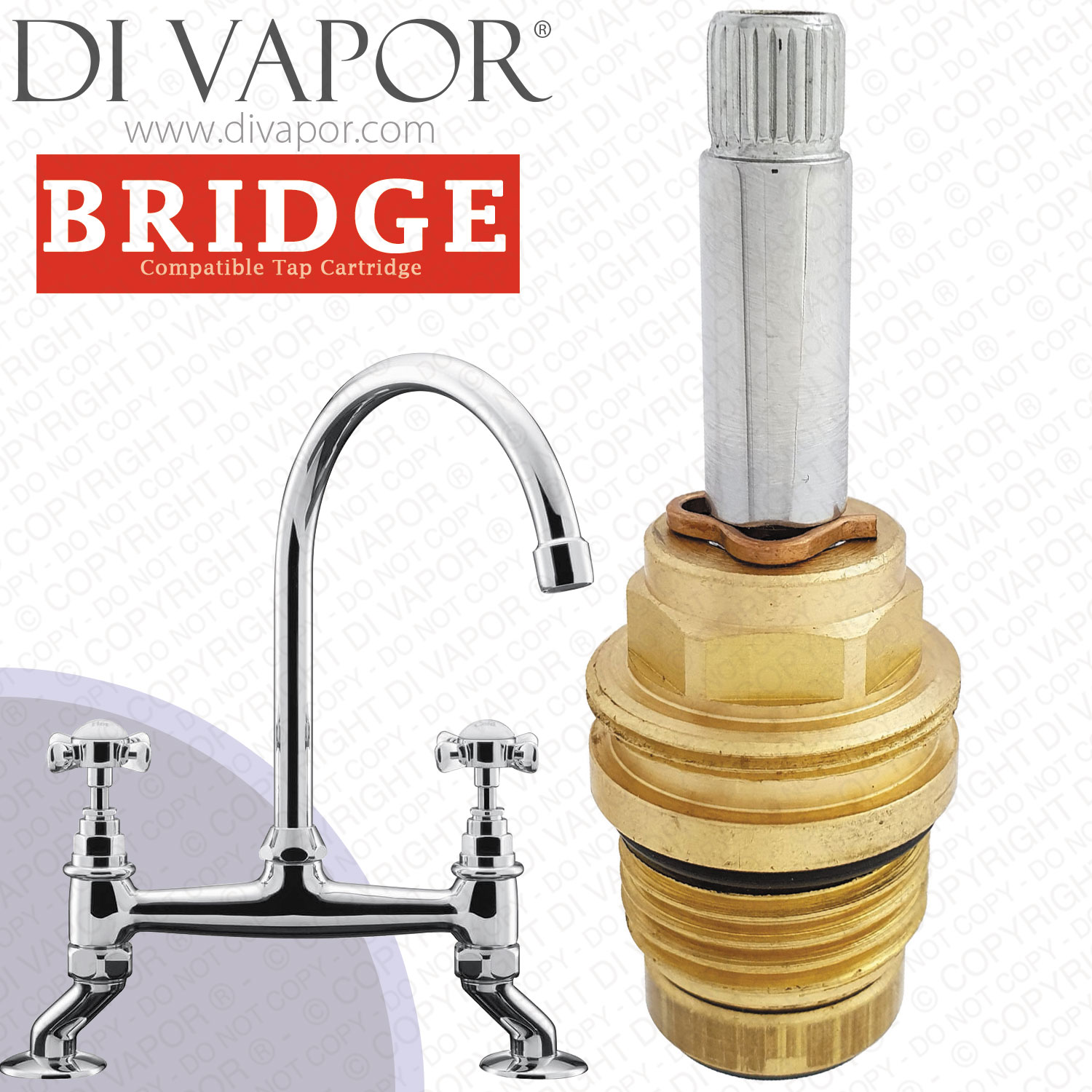

The Franke Bridge SP3656 / 3656R-C (133.0202.762) cold kitchen tap cartridge is a replacement cold-side compression valve cartridge for the Franke Bridge 155.0049.960 Traditional tap.
This cartridge controls the cold water flow through the tap and is used when the existing cold valve has become stiff, worn, leaking or unable to shut off correctly. A common sign of valve wear is water dripping from the end of the spout or around the handle when the tap is turned off.
Technical Details
- - Part code: SP3656 / 3656R-C
- - Franke code: 133.0202.762
- - Di Vapor Part Number: FR-BR82
- - Cartridge type: compression cartridge
- - Side: cold
- - Length: 65mm
- - Spline count: 24 splines
- - Matching hot cartridge: SP3656 / 3656R-H
Confirmed Compatible Models
- - Franke Bridge 155.0049.960 Traditional tap
- - Franke Bridge Traditional non-lever tap from 1995 onwards
Before You Order
Check the existing cartridge length, spline count and hot or cold side before ordering. The hot and cold versions are separate parts and should not be swapped between sides.
Installation Note
Isolate the water supply before removing the tap handle and valve cover. The cartridge can then be unscrewed from the tap body using a suitable spanner. Apply a small amount of silicone grease to relevant seals during refitting.
Related Spares You May Need
- - TACSIL 3g Premium Cartridge Silicone Grease - WRAS Approved
