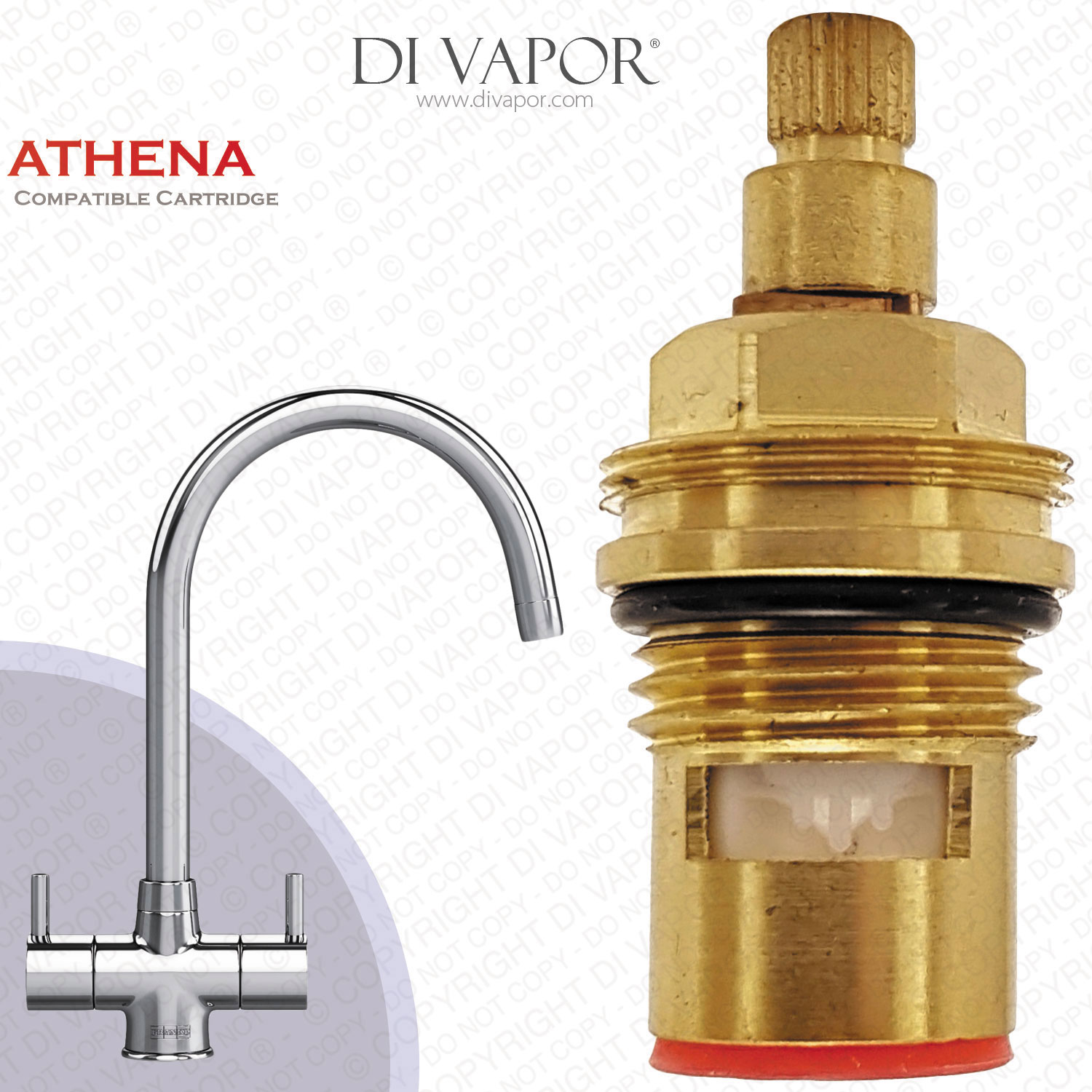

Franke Athena 1212R-H Tap Valve Cartridge (133.0069.960) - 52mm Height, 20 Teeth Spline - Hot Side - 1212R / 133.0440.352 Compatible Cartridge
Send a photo of your item and we'll help confirm it.
Summary
Franke Athena 1212R-H Tap Valve Cartridge (133.0069.960) - 52mm Height, 20 Teeth Spline - Hot Side - 1212R / 133.0440.352 Compatible Cartridge used from March 2014 onwards.
Tap Spares Measurements: Franke Athena Tap Cartridge 1212R Compatible
Tap valve cartridge replacement for Franke Athena taps. Similar to the original, this 1212R and 133.0440.352 compatible cartridge can help stop a tap from dripping.
Please contact us if you have questions about the Franke Athena tap cartridge replacement. We will gladly respond to your queries.
Franke Athena tap valve compatible with the 1212R or 133.0440.352 cartridge has 20 splines which is for the tap model manufactured starting March 2014. If you do not know what year your tap was manufactured, please count the number of teeth on the cartridge you have.
Cartridge Measurements
| Length | 52mm |
|---|---|
| Diameter at Widest Part | 23.8mm |
| Diameter at Bottom Part | 18.3mm |
| Nut Height | 6.2mm |
| Diameter at Splines | 7.65mm |
| Spline Teeth Count | 20 |

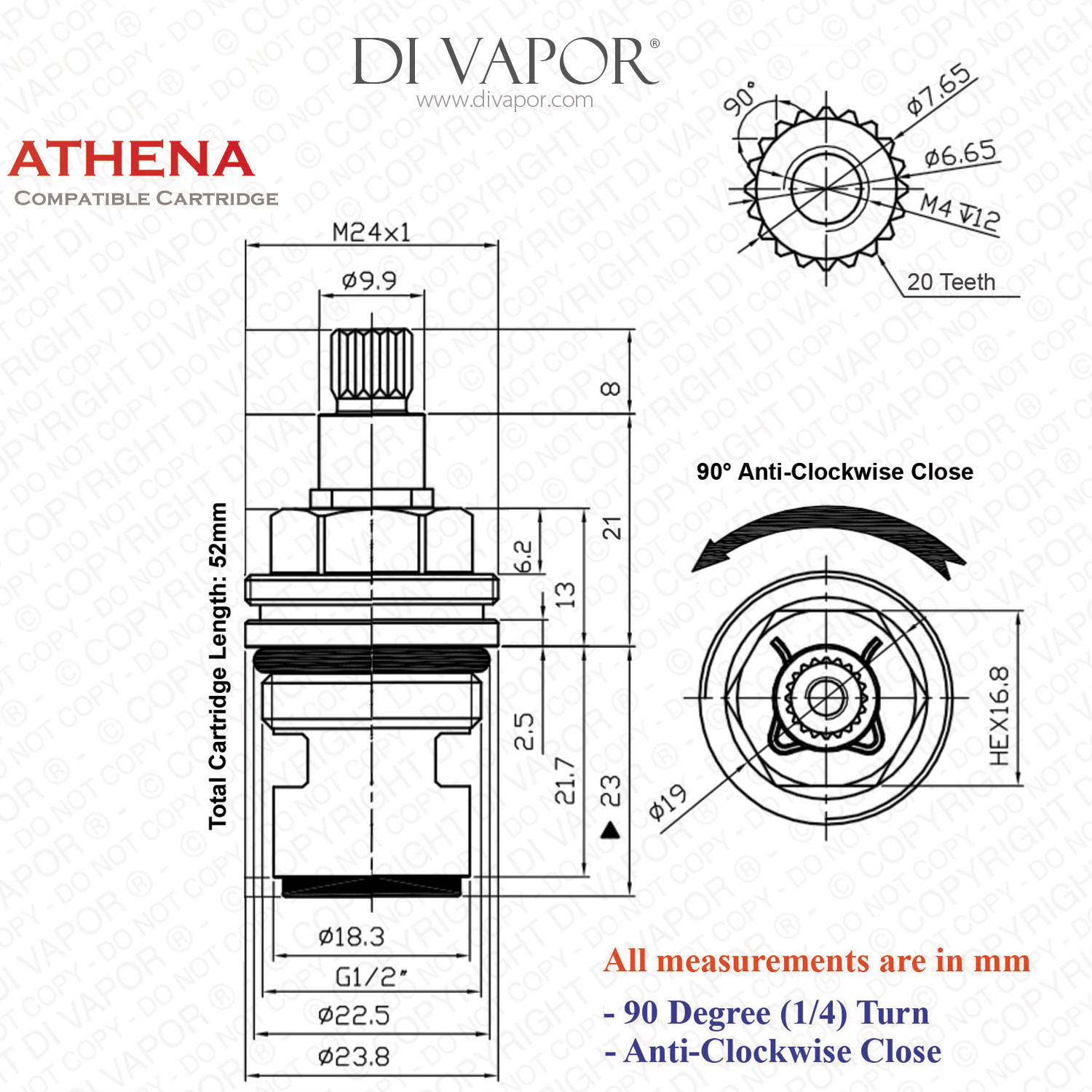

For the complete measurements, please view the second image above.
Other Information
| Cartridge Type | Ceramic Disc Valve Cartridge |
|---|---|
| Bottom Seal Colour | Red |
| Rotation Angle | 90° (Quarter Turn) |
| Open Direction | Clockwise |
Compatibility Information
| Compatible with | Franke |
|---|---|
| Tap Model | Athena (post March 2014) |
| Also Known As | 1212R, 1212R-H and 133.0440.352 |
Other Tap Valves for Franke Athena
| Cold Compatible Valve (20 Teeth Spline) | FR-AT22 (Please visit the page for a short tap repair guide.) |
|---|---|
| Hot Compatible Valve (18 Teeth Spline) | FR-AT02 |
| Cold Compatible Valve (18 Teeth Spline) | FR-AT01 |
