Franke 133.0074.209 Cold Compatible Cartridge
Part number: 133.0074.209
Only 1 left in stock.
Price: £29.00
Price includes UK VAT (Region: UK▼)
In stock
Is this the right part?
Send a photo of your item and we'll help confirm it.
Product description
Summary

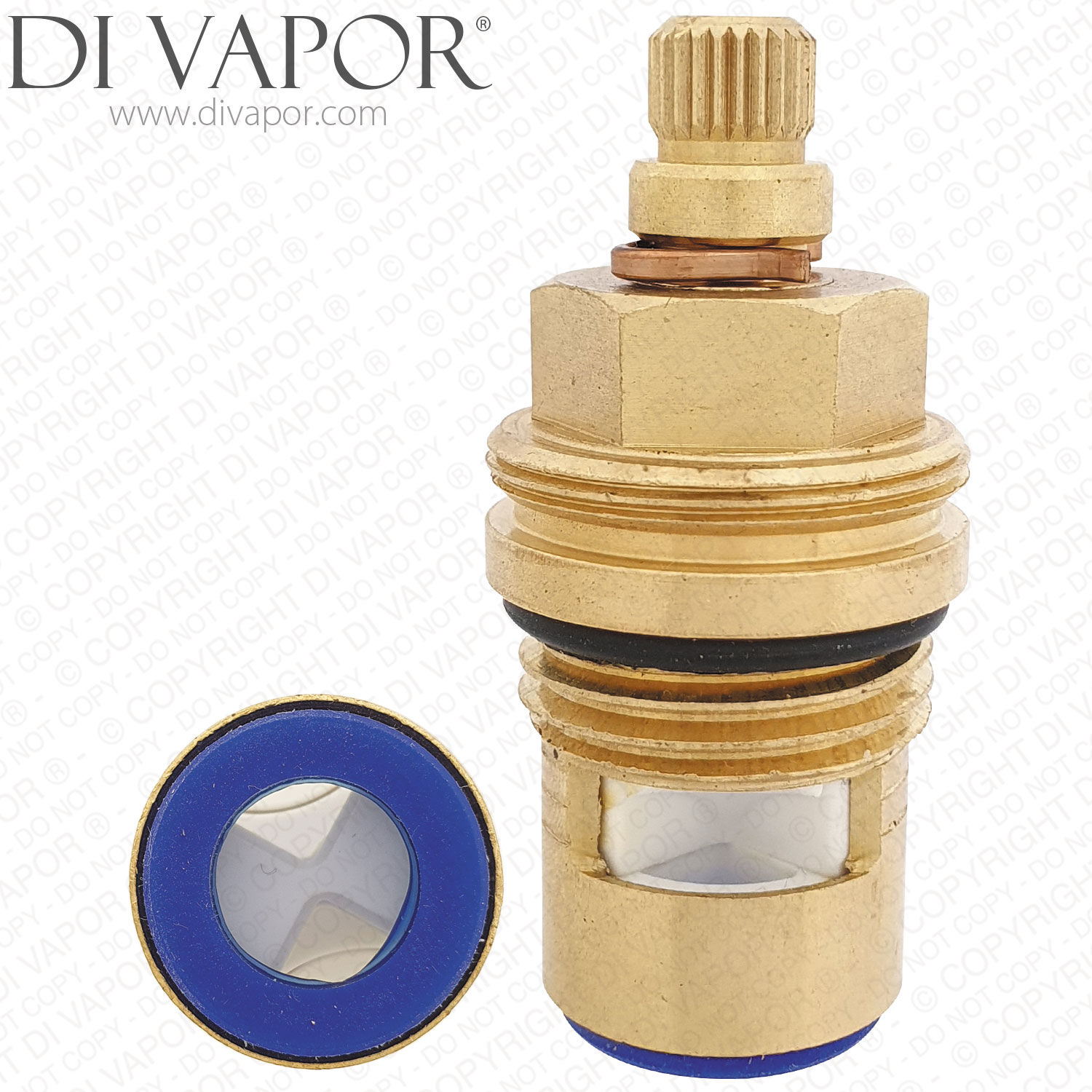

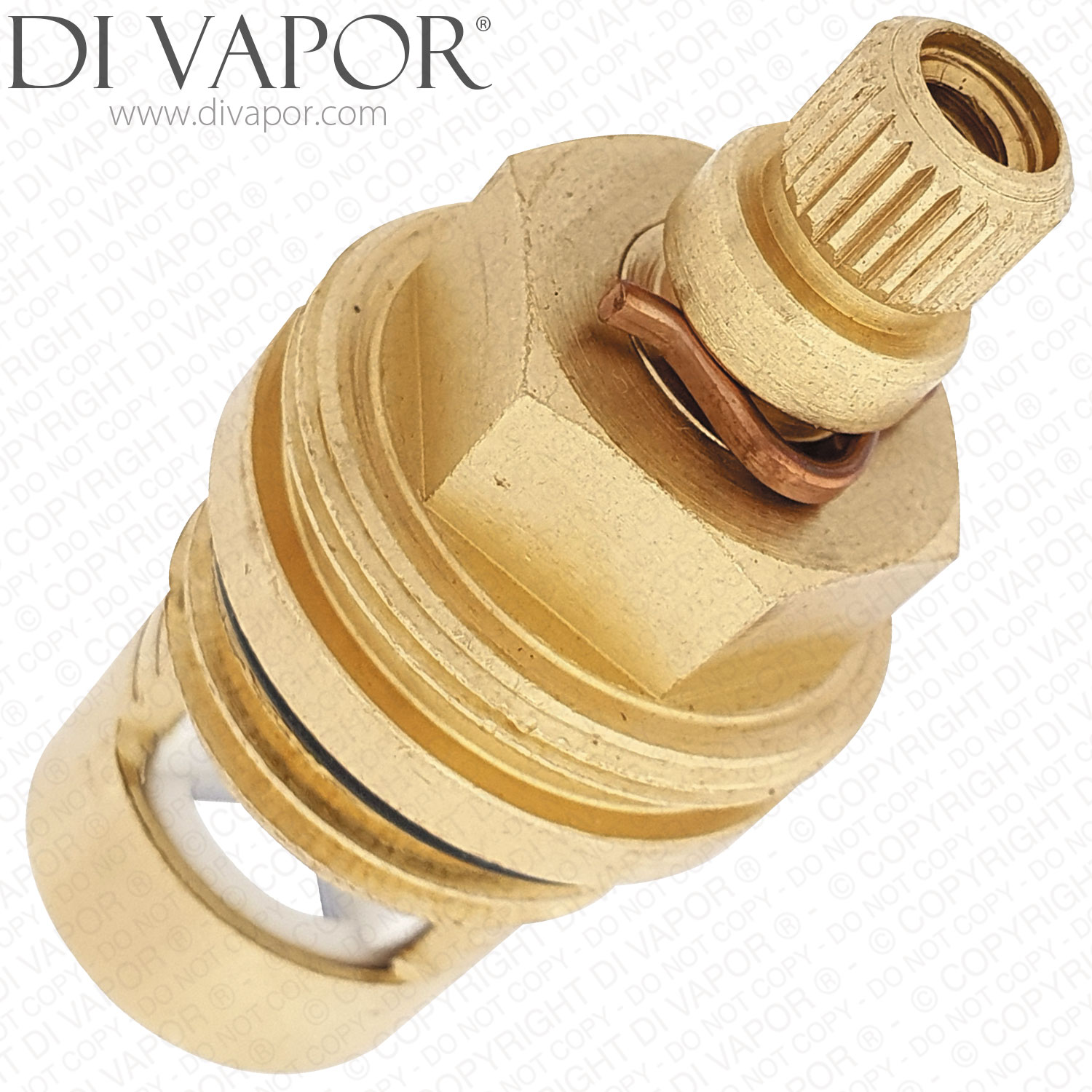

Franke 133.0074.209 Cold Compatible Cartridge
Cartridge Measurements:
| Total Length (including bottom seal) | 49.5mm |
|---|---|
| Spindle Length (from top of nut) | Diameter at Widest Point: 23.8mm |

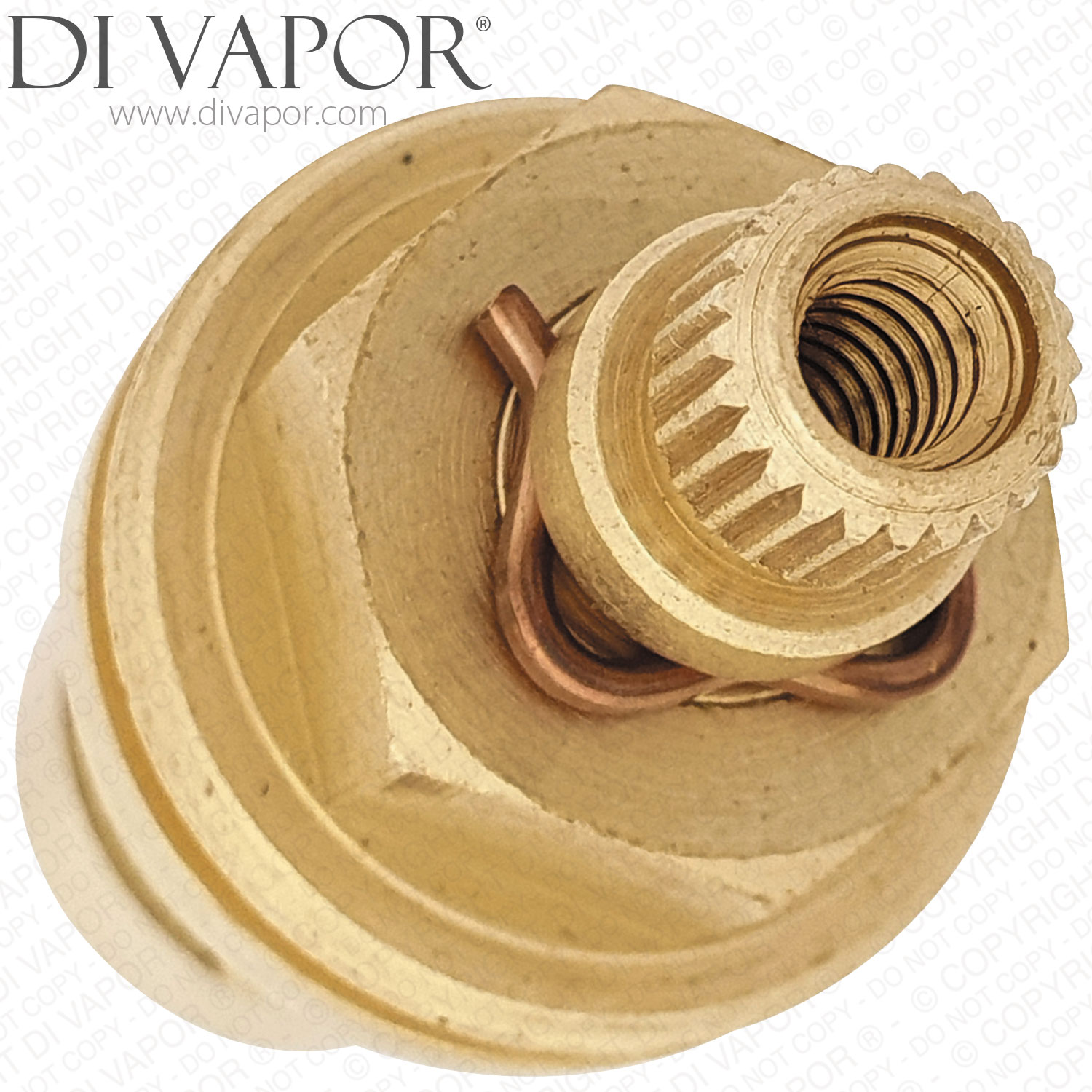

| Top Spline Diameter | 7.8mm |
| Top Spline Teeth / Notches | 24 |
| Lower Fitting Thread Diameter | 20.7mm (1/2" BSP) |
| Barrel Diameter Below Lower Thread | 23.6mm |

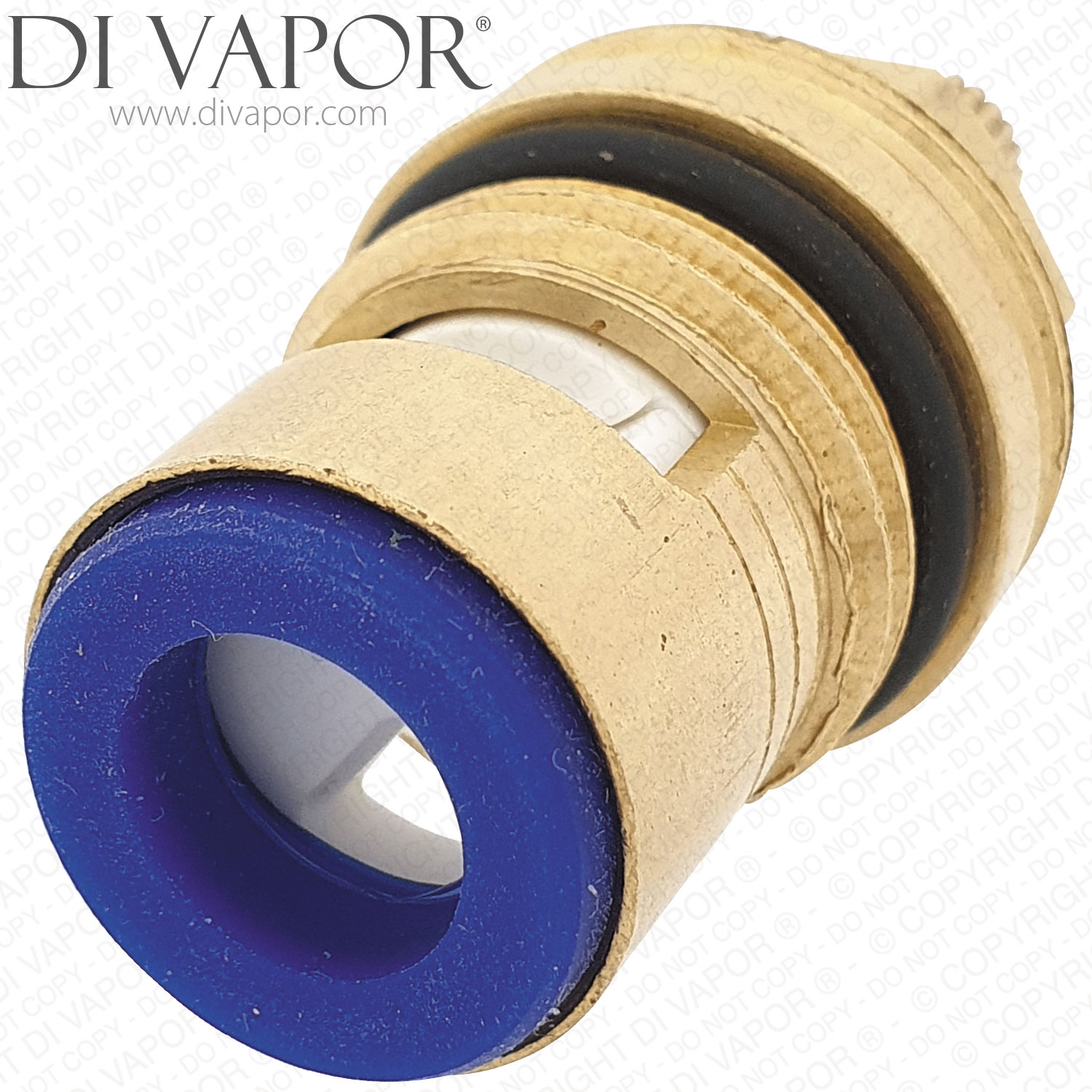

| Bottom Seal Colour | Blue |
| Close Direction | Clockwise Close (Anti-Clockwise Open) |
| Turn | Quarter Turn (1/4 Turn) 90° |
| Upper Thread (closer to spline) | 23.7mm |
