Clearwater Regent Cold Tap Cartridge with Collar Compatible Spare - CW-RG68
Send a photo of your item and we'll help confirm it.
Summary
Clearwater Regent Cold Tap Cartridge with Collar Compatible Spare - CW-RG68
Di Vapor is delighted to serve your spares needs! Please pop us a message if you have a query on the Clearwater Regent replacement kitchen tap valve. We will gladly respond to your messages.
+ WhatsApp (07754 173340).
+ Find a Spare Part free service page.

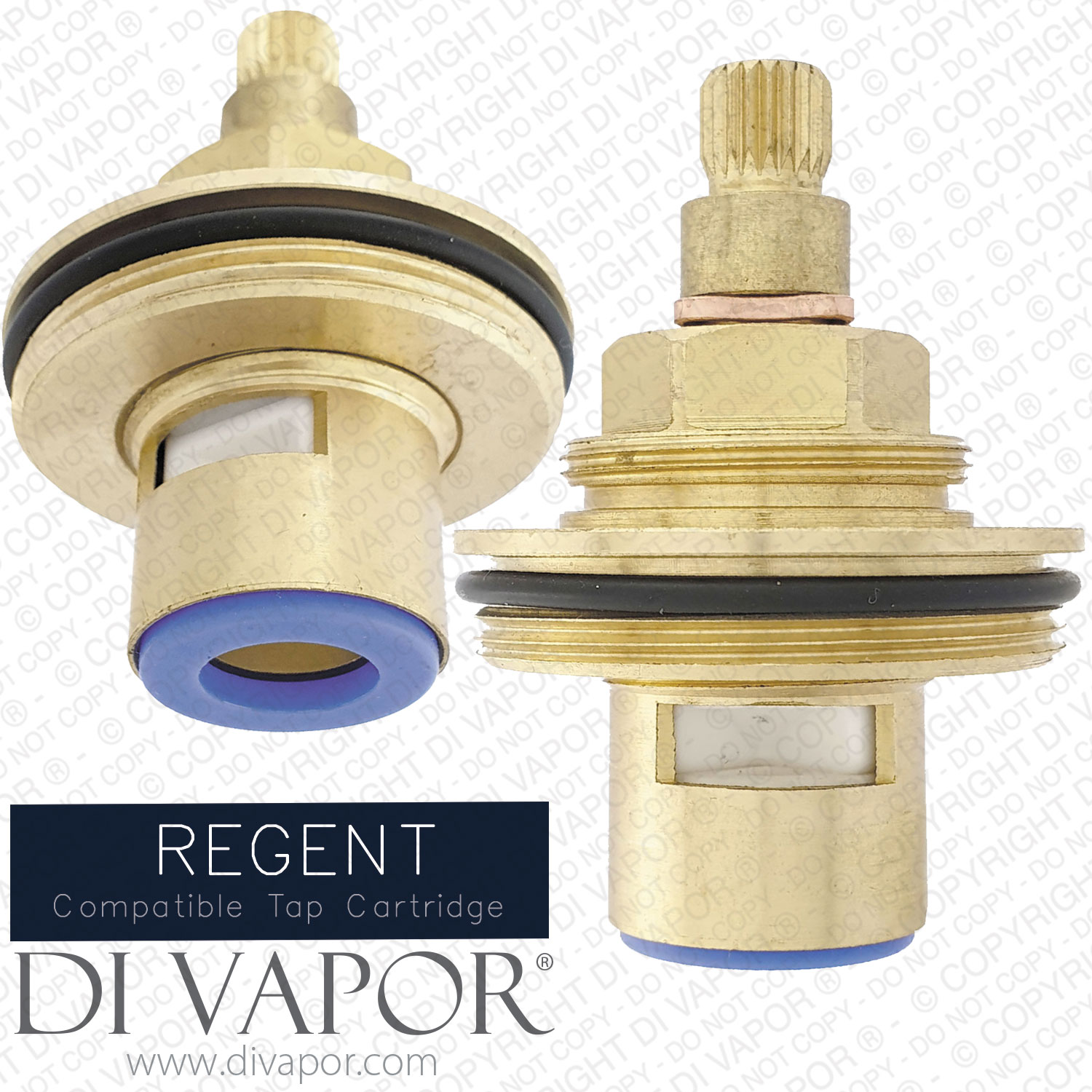

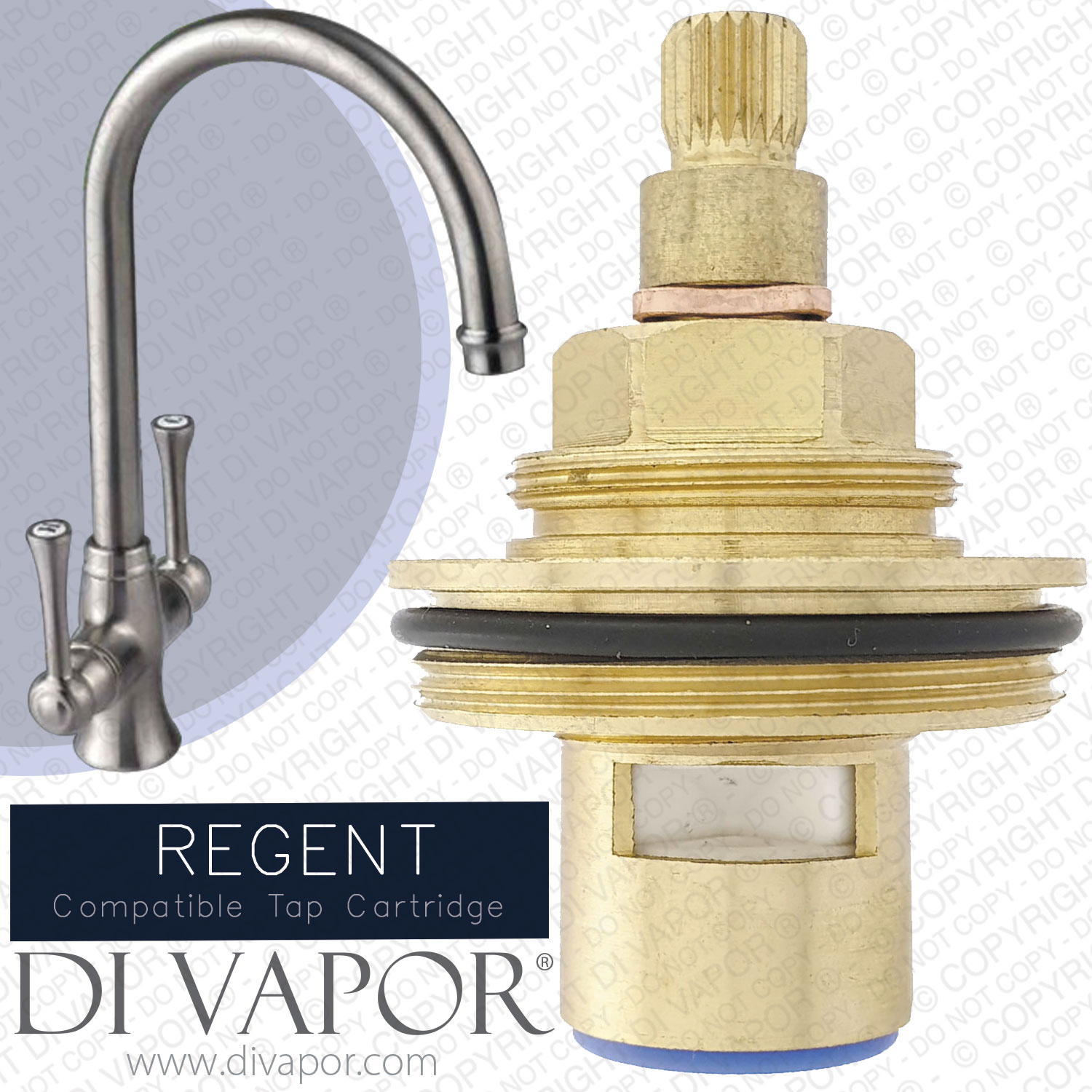

Kitchen Tap Parts Overview: Clearwater Regent Tap Valve with Conversion Bush
Please note this replacement Clearwater Regent ceramic disc kitchen tap cartridge has a 20 teeth spline. Another version with 28 teeth is also available.

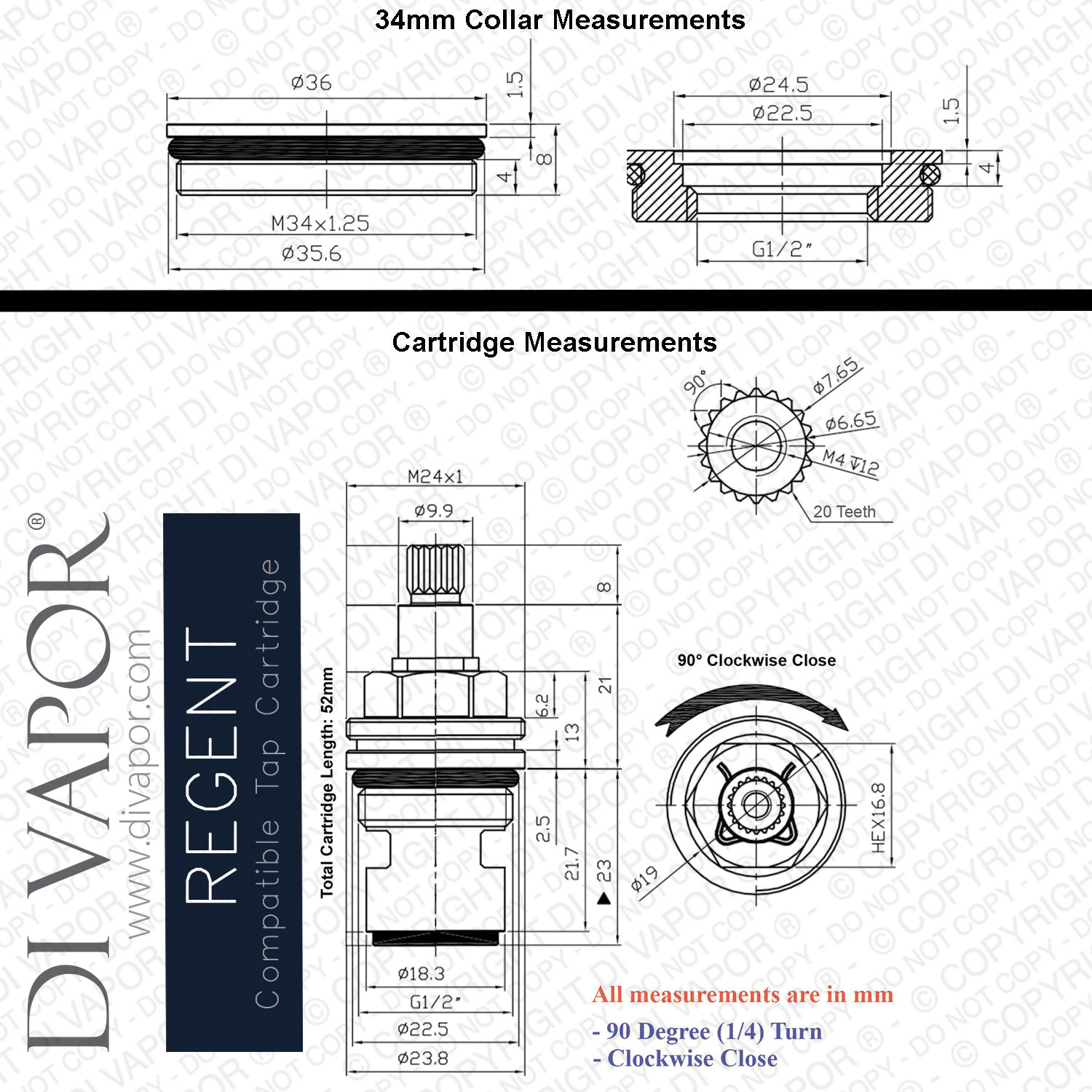

Valve Measurement (without conversion bush)
| Overall Length | 52mm |
|---|---|
| Nut Height | 6.2mm |
| Diameter at Widest Part | 23.8mm |
| Diameter at Bottom Part | 18.3mm |
| Diameter at Splines | 7.65mm |
| Spline Teeth Count | 20 |
Conversion Bush Measurement
| Diameter to Widest Part | 36mm |
|---|---|
| Diameter at O-Ring | 35.6mm |
| Collar Height | 8mm |
Compatibility
| Compatible with | Clearwater |
|---|---|
| Tap Model | Regent |
| Hot Tap Valve with Conversion Bush | CW-RG67 |
| Cold Tap Cartridge | CW-RG35 |
| Hot Tap Cartridge | CW-RG34 |
Other Information
| Type | Ceramic Disc Valve |
|---|---|
| Bottom Seal Colour | Blue (Cold) |
| Rotation Angle | 90° (Quarter Turn) |
| Open Direction | Anti-Clockwise |
The silicone-based grease can be seen at the lower portion of the page. The grease enables the replacement Clearwater Regent tap valve to fully push in the tap.
