Clearwater Elegance Hot Tap Cartridge with Collar Compatible Spare - CW-EG27
Send a photo of your item and we'll help confirm it.
Summary

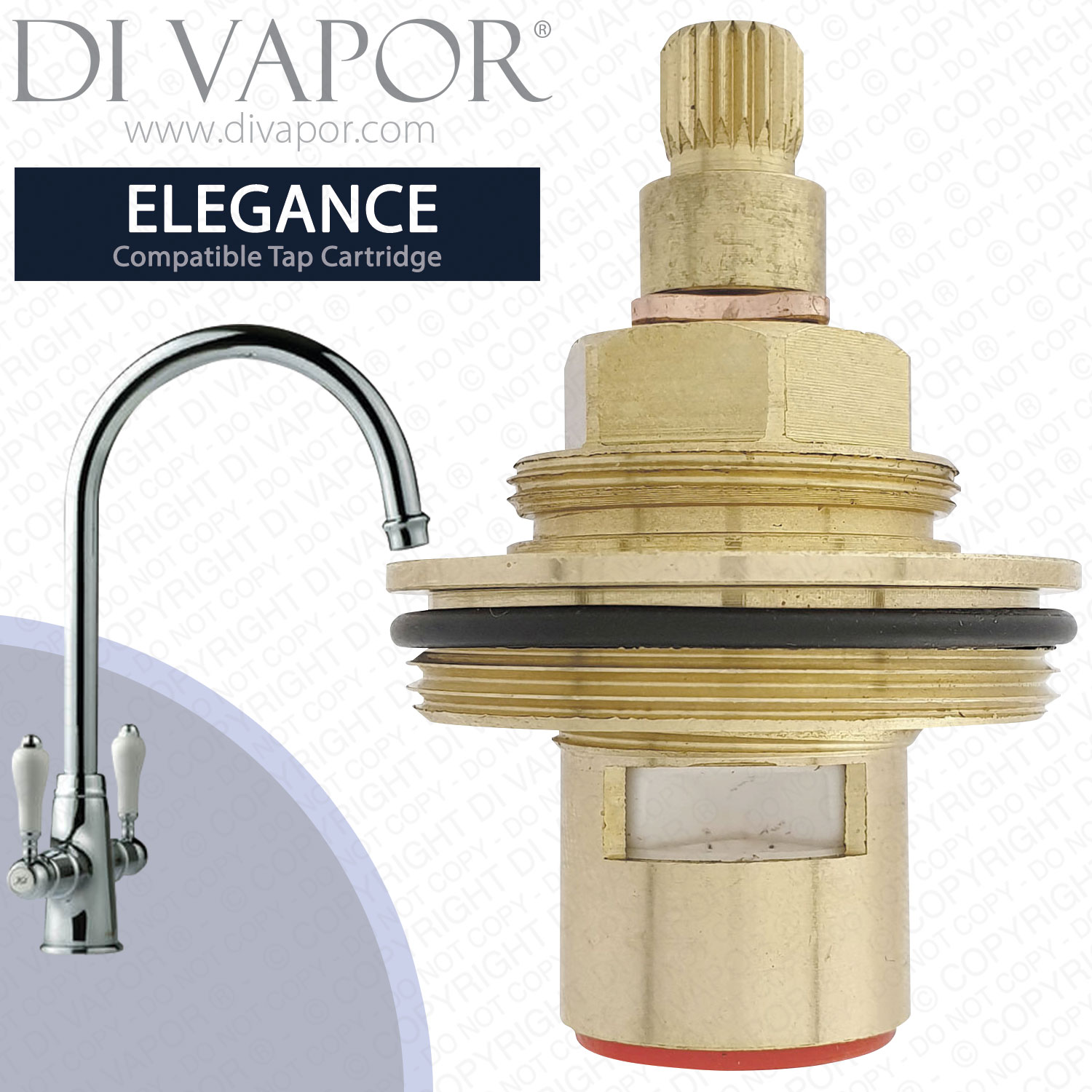

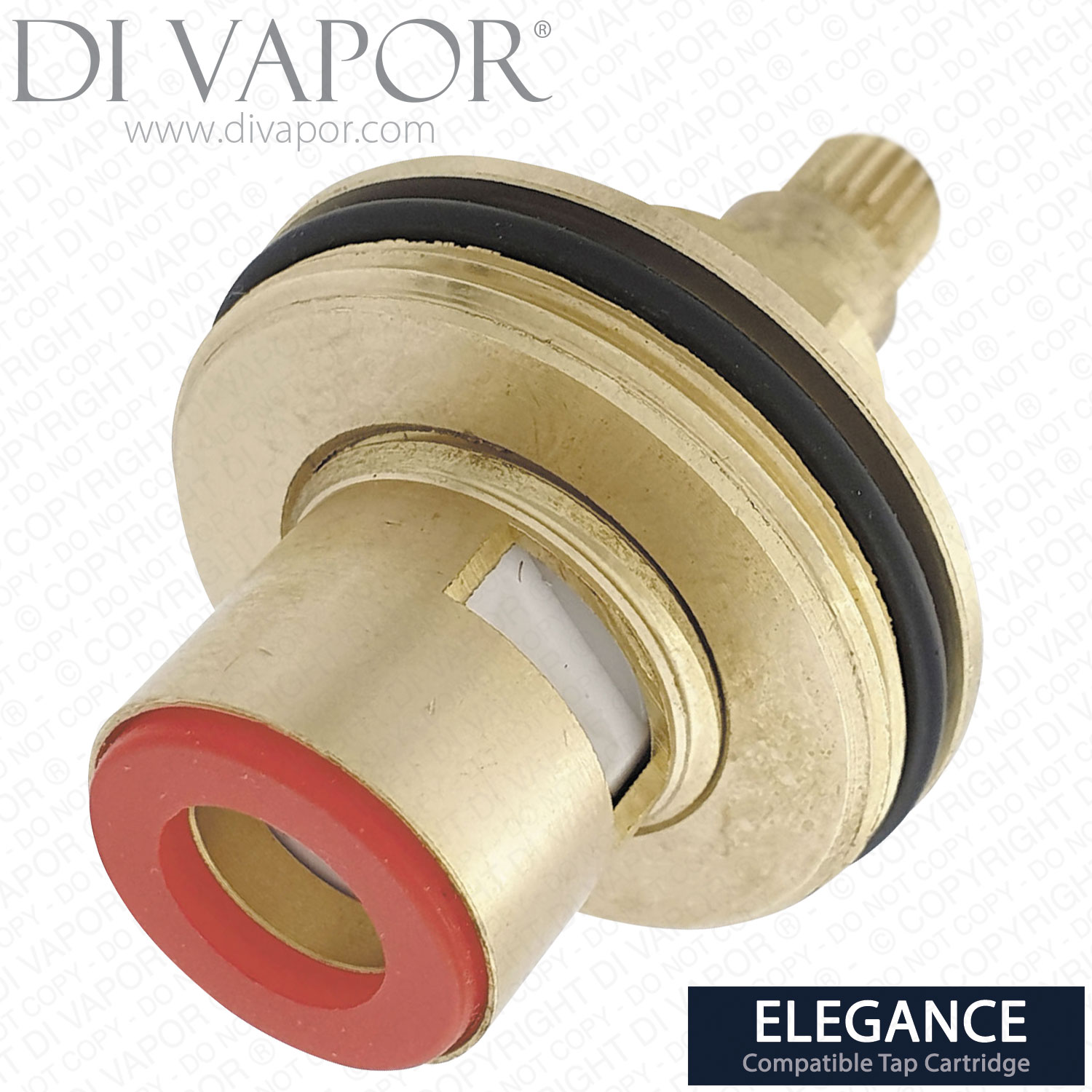

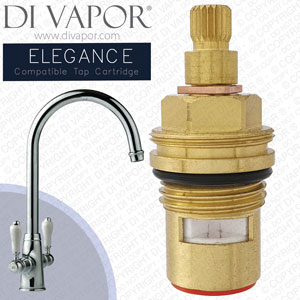

Clearwater Elegance Hot Tap Cartridge with Collar Compatible Spare - CW-EG27
Is your Clearwater Elegance kitchen tap leaking? This replacement part can stop the problem caused by a worn-out cartridge.
Di Vapor is your reliable UK spares expert! Please contact us if you have any questions regarding the ceramic disc tap cartridge with brass collar for Clearwater Elegance.
+ WhatsApp (contact number: 07754 173340).
+ Find a Part free service.
We are here to help with your spares needs.
Clearwater Elegance Cartridge Measurement

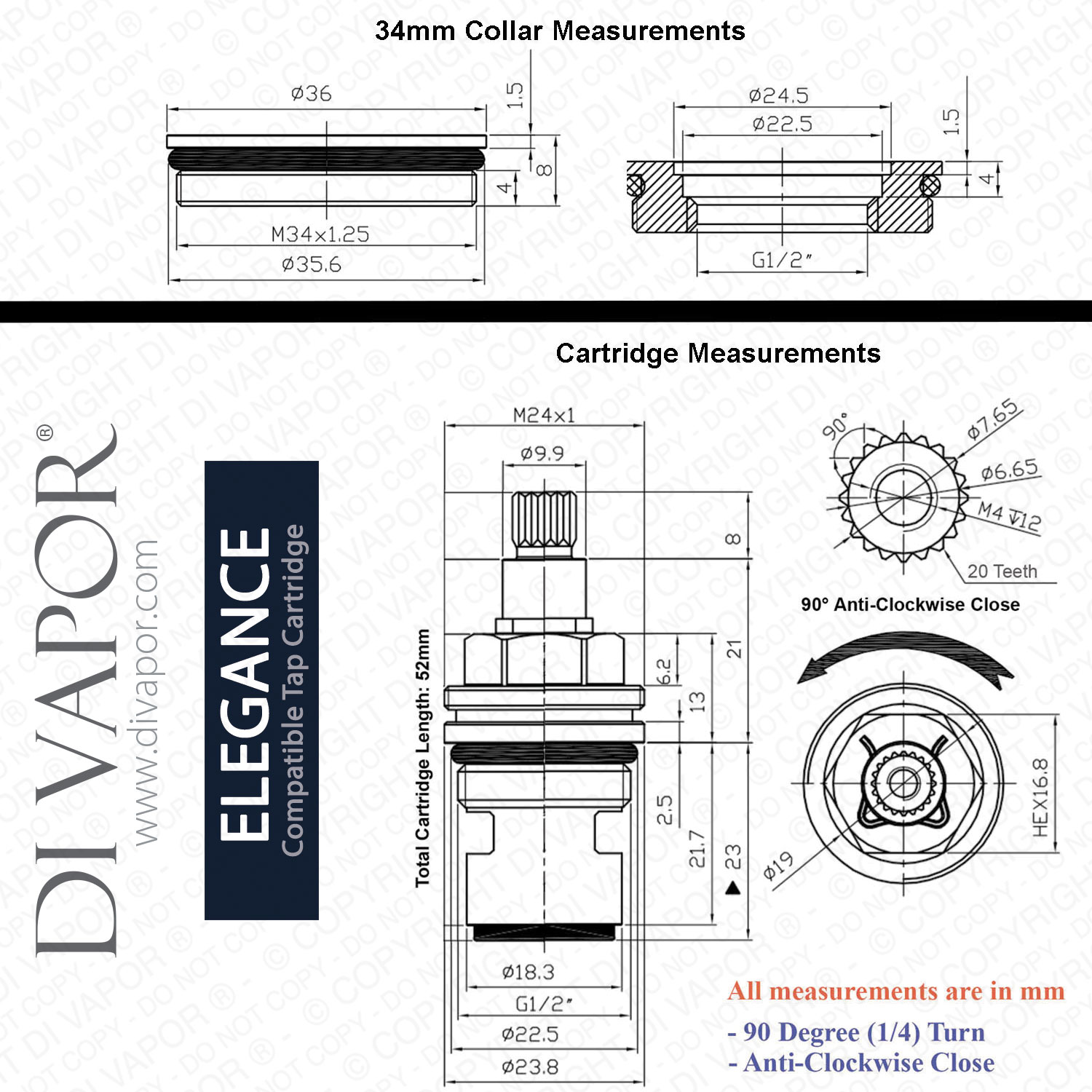

(Please refer to the last image for a diagram of the complete measurements.)
| Overall Length | 52mm |
|---|---|
| Diameter at Widest Part | 23.8mm |
| Diameter at Bottom Part | 18.3mm |
| Diameter at Splines | 7.65mm |
| Spline Teeth Count | 20 |
| Nut Height | 6.2mm |
Collar Measurement
| Collar Height | 8mm |
|---|---|
| Diameter to Widest Part | 36mm |
| Diameter at O-Ring | 35.6mm |
Additional Tap Cartridges used in Clearwater Elegance
| Cold Valve with Collar Adapter | CW-EG26 |
|---|---|
| Cold Valve | CW-EG86 |
| Hot Valve | CW-EG87 |
