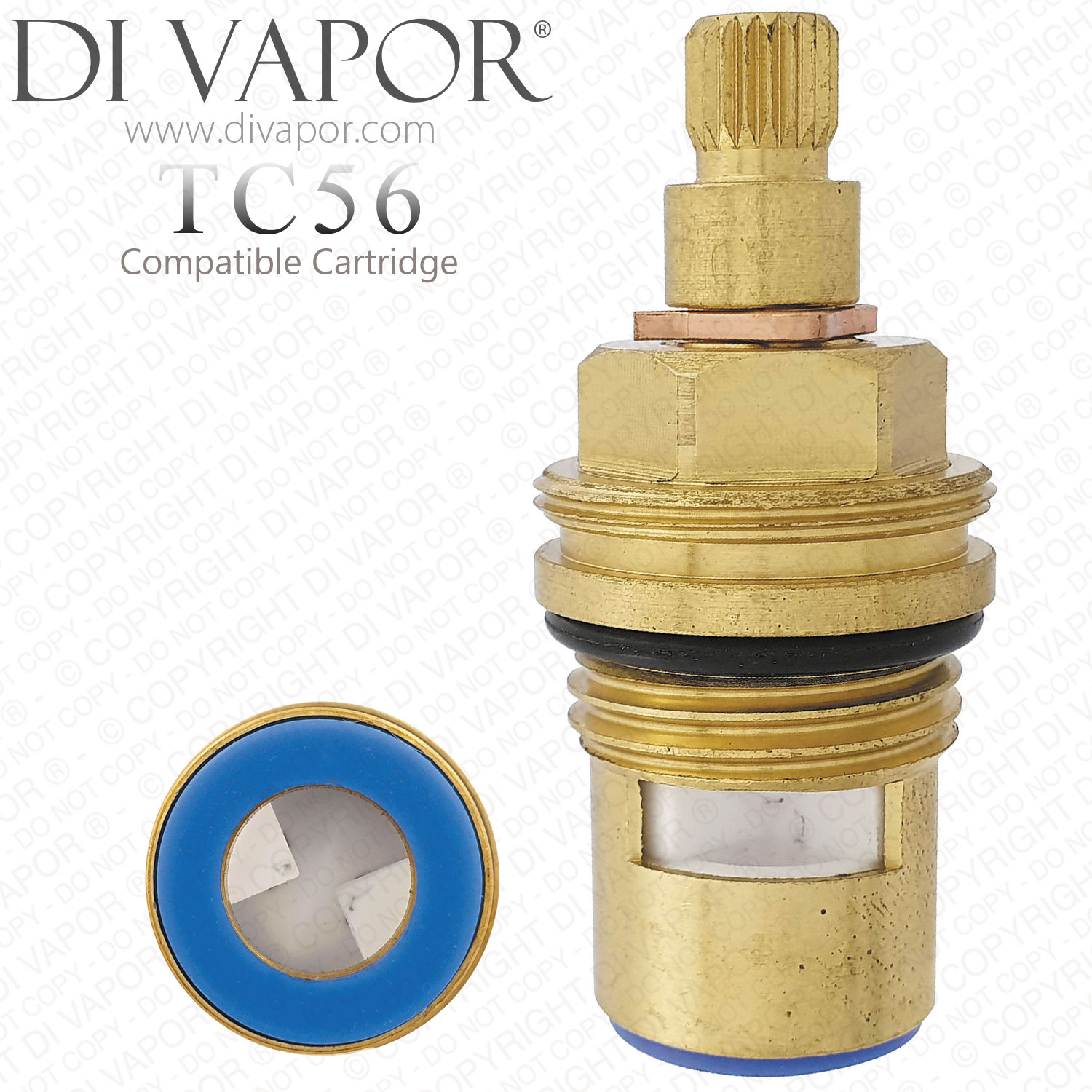

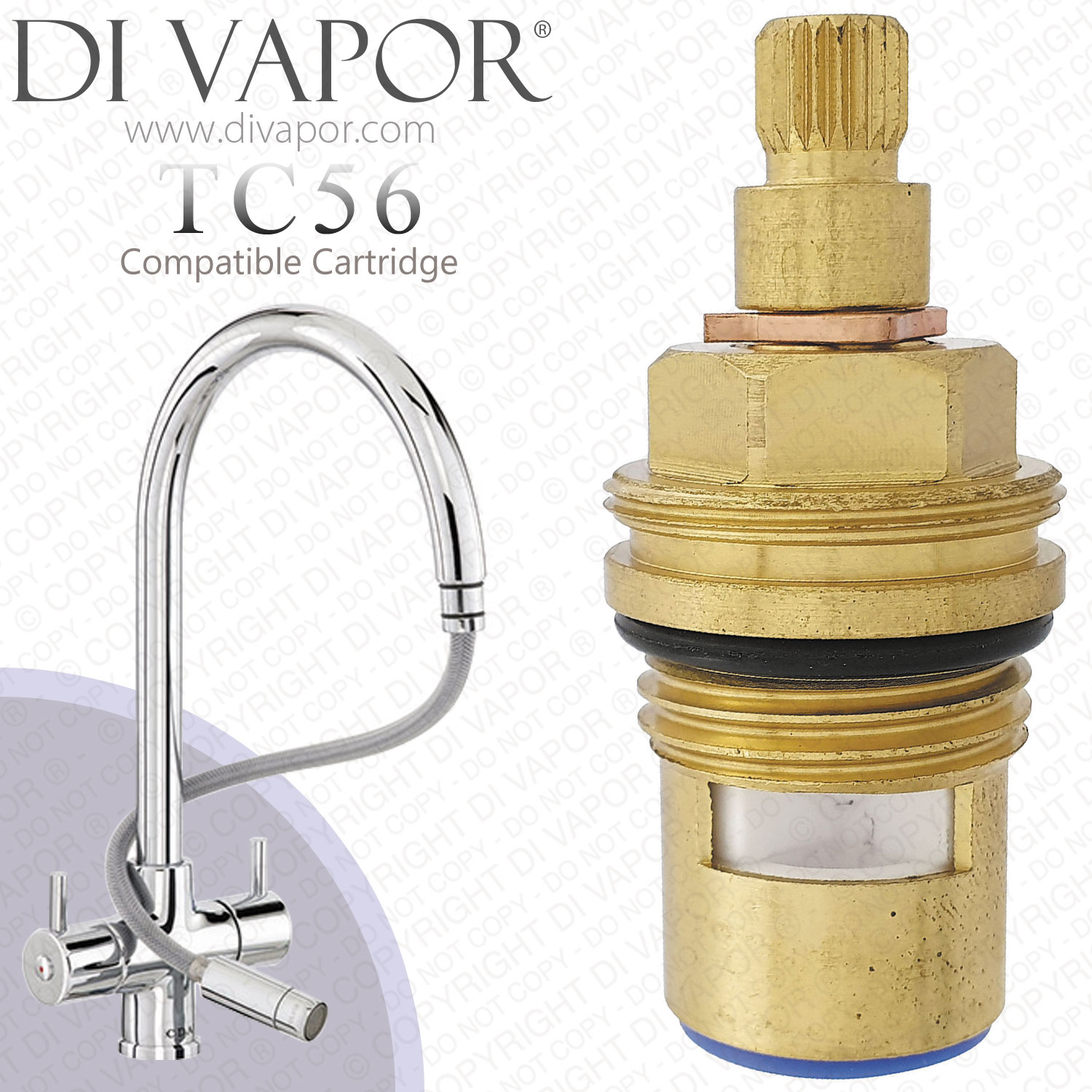

CDA TC56 Monobloc Pull-out Spout (TC56CH) Cold Cartridge Compatible Spare - TC56PC

CDA Tap Spares Specifications: TC56 Cartridge 1212R and 3819R Compatible

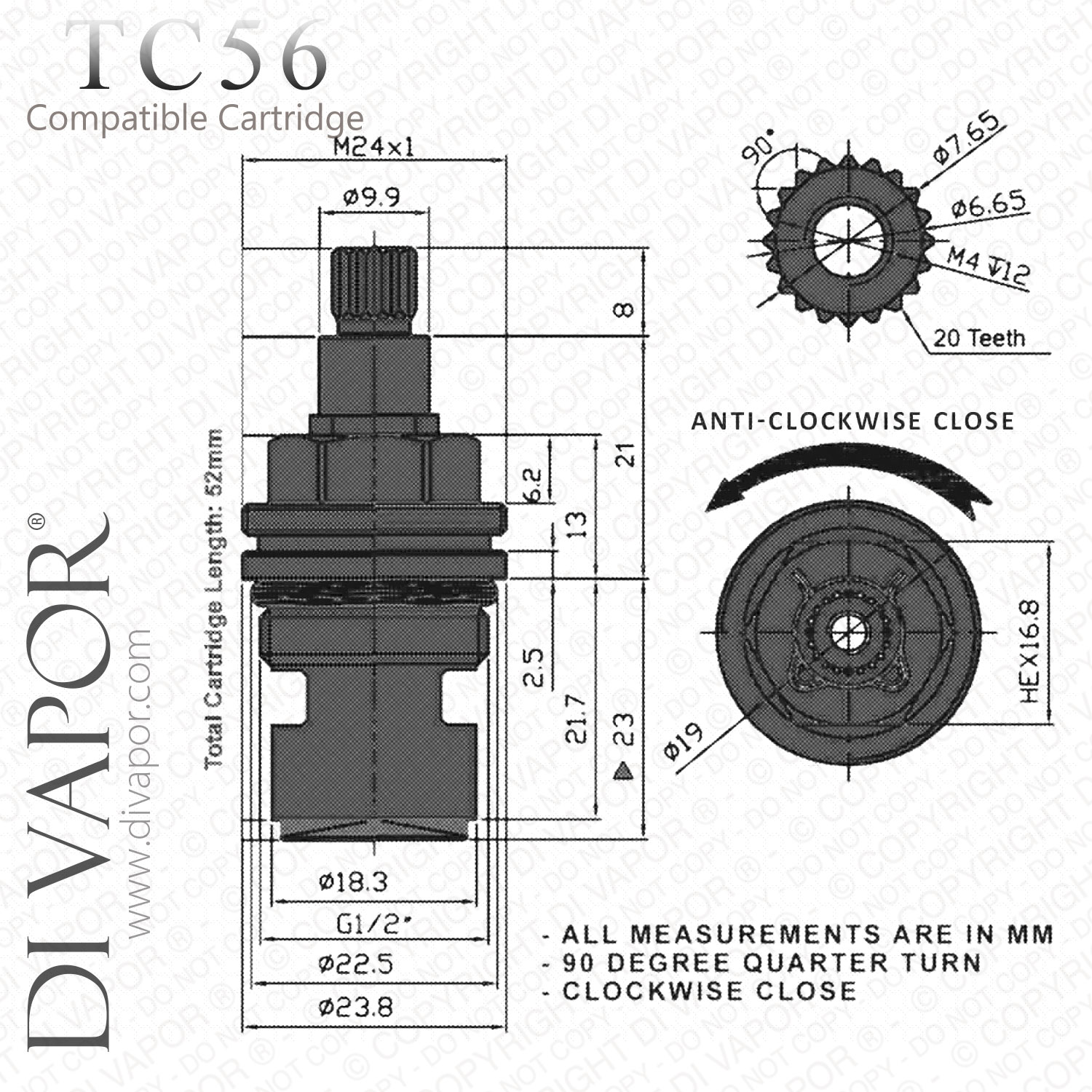

Measurements:
Cartridge Length: 52mm (5.2cm)
Diameter at Widest Part: 23.8mm (2.38cm)
Diameter at O-Ring: 22.5mm (2.25cm)
Diameter at Splines: 7.65mm
Spline Teeth Count: 20

Other Information:
Bottom Seal Colour: Blue (Cold)
Cartridge Type: Ceramic Disc Valve Cartridge
Rotation Angle: 90° (Quarter Turn)

For: CDA
Tap Model: TC56 / TC56CH

Hot Valve Compatible Cartridge: TC56HC


Please pop us a message if you have questions or need assistance in spare part identification.
