Carron Phoenix Alba Tap Cartridge (Cold) - 28 Spline, 1/2" Compatible Tap Valve
Send a photo of your item and we'll help confirm it.
Summary
Carron Phoenix Alba Tap Cartridge (Cold) - 28 Spline, 1/2 Inch Compatible Tap Valve
Measurements of the Carron Phoenix Alba tap valve cartridge compatible cold insert:
| Total length | 53.8mm (5.38cm) |
|---|---|
| Diameter at the widest part | 23.8mm (2.38cm) |
| Spline diameter | 7.8mm |
| Number of Splines | 28 |
| Bottom seal colour | Blue |
| Close direction | Clockwise close (Anti-clockwise open) |

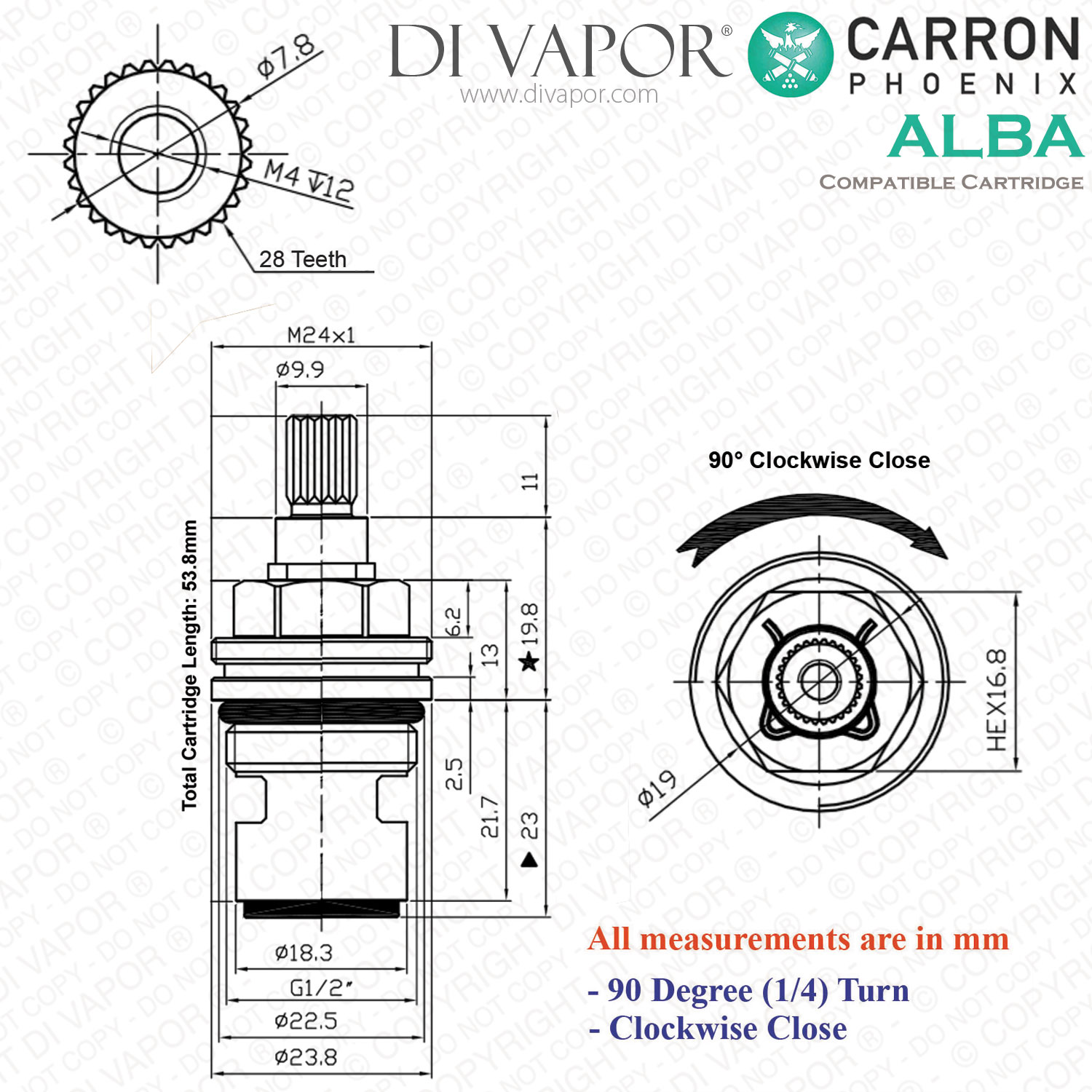

There is a diagram of the measurements on the second photo in the gallery above. Please compare these with the measurements of the Carron Phoenix Alba cartridge you need to replace.
Please contact us if you get confused with which Carron Phoenix spare part (or other spares) you need. We are ever ready and willing to assist you.
Part number CP-AL70 is the hot side counterpart of this cartridge. Please visit the page for other information about this Carron compatible spare part.
Carron Phoenix Alba Tap Cartridge Replacement Guide
The steps to changing the Carron Phoenix Alba cartridge are simple. Make sure to check if you have isolated water supplies before starting the kitchen tap repair.
1. Remove the circular button on the side of the Carron Alba tap to access the grub screw.
2. The grub screw is found in the recess of the handle. Use an Allen key to loosen it and remove the handle.
3. Grip a spanner on the nut of the old cartridge and turn it anti-clockwise to remove the cartridge.
4. Apply plumbing grease on the O-ring of the new Carron Phoenix Alba tap cartridge and seat it in the valve.
5. Tighten the cartridge using the spanner.
6. Restore the handle, the screw, and the circular button.
