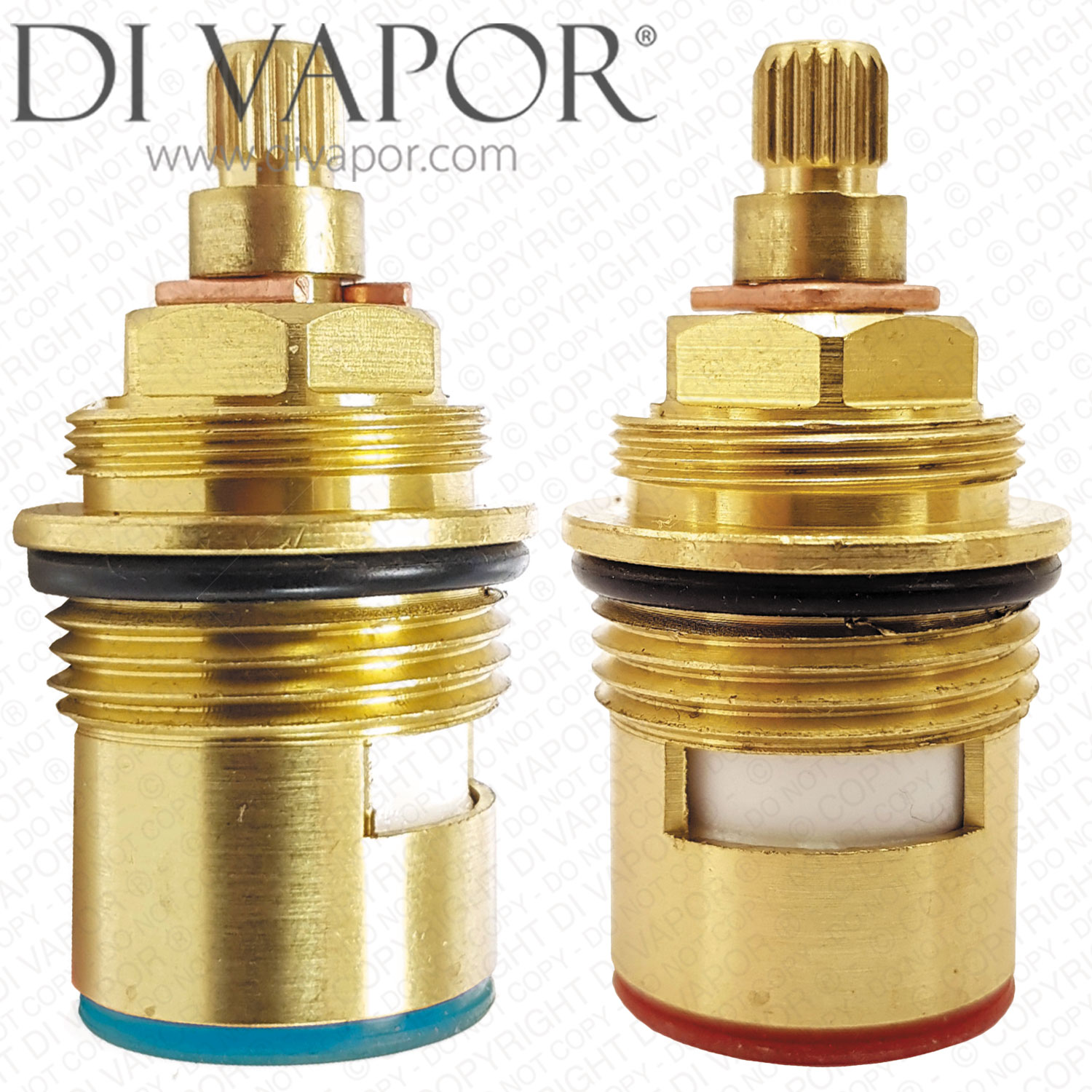

Bristan VS03-C20 3/​4" Ceramic Disc Tap Cartridge Pair (Hot & Cold)

SUMMARY

• Number of teeth on top spindle spline (which the handle connects onto): 20


• Width of top spindle spline (which the handle connects onto): 7.5mm


• Size: 3/4" BSP


• Total Height: 55.6mm


• Bottom Section (top of black o-ring to bottom): 25.9mm

Bristan VS03-C20 is a hot and cold pair of 3/4 inch ceramic disc tap cartridges for selected Bristan bath tap, bath filler and bath shower mixer products. The pair is used to restore separate hot and cold on-off flow control where the original quarter-turn ceramic disc valves are worn, stiff, passing water or causing dripping from the spout when the tap is turned off.

This VS03-C20 pair is listed for Bristan Orta, Pisa, Quest and Smile tap valves and is also referenced as VS03-C20 PAIR in Bristan spare parts data. Check the existing cartridge, tap model code and product revision before ordering because Bristan tap spares can vary between older and newer versions.

Technical Details

- - Part Number: VS03-C20

- - Part type: ceramic disc tap cartridge pair

- - Supplied as: hot and cold pair

- - Valve size: 3/4 inch BSP

- - Operation: quarter-turn ceramic disc valve control

- - Top spindle spline: 20 teeth

- - Top spindle spline width: 7.5mm

- - Total height: 55.6mm

- - Bottom section from top of black o-ring to bottom: 25.9mm

- - Bristan valve reference wording: 8/20 ceramic disc valves

Confirmed Compatible Models

- - Bristan OR 3/4 C Orta Bath Taps Spare Parts

- - Bristan OR BF C Orta Bath Filler Spare Parts

- - Bristan OR BSM C Orta Bath Shower Mixer Spare Parts

- - Bristan OR BSM E8 C Orta Bath Shower Mixer 8 Litre Flow Limit Spare Parts

- - Bristan Orta Bath Shower Mixer 6 Litre Flow Limit Spare Parts

- - Bristan PS 3/4 C Pisa Bath Taps Spare Parts

- - Bristan PS BF C Pisa Bath Filler Spare Parts

- - Bristan PS2 BF C Pisa Bath Filler Spare Parts

- - Bristan PS BSM C Pisa Bath Shower Mixer Spare Parts

- - Bristan QST 3/4 C QUEST Bath Taps Spare Parts

- - Bristan QST BF C QUEST Bath Filler Spare Parts

- - Bristan QST BSM E8 C QUEST Bath Shower Mixer 8 Litre Flow Limit Spare Parts

- - Bristan SM BF C Smile Bath Filler Spare Parts

- - Bristan SM BSM C Smile Bath Shower Mixer Spare Parts

- - Bristan DUL BF C Design Utility Lever Bath Filler Tap Spare Parts

- - Bristan DUL BSM C Design Utility Lever Bath Shower Mixer Spare Parts

- - Bristan DUL 3/4 C Design Utility Lever Bath Taps

Before You Order

- - Match the full Bristan model code and the removed valve before ordering.

- - Check the 20-tooth spline, 3/4 inch BSP thread and overall cartridge height against the original part.

- - For Quest models, confirm the tap revision because later Bristan spare tables can list a different valve on some current Quest products.

- - Use a suitable silicone grease on o-rings and seals during installation to help the cartridge seat correctly.

Related Spares You May Need

- - TACSIL 3g Premium Cartridge Silicone Grease - WRAS Approved

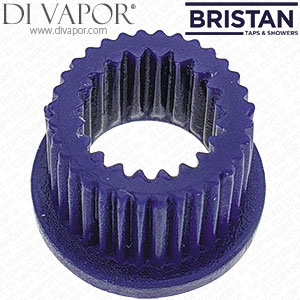

- - Bristan SA03 Spline adaptor for PISA range

- - Bristan SA01 Spline Adaptor for QST 3/4 C

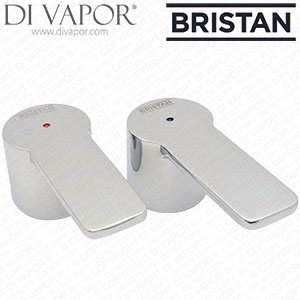

- - Bristan BLH178 Handle Assembly
