Bristan VS01-C24 Pair of Cartridge (Post 2009) (VS01-C24 PAIR Compatible Spare)
Send a photo of your item and we'll help confirm it.
Summary
Bristan VS01-C24 Pair of Cartridge (Post 2009) (VS01-C24 PAIR Compatible Spare)

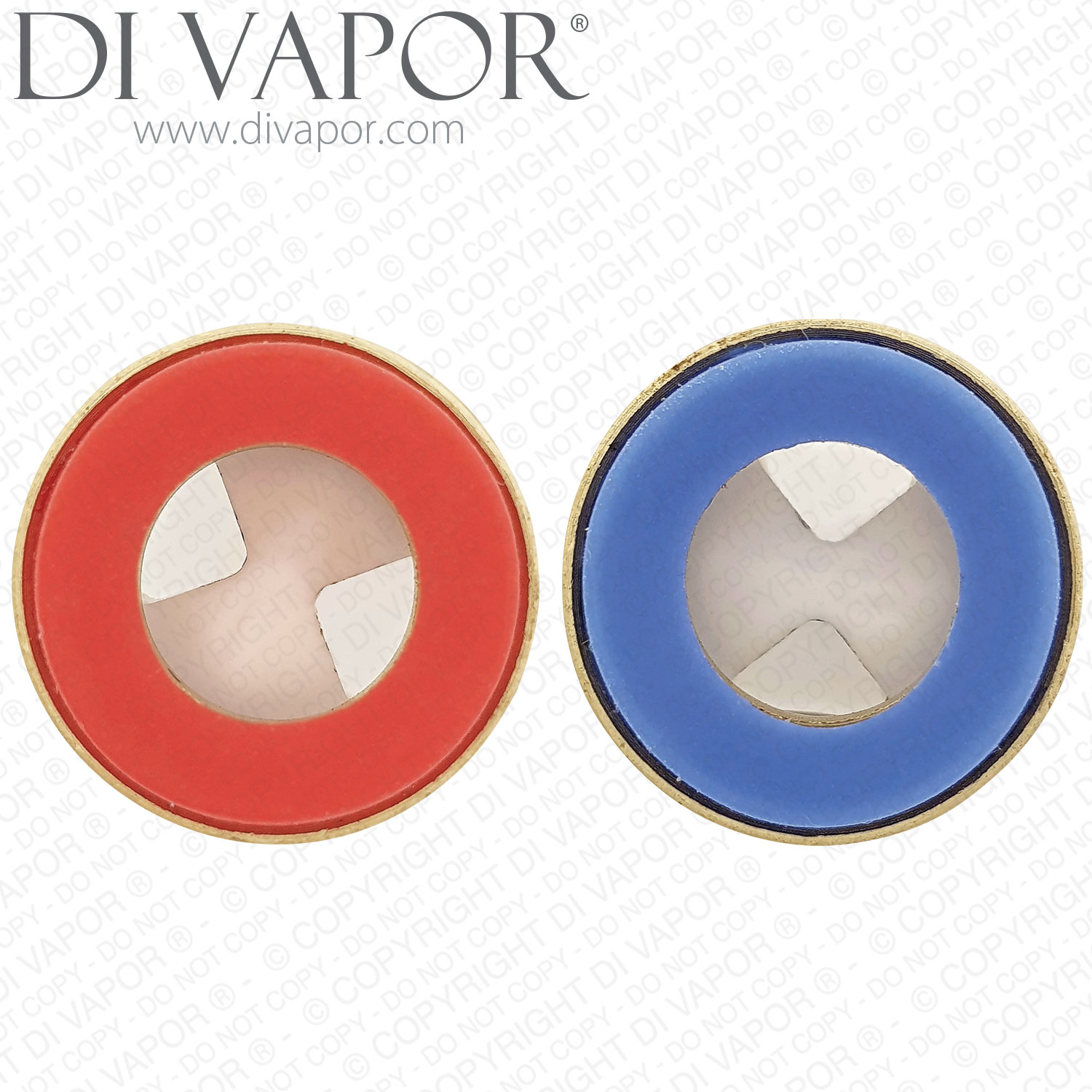

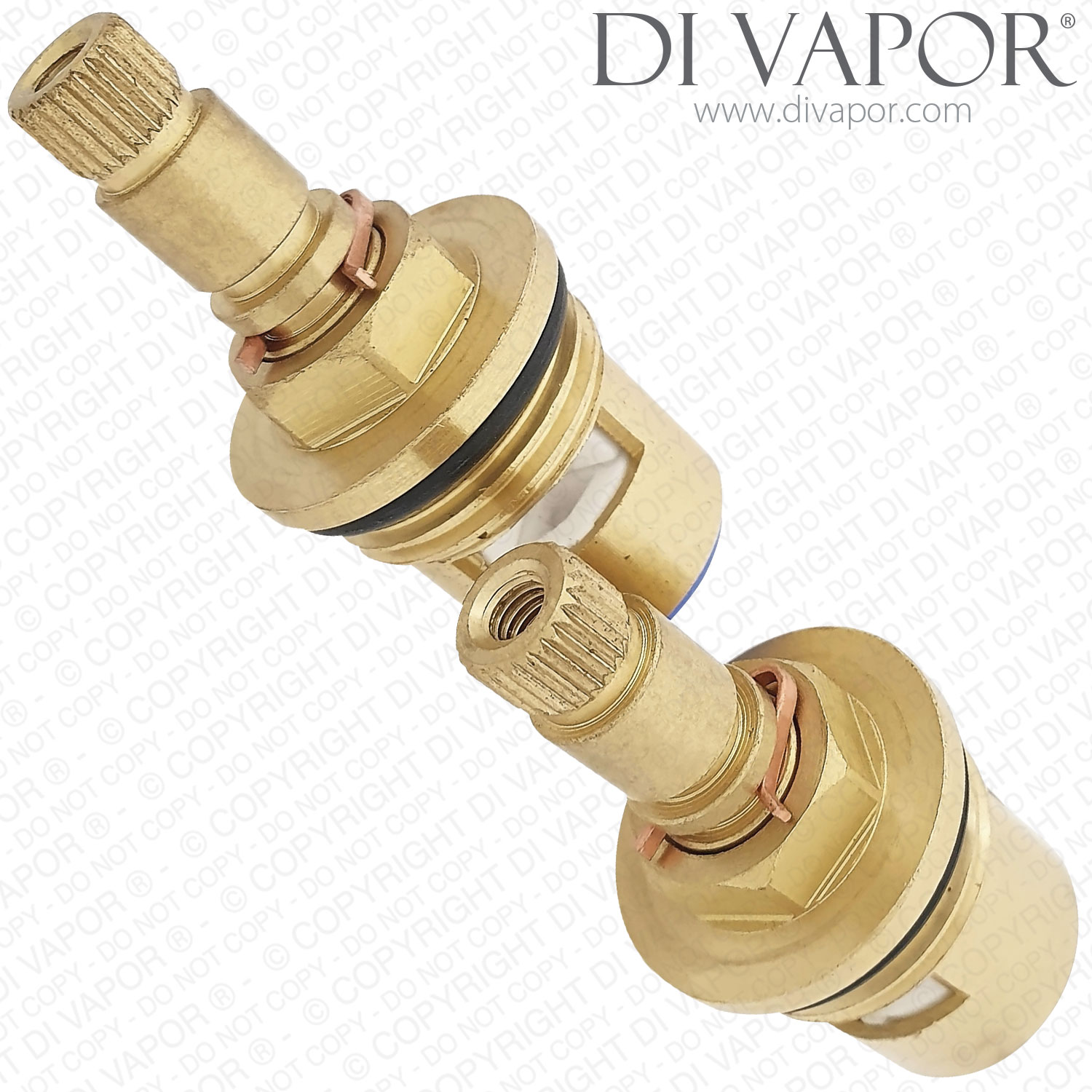

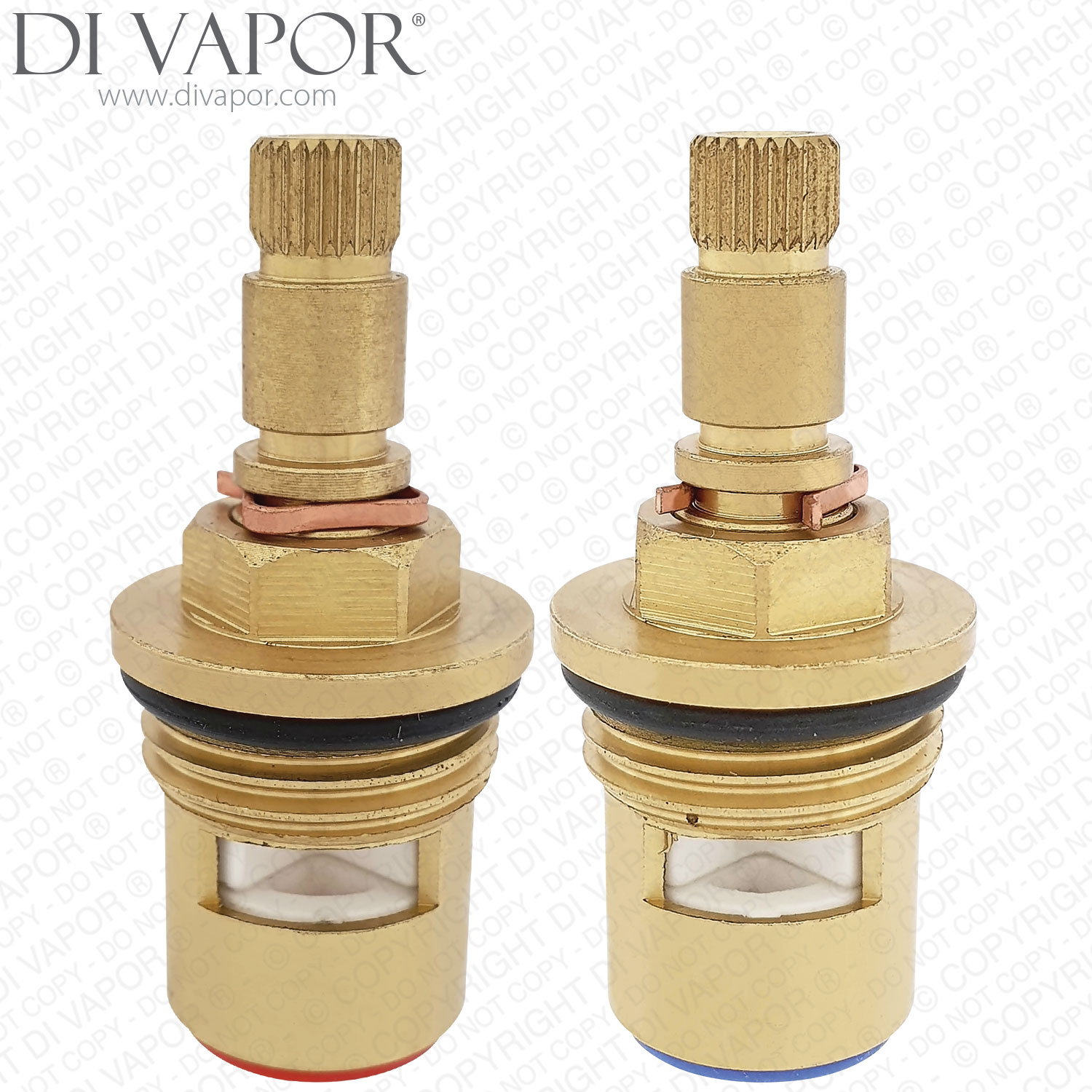

The VS01-C24 is a Bristan post 2009 pair of compatible 1/2 inch ceramic disc tap valve cartridges for selected Bristan basin taps, kitchen taps and tap reviver products using the VS01-C24 PAIR valve set.
This cartridge pair is used to restore smooth quarter-turn hot and cold water control where the existing valves are worn, stiff, leaking from the tap spout when turned off, or no longer shutting off cleanly.
Technical Details
| Product code | VS01-C24 |
|---|---|
| Valve type | 1/2 inch ceramic disc tap cartridges |
| Pack | pair of hot and cold valves |
| Operation | quarter-turn ceramic disc |
| Handing | one clockwise close valve and one anti-clockwise close valve |
| Teeth / spline count | 24 |
| Body material | brass |
| Approximate overall length | 51.08mm |
| Approximate diameter | 23.5mm |
| Seals | two o-rings |
Before Ordering
Check the existing tap revision, valve length, spline count, closing direction and post 2009 requirement before ordering. Older or newer versions of the same tap range may use different spare parts.
Confirmed Compatible Models
- Bristan CAD 1/2 C Cadet Basin Taps
- Bristan J 1/2 E4 C Java Basin Taps 4 Litre Flow Limit
- Bristan J 1/2 E6 C Java Basin Taps Eco 6 Litre
- Bristan VAL 1/2 E6 C CD Lever Basin Taps with 3 Inch 76mm Levers
- Bristan VAL 1/2 C 6 CD Lever Basin Taps with 6 Inch 152mm Levers
- Bristan VAL BIB C CD Lever Sink Mixer
- Bristan VAL BIB C 6 CD Lever Bib Taps with 6 Inch 152mm Levers
- Bristan VAL HNK C CD Lever High Neck Pillar Taps with 3 Inch 76mm Levers
- Bristan VAL HNK C 6 CD Lever High Neck Pillar Taps with 6 Inch 152mm Levers
- Bristan VAL DSM C CD Lever Bridge Deck Mixer
- Bristan VAL DSM C 6 CD Lever Bridge Deck Mixer with 6 Inch 152mm Levers
- Bristan VAL BRDSM C CD Lever Bridge Sink Mixer
- Bristan VAL BRDSM C 6 CD Lever Bridge Sink Mixer with 6 Inch 152mm Levers
- Bristan VAL PSNK C CD Lever Pillar Bridge Sink Mixer with 3 Inch 76mm Levers
- Bristan VAL PSNK C CD Lever Pillar Bridge Sink Mixer 6/2/2009
- Bristan VAL SNK C CD Lever Sink Mixer 6/2/2009
- Bristan VAL BAS E4 C CD Lever Eco 4 Litre Basin Mixer
- Bristan VAL BAS E6 C CD GEN1 Lever Eco 6 Litre Basin Mixer
- Bristan R 1/2 LEV CD Basin Tap Reviver with Ceramic Discs and Lever Handles
Related Spares You May Need
- TACSIL 3g Premium Cartridge Silicone Grease - WRAS Approved

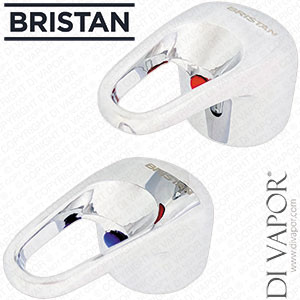

- Bristan BLH42 Handle Assembly - Pair for Cadet Range

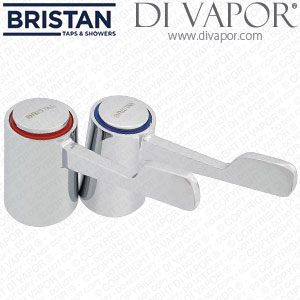

- Bristan BLH251 Handle Assembly

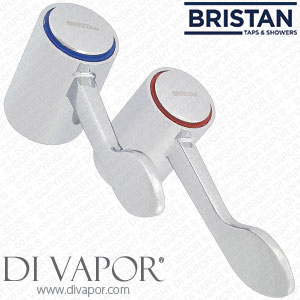

- Bristan BLH18 Handle Assembly Pair for Commodity Lever 3IN Chrome
- Bristan BLH17 Tap Lever Handles Post 2009 - Pair
If the existing cartridge or tap version is uncertain, use the Di Vapor part identification service before ordering.
