Bristan ST-PM-B7-AS5 Cartridge for Prism Valves
SUMMARY
Bristan ST-PM-B7-AS5 Cartridge for Prism Valves

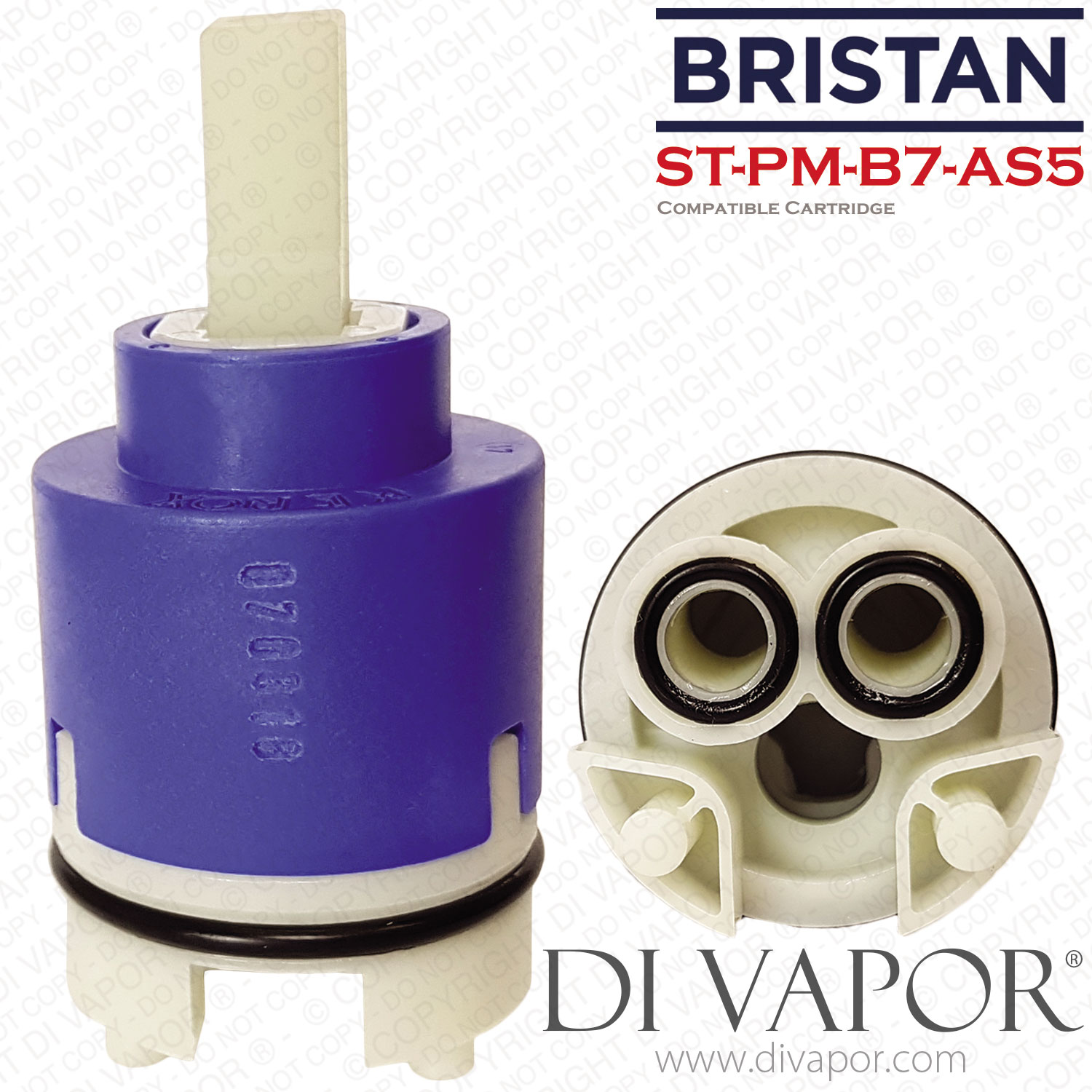

The Bristan ST-PM-B7-AS5 is a single-lever mixer tap cartridge used in the Bristan Prism PM 1HBF C 1 Hole Bath Filler. It sits inside the tap body beneath the operating lever and controls water flow and the mixing of hot and cold water through the single lever.
Technical Details
- - Bristan part code: ST-PM-B7-AS5
- - Diameter at blue body: 40mm
- - Barrel diameter: 40mm
- - Total length excluding locating pins: 75mm
- - Distance between locating pins centre to centre: 18mm
- - Top square plastic handle connection: 9mm x 9mm
Confirmed Compatible Models
- - Bristan Prism PM 1HBF C 1 Hole Bath Filler
Before Ordering
Compare the cartridge dimensions, locating-pin spacing and 9mm x 9mm square handle connection with the part removed from your tap. Do not identify the cartridge from the body diameter alone.
Not sure this is the right cartridge? Use the Di Vapor Part Identification Service for help.
Related Spares You May Need
- - Bristan ST-PM-B7-AS3 Clamping Kit for PM 1HBF C
- - Bristan ST-PM-B7-AS2 Flow Straightener Assembly for PM BF C
